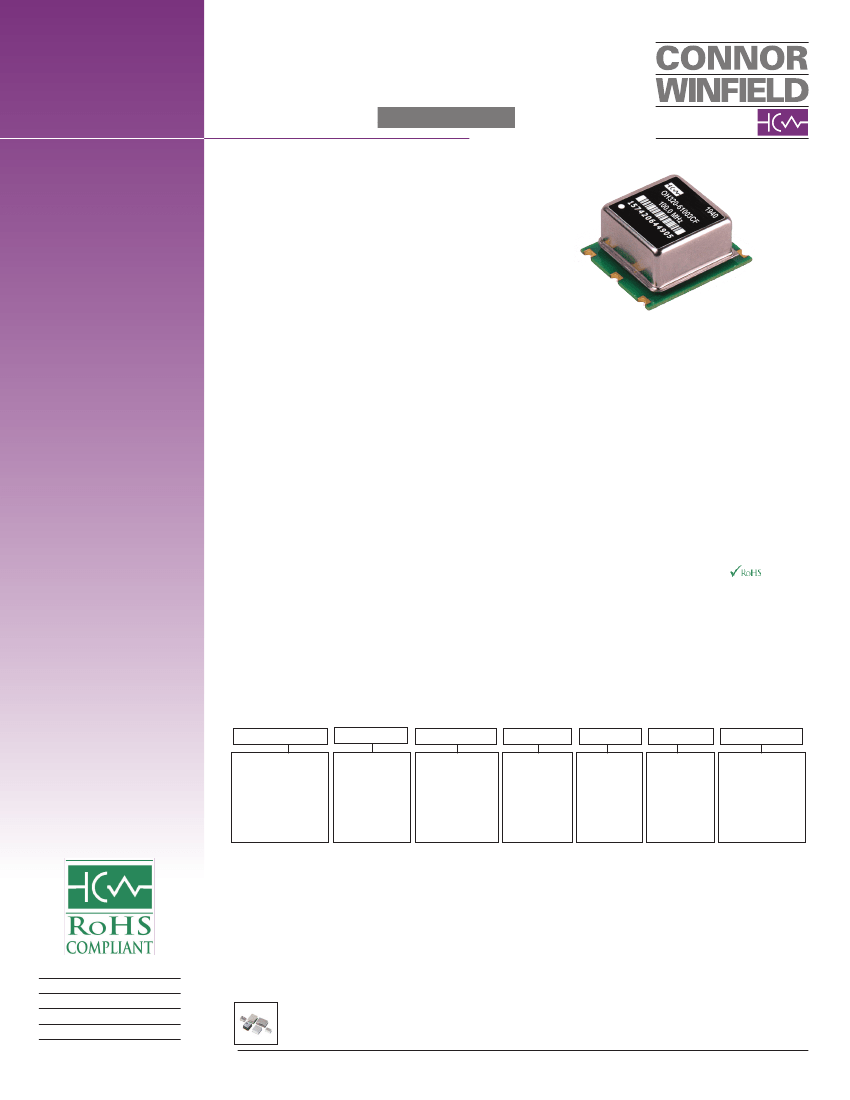

High Stability OH320 Series
Oven Stabilized Oscillator
OCXO / VCOCXO
Description
Connor-Winfield’s high stability OH320 series
are exceptionally precise frequency standards,
excellent for use in cellular base stations, test
equipment, Synchronous Ethernet, VSAT and
STRATUM 3E applications
These unique OCXO / VCOCXO Oscillators
provide frequency stabilities in the range of ±5
ppb to ±50 ppb, over the commercial, extended
commercial or the industrial temperature
range. Power requirements are 1.1W over the
commercial temperature range and 1.5W over
the industrial temperature range after warm-up.
Additionally, excellent aging is achieved through
the use of overtone SC cut crystals.
The OH320 series is available with CMOS
logic or Sinewave output along with Voltage
Controlled option. These oscillators provide
outstanding phase noise that varies depending
on frequency requirements. Allan Variance
specifications are rated for primary reference
standards. Warm up times are on the order of 5
minutes to 0.10 ppm of final frequency.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Features
•
Frequency Range: 5 to 100 MHz
•
OCXO - Fixed Frequency
•
VCOCXO - Voltage Controlled Option
•
3.3 Vdc or 5.0 Vdc Operation
•
Available Frequency Stabilities:
±5.0 ppb, ±10.0 ppb, ±20 ppb or ±50 ppb
•
Available Temperature Ranges:
0 to 70°C, -20 to 70°C, -20 to 75°C,
-40 to 70°C or -40 to 85°C
•
Low Phase Noise / Phase Jitter
•
Output: CMOS Logic or Sinewave
•
SMT Package: 22 mm x 25 mm x 12.7 mm
•
Tape and Reel Packaging
•
RoHS Compliant / Lead Free
Ordering Information
OH320-
Package
OH320- = 22x25mm
Surface Mount
Package
6
Temperature
Range
5 = 0 to 70°C
6 = -40 to 85°C
7 = -20 to 70°C
8 = -40 to 70°C
9 = -20 to 75°C
10
Frequency Stability
05 = ±5.0 ppb*
10 = ±10.0 ppb
20 = ±20.0 ppb
50 = ±50.0 ppb
03
Supply Voltage
03 = 3.3 Vdc
05 = 5.0 Vdc
C
Output Type
C = CMOS
S = Sinewave
F
OCXO Type
F = Fixed
Freq.
V = Voltage
Controlled
Option.
- 038.88M
Output Frequency
Frequency Format
-xxx.xM Min*
-xxx.xxxxxxM Max*
*Min of 1 and Max
of 6 digits after
the decimal point.
M=MHz
*
±5.0 ppb stability models are
only available over temperature
ranges 0 to 70°C and -20 to 70°C.
Example Part Number:
OH320-61003CF-038.88M = 22x25x12.7mm SMT package, -40 to 85°C temperature range, ±10.0 ppb frequency stability, 3.3 Vdc supply
voltage, CMOS square wave output, fixed output frequency OCXO, 38.88 MHz output frequency.
OH320-52005CV-010.0M = 22x25x12.7mm SMT package, 0 to 70°C temperature range, ±20.0 ppb frequency stability, 5.0 Vdc supply
voltage, CMOS square wave output, voltage controlled output frequency, VCOCXO, 10.0 MHz output frequency.
OH320-75005SV-020.0M = 22x25x12.7mm SMT package, -20 to 70°C temperature range, ±50.0 ppb frequency stability, 5.0 Vdc supply
voltage, Sinewave output, voltage controlled output frequency, VCOCXO , 20.0 MHz output frequency.
Bulletin
Page
Revision
Date
Cx310
1 of 6
00
19 Dec 2019
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Absolute Maximum Ratings
Parameter
Storage Temperature
Supply Voltage
Control Voltage (Vc)
Operating Supply Voltage 3.3 Vdc (Vcc)
Operating Supply Voltage 5.0 Vdc (Vcc)
Minimum
-55
-0.5
-0.5
3.13
4.75
Nominal
-
-
-
3.30
5.00
Maximum
125
6.0
7.0
3.47
5.25
Units
°C
Vdc
Vdc
Vdc
Vdc
Notes
Absolute Ratings: Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress
ratings only. The functional operation of the device at those or any other conditions beyond those indicated under "recommended operating
conditions" is not implied. Exposure to conditions outside the "recommended operating conditions" for any extended period of time may adversely
impact device reliability and result in failures not covered by warranty.
Operating Specifications
Parameter
Center Frequency: (Fo)
Operating Temperature Range:
Temperature Code 5
Temperature Code 6
Temperature Code 7
Temperature Code 8
Temperature Code 9
Frequency Calibration:
Frequency Stability vs. Change in Temperature:
Stability Code 05
Stability Code 10
Stability Code 20
Stability Code 50
Frequency Stability vs. Load
Frequency Stability vs. Voltage
Aging: Daily:
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Aging: First Year:
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Lifetime Tolerance: (20 Years)
5 MHz to 20 MHz
>20 MHz to 40 MHz
>40 MHz to 50 MHz
Supply Voltage: (Vcc)
Voltage Code 03
Voltage Code 05
Power Consumption: Turn-On
0 to 70°C Models
-20 to 70°C Models
-20 to 75°C Models
-40 to 85°C Models
Power Consumption: Steady State @ 25°C
0 to 70°C Models
-20 to 70°C Models
-20 to 75°C Models
-40 to 85°C Models
Phase Jitter: (BW: 10 Hz to Fo/2)
Short Term Allan Deviation (1s) Fo = 10 MHz
Start-Up Time:
Warm Up Time @ 25°C:
Minimum
5
0
-40
-20
-40
-20
-0.1
-5.0
-10.0
-20.0
-50.0
-2.0
-2.0
-1.0
-2.0
-3.0
-50
-100
-200
-300
-500
-600
3.13
4.75
-
-
-
-
-
-
-
-
-
-
-
-
Nominal
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
3.30
5.00
-
-
-
-
-
-
-
-
-
1.0E-11
-
-
Maximum
100
70
85
70
70
75
0.1
5.0
10.0
20.0
50.0
2.0
2.0
1.0
2.0
3.0
50
100
200
300
500
600
3.47
5.25
3.00
3.20
3.30
3.80
1.10
1.15
1.20
1.50
1.0
-
500
5
Units
MHz
°C
°C
°C
°C
°C
ppm
ppb
ppb
ppb
ppb
ppb
ppb
ppb/day
ppb/day
ppb/day
ppb
ppb
ppb
ppb
ppb
ppb
Vdc
Vdc
W
W
W
W
W
W
W
W
ps rms
ms
minutes
Bulletin
Page
Revision
Date
Notes
@ 25°C
1, 2
2
2
2
±5%
±5%
3
3
3
4
4
4
5
5
6
6
6
6
6
6
6
6
7
Cx310
2 of 6
00
19 Dec 2019
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2019 The Connor-Winfield Corporation
Not intended for life support applications.
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Phase Noise Characteristics
Parameter
SSB Phase Noise
@ 1Hz offset
@ 10Hz offset
@ 100Hz offset
@ 1KHz offset
@ 10KHz offset
@ 100KHz offset
5 - 12 MHz
-85
-115
-140
-145
-150
-150
Typical Phase Noise for OH320-series with CMOS Output
>12- 20 MHz
-80
-110
-135
-140
-150
-150
>20 - 30 MHz
-70
-100
-125
-140
-150
-150
>30 - 40 MHz
-65
-95
-120
-140
-150
-150
>40 - 50MHz
-65
-95
-120
-135
-150
-150
Units
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Notes
Input Characteristics - Voltage Controlled Option (OCXO Type Code V)
Parameter
Control Voltage Range: (Vc)
3.3 Vdc Models
5.0 Vdc Models
Frequency Pullability:
Input Impedance
Minimum
0.30
0.50
±0.4
100K
Nominal
1.65
2.50
-
-
Maximum
3.00
4.50
-
-
Units
V
V
ppm
Ohms
Notes
8
8
CMOS Output Characteristics (Output Code C)
Parameter
Load
3.3 Vdc Models
Output Voltage: High (Voh)
Low (Vol)
Output Current: High (Ioh)
Low (Iol)
5.0 Vdc Models
Output Voltage: High (Voh)
Low (Vol)
Output Current: High (Ioh)
Low (Iol)
Duty Cycle at 50% of Vcc
Rise / Fall Time: 10% to 90%
Spurious Output
Minimum
-
3.0
-
-4
-
4.7
-
-8
-
45
-
-
Nominal
15
-
-
-
-
-
-
-
-
50
-
-
Maximum
-
-
0.4
-
4
-
0.4
-
8
55
6
-80
Units
pF
V
V
mA
mA
V
V
mA
mA
%
ns
dBc
Notes
Sinewave Output Characteristics (Output Code S)
Parameter
Load
Output Power
Harmonics
Spurious
OH320 Package
Minimum
-
5.0
-
-
Nominal
50
-
-
-
Maximum
-
-
-30
-80
Ohms
dBm
dBc
dBc
Units
Notes
Package Characteristics
The assembly consists of a hermetic water-resistant metal package mounted to an FR4 substrate
Re-Stabilization Time
Off Time
<1 Hour
<6 Hour
<24 Hour
1 to 16 Days
>16 Days
Re stabilization Time
<2 Hours *
<12 Hours *
<48 Hours *
48 Hours + 1/4 Off Time *
<6 Days *
* For a given off time, the time required to meet daily aging, short term stability requirements.
Notes:
1. ±5.0 ppb stability models are only available for temperature ranges 0 to 70°C and -20 to 70°C.
2. Frequency vs change in temperature, calculated as [(Fmax-Fmin)/(2*Fo)]. Control voltage at nominal value.
3. At time of shipment after 48 hours of operation.
4. Inclusive of calibration, operating temperature, supply voltage change, load change and 20 years aging.
5. Supply voltage must reach Vcc levels monotonically within a ramp-up time of <12 ms.
6. Measured with Vcc = Nominal, in calm air.
7. Measured @ 25°C, within ±100 ppb, referenced one hour after turn-on.
8. To ensure proper operation of VCOCXO, the control voltage input must be biased to the nominal control voltage.
Without any bias on the CV input, the VCOCXO frequency will be offset by approximately -1ppm.
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2019 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Cx310
3 of 6
00
19 Dec 2019
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com
Environmental Characteristics
100 G's 3ms, Halfsine, 3 shocks per direction, per MIL-STD 202G, Method 213B Test Condition D.
0.06” D.A. or 10G’s Peak, 10 to 500 Hz, per MIL-STD-202G, Method 204D, Test Condition A.
5.35 G’s rms. 20 to 2000 Hz per MIL-STD-202G, Method 214,Test Condition 1A, 15 minutes each axis.
70,000 ft max
10 cycles, 95% RH, Per MIL-STD-202G, Method 112.
Per MIL-STD-202G, Method 215J.
RoHS compliant, lead free. See solder profile on page 6.
Refer to recommended reflow pre-heat and reflow temperatures on page 6. Package material
consists of hermetic seal with FR4 substrate. Component solder is Pb free high temperature
eutectic alloy with a melting point of 221°C.|
In-line oven profile:
We recommend using KIC profiler or similar device placing one of the thermocouples on the
device to insure that the internal package temperature does not exceed 221°C.
Removal of device:
If for any reason the device needs to be removed from the board, use a temperature controlled
repair station with profile monitoring capabilities. Following a monitored profile will insure the
device is properly pre-heated prior to relow. Refer to IPC 610E for inspection guidelines.
Recommended Cleaning Process:
(If required)
Device is hermetic. We recommend in-line warm water wash
with air knife and drying capabilities. If cleaner does not have drying capability, then use hot air
circulated oven. Boards should be placed in the oven vertically for good water runoff
Device must be dried properly prior to use!
Note:
If saponifier is used make sure the device is rinsed properly to insure all residues are removed. PH of saponifier should
not exceed 10.
Drying Temperature:
Between 85 to 100°C.
Drying Time:
Time will vary depending on the board size.
Caution: Do not submerge the device!
Shock
Sinusoidal Vibration
Random Vibration
Altitude
Moisture
Marking Permanency
Solder Process Recommendations:
In-line reflow:

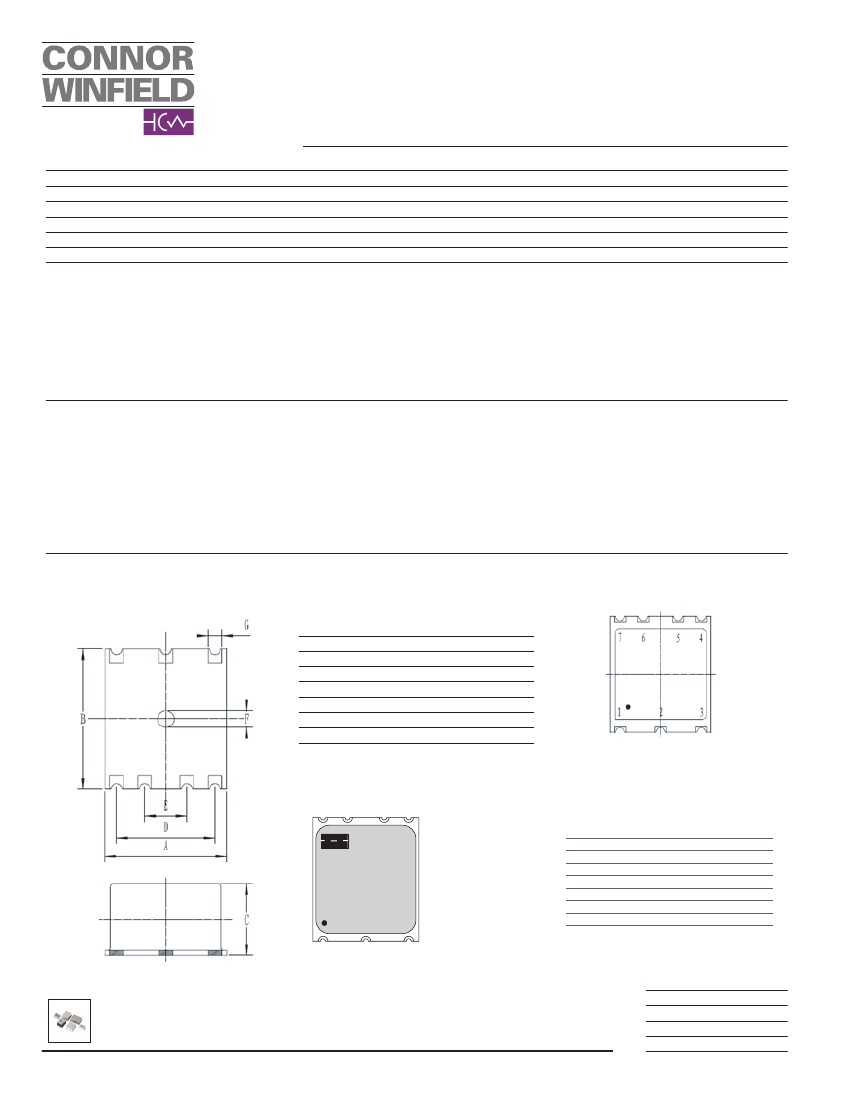

Package Outline
A
B
C
D
E
F
G
Package Dimensions
Symbol
Size (mm)
Min
Max
21.8
25.2
17.7
7.5
2.4
22.2
25.6
12.7
17.9
7.7
6.0
2.6
Suggested Pad Layout
Marking Information
I
(
W
1940
Date Code (YYWW)
Model Number
Output Frequency
Serial # Barcode
Serial Number
* Do not route any traces in the keep out area.
It is recommended the next layer under the
keep out area is to be ground plane.
Pad Connections
OH320-61003CF
100.0 MHZ
0123456789012
0123456789012
Pin
1:
2:
3:
4:
5:
6:
7:
Pin Function
Vc or N/C
N/C
Vcc
Output
N/C
N/C
GND
Pin 1
DO NOT connect "DNC" pads to ground
or supply rails.
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2019 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Cx310
4 of 6
00
19 Dec 2019
2111 Comprehensive Drive
Aurora, Illinois 60505
Phone: 630- 851- 4722
Fax: 630- 851- 5040
www.conwin.com

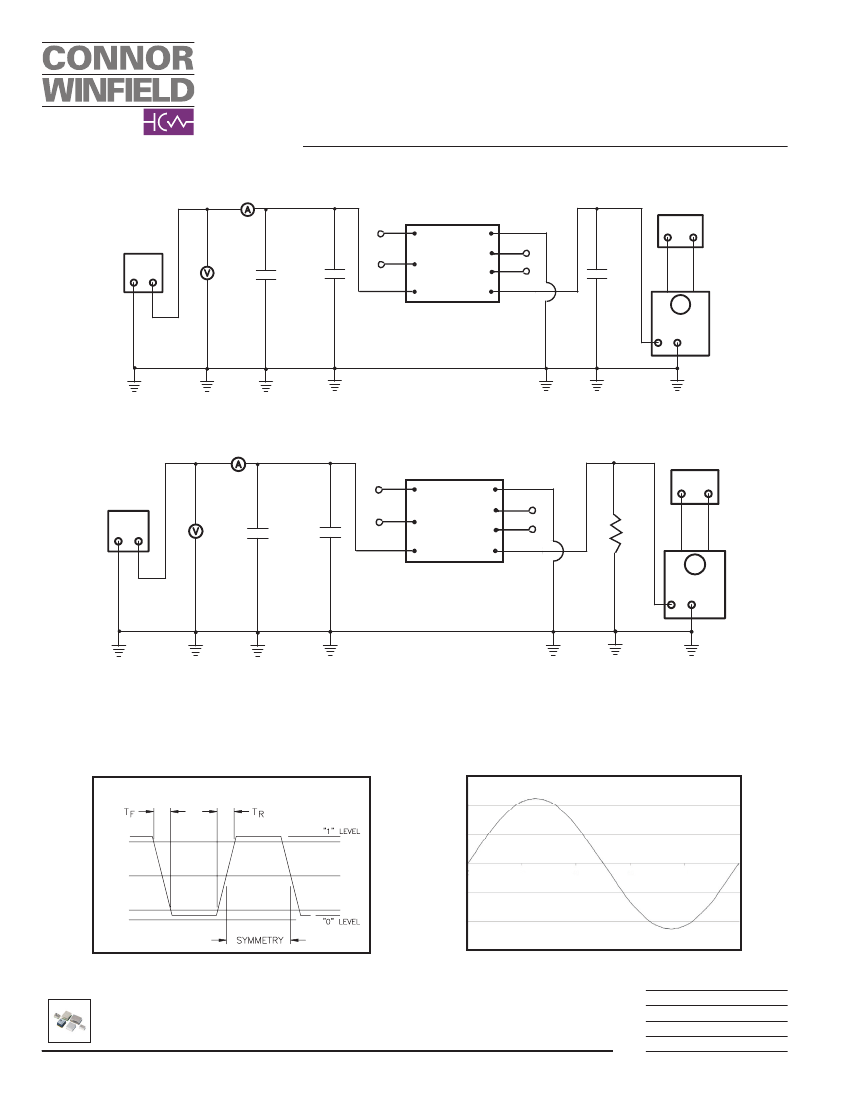

Test Circuit CMOS Output
Vcc
Power
Supply
-
+
10uF
to
100 uF
0.01 uF
Voltage
Control
or
N/C
1
N/C
2
Vcc
3
7
6
5
4
Frequency
Counter
Ground
DNC
DNC
15 pF
RF Out
Scope
DNC = Do Not Connect
DO NOT connect "DNC" pads
to ground or supply rails.
Ground
Test Circuit Sinewave Output
Vcc
Power
Supply
-
+
10uF
to
100 uF
0.01 uF
Voltage
Control
or
N/C
N/C
2
Vcc
3
Frequency
Counter
1
7
6
5
4
Ground
DNC
DNC
RF Out
Scope
50
Ohm
DNC = Do Not Connect
DO NOT connect "DNC" pads
to ground or supply rails.
Ground
CMOS Output Waveform
Sinewave Output Waveform
Sinewave Output, +5 dBm minimum into 50 Ohms
CMOS Output, Squarewave
90%
50%
10%
Attention: System Designers please review Application Note AN2093:
System Design Information and Printed Circuit Board Layout Guidelines for OCXO Oscillators.
@ www.conwin.com/support.html
Specifications subject to change without notification. See Connor-Winfield's website for latest revision.
© Copyright 2019 The Connor-Winfield Corporation
Not intended for life support applications.
Bulletin
Page
Revision
Date
Cx310
5 of 6
00
19 Dec 2019
DIY/Open Source Hardware
京公网安备 11010802033920号
EEWORLD
