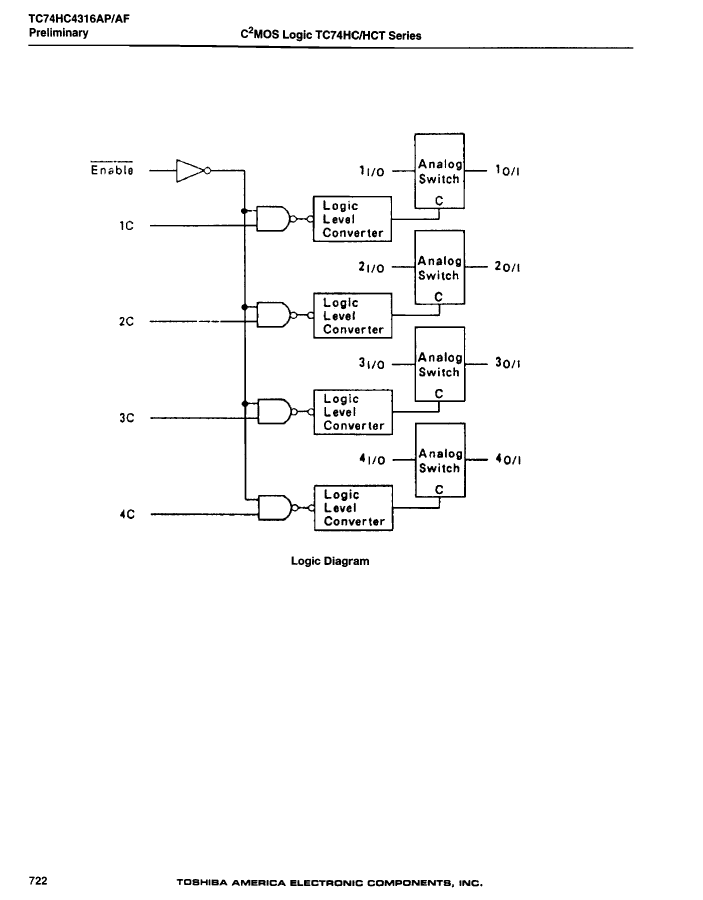

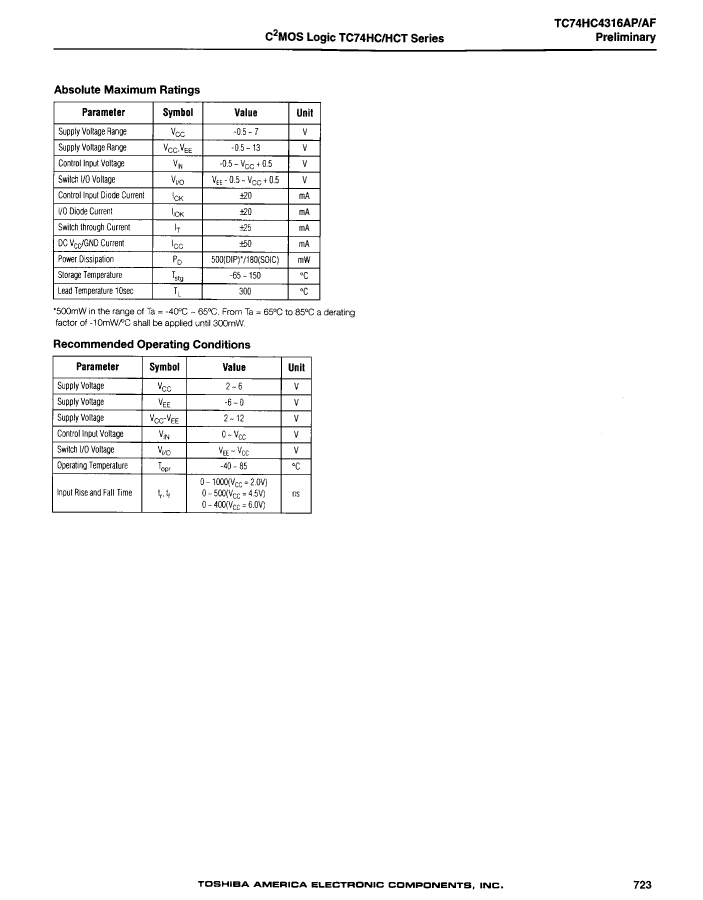

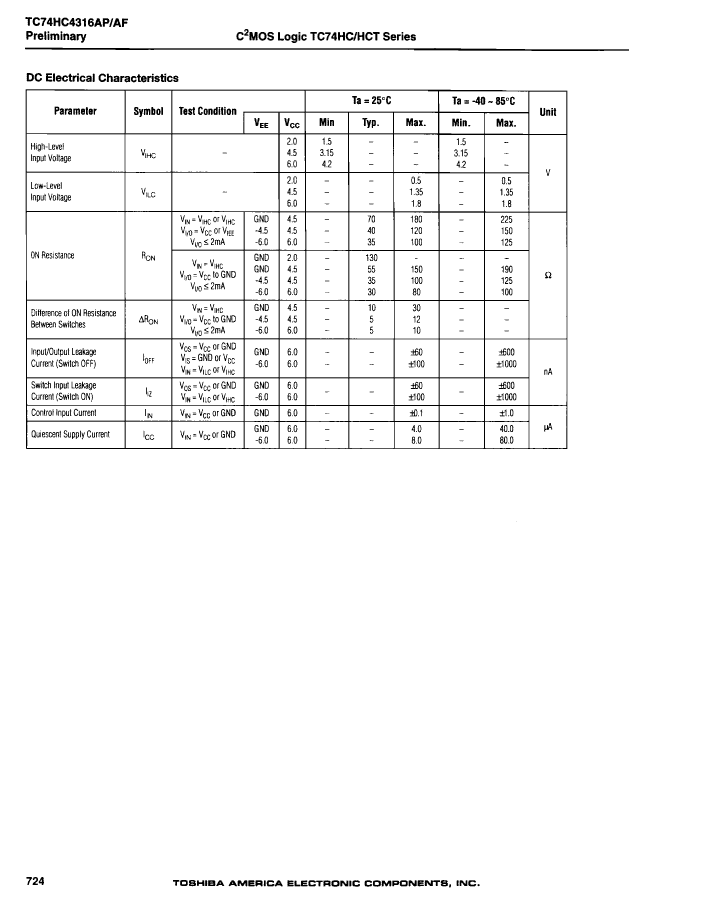

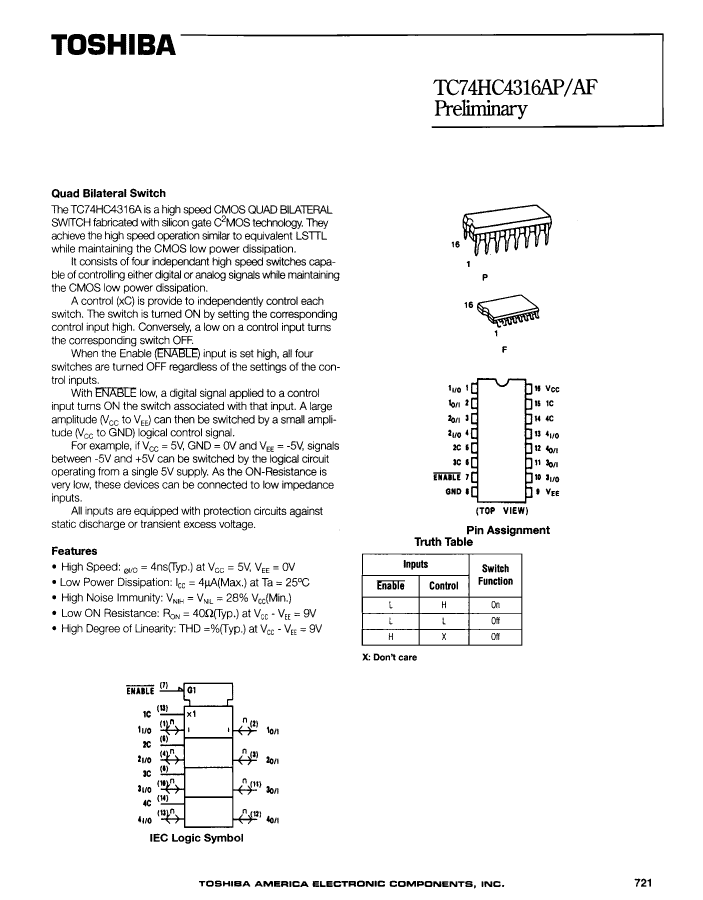

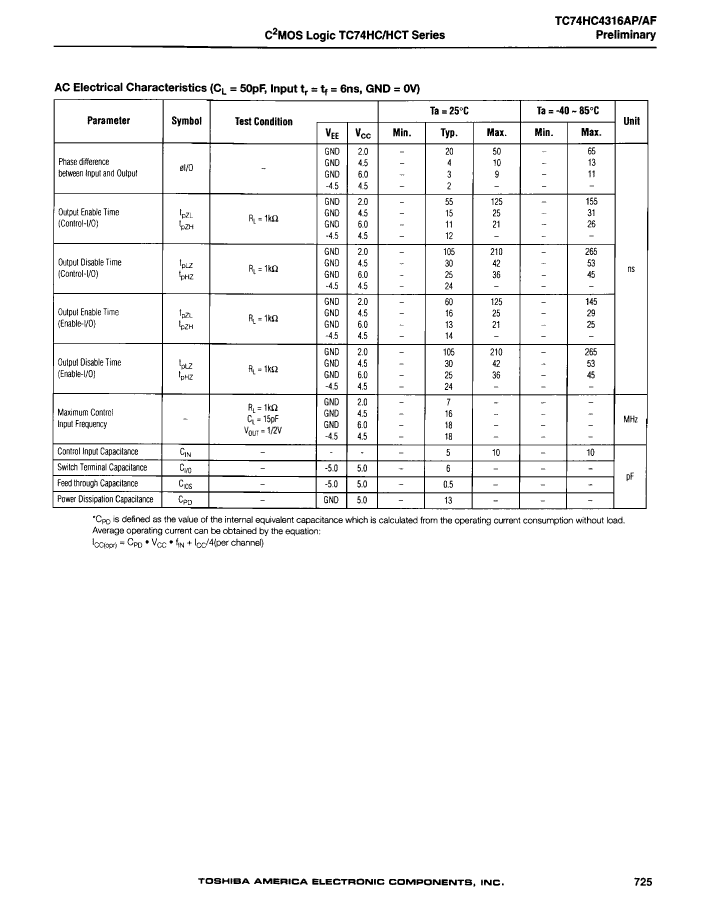

TC74HC4316AF-TP2EL: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size155KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4316AF-TP2EL Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PDSO16, 0.300 INCH, PLASTIC, SOIC-16, Multiplexer or Switch

TC74HC4316AF-TP2EL Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	R-PDSO-G16
length	10.3 mm
Nominal Negative Supply Voltage (Vsup)	-6 V
Number of channels	1
Number of functions	4
Number of terminals	16
On-state resistance matching specifications	5 Ω
Maximum on-state resistance (Ron)	100 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.9 mm
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	6 V
surface mount	YES
Maximum disconnect time	36 ns
Maximum connection time	21 ns
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm
Base Number Matches	1
