3380-78-10-00-PPTR datasheet, PDF

Datasheet> All Categories > The connector> The connector> 3380-78-10-00-PPTR

3380-78-10-00-PPTR: DescriptionBoard Connector, 78 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,; CategoryThe connector The connector; File Size406KB，2 Pages; ManufacturerW+P Products GmbH; Environmental Compliance

Download Datasheet Parametric Compare View All

3380-78-10-00-PPTR Overview

Board Connector, 78 Contact(s), 2 Row(s), Male, Straight, Surface Mount Terminal,

3380-78-10-00-PPTR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	W+P Products GmbH
Reach Compliance Code	compliant
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	78
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

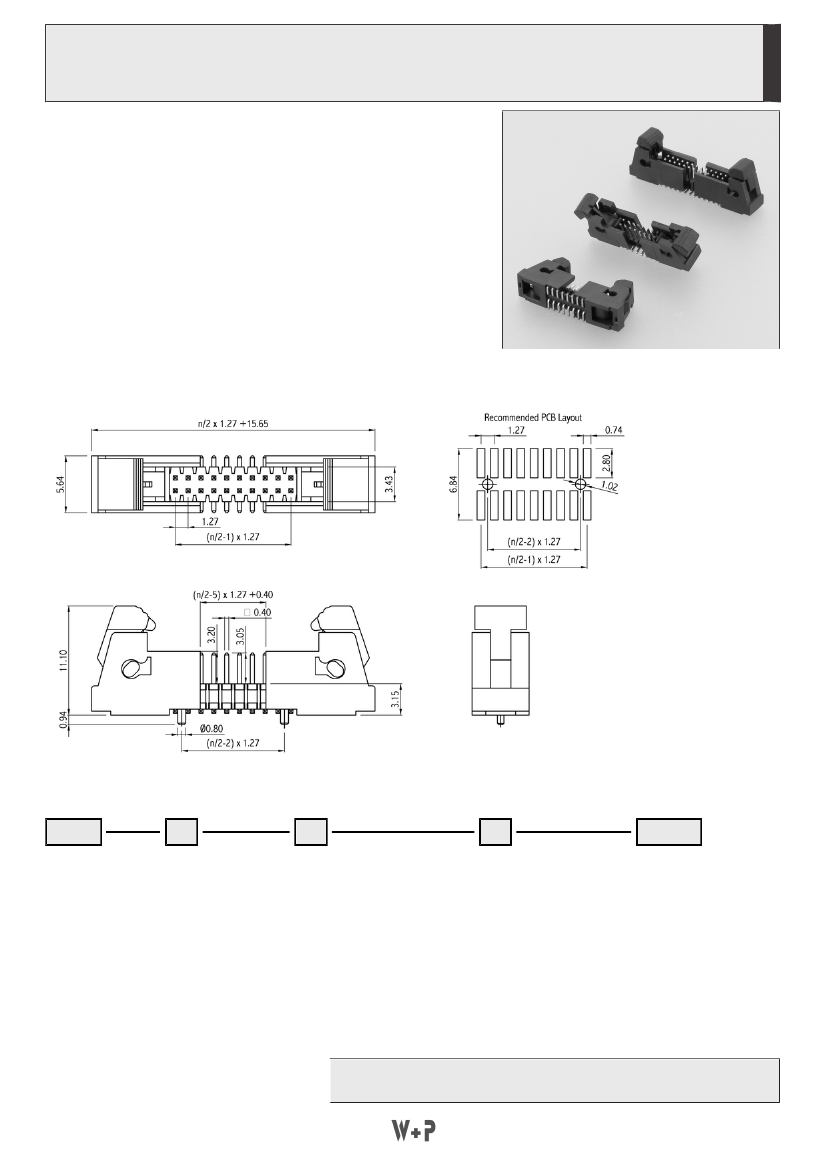

3380

SMT-Wannenstiftleisten mit Verriegelung RM 1,27mm, stehend

SMT Box Headers with Latches, 1.27mm Pitch, Vertical

Technische Daten /

Technical Data

Isolierkörper

Thermoplast, nach UL94 V-0

Insulator

Thermoplastic, rated UL94 V-0

Kontaktmaterial

Vierkantstift 0,40mm, Kupferlegierung

Contact Material

Square pin 0.40mm, copper alloy

Kontaktoberfläche

Lt. Oberflächenoptionen, über Ni (1,3 ... 2,5µm)

Contact Surface

Acc. to options (see below), over Ni (1.3 ... 2.5µm)

Durchgangswiderstand

< 20 mΩ

Contact Resistance

< 20 mΩ

Isolationswiderstand

> 1000 MΩ

Insulation Resistance

> 1000 MΩ

Spannungsfestigkeit

500 V AC

Test Voltage

500 V AC

Nennspannung

125 V AC

Voltage Rating

125 V AC

Nennstrom

Current Rating

Temperaturbereich

-40 °C ... +105 °C

Temperature Range

-40 °C ... +105 °C

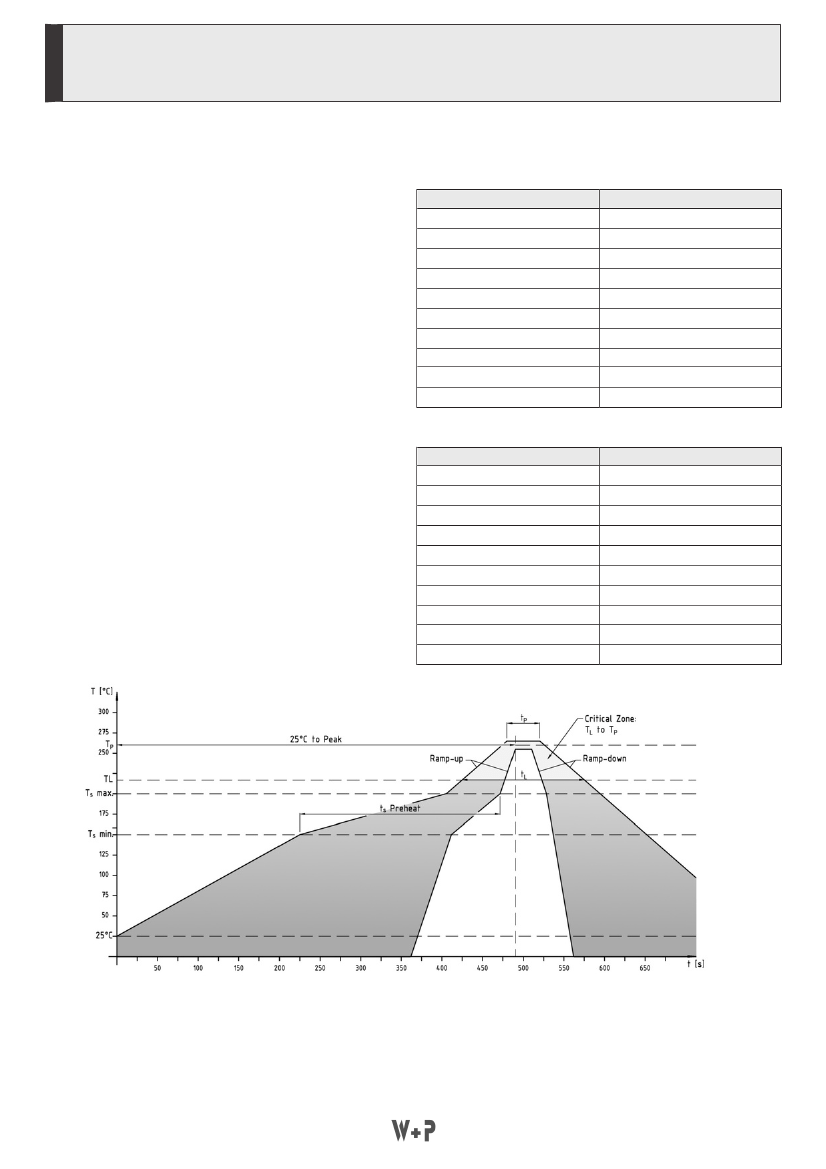

Verarbeitung

Reflow-Lötverfahren

Processing

Reflow soldering

Series

Contacts

Locating Pegs

Plating

Packaging

3380

10-100

Ohne Pos.hilfen

W/o loc. pegs

Mit Pos.hilfen

With loc. pegs

Vergoldet

Gold plated

Verzinnt

Tin plated

PPTR

PPTR (Option)

* Dies ist ein

Bestellbeispiel

bitte durch Ihre Spezifikationen ersetzen.

* This is an

order example

please replace by your specifications.

Lieferformen /

Packaging Options:

In Stangen ohne Pick&Place-Pads /

In tubes w/o Pick&Place-Pads

PPTR (Option)

Tape & Reel mit P&P-Pads /

Tape & Reel with P&P-Pads

TEL +49 5223 98507-0

E-MAIL sales@wppro.com

wppro.com/serie-XXX

wppro.com/series-XXX
