5338048-9

Description
9P. DIP SWITCH WITH ACTION PIN POSTS
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size241KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric Compare View All

5338048-9 Online Shopping

Suppliers Part Number Price MOQ In stock
5338048-9 - - View Buy Now

5338048-9 Overview

9P. DIP SWITCH WITH ACTION PIN POSTS

5338048-9 Parametric

Parameter NameAttribute value
sealno
Switch typeDIP
Actuator typeslide
Number of switches9
Configuration (pole throw)Single Pole - Single Throw
Contacts9
Actuator colorred
Terminal contact plating materialtin
Auto-InsertableNo
Terminal base materialPhosphor bronze
Terminal contact plating thickness (µm)2.5
Solder tail terminal platingtin
Termination cylinder length3.2 mm [ .1259 in ]
Installation typeACTION PIN™, through hole
installation anglevertical
Shell colornature
Shell materialNylon-GF
center line2.54 mm [ .1 in ]
length25.4 mm [ .999 in ]
high8.5 mm [ .334 in ]
Operating temperature range (°C)-25 – 70
UL flammability ratingUL 94V-0
Package quantity250
Encapsulation methodboxes and cartons

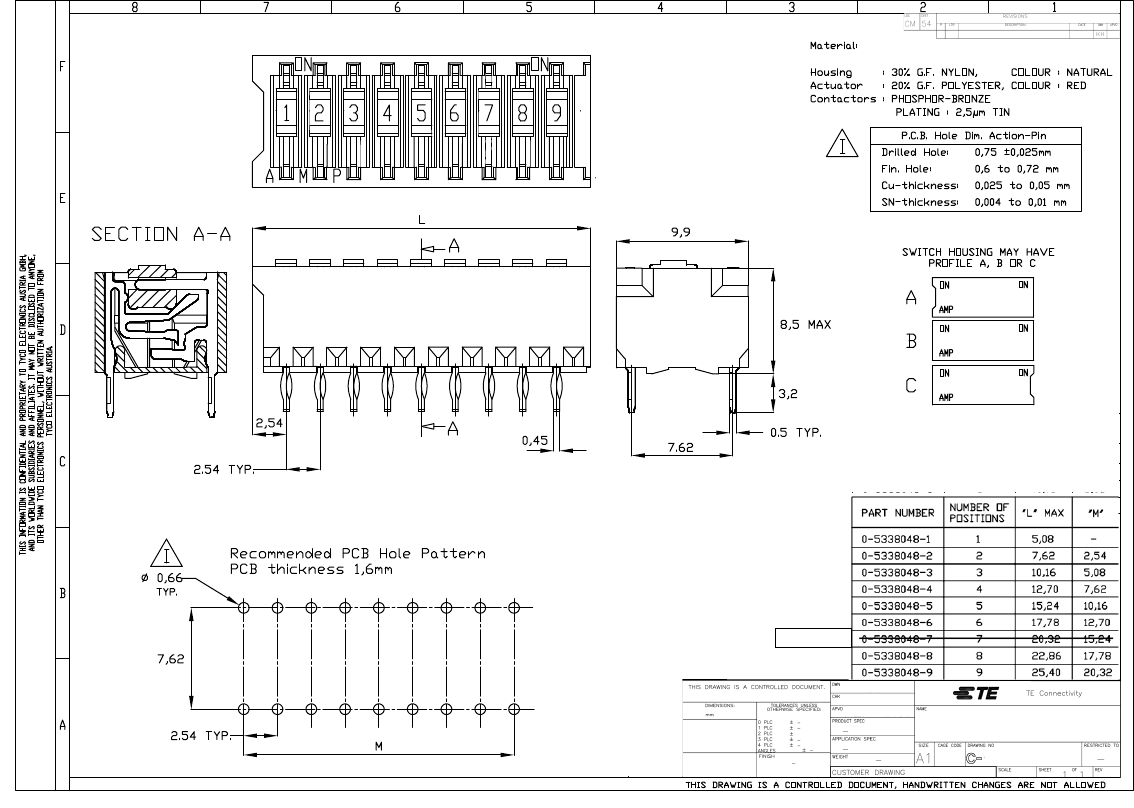

C
REVISED PER ECO-13-015791
10OCT2013
KH
RH
OBSOLETE
SA008712
18-9-07
DIP SWITCH
5338048
DIP SWITCH
-
ACTION PIN VERSION
ACTION PIN VERSION
MATERIAL
-
1
1
-
-
5338048
B
C

5338048-9 Related Products

5338048-9 5338048-1
Description 9P. DIP SWITCH WITH ACTION PIN POSTS 1P. DIP SWITCH WITH ACTION PIN POSTS
seal no no
Switch type DIP DIP
Actuator type slide slide
Number of switches 9 1
Configuration (pole throw) Single Pole - Single Throw Single Pole - Single Throw
Contacts 9 1
Actuator color red red
Terminal contact plating material tin tin
Auto-Insertable No No
Terminal base material Phosphor bronze Phosphor bronze
Terminal contact plating thickness (µm) 2.5 2.5
Solder tail terminal plating tin tin
Termination cylinder length 3.2 mm [ .1259 in ] 3.2 mm [ .1259 in ]
Installation type ACTION PIN™, through hole ACTION PIN™, through hole
installation angle vertical vertical
Shell color nature nature
Shell material Nylon-GF Nylon-GF
center line 2.54 mm [ .1 in ] 2.54 mm [ .1 in ]
length 25.4 mm [ .999 in ] 5.08 mm [ .199 in ]
high 8.5 mm [ .334 in ] 8.5 mm [ .334 in ]
Operating temperature range (°C) -25 – 70 -25 – 70
UL flammability rating UL 94V-0 UL 94V-0
Package quantity 250 2000
Encapsulation method boxes and cartons boxes and cartons
