HF3 56S=50OHM140MW 12V MONO

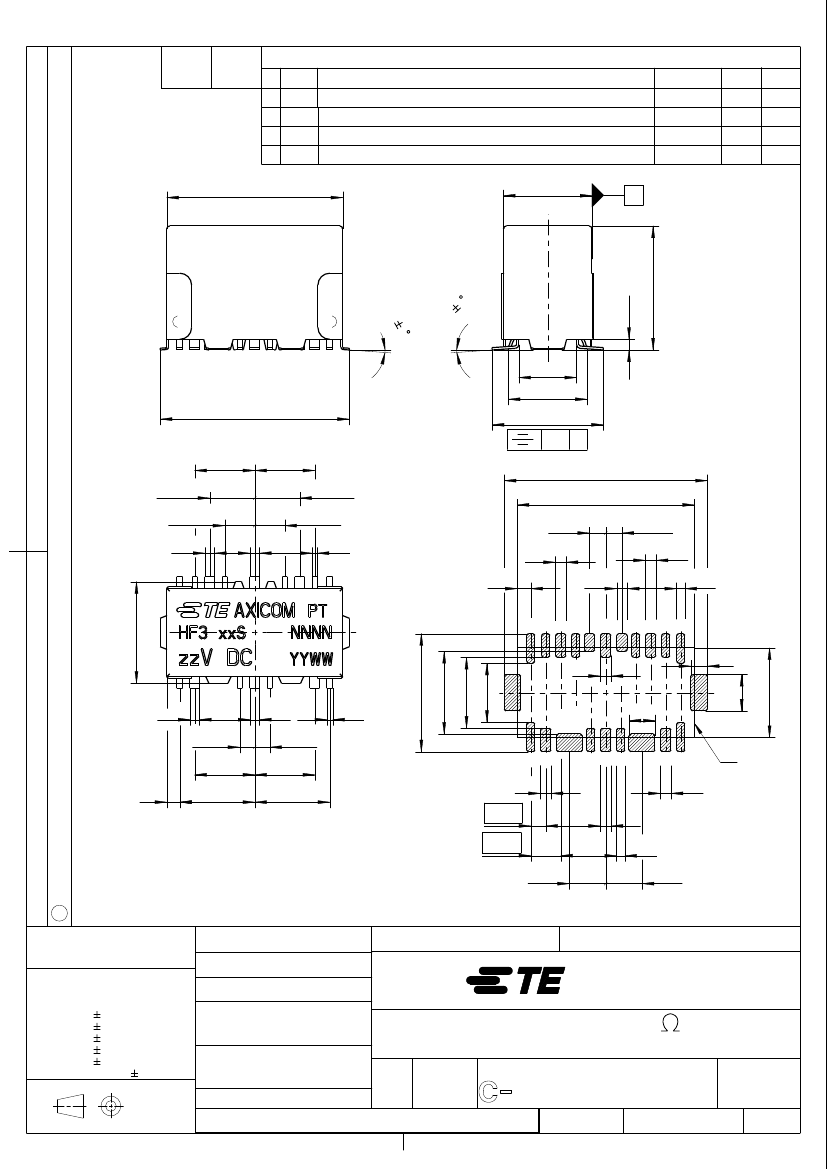

| Parameter Name | Attribute value |
| Relay type | HF3 S relay |
| Terminal limit breaking current (A) | 2 |
| Terminal Voltage Rating (VAC) | 250 |
| Terminal Voltage Rating (VDC) | 220 |
| Coil Power Rating (DC) (mW) | 140 |
| Coil Voltage Rating (VAC) | 12 |
| Terminal switching voltage (max) (VDC) | 220 |
| Terminal switching voltage (max) (VAC) | 250 |
| Coil excitation system | Monostable, DC |
| Coil type | monostable |
| Terminal limit continuous current (A) | 2 |
| Coil resistance (Ω) | 1028 |
| Terminal limit closing current (A) | 2 |
| Insulation initial resistance (MΩ) | 1000000 |
| Voltage standing wave ratio (high frequency parameter) | 1.07 @ 100MHz, 1.45 @ 900MHz |
| Initial dielectric type for insulation between coils/terminals | 500 – 1000 V |
| Initial dielectric between terminal and coil (Vrms) | 1000 |
| Terminal limit short-time current (A) | 2 |
| Open terminal insulation initial dielectric (Vrms) | 600 |
| Drive System | DC |
| Coil power rating class | 50 – 300 mW |
| Isolation (high frequency parameters) | -55dB @ 3GHz, -80dB @ 900MHz, -95dB @ 100MHz |
| Insertion loss (high frequency parameters) | -.03dB @ 100MHz, -.12dB @ 900MHz, -.3dB @ 3GHz |
| Weight(oz) | 3 |
| Insulating properties | 1500V Initial Surge Withstand Voltage between Contacts & Coil |
| Terminal type | PCB-SMT |
| Terminal Current Rating (A) | 2 |
| Terminal arrangement | 1 Form C (CO) |
| Terminal material | nickel |
| Number of terminal poles | 1 |
| Terminal current type | 0 – 2 A |
| Terminal plating materials | gold |
| Installation type | A printed circuit board |
| Dimensions (L x W x H) (approximate) | 14.9 x 7.5 x 10.5 mm [ .586 x .295 x .413 in ] |
| Height category (machinery) | 10 – 11 mm |
| Length (in) | 14.9 |
| Length category (mechanical) | 14 – 16 mm |
| high | 10.5 mm [ .413 in ] |
| width | 7.5 mm [ .295 in ] |
| Width category (machinery) | 6 – 8 mm |
| Environmental Protection Category | RTIII |
| Ambient temperature category | 70 – 85°C |
| Ambient temperature (maximum) | 85 °C [ 85 °F ] |
| Performance type | standard |
| Encapsulation method | Rolls, boxes and cartons |
| Other features | gullwing |
