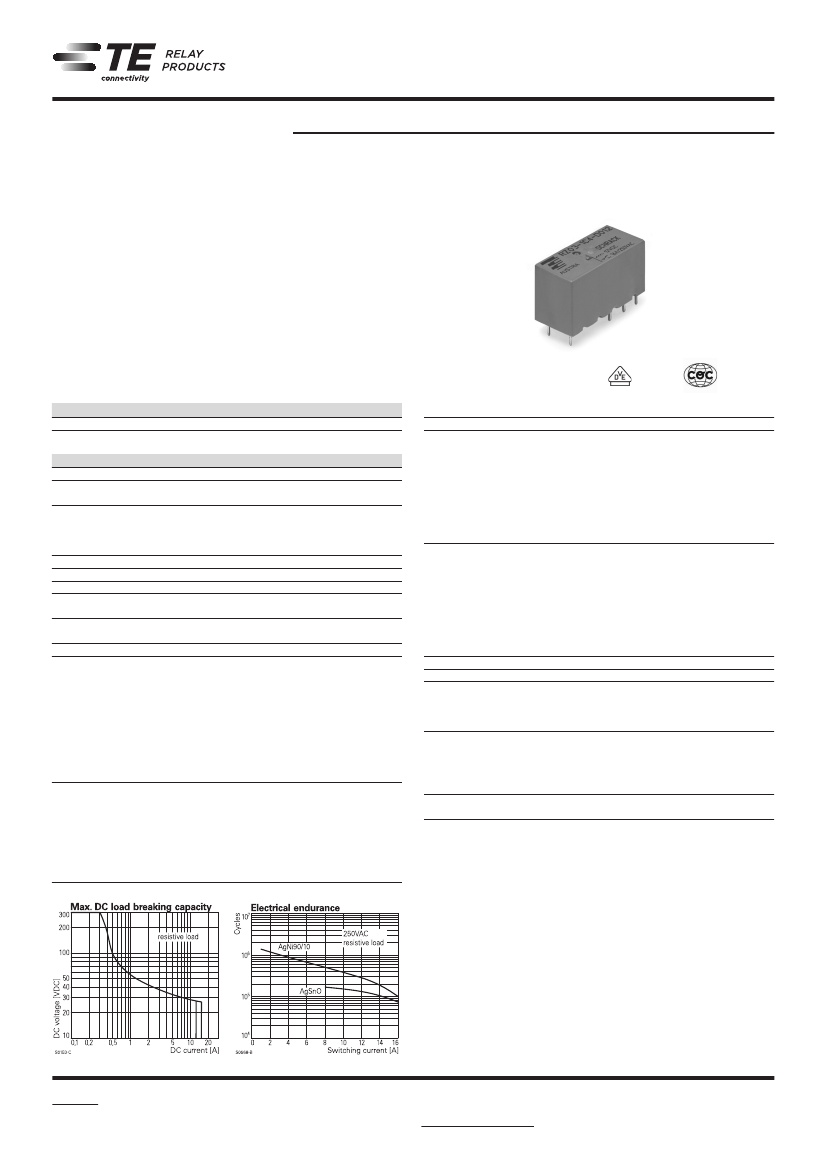

General Purpose Relays
PCB Relays
Power PCB Relay RZ
n
n
n
n
n
n
SCHRACK
1 pole 12/16 A, 1 form C (CO) or 1 form A (NO) contact
DC coil 400 mW
5kV/10mm coil-contact, reinforced insulation
Ambient temperature 85°C
Product in accordance to IEC 60335-1
Reflow version for THR mounting process
Typical applications
Household appliances, boiler control, timers, garage door control, POS
automation
Z
Approvals
VDE Cert. No. 40023970, UL E214025, CQC 12002066685
Technical data of approved types on request
F0305-A
Contact Data
Contact arrangement
1 form C (CO) or 1 form A (NO)
Rated voltage
250VAC
Max. switching voltage
400VAC
Rated current
12A
16A
Limiting making current (form A contact)
max. 4s, duty factor 10%
30A
max. 20ms (incandescent lamp); AgSnO
2
80A
Breaking capacity max.
3000VA
4000VA
Contact material
AgNi 90/10 or AgSnO
2
Frequency of operation, with/without load
360/72000h
-1
Operate/release time max.
8/6ms
Bounce time max., form A/form B
4/10ms
Contact ratings for standard version
Type
Contact
Load
IEC 61810
RZ03-1A4
A (NO)
16A, 250VAC, 85°C
RZ03-1C4
C (CO)
16A, 250VAC, 85°C
RZ01-1A3
A (NO)
12A, 250VAC, 85°C
RZ01-1A4
A (NO)
12A, 250VAC, 85°C
RZ01-1C4
C (CO)
12A, 250VAC, 85°C
RZ01/3-1A4
A (NO)
10A, 250VAC, 85°C
RZ0H-1A4
A (NO)
12A, 250VAC, 85°C
RZ0H-1A4
A (NO)
16A, 250VAC, 85°C
RZ0H-1A4
A (NO)
18A, 250VAC, 85°C
UL 508
RZ03-1A.
A (NO)
16A, 250VAC, 85°C
RZ03-1A4
A (NO)
12A, 250VAC, 85°C
RZ01-1A3
A (NO)
12A, 250VAC, 85°C
RZ03-1.4
A (NO)
B300, R300, 85°C
RZ03-1.4
A (NO)
12A, 250VAC, 85°C
RZ03-1.4
A (NO)
1/2HP, 125VAC, 85°C
RZ03-1A.
A (NO)
1HP, 277VAC, 85°C
1)
12A
16A
Cycles
50x10
3
10x10
3
100x10
3
50x10
3
30x10
3
150x10
3
150x10
3
50x10
3
30x10
3
50x10
3
150x10
3
50x10
3
6x10
3
100x10
3
6x10
3
30x10
3
Contact ratings for RZ reinforced flux proof version
Type
Contact
Load
IEC 61810
RZ03-1C3-D...-R
A (NO)
16A, 250VAC, 85°C
RZ03-1C3-D...-R
C (CO)
16A, 250VAC, 85°C
RZ01-1C3-D...-R
A (NO)
12A, 250VAC, 85°C
RZ01-1C3-D...-R
C (CO)
12A, 250VAC, 85°C
RZ03-1C4-D...-R
A (NO)
16A, 250VAC, 85°C
RZ03-1C4-D...-R
C (CO)
16A, 250VAC, 85°C
RZ02/3-1C4-D...-R
A (NO)
12A, 250VAC, 85°C
RZ02/3-1C4-D...-R
C (CO)
12A, 250VAC, 85°C
UL 508
RZ03-1C3-D...-R
A (NO)
16A, 277VAC, 85°C
RZ03-1C3-D...-R
C (CO)
16A, 277VAC, 85°C
RZ01-1C3-D...-R
A (NO)
12A, 277VAC, 85°C
RZ01-1C3-D...-R
C (CO)
12A, 277VAC, 85°C
RZ03-1C4-D...-R
A (NO)
16A, 277VAC, 85°C
RZ03-1C4-D...-R
C (CO)
16A, 277VAC, 85°C
RZ02/3-1C4-D...-R
A (NO)
12A, 277VAC, 85°C
RZ02/3-1C4-D...-R
C (CO)
12A, 277VAC, 85°C
Contact ratings for RZ reflow version
Type
Contact
Load
IEC 61810
RZR3-1C4-D...-R
A (NO)
16A, 250Vac, 85°C
RZR1-1C4-D...-R
C (CO)
12A, 250Vac, 85°C
RZR1-1C4-D...-R
A (NO)
12.5A, 400Vac, 85°C
UL 508
RZR3-1C4-D…-R
A (NO)
16A, 277Vac, 85°C
RZR1-1C4-D…-R
C (CO)
12A, 277Vac, 85°C
RZR1-1C4-D…-R
A (NO)
1HP, 277Vac, 85°C
RZR3-1C4-D…-R
A (NO)
1/8 HP, 120Vac, 85°C
Mechanical endurance
>10x10
6
operations
Cycles
30x10
3
6x10
3
30x10
3
6x10
3
30x10
3
6x10
3
50x10
3
20x10
3
30x10
3
6x10
3
30x10
3
6x10
3
30x10
3
6x10
3
50x10
3
20x10
3
Cycles
30x10³
20x10³
50x10³
30x10³
30x10³
30x10³
100x10³
1) valid for standard cover version
10-2017, Rev. 1017
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
General Purpose Relays
PCB Relays
Power PCB Relay RZ
(Continued)

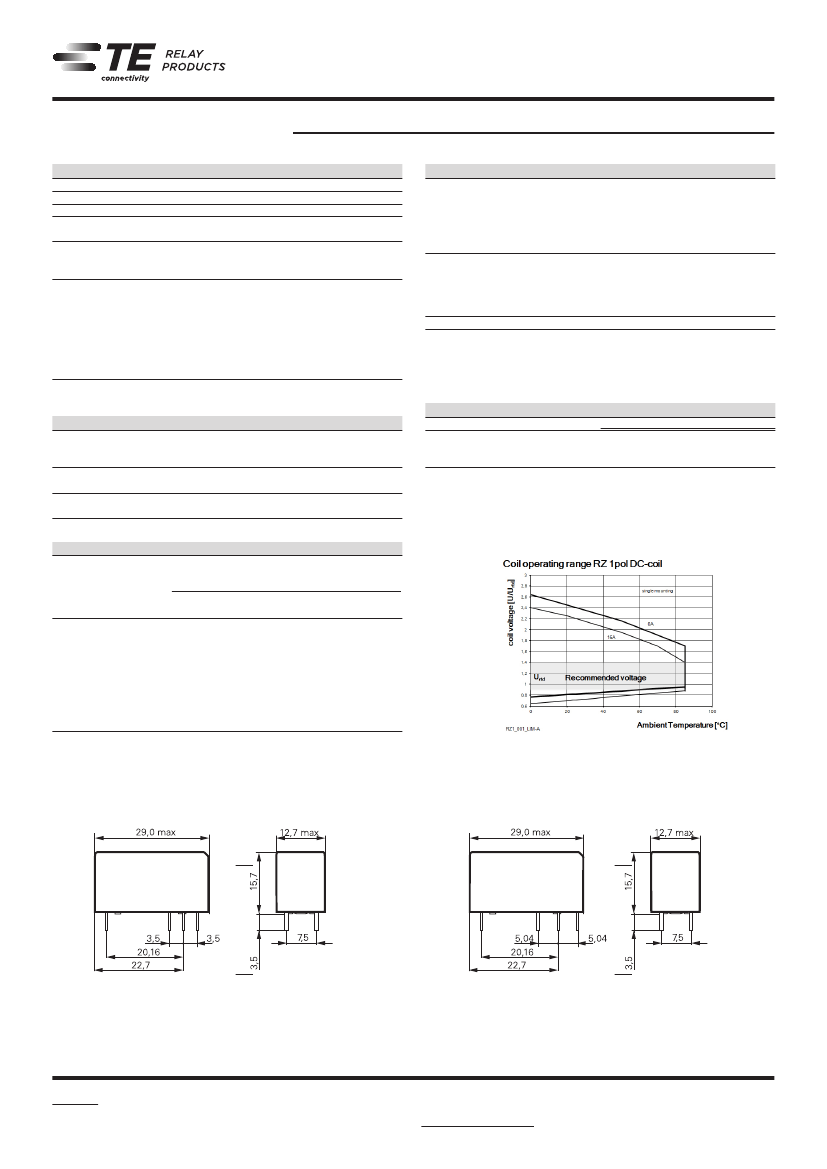

Coil Data
Other Data
SCHRACK
Coil voltage range
Operative range, IEC 61810
Coil insulation system according UL1446
Coil versions, DC coil
Coil
Rated
Operate
code
voltage
voltage
VDC
VDC
D003
3
2.1
D005
5
3.5
D006
6
4.2
D009
9
6.3
D012
12
8.4
D015
15
10.5
D024
24
16.8
D048
48
33.6
Release
voltage
VDC
0.3
0.5
0.6
0.9
1.2
1.5
2.4
4.8
3 to 48VDC
2
class F
Coil
resistance
Ω±10%
22
60
90
200
360
562
1440
5730
Rated coil
power
mW
410
420
400
400
400
410
400
400
Terminal type
standard version
reinforced sealed version
reflow version
Mounting distance
Weight
Resistance to soldering heat
THT, IEC 60068-2-20
THR: reflow version forced
temperature profile
Packaging/unit
2) The use of foaming flux is not permitted.
3) Infrared heating not allowed
4) Recommended fluid LS-230
5) only for reflow version 2,5mm
6) only for reflow version 15,7 +0,3/-0mm
PCB -THT
2)
PCB -THT, plug-in
PCB -THR
≥0mm
10g
RTII 270°C/10s
gas convection
3)
or vapour phase
4)
according EN61730
tube/20 pcs., box/500 pcs.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Insulation Data
Accessories
1000V
rms
5000V
rms
≥10/10mm
IIIa
PTI250V
Initial dielectric strength
between open contacts
between contact and coil
Clearance/creepage
between contact and coil
Material group of insulation parts
Tracking index of relay base
For details see datasheet
Accessories Industrial Power Relay RT
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
standard and reflow cover version according EN 60335-1, par.30
Ambient temperature
standard version
-40 to 85°C
Category of environmental protection
IEC 61810
RTII - flux proof
Vibration resistance (functional), 30 to 500Hz
closing form A contact
>15g
opening form A contact
>20g
opening form B contact
>5g
Shock resistance (destructive)
100g
Dimensions
12A, pinning 3.5mm
12A, 16A, pinning 5mm
6)
6)
5)
S0557-AB
5)
S0557-AA
5) only for reflow version 2,5mm
6) only for reflow version 15,7 +0,3/-0mm
5) only for reflow version 2,5mm
6) only for reflow version 15,7 +0,3/-0mm
2
10-2017, Rev. 1017
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
General Purpose Relays
PCB Relays
Power PCB Relay RZ

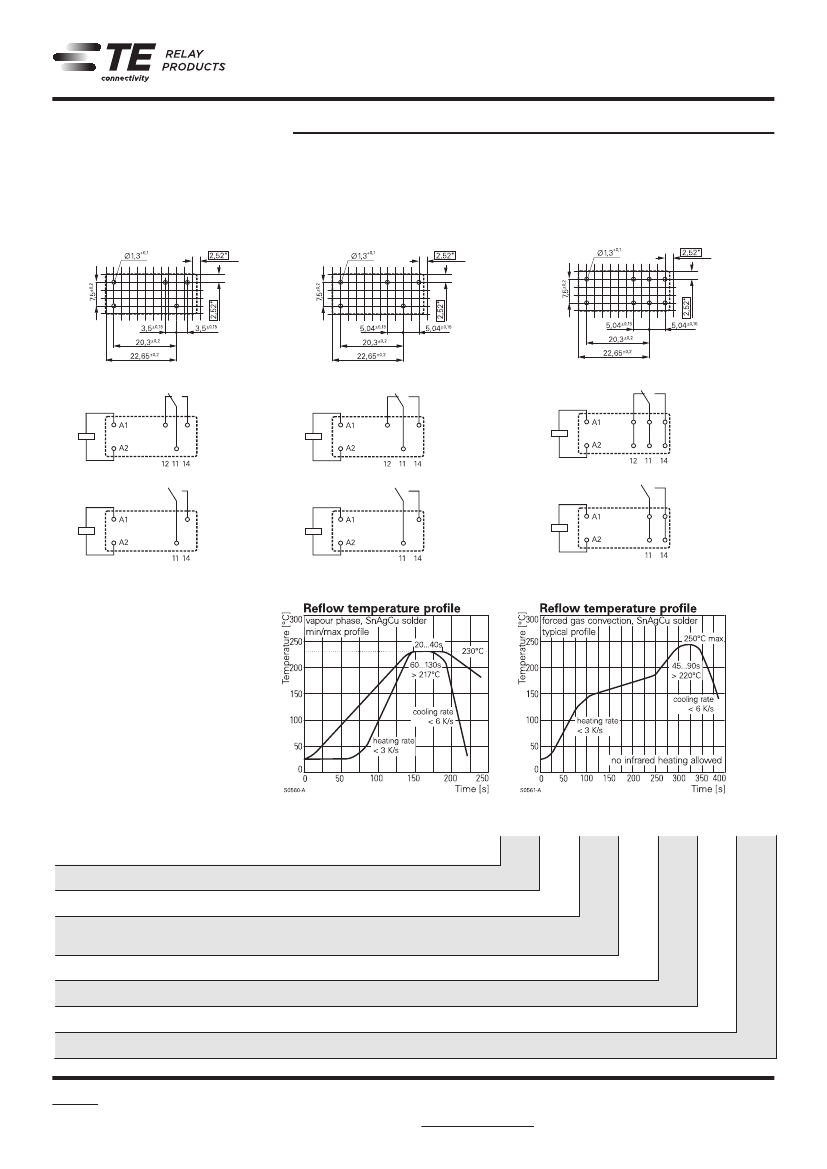

PCB layout / terminal assignment
Bottom view on solder pins
SCHRACK
(Continued)
12A, pinning 3.5mm
12A, pinning 5mm
16A, pinning 5mm
S0418-CB
S0418-CN
S0418-CA
1 form C (CO) contact
1 form C (CO) contact
1 form C (CO) contact
S0163-BG
S0163-BC
S0163-BE
1 form A (NO) contact
1 form A (NO) contact
1 form A (NO) contact
S0163-BH
S0163-BD
S0163-BF
Process conditions for Reflow soldering
according to EN61760-1
Recommended pcb hole for manual mounting:
k1.3mm
For automated mounting please ask for
detailed drawing.
Product code structure
Type
Typical product code
RZ
0
3
-1C
4
-D012
RZ
Power PCB Relay RZ
Version
0
standard version
R
reflow version (only with AgNi contacts and reinforced cover)
Version
1
3.5mm pinning, 12 A
3
5mm double pinning, 16 A
2
5mm pinning, 12 A
H
High Performance 5mm double pinning, 16 A
Contact configuration
1A
1 form A (1 NO) contact
1C
1 form C (1 CO) contact
Contact material
4
AgNi 90/10
3
AgSnO
2
Coil version
Coil code: please refer to coil versions table
Cover version
blank
standard (hot-stamped)
R
reinforced flux proof (epoxy) and Plug-In capable (only AgNi contact versions)
10-2017, Rev. 1017
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
General Purpose Relays
PCB Relays
Power PCB Relay RZ
(Continued)
SCHRACK
RZ01-1A3-D005
RZ01-1A3-D006
RZ01-1A3-D012
RZ01-1A3-D024
RZ01-1A3-D048
RZ01-1A4-D005
RZ01-1A4-D006
RZ01-1A4-D009
RZ01-1A4-D012
RZ01-1A4-D024
RZ01-1A4-D048
RZ01-1C3-D005
RZ01-1C3-D006
RZ01-1C3-D012
RZ01-1C3-D024
RZ01-1C3-D048
RZ01-1C4-D005
RZ01-1C4-D006
RZ01-1C4-D009
RZ01-1C4-D012
RZ01-1C4-D024
RZ01-1C4-D048
RZ03-1A3-D005
RZ03-1A3-D006
RZ03-1A3-D012
RZ03-1A3-D024
RZ03-1A3-D048
RZ03-1A4-D005
RZ03-1A4-D006
RZ03-1A4-D009
RZ03-1A4-D012
RZ03-1A4-D024
RZ03-1A4-D048
RZ03-1C3-D005
RZ03-1C3-D006
RZ03-1C3-D012
RZ03-1C3-D024
RZ03-1C3-D048
RZ03-1C4-D005
RZ03-1C4-D006
RZ03-1C4-D009
RZ03-1C4-D012
RZ03-1C4-D015
RZ03-1C4-D024
RZ03-1C4-D048
RZ03-1C4-D012-R
RZ03-1C4-D024-R
RZ0H-1A4-D012
RZ03-1A3-D012-R
RZR3-1A4-D012
Product code
12A
pinning 3.5mm
Version
1 form A (NO)
Contacts
Contact material
AgSnO
2
AgNi 90/10
1 form C (CO)
AgSnO
2
AgNi 90/10
16A
pinning 5mm
1 form A (NO)
AgSnO
2
AgNi 90/10
1 form C (CO)
AgSnO
2
AgNi 90/10
16A, pinning 5mm
reinforced flux proof
16A, pinning 5mm,
High Performance
16A, pinning 5mm,
reinforced flux proof
16A, pinning 5mm,
reinforced flux proof
and reflow solderable
16A, pinning 5mm,
reinforced flux proof
and reflow solderable
1 form C (CO)
1 form A (NO)
1 form A (NO)
1 form A (NO)
AgNi 90/10
AgNi 90/10
AgSnO
2
AgNi90/10
5VDC
6VDC
12VDC
24VDC
48VDC
5VDC
6VDC
9VDC
12VDC
24VDC
48VDC
5VDC
6VDC
12VDC
24VDC
48VDC
5VDC
6VDC
9VDC
12VDC
24VDC
48VDC
5VDC
6VDC
12VDC
24VDC
48VDC
5VDC
6VDC
9VDC
12VDC
24VDC
48VDC
5VDC
6VDC
12VDC
24VDC
48VDC
5VDC
6VDC
9VDC
12VDC
15VDC
24VDC
48VDC
12VDC
24VDC
12VDC
12VDC
12VDC
Coil
Part number
3-1415899-7
3-1415899-8
3-1415899-9
4-1415899-0
4-1415899-1
1415899-1
1415899-2
1415899-3
1415899-4
1415899-5
1415899-6
4-1415899-2
4-1415899-3
4-1415899-4
4-1415899-5
4-1415899-6
1415899-7
1415899-8
1415899-9
1-1415899-0
1-1415899-1
1-1415899-2
4-1415899-7
4-1415899-8
4-1415899-9
5-1415899-0
5-1415899-1
1-1415899-3
1-1415899-4
1-1415899-5
1-1415899-6
1-1415899-7
1-1415899-8
5-1415899-2
5-1415899-3
5-1415899-4
5-1415899-5
5-1415899-6
1-1415899-9
2-1415899-0
2-1415899-1
2-1415899-2
8-1415899-2
2-1415899-3
2-1415899-4
7-1415899-7
7-1415899-9
9-1415899-4
4-215800-2
tbd
RZR3-1C4-D012
1 form C (CO)
AgNi90/10
12VDC
tbd
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request
4
10-2017, Rev. 1017
www.te.com
© 2015 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
京公网安备 11010802033920号
EEWORLD
