DTP04-4P datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> DTP04-4P

DTP04-4P: DescriptionDTP RECP ASM; CategoryThe connector; File Size221KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

DTP04-4P Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DTP04-4P	-	-	View	Buy Now

DTP04-4P Overview

DTP RECP ASM

DTP04-4P Parametric

Parameter Name	Attribute value
Connector type	Male terminal housing
Connector System	line to line
Sealable	yes
Hybrid connector	no
Main locking features	Housing integration
strain relief	Add according to attachment
Number of Positions	4
Nominal Voltage Structure (V)	12, 24, 42, 48, 80, 90, 125, 240
Operating voltage (VDC)	250
color	grey
Cable exit angle	180°
Main material	PA GF
Engage pin diameter	2.5 mm [ .098 in ]
Installation features	Without
Terminal position guarantee	no
polarization	yes
Centerline (Pitch)	6.7 mm [ .264 in ]
width	26.92 mm [ 1.06 in ]
high	27.15 mm [ 1.069 in ]
length	47.27 mm [ 1.861 in ]
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
protection level	IP68
UL flammability rating	20 mm flame test per UL-94 standard
Able to ensure connector position	no
Repairable	yes

Preview

Download Datasheet

View All

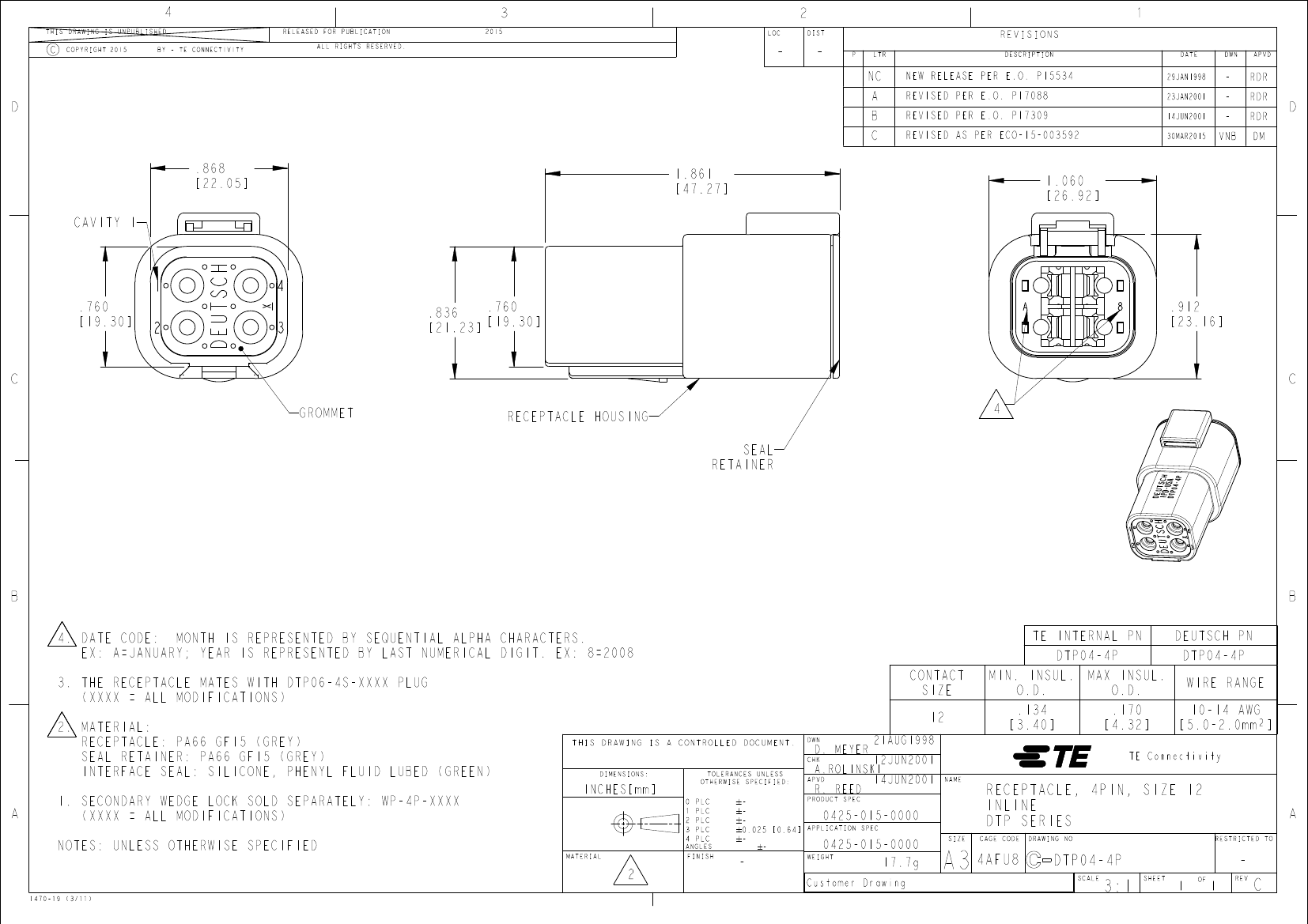

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

2015

LOC

DIST

BY - TE CONNECTIVITY

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

NEW RELEASE PER E.O. P15534

REVISED PER E.O. P17088

REVISED PER E.O. P17309

REVISED AS PER ECO-15-003592

29JAN1998

23JAN2001

14JUN2001

30MAR2015

VNB

RDR

.868

[22.05 ]

CAVITY 1

1.861

[47.27 ]

1.060

[26.92 ]

.760

[19.30 ]

.760

.836

[21.23 ] [19.30 ]

.912

[23.16 ]

GROMMET

RECEPTACLE HOUSING

SEAL

RETAINER

4. DATE CODE: MONTH IS REPRESENTED BY SEQUENTIAL ALPHA CHARACTERS.

EX: A=JANUARY; YEAR IS REPRESENTED BY LAST NUMERICAL DIGIT. EX: 8=2008

3. THE RECEPTACLE MATES WITH DTP06-4S-XXXX PLUG

(XXXX = ALL MODIFICATIONS)

2. MATERIAL:

RECEPTACLE: PA66 GF15 (GREY)

SEAL RETAINER: PA66 GF15 (GREY)

INTERFACE SEAL: SILICONE, PHENYL FLUID LUBED (GREEN)

1. SECONDARY WEDGE LOCK SOLD SEPARATELY: WP-4P-XXXX

(XXXX = ALL MODIFICATIONS)

NOTES: UNLESS OTHERWISE SPECIFIED

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TE INTERNAL PN

CONTACT

SIZE

12JUN2001

A.ROLINSKI

APVD

14JUN2001

R. REED

PRODUCT SPEC

APPLICATION SPEC

MIN. INSUL.

O.D.

.134

[3.40]

DTP04-4P

DEUTSCH PN

DTP04-4P

WIRE RANGE

10-14 AWG

[5.0-2.0mm²]

MAX INSUL.

O.D.

.170

[4.32]

D. MEYER

21AUG1998

NAME

TE Connectivity

INCHES[mm]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

ANGLES

PLC

FINISH

1470-19 (3/11)

0.025 [0.64]

0425-015-0000

SIZE

0425-015-0000

WEIGHT

17.7g

Customer Drawing

4AFU8

CAGE CODE

RECEPTACLE, 4PIN, SIZE 12

INLINE

DTP SERIES

DRAWING NO

RESTRICTED TO

DTP04-4P

SCALE

3:1

SHEET

REV
