1-776280-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-776280-2

1-776280-2: Description8 POS RTANG HDR ASSY W/GASKET; CategoryThe connector The connector; File Size396KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-776280-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-776280-2	-	-	View	Buy Now

1-776280-2 Overview

8 POS RTANG HDR ASSY W/GASKET

1-776280-2 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Is Samacsys	N
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	BOARD AND PANEL
Options	GENERAL PURPOSE
Shell material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	8
Base Number Matches	1

Preview

Download Datasheet

View All

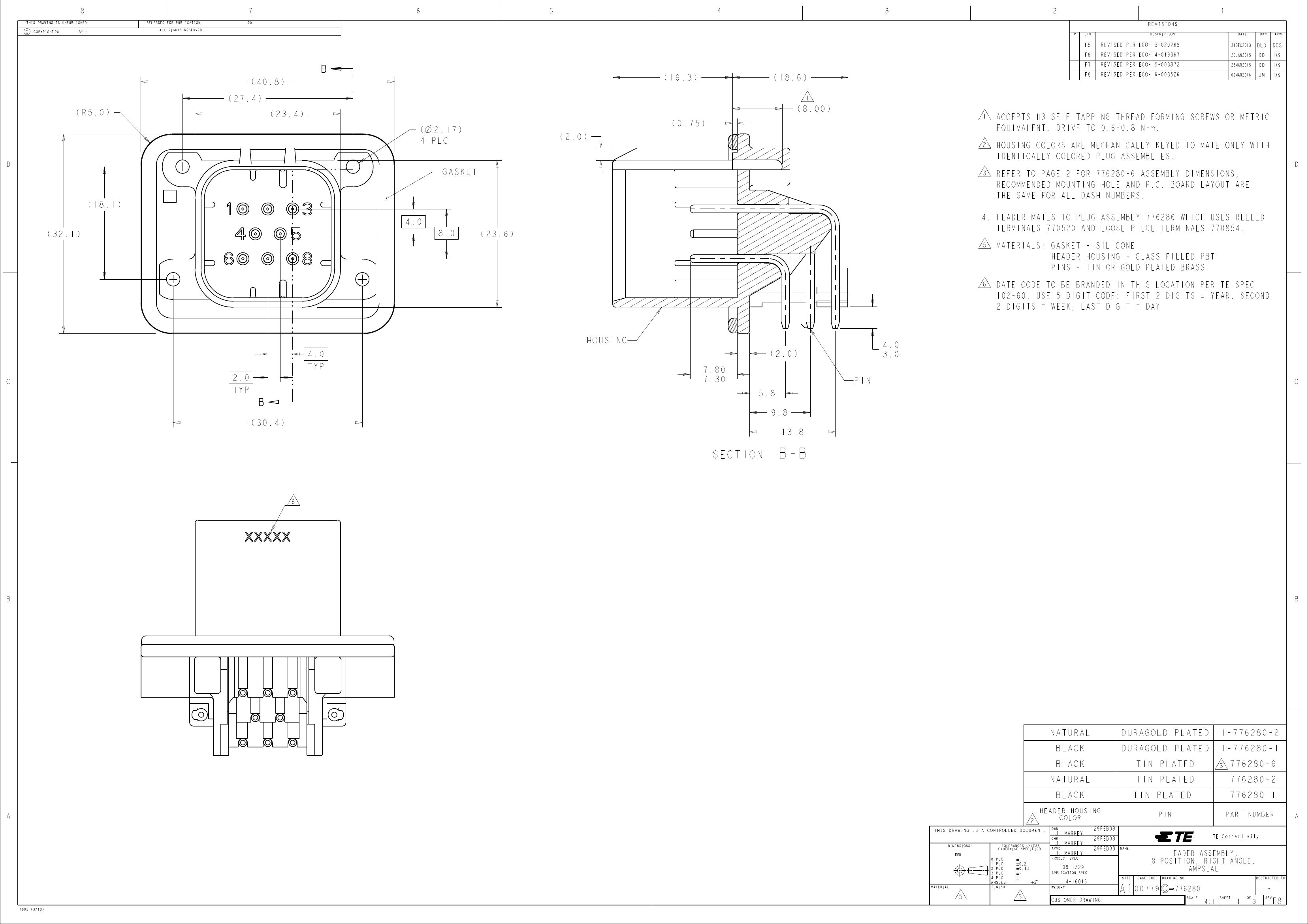

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-13-020268

REVISED PER ECO-14-019367

REVISED PER ECO-15-003872

REVISED PER ECO-16-003526

31DEC2013

20JAN2015

25MAR2015

09MAR2016

DLD

DCS

( 40.8 )

( 27.4 )

( R 5.0 )

( 23.4 )

( 2.17 )

4 PLC

( 19.3)

( 18.6 )

( 8.00 )

( 2.0 )

( 0.75 )

ACCEPTS #3 SELF TAPPING THREAD FORMING SCREWS OR METRIC

EQUIVALENT. DRIVE TO 0.6-0.8 N-m.

HOUSING COLORS ARE MECHANICALLY KEYED TO MATE ONLY WITH

IDENTICALLY COLORED PLUG ASSEMBLIES.

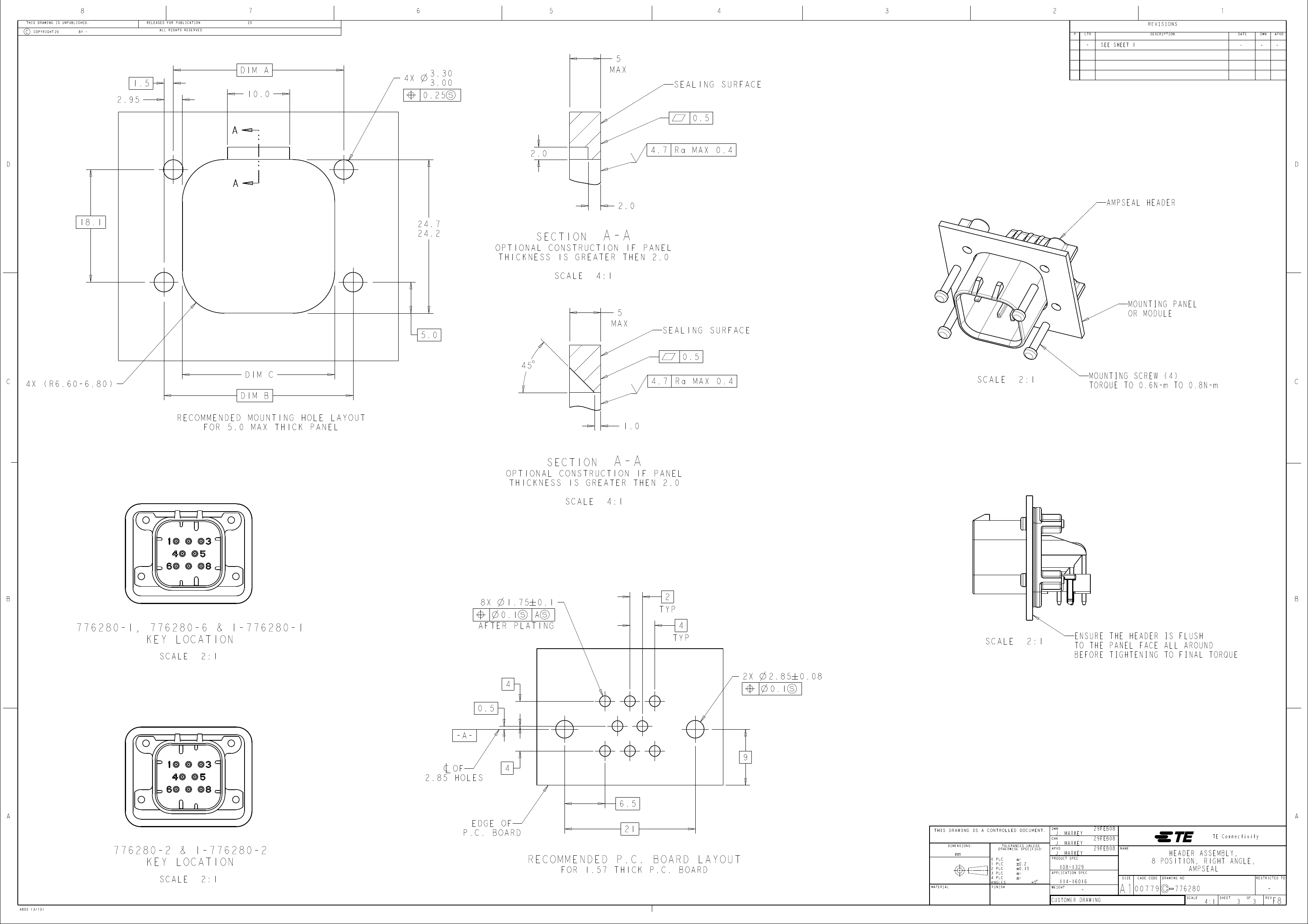

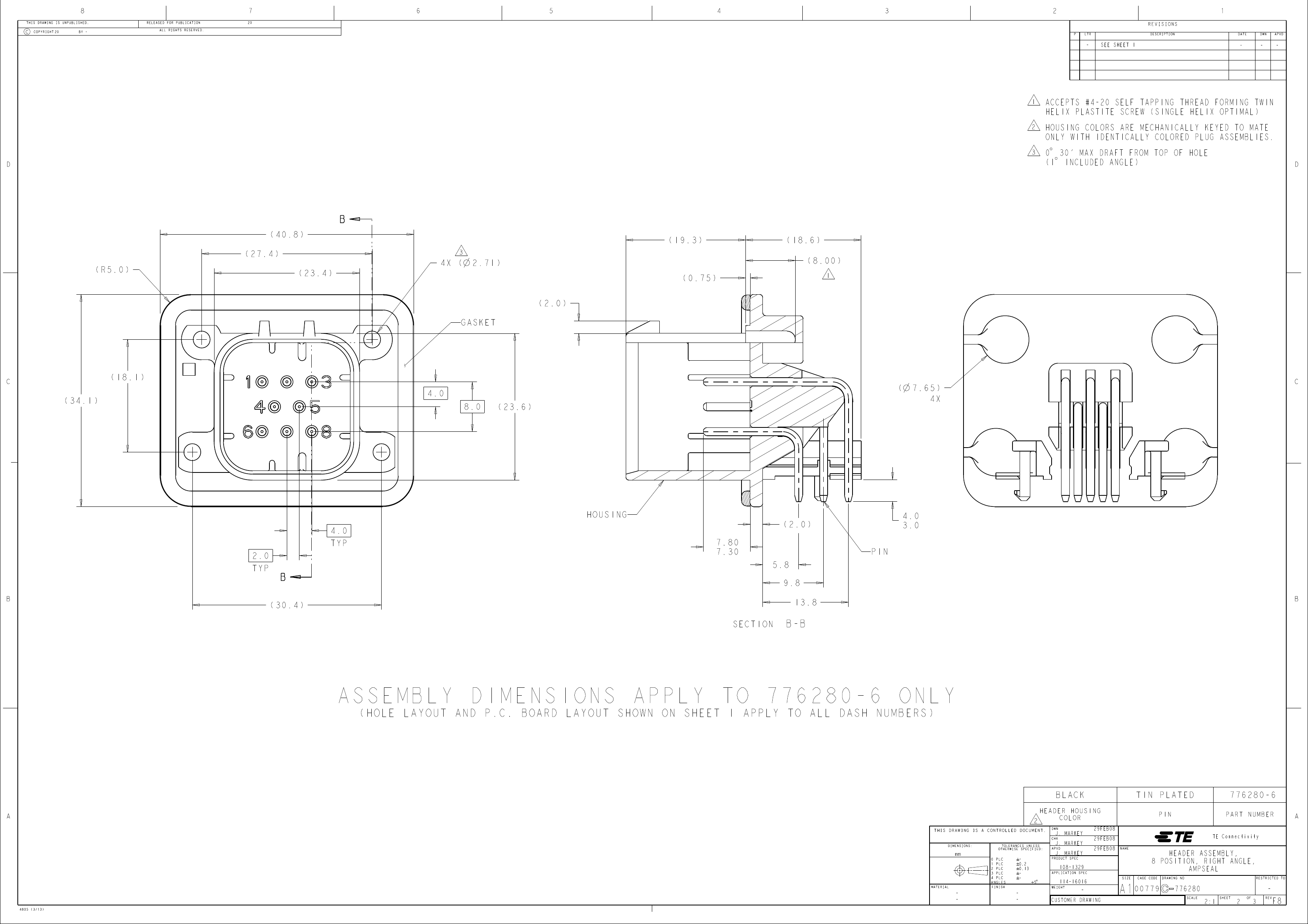

REFER TO PAGE 2 FOR 776280-6 ASSEMBLY DIMENSIONS,

RECOMMENDED MOUNTING HOLE AND P.C. BOARD LAYOUT ARE

THE SAME FOR ALL DASH NUMBERS.

GASKET

( 18.1 )

( 32.1 )

4.0

8.0

( 23.6 )

4. HEADER MATES TO PLUG ASSEMBLY 776286 WHICH USES REELED

TERMINALS 770520 AND LOOSE PIECE TERMINALS 770854.

MATERIALS: GASKET - SILICONE

HEADER HOUSING - GLASS FILLED PBT

PINS - TIN OR GOLD PLATED BRASS

DATE CODE TO BE BRANDED IN THIS LOCATION PER TE SPEC

102-60. USE 5 DIGIT CODE: FIRST 2 DIGITS = YEAR, SECOND

2 DIGITS = WEEK, LAST DIGIT = DAY

HOUSING

4.0

TYP

2.0

TYP

( 2.0 )

7.80

7.30

5.8

9.8

13.8

4.0

3.0

( 30.4 )

SECTION

B-B

NATURAL

BLACK

NATURAL

BLACK

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DURAGOLD PLATED

TIN PLATED

1-776280-2

1-776280-1

776280-6

776280-2

776280-1

PART NUMBER

TE Connectivity

HEADER HOUSING

COLOR

DWN

CHK

J. MARKEY

108-1329

29FEB08

NAME

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.2

0.13

PRODUCT SPEC

APPLICATION SPEC

5 $

WEIGHT

114-16016

4805 (3/13)

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

HEADER ASSEMBLY,

8 POSITION, RIGHT ANGLE,

AMPSEAL

DRAWING NO

RESTRICTED TO

776280

SCALE

4:1

SHEET

REV
