5-102570-2 datasheet, PDF - EEWORLD Datasheet

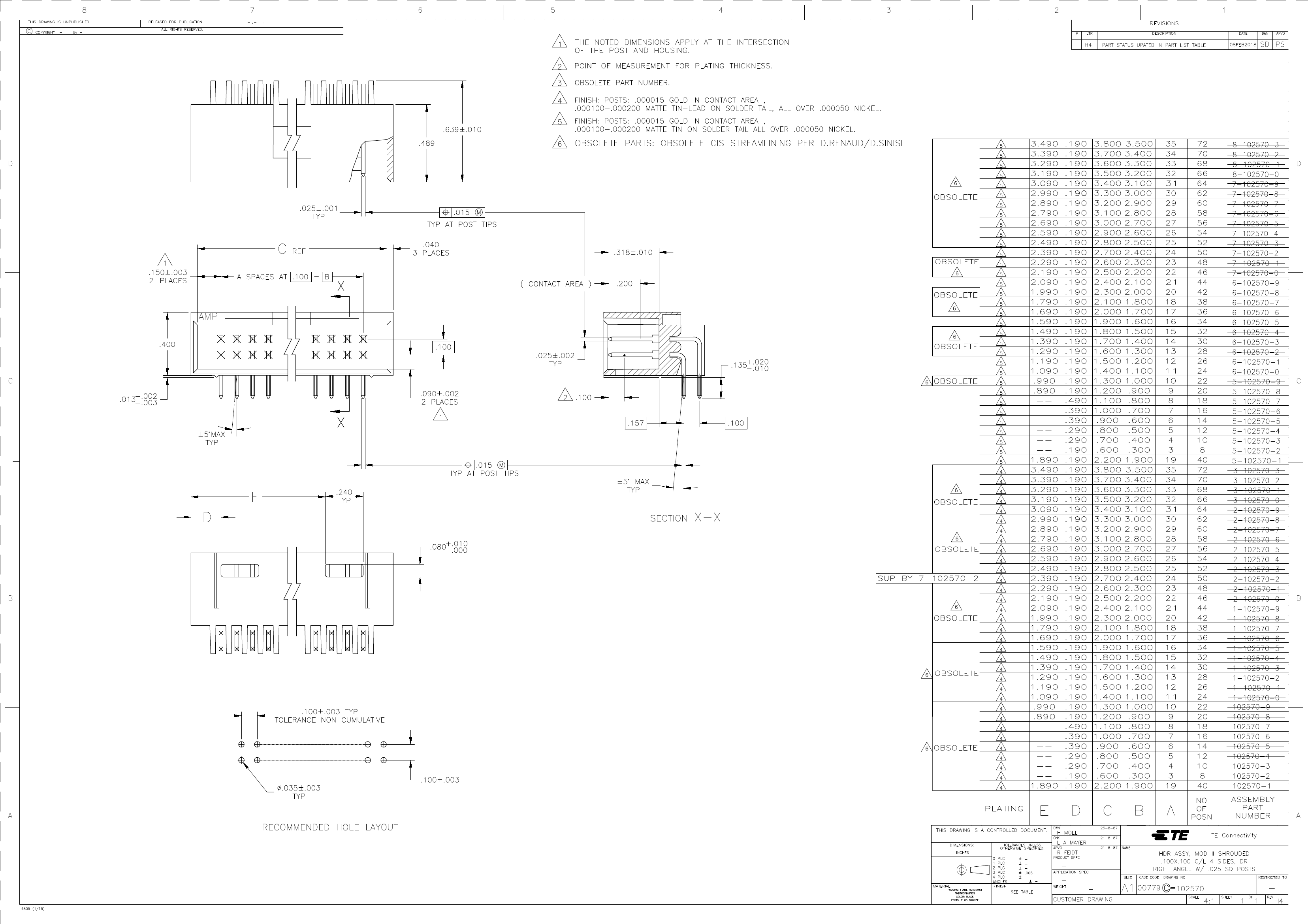

5-102570-2: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle; CategoryThe connector The connector; File Size275KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-102570-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-102570-2	-	-	View	Buy Now

Board Connector, 8 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2129258345
Reach Compliance Code	compliant
Samacsys Description	Headers & Wire Housings 08 MODII HDR DRRA SHRD LF
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	9.1
body width	0.413 inch
subject depth	0.639 inch
body length	0.68 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Panel mounting	NO
Plating thickness	15u inch
polarization key	POLARIZED
Rated current (signal)	3 A
Guideline	CSA, UL
Terminal length	0.135 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0
