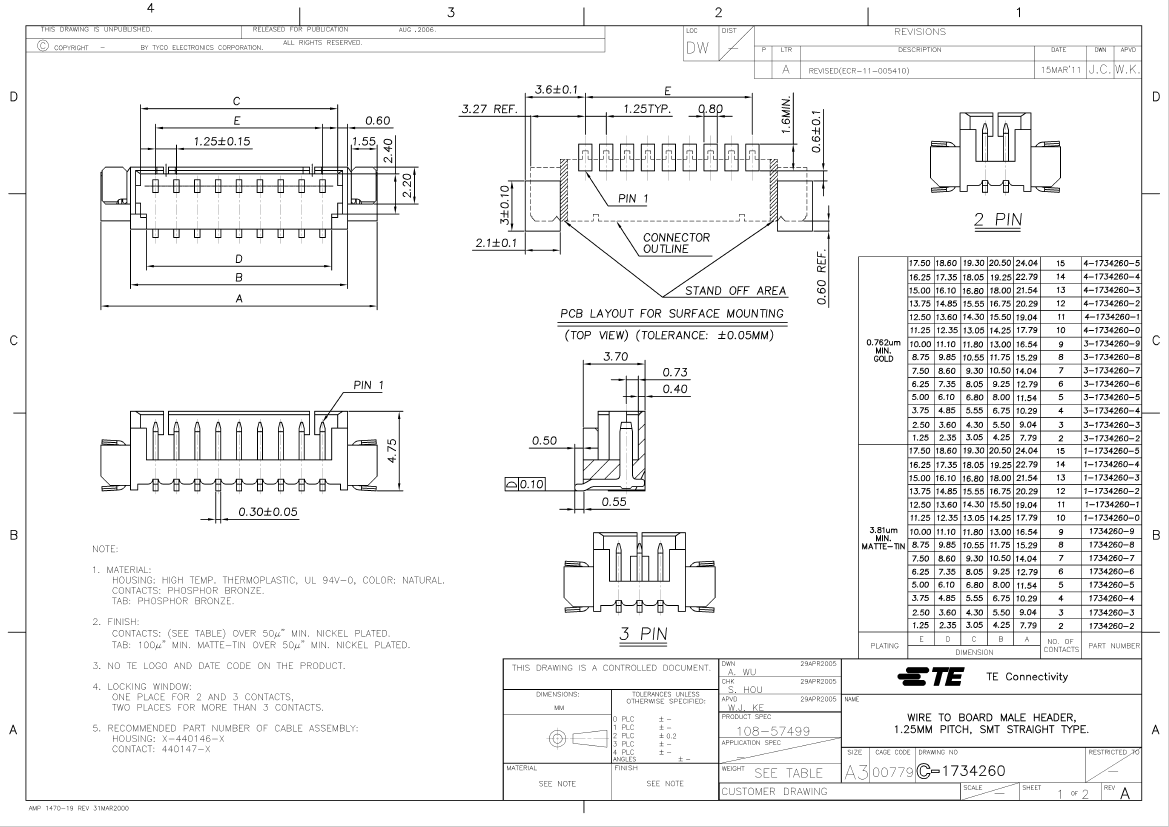

WTB 1.25 PTH 30U" GLD 4 POS
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Connector System | wire to board |
| Connector type | Partially hooded |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| stress relief | Without |
| Cable type | Separate conductor |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | vertical |
| Number of Positions | 4 |
| Rows | 1 |
| Backwall/Post Interruptions | Without |
| Operating voltage (VDC) | 125 |
| Operating voltage (VAC) | 125 |
| Terminal base material | Phosphor bronze |
| Terminal contact plating material | nickel |
| Terminal Contact Plating Thickness (µin) | 50 |
| Terminal type | Pin |
| Contact Current Rating (Max) (A) | .8 |
| PCB terminal termination area plating materials | tin |
| PCB terminal termination area plating material surface coating | matte |
| PCB terminal termination area plating thickness | 2.54 µm [ 100 µin ] |
| Terminal layout | Direct plug-in |
| PCB Termination Methods | surface mount |
| PCB mounting fixation type | welding nails |
| PCB installation method | surface mount |
| PCB mounting alignment | Without |
| joint fixation | Without |
| PCB installation and fixation | with |
| joint alignment | with |
| Joint alignment type | polarization |
| Terminal positioning force | Without |
| Centerline (Pitch) | 1.25 mm [ .049 in ] |
| Shell color | nature |
| Shell material | high temperature thermoplastic |
| length | 10.29 mm [ .405 in ] |
| high | 4.75 mm [ .187 in ] |
| width | 4.25 mm [ .167 in ] |
| Cable size (AWG) | 32 – 26 |
| Working group temperature range | -25 – 85 °C [ -13 – 185 °F ] |
| pick and place cover | Without |
| Applicable to | 440146-x |
| UL flammability rating | UL 94V-0 |

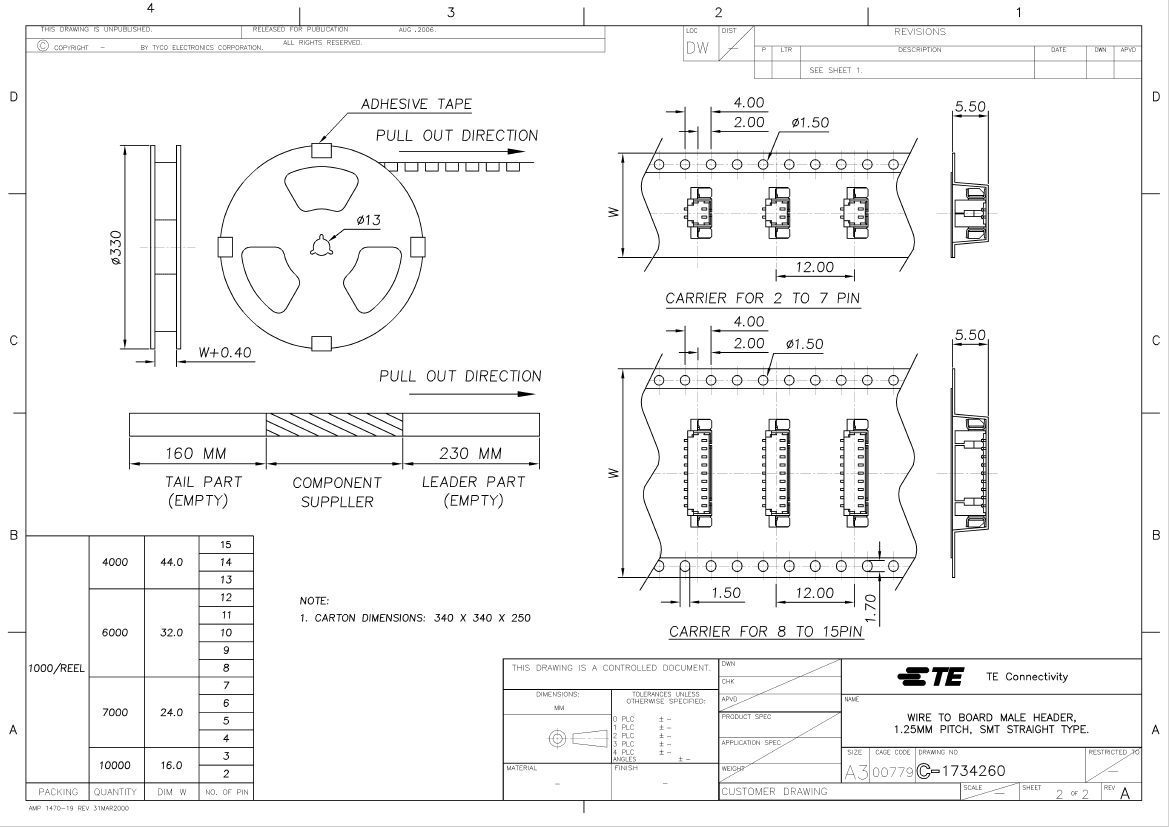

| Encapsulation method | roll |
| Packaging reel diameter | 24 mm |
| Package quantity | 1000 |
