5-1971773-7: DescriptionPTL 1X5 PLUG HSG HIGH TEMP KEY A LGR; CategoryThe connector The connector; File Size477KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-1971773-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-1971773-7	-	-	View	Buy Now

5-1971773-7 Overview

PTL 1X5 PLUG HSG HIGH TEMP KEY A LGR

5-1971773-7 Parametric

Parameter Name	Attribute value
Brand Name	TE Connectivity
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	compliant
body width	0.665 inch
subject depth	0.98 inch
body length	1.327 inch
Body/casing type	PLUG
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
empty shell	YES
Filter function	NO
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	1
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL,VDE
Shell material	NYLON
Termination type	CRIMP
Total number of contacts	5
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

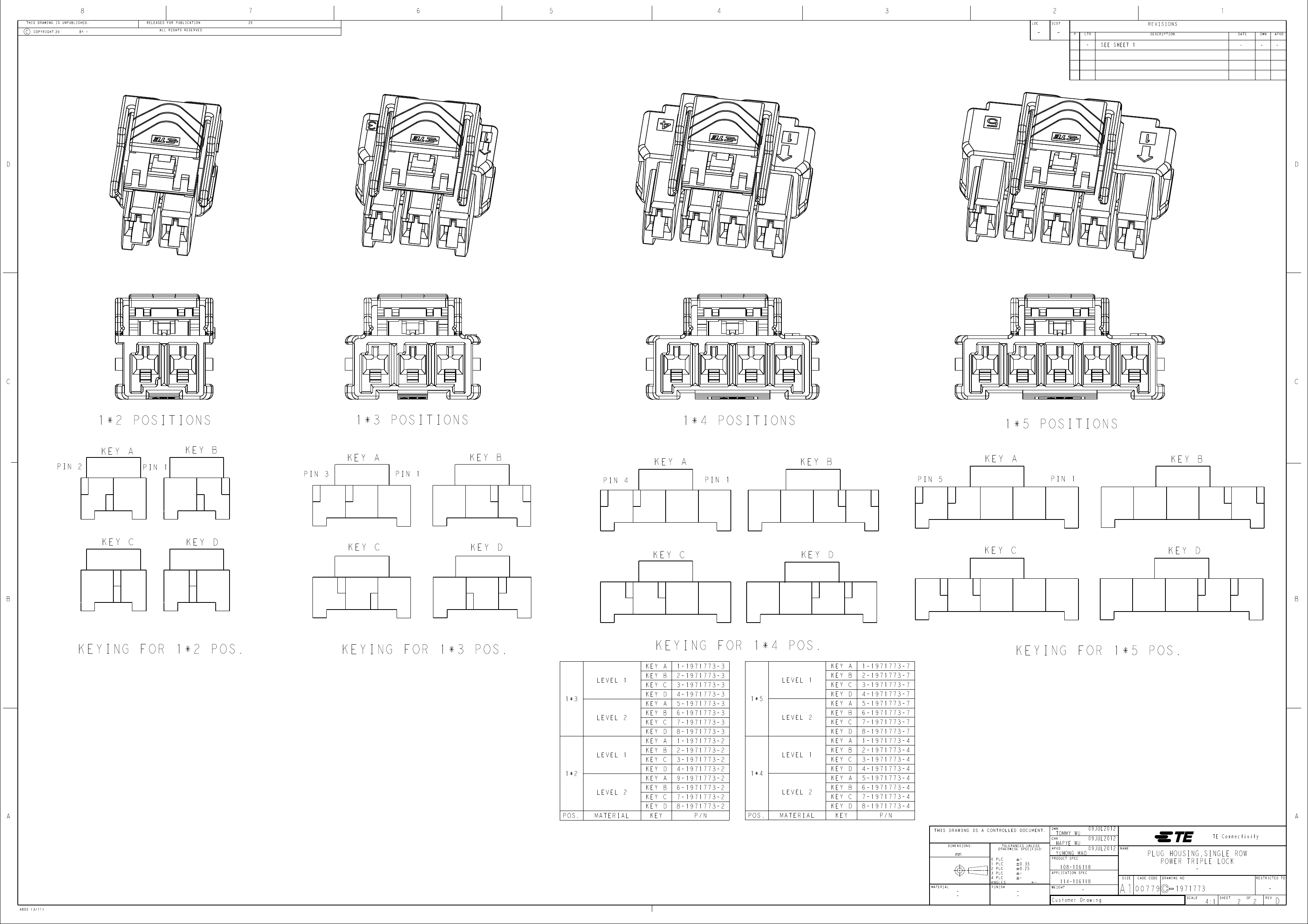

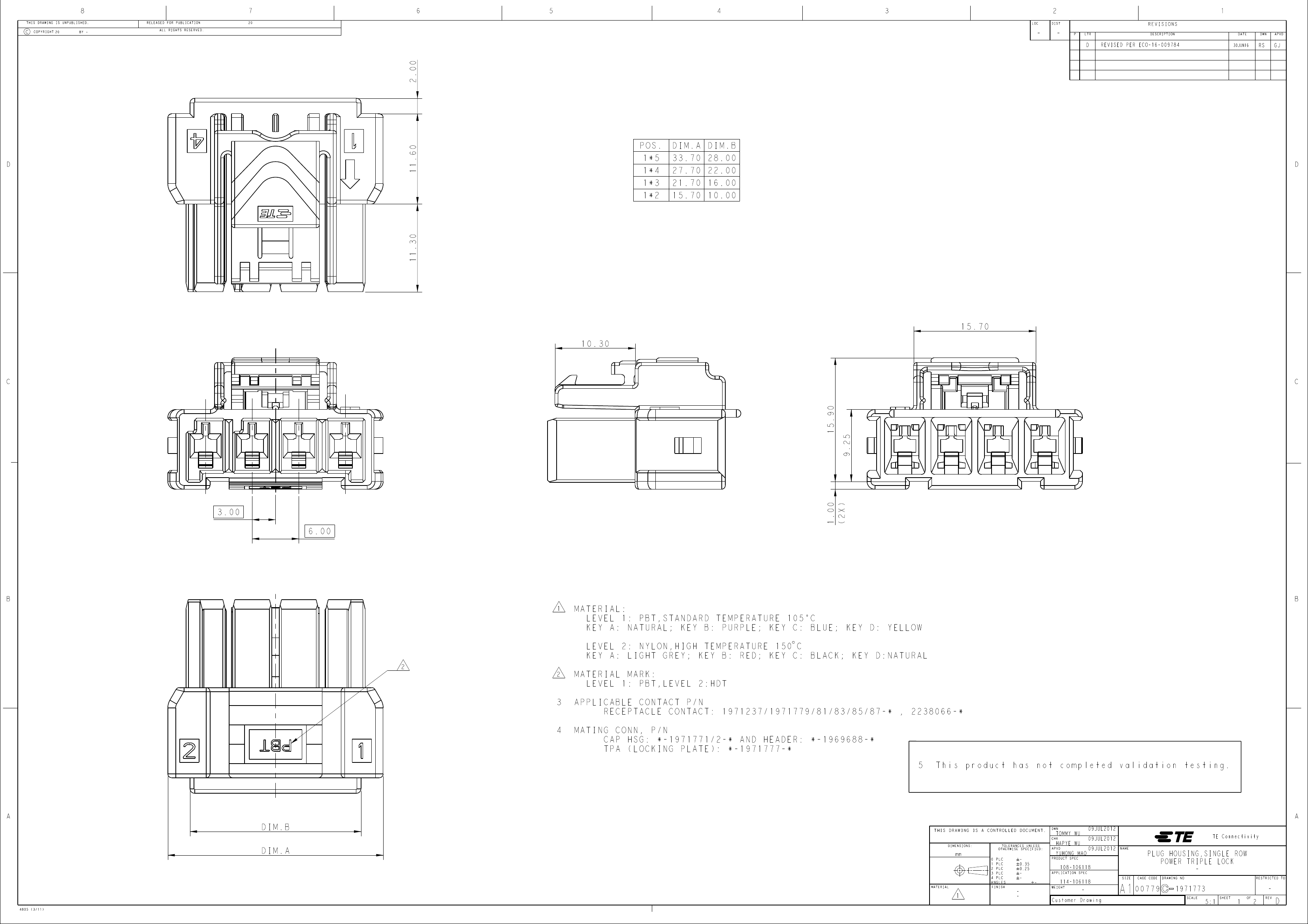

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-16-009784

30JUN16

2.00

11.60

POS.

1*5

1*4

1*3

1*2

DIM.A

33.70

27.70

21.70

15.70

DIM.B

28.00

22.00

16.00

10.00

11.30

15.70

10.30

15.90

3.00

6.00

1.00

(2X)

9.25

MATERIAL:

LEVEL 1: PBT,STANDARD TEMPERATURE 105°C

KEY A: NATURAL; KEY B: PURPLE; KEY C: BLUE; KEY D: YELLOW

LEVEL 2: NYLON,HIGH TEMPERATURE 150 $ C

KEY A: LIGHT GREY; KEY B: RED; KEY C: BLACK; KEY D:NATURAL

MATERIAL MARK:

LEVEL 1: PBT,LEVEL 2:HDT

APPLICABLE CONTACT P/N

RECEPTACLE CONTACT: 1971237/1971779/81/83/85/87-* , 2238066-*

MATING CONN, P/N

CAP HSG: *-1971771/2-* AND HEADER: *-1969688-*

TPA (LOCKING PLATE): *-1971777-*

This product has not completed validation testing.

DIM.B

DIM.A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

09JUL2012

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.35

0.25

PRODUCT SPEC

APPLICATION SPEC

4805 (3/11)

WEIGHT

Customer Drawing

00779

SIZE

CAGE CODE

PLUG HOUSING,SINGLE ROW

POWER TRIPLE LOCK

DRAWING NO

RESTRICTED TO

1971773

SCALE

5:1

SHEET

REV
