3-480425-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-480425-0

3-480425-0: Description04P CMNL PLG HSG (125 C); CategoryThe connector The connector; File Size163KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-480425-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-480425-0	-	-	View	Buy Now

3-480425-0 Overview

04P CMNL PLG HSG (125 C)

3-480425-0 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	11 weeks
Other features	MATE-N-LOK, COMPATIBLE CONTACTS: 350078-1; 350078-4; 350078-5; 61173-1; 61173-5, PLUG
body width	0.31 inch
subject depth	0.85 inch
body length	0.825 inch
Body/casing type	SOCKET
Connector type	COMBINATION LINE CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Plug information	3-480426-0
Mixed contacts	NO
Installation type	CABLE AND PANEL
Number of rows loaded	1
Options	GENERAL PURPOSE
Shell material	POLYAMIDE
Termination type	CRIMP
Total number of contacts	4
UL Flammability Code	94V-2
Base Number Matches	1

Preview

Download Datasheet

View All

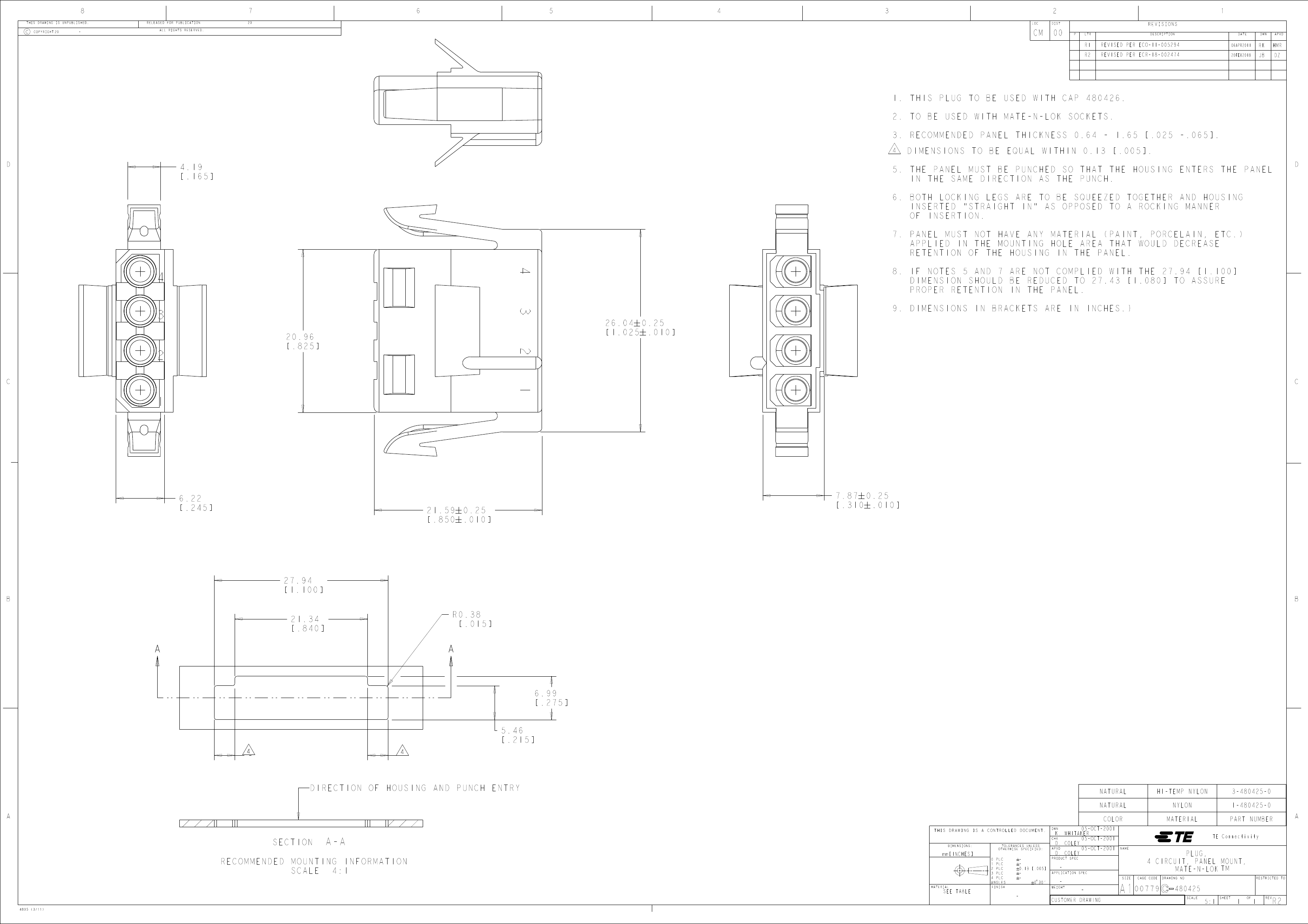

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECO-11-005294

REVISED PER ECR-18-002474

06APR2011

20FEB2018

HMR

1. THIS PLUG TO BE USED WITH CAP 480426.

2. TO BE USED WITH MATE-N-LOK SOCKETS.

3. RECOMMENDED PANEL THICKNESS 0.64 - 1.65 [.025 -.065].

DIMENSIONS TO BE EQUAL WITHIN 0.13 [.005].

4.19

[ .165 ]

5. THE PANEL MUST BE PUNCHED SO THAT THE HOUSING ENTERS THE PANEL

IN THE SAME DIRECTION AS THE PUNCH.

6. BOTH LOCKING LEGS ARE TO BE SQUEEZED TOGETHER AND HOUSING

INSERTED "STRAIGHT IN" AS OPPOSED TO A ROCKING MANNER

OF INSERTION.

7. PANEL MUST NOT HAVE ANY MATERIAL (PAINT, PORCELAIN, ETC.)

APPLIED IN THE MOUNTING HOLE AREA THAT WOULD DECREASE

RETENTION OF THE HOUSING IN THE PANEL.

8. IF NOTES 5 AND 7 ARE NOT COMPLIED WITH THE 27.94 [1.100]

DIMENSION SHOULD BE REDUCED TO 27.43 [1.080] TO ASSURE

PROPER RETENTION IN THE PANEL.

9. DIMENSIONS IN BRACKETS ARE IN INCHES.}

20.96

[ .825 ]

26.04

0.25

[ 1.025

.010 ]

6.22

[ .245 ]

21.59

[ .850

0.25

.010 ]

7.87 0.25

[ .310 .010 ]

27.94

[ 1.100 ]

21.34

[ .840 ]

R 0.38

[ .015 ]

6.99

[ .275 ]

5.46

[ .215 ]

DIRECTION OF HOUSING AND PUNCH ENTRY

NATURAL

HI-TEMP NYLON

NYLON

MATERIAL

3- 480425 -0

1- 480425 -0

PART NUMBER

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

SECTION

A-A

DIMENSIONS:

RECOMMENDED MOUNTING INFORMATION

SCALE

4:1

mm[INCHES]

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13 [.005]

0 $ 30'

05-OCT-2001

K. WHITAKER

CHK

05-OCT-2001

D. COLEY

APVD

05-OCT-2001

D. COLEY

PRODUCT SPEC

APPLICATION SPEC

COLOR

NAME

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

PLUG,

4 CIRCUIT, PANEL MOUNT,

MATE-N-LOK

DRAWING NO

RESTRICTED TO

480425

SCALE

4805 (3/11)

5:1

SHEET

REV
