5-6450330-6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-6450330-6

5-6450330-6: DescriptionBoard Connector, 20 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size3MB，20 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-6450330-6 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6450330-6	-	-	View	Buy Now

5-6450330-6 Overview

Board Connector, 20 Contact(s), 4 Row(s), Male, Right Angle, Solder Terminal

5-6450330-6 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1670461648
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Samacsys Description	MBXL R/A HDR 2P+16S+2P
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2023-03-07 16:10:32
YTEOL	0
Other features	TERMINAL PITCH FOR POWER CONTACTS: 6.35 MM
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Mixed contacts	YES
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	4
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	20
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

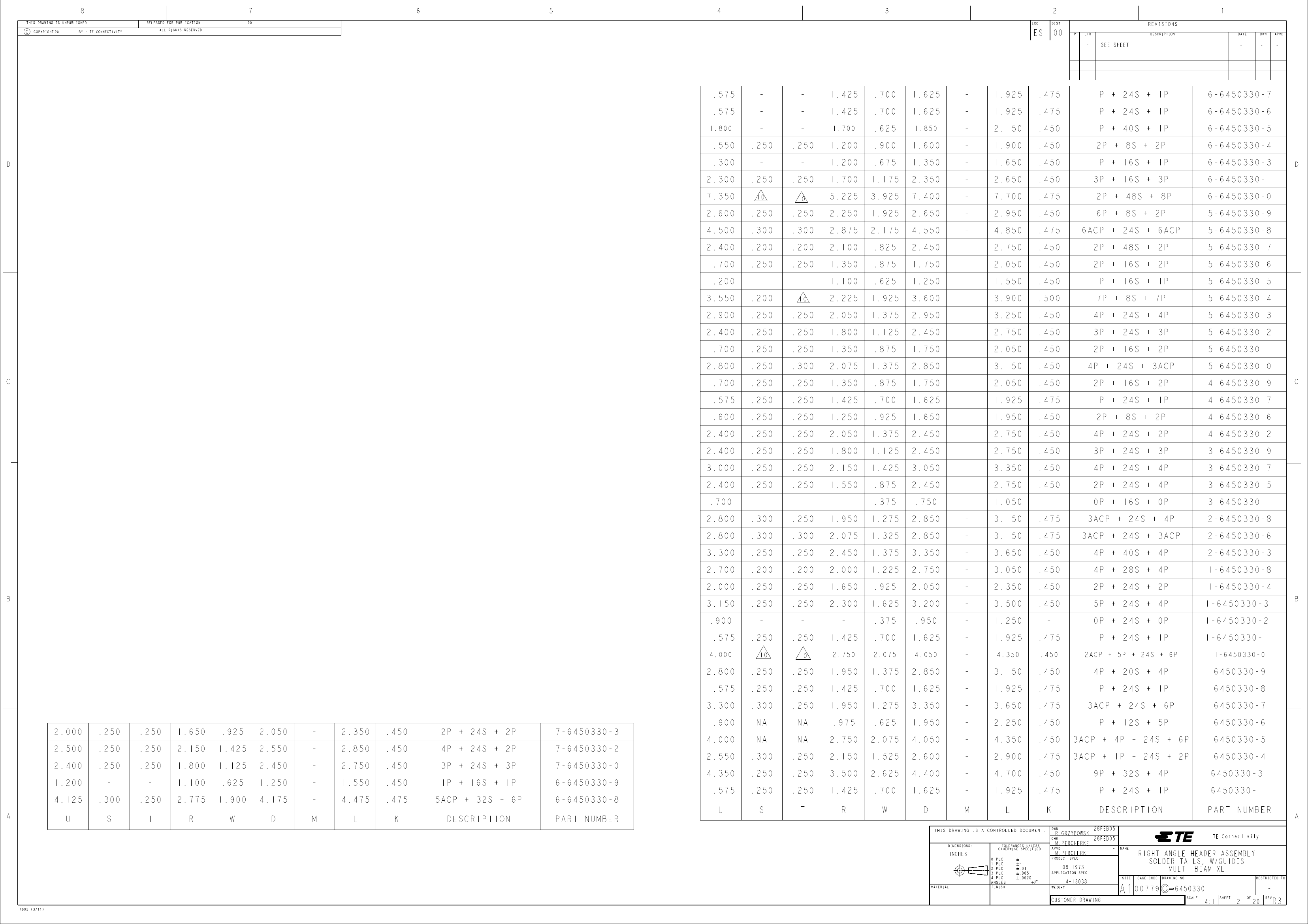

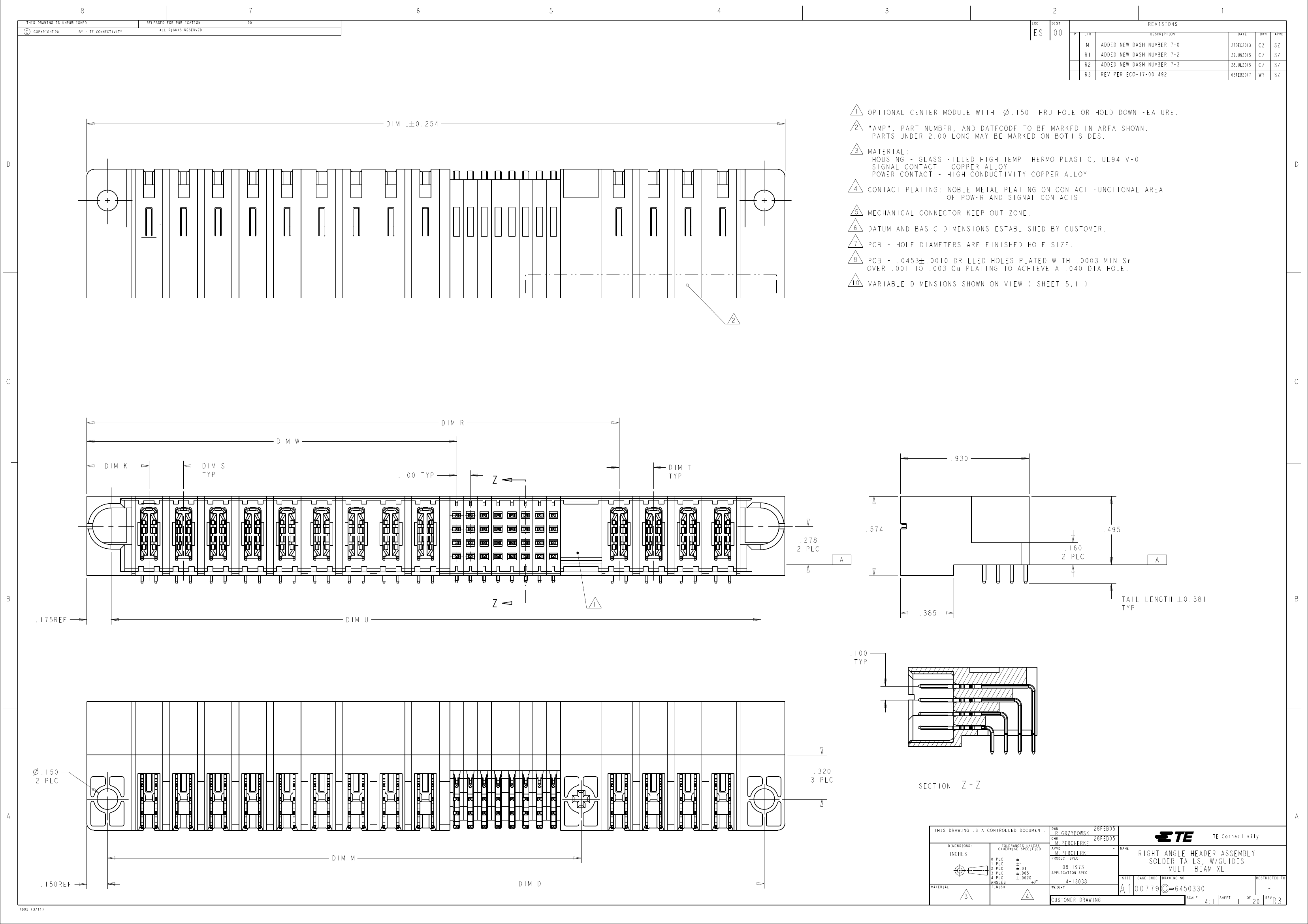

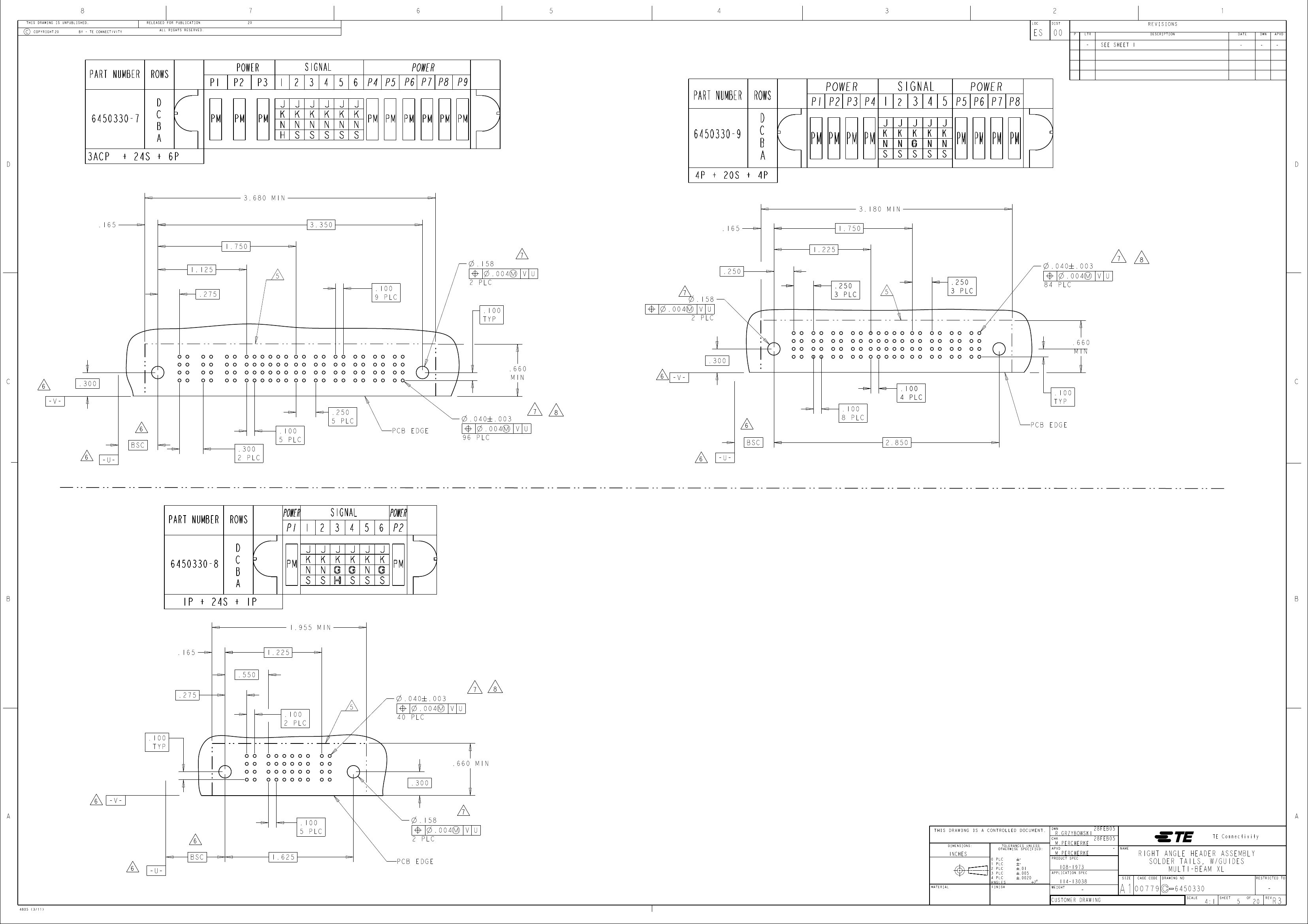

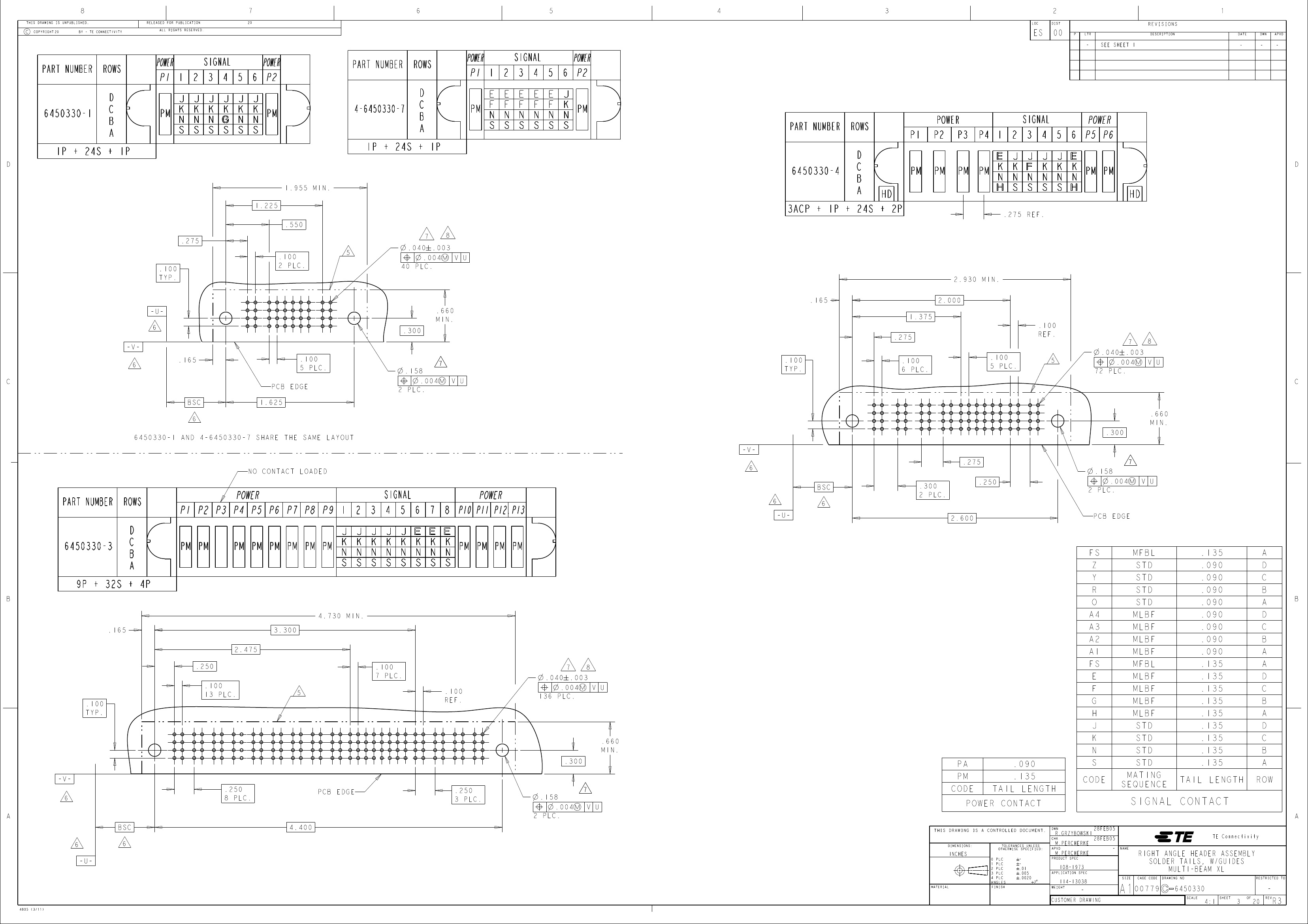

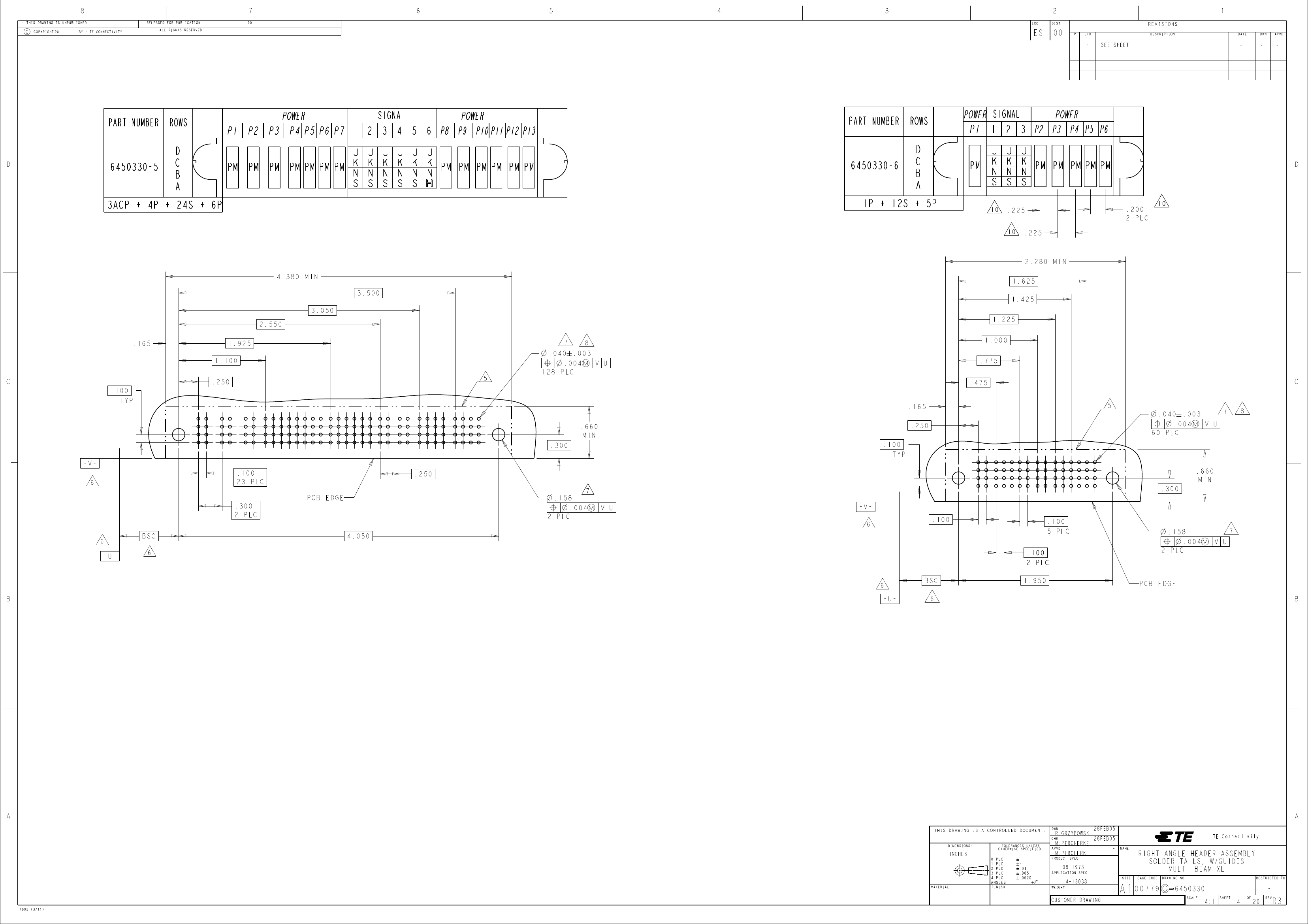

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY - TE CONNECTIVITY

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

ADDED NEW DASH NUMBER 7-0

ADDED NEW DASH NUMBER 7-2

ADDED NEW DASH NUMBER 7-3

REV PER ECO-17-001492

27DEC2013

29JUN2015

28JUL2015

03FEB2017

OPTIONAL CENTER MODULE WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE.

DIM L # 0.254

"AMP", PART NUMBER, AND DATECODE TO BE MARKED IN AREA SHOWN.

PARTS UNDER 2.00 LONG MAY BE MARKED ON BOTH SIDES.

MATERIAL:

HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, UL94 V-0

SIGNAL CONTACT - COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING: NOBLE METAL PLATING ON CONTACT FUNCTIONAL AREA

OF POWER AND SIGNAL CONTACTS

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB - HOLE DIAMETERS ARE FINISHED HOLE SIZE.

PCB - .0453 # .0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001 TO .003 Cu PLATING TO ACHIEVE A .040 DIA HOLE.

VARIABLE DIMENSIONS SHOWN ON VIEW ( SHEET 5,11)

DIM R

DIM W

DIM K

DIM S

TYP

DIM T

TYP

.930

.100

TYP

.574

.278

2 PLC

-A-

.160

2 PLC

.495

-A-

.175 REF

DIM U

.385

TAIL LENGTH

TYP

# 0.381

.100

TYP

.150

2 PLC

.320

3 PLC

SECTION

Z-Z

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

R.GRZYBOWSKI

M.PERCHERKE

108-1973

28FEB05

NAME

TE Connectivity

DIM M

.150 REF

DIM D

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

4805 (3/11)

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

RIGHT ANGLE HEADER ASSEMBLY

SOLDER TAILS, W/GUIDES

MULTI-BEAM XL

DRAWING NO

RESTRICTED TO

6450330

SCALE

4:1

SHEET

REV
