36502C1R0JTDG

Description
3650 1008 1.0uH 5% 2K RL
CategoryPassive components    inductor
File Size165KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

36502C1R0JTDG Online Shopping

Suppliers Part Number Price MOQ In stock
36502C1R0JTDG - - View Buy Now

36502C1R0JTDG Overview

3650 1008 1.0uH 5% 2K RL

36502C1R0JTDG Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instruction1111
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes1111
structureRectangular
DC Resistance1.75 Ω
Nominal inductance(L)1 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height2.1 mm
Package length2.92 mm
Package formSMT
Package width2.79 mm
method of packingTR
Minimum quality factor (at nominal inductance)35
Maximum rated current0.37 A
self resonant frequency290 MHz
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
special characteristicsQ MEASURED AT 50 MHZ
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency25 MHz
Tolerance5%
Base Number Matches1
4
THIS DRAWING IS UNPUBLISHED.
RELEASED FOR PUBLICATION
BY -
ALL RIGHTS RESERVED.
3
2009
2
REVISIONS
P
LTR
DESCRIPTION
1
DATE
DWN
APVD
C
COPYRIGHT
2009
BA1
ECR-14-010250
16JUL2014
KR
TN
D
2.79
2.13
D
1
2
TERMINAL WRAPAROUND APPROX 0.007'' (0.18mm) BOTH ENDS
FOR FURTHER INFORMATION SEE DATA SHEET FOR
3650 SERIES-LOW INDUCTANCE, HIGH FREQUENCY CHIP INDUCTOR
2.92
C
0.51
1.52
0.51
C
MAGNET WIRE
RECOMMENDED LAND PATTERN
FOR 3650-2C SERIES
2.54
ELECTRODE (Ag/Pd+Ni+Sn)
1.27
1.02
B
CERAMIC CORE
B
A-A
1.02
DIMENSIONS:
UV GLUE
DWN
CHK
THIS DRAWING IS A CONTROLLED DOCUMENT.
SUBHASH.M
ALLAN.P
04-AUG-09
04-AUG-09
04-AUG-09
NAME
TE Connectivity
mm
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
APVD
A
ROHS Compliant
MATERIAL
0
1
2
3
4
ANGLES
PLC
PLC
PLC
PLC
PLC
0.2
0.1
-
-
-
PRODUCT SPEC
STEPHEN.P
APPLICATION SPEC
-
1470-19 (3/13)
-
-
FINISH
5 $
-
-
WEIGHT
-
-

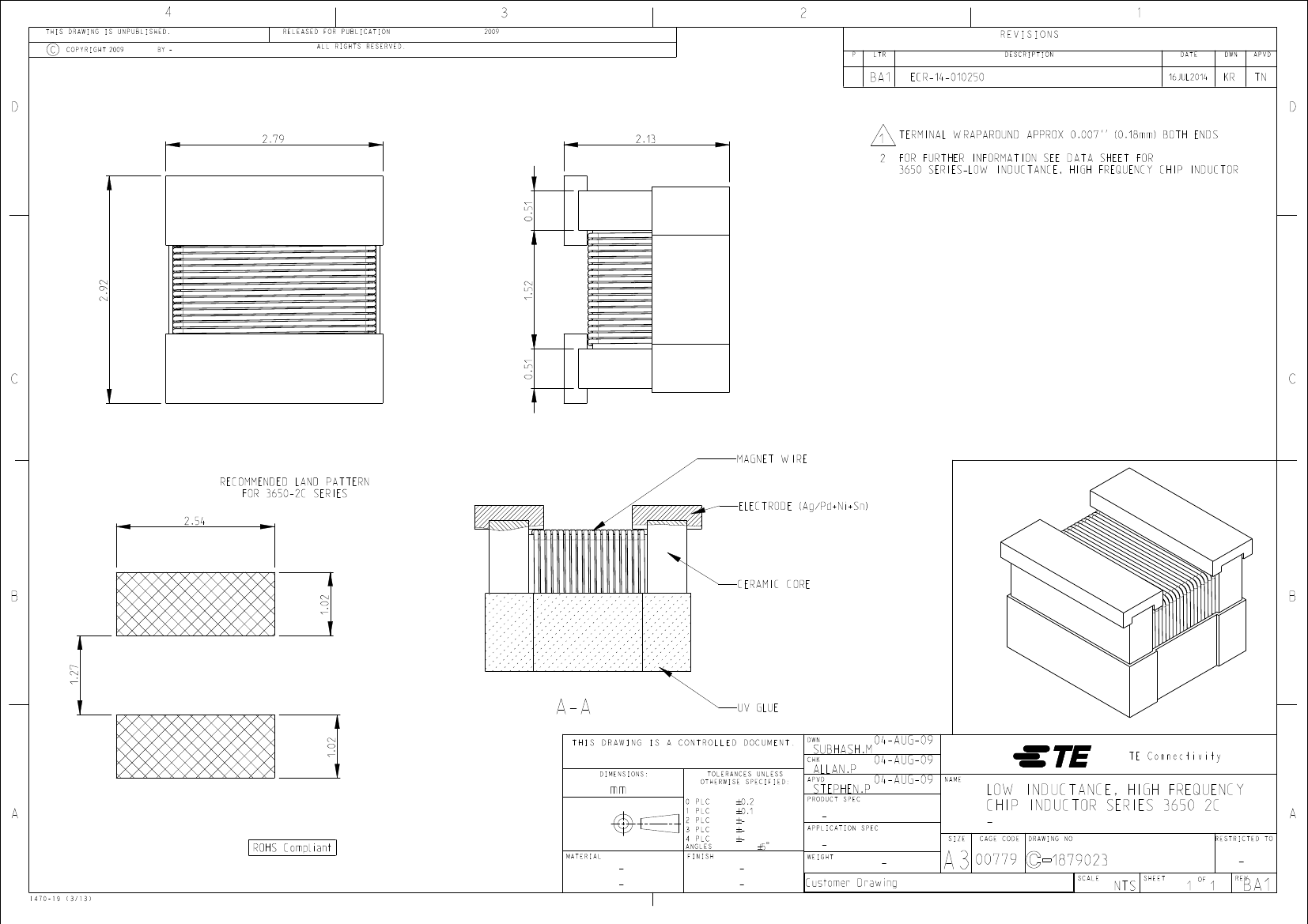

Customer Drawing
A3
SIZE
CAGE CODE
LOW INDUCTANCE, HIGH FREQUENCY
CHIP INDUCTOR SERIES 3650 2C
-
DRAWING NO
A
RESTRICTED TO
00779
1879023
SCALE
NTS
SHEET
1
OF
1
REV
-
BA1
