1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 10.8 - 11.9 mm
Performance
Configuration
Insulator
Rated Current
3B.304 : 4 Low Voltage
Y: PEEK for crimp contacts
19 Amps
Specifications
Contact Type: Crimp
Max. Matings: 5000
Contact Retention: 65 N
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Contact Dia.: 2 mm (0.079in)
Bucket Dia.: 2.4 mm (0.094in)
Min. Conductor: 1.5 mm^2 (AWG 16)
Max. Conductor: 2.5 mm^2 (AWG 12)
R (max): 3.3 mOhm
Vtest (contact-shell): 2200 V (AC), 3110 V (DC)
Vtest (contact-contact): 2500 V (AC), 3540 V (DC)
Others
Temp (min / max): -55°C / +250°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 75 dB (10 MHz)
Shielding (min): 40 dB (1 GHz)
IP Rating: 50

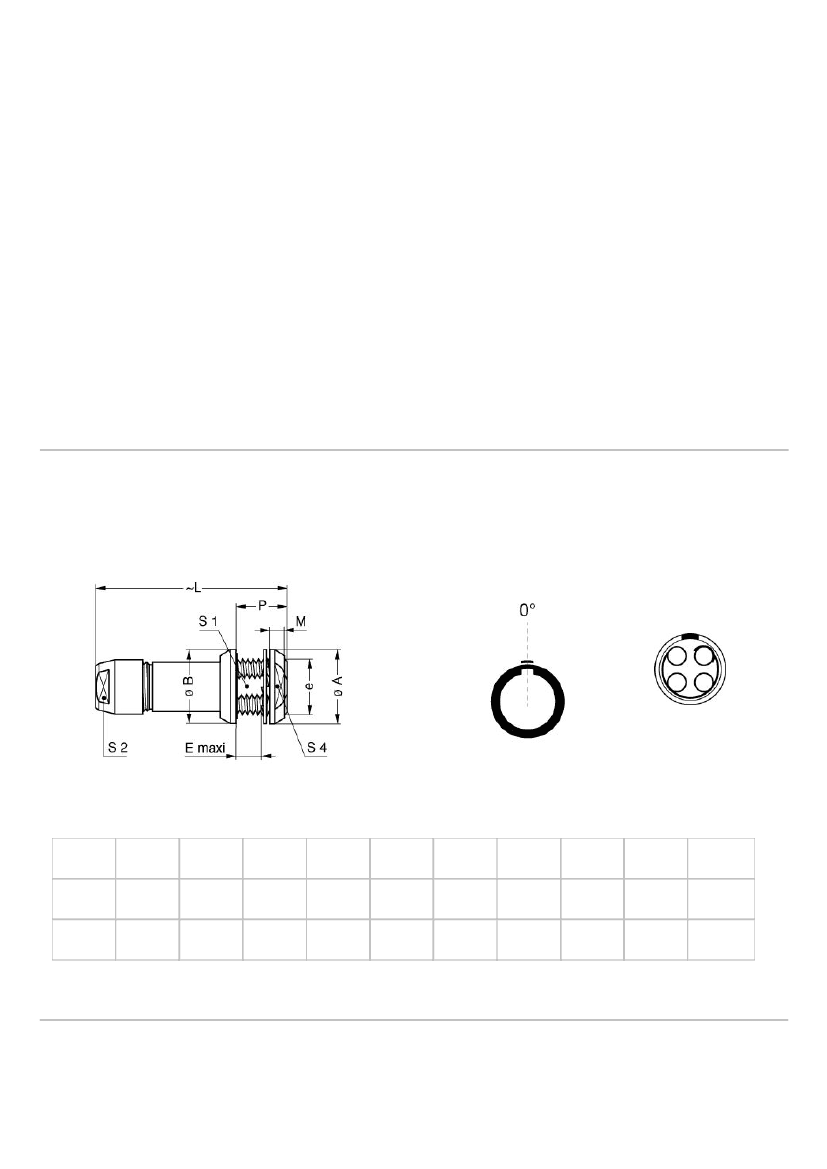

DRAWINGS
Draws
Dimensions
A
mm.
in.
24
0,94
B
25
0,98
E
5
0,20
L
56
2,20
M
4.5
0,18
P
12
0,47
S1
16.5
0,65
S2
14
0,55
S4
20
0,79
e
M18x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
Crimp Tool: DPC.91.101.A
Crimp settings: AWG/Selector = 12-14-16/8-7-6
Positionner: DCE.91.203.BVCM
Extractor: DCC.91.202.5LA
Replacement contact: EGG.3B.675.ZZM
Spanner wrench: DCD.3B.040.PA140
Cables
