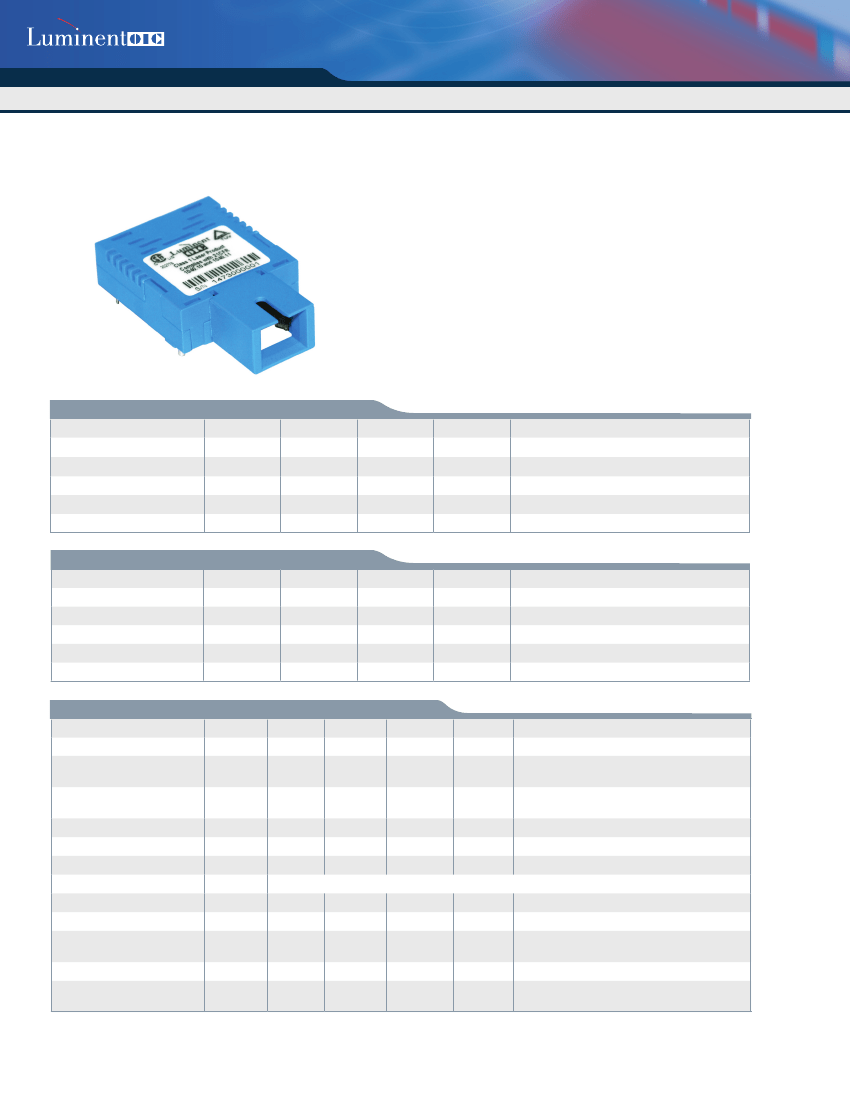

155 Mbps Bi-directional Receptacle
Single Fiber Transceiver
B-13/15-155-T(3)-SXX5(7)
Features
• Diplexer Single Mode Single Fiber 1x9 SC/SF/ST Receptacle
Connector
• Wavelength Tx 1310nm/Rx 1530 nm
• SONET OC-3 SDH STM-1 Compliant
• Single +5V Power Supply [B-13/15-155-T-SXX5(7)]
• Single +3.3V Power Supply [B-13/15-155-T3-SXX5(7)]
• PECL/LVPECL Differential Inputs and Outputs
• Wave Solderable and Aqueous Washable
• LED Multisourced 1x9 transceiver interchangeable
• Class 1 Laser Int. Safety Standard IEC 825 Compliant
• Uncooled Laser diode with MQW structure
• Complies with Telcordia(Bellcore) GR-468-CORE
• RoHS compliance available
Absolute Maximum Rating
Parameter
Power Supply Voltage
Power Supply Voltage
Output Current
Soldering Temperature
Storage Temperature
Symbol
V
cc
V
cc
I
out
-
Min.
0
0
-
-
-40
Max.
6
3.6
30
260
85
Unit
V
V
mA
ºC
ºC
Note
B-13/15-155-T-SXX5(7)
B-13/15-155-T3-SXX5(7)
10 seconds on leads only
T
stg
Recommended Operating Condition
Parameter
Power Supply Voltage
Power Supply Voltage
Operating Temperature (Case)
Operating Temperature (Case)
Data Rate
Transmitter Specifications
Parameter
Optical
Optical Transmit Power
Optical Transmit Power
Output center Wavelength
Output Spectrumt Width
Extinction Ratio
Output Eye
Optical Rise Time
Optical Fall Time
Optical Isolation
Relative Intensity Noise
Total Jitter
t
r
t
f
-
Symbol
V
cc
V
cc
T
opr
T
opr
-
Min.
4.75
3.1
0
0
-
Typ.
5
3.3
-
-
155
Max.
5.25
3.5
70
70
-
Unit
V
V
ºC
ºC
Mbps
Symbol
Min
Typical
Max
Unit
Notes
Output power is coupled into a 9/125 µm single
mode fiber (B-13/15-155-T(3)-SXX5)
Output power is coupled into a 9/125 µm single
mode fiber (B-13/15-155-T(3)-SXX7)
RMS (σ)
P
o
P
o
λ
∆λ
ER
-5
-3
1260
-
10
-
-
30
-
-
-
-
1310
-
-
-
-
-
-
-
0
+2
1360
3
-
2
2
-
-116
1.2
dBm
dBm
nm
nm
dB
ns
ns
dB
dB/Hz
ns
Compliant with ITU-T recommendation G.957/STM-1
10% to 90% Values
10% to 90% Values
Isolation potential between 1480-1580nm at
least 30dB
Measured with 2
23
-1 PRBS with 72 ones and 72
zeros.
RIN
TJ
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
1
LUMNDS617-Jun2906
Rev A.2
155 Mbps Bi-directional Receptacle
Single Fiber Transceiver
B-13/15-155-T(3)-SXX5(7)
Transmitter Specifications
Parameter
Electrical
Power Supply Current
Data Input Current-Low
Data Input Current-High
Differential Input Voltage
Data Input Voltage-Low
Data Input Voltage-High
I
CC
I
IL
I
IH
V
IH
-V
IL
V
IL
-V
CC
V
IH
-V
CC
-
-350
-
300
-2.0
-1.1
-
-
-
-
-
-
200
-
350
-
-1.58
-0.74
mA
µA
µA
mV
V
V
These inputs are compatible with 10K, 10KH
and 100K ECL and PECL inputs
Maximum current is specified at Vcc=
Maximum @ maximum temperature
Symbol
Min
Typical
Max
Unit
Notes
Receiver Specifications
Parameter
Optical
Sensitivity
Sensitivity
Maximum Input Power
Signal Detect-Asserted (Note 1)
Signal Detect-Asserted (Note 1)
Signal Detect-Deasserted (Note 1)
Signal Detect-Hysteresis
Wavelength of Operation
-
-
P
in
Pa
Pa
Pd
-
-
-3
-
-
-45
1.0
1480
-
-
-
-
-
-
-
-
-33
-35
-
-33
-35
-
4.0
1600
dBm
dBm
dBm
dBm
dBm
dBm
dB
nm
MEasured on transition : low to high
B-13/15-155-T(3)-SSC5
MEasured on transition : low to high
B-13/15-155-T(3)-SSC7
Measured on transition: high to low
B-13/15-155-T(3)-SSC5
Symbol
Min
Typical
Max
Unit
Notes
Measured with 223-1 PRBS, BER = 10-10,
B-13/15-155-T(3)-SSC5
Measured with 2
23
-1 PRBS, BER = 10
-10
,
B-13/15-155-T(3)-SSC7
Note 1: Regardless of whether the Tx is on or not, SD should be asserted at less than -33 or -35 dBm of input power level and deasserted at
higher than -45 dBm of input power level from the outside Tx.
Receiver Specifications
Parameter
Electrical
Power Supply Current
Data Output Voltage-Low
Data Output Voltage-High
Signal Detect Output Voltage-Low
Signal Detect Output Voltage-High
I
CC
V
OL
-V
cc
V
OH
-
V
cc
V
SDL-
V
cc
V
SDH-
V
cc
-
-2.0
-1.1
-2.0
-1.1
-
-
-
-
-
100
-1.58
-0.74
-1.58
-0.74
mA
V
V
V
V
These outputs are compatible with 10K,
10KH and 100KECL and PECL outputs
The current excludes the output load current
Symbol
Min
Typical
Max
Unit
Note
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
2
LUMNDS617-Jun2906
Rev A.2
155 Mbps Bi-directional Receptacle
Single Fiber Transceiver
B-13/15-155-T(3)-SXX5(7)
Connection Diagram
1. (Rx GND)
2. (Rx +)
3. (Rx-)
4. (SD)
5. (Rx Vcc)
6. (Tx Vcc)
7. (Tx-)
8. (Tx+)
9. (Tx GND)
NC
Top View
NC
Receiver Signal Ground
Receiver Data Out
Receiver Data Out Bar
Signal Detect
Receiver Power Supply
Transmitter Power Supply
Transmitter Data In Bar
Transmitter Data in
Transmitter Signal Ground
PIN
1
2
3
4
5
6
7
8
Warnings
9
Symbol
RxGND
RD+
RD-
SD
RxVcc
TxVcc
TD-
TD+
TxGND
Notes
Directly connect this pin to the receiver ground plane
See recommended circuit schematic
See recommended circuit schematic
Active high on this indicates a received optical signal
DC power for the receiver section
DC power for the transmitter section
See recommended circuit schematic
See recommended circuit schematic
Directly connect this pin to the transmitter ground plane
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
3
LUMNDS617-Jun2906
Rev A.2
155 Mbps Bi-directional Receptacle
Single Fiber Transceiver
B-13/15-155-T(3)-SXX5(7)

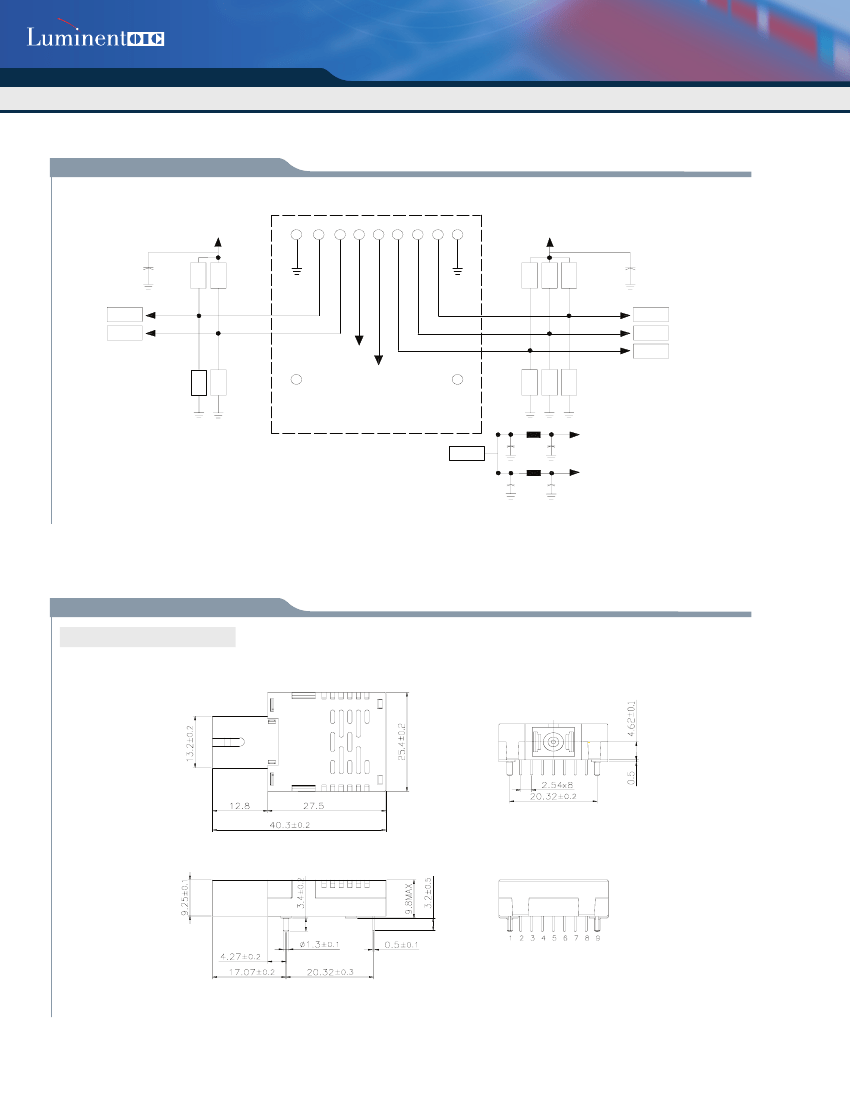

Recommended Circuit Schematic (3.3V/5V)
Tx Vcc
C5
Rx Vcc
9
R1
R3
8
7
6 5
4 3
2
1
R9
R5
R7
C6
TD +
TD -
RD +
RD -
Tx Vcc
Rx Vcc
R2
R4
SD
R10
R6
No internal
connection
Transceiver
Top view
No internal
connection
R8
L1
Vcc
Notes +3.3V:
R1=R3=R5=R7=R9=130
R2=R4=R6=R8=R10=82
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
Notes +5V:
R1=R3=R5=R7=R9=82
R2=R4=R6=R8=R10=130
C1=C2=C3=C5=C6=0.1F
C4=10F
L1=L2=1H
C3
C1
Rx Vcc
L2
C4
C2
Tx Vcc
The split-loaded terminations for ECL signals need to be located at the input of devices receiving those ECL signals.
The power supply filtering is required for good EMI performance. Use short tracks from the inductor L1/L2 to the module Rx Vcc.
A GND plane under the module is required for good EMI and sensitivity performance.
Package Diagram
B-13/15-155-T(3)-SSC5(7)
Top View
Front View
Side View
Rear View
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
4
LUMNDS617-Jun2906
Rev A.2
155 Mbps Bi-directional Receptacle
Single Fiber Transceiver
B-13/15-155-T(3)-SXX5(7)

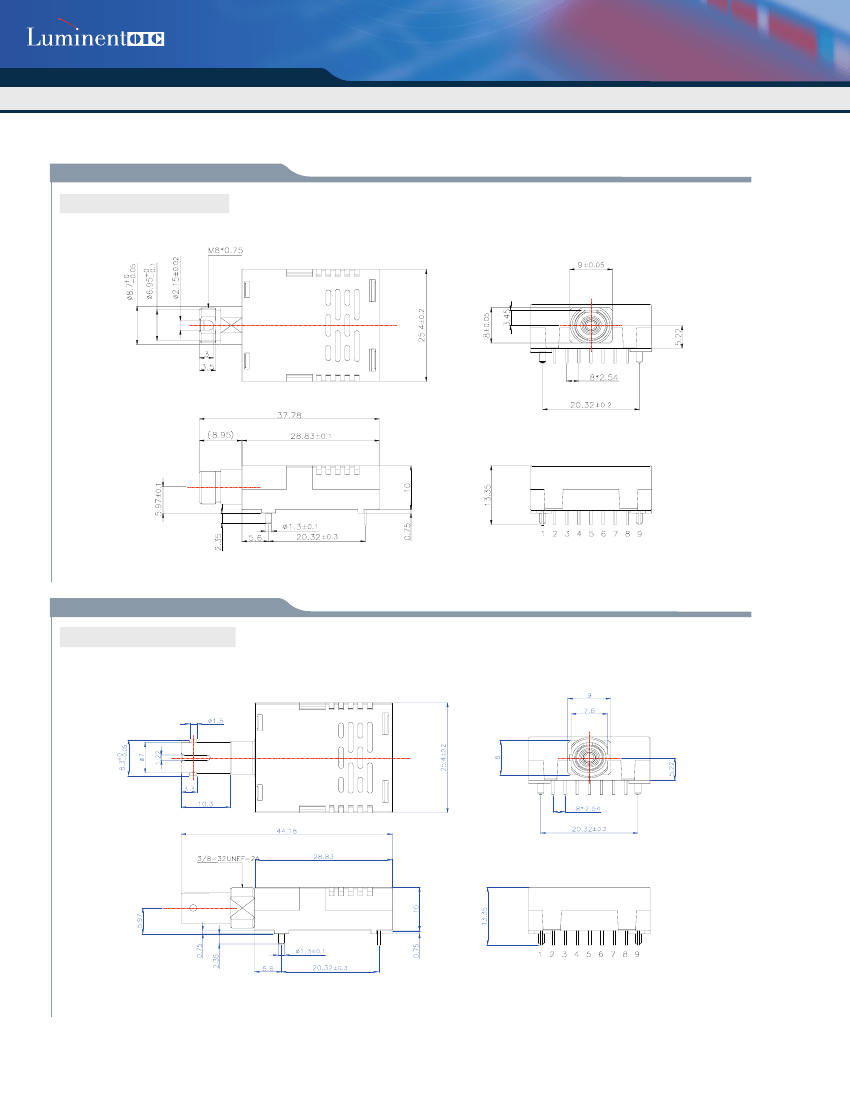

Package Diagram
B-13/15-155-T(3)-SFC5(7)
Top View
Front View
Package Diagram
B-13/15-155-T(3)-SST5(7)
Top View
Front View
LUMINENTOIC.COM
20550 Nordhoff St. • Chatsworth, CA 91311 • tel: 818.773.9044 • fax: 818.576.9486
9F, No 81, Shui Lee Rd. • Hsinchu, Taiwan, R.O.C. • tel: 886.3.5169222 • fax: 886.3.5169213
5
LUMNDS617-Jun2906
Rev A.2
