3-1445057-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-1445057-1

3-1445057-1: DescriptionMICRO MNL HDR ASSY SINGLE ROW; CategoryThe connector The connector; File Size168KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1445057-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1445057-1	-	-	View	Buy Now

3-1445057-1 Overview

MICRO MNL HDR ASSY SINGLE ROW

3-1445057-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	MATE-N-LOK, POLARIZED
body width	0.223 inch
subject depth	0.439 inch
body length	2.754 inch
Body/casing type	PLUG
Connector type	POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1500VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	6.672 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
MIL compliance	NO
Plug contact pitch	0.118 inch
Plug information	1-1445022-1
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	5 A
Guideline	CSA,UL,VDE
reliability	COMMERCIAL
Shell material	NYLON
Terminal pitch	2.9972 mm
Termination type	SURFACE MOUNT
Total number of contacts	11
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

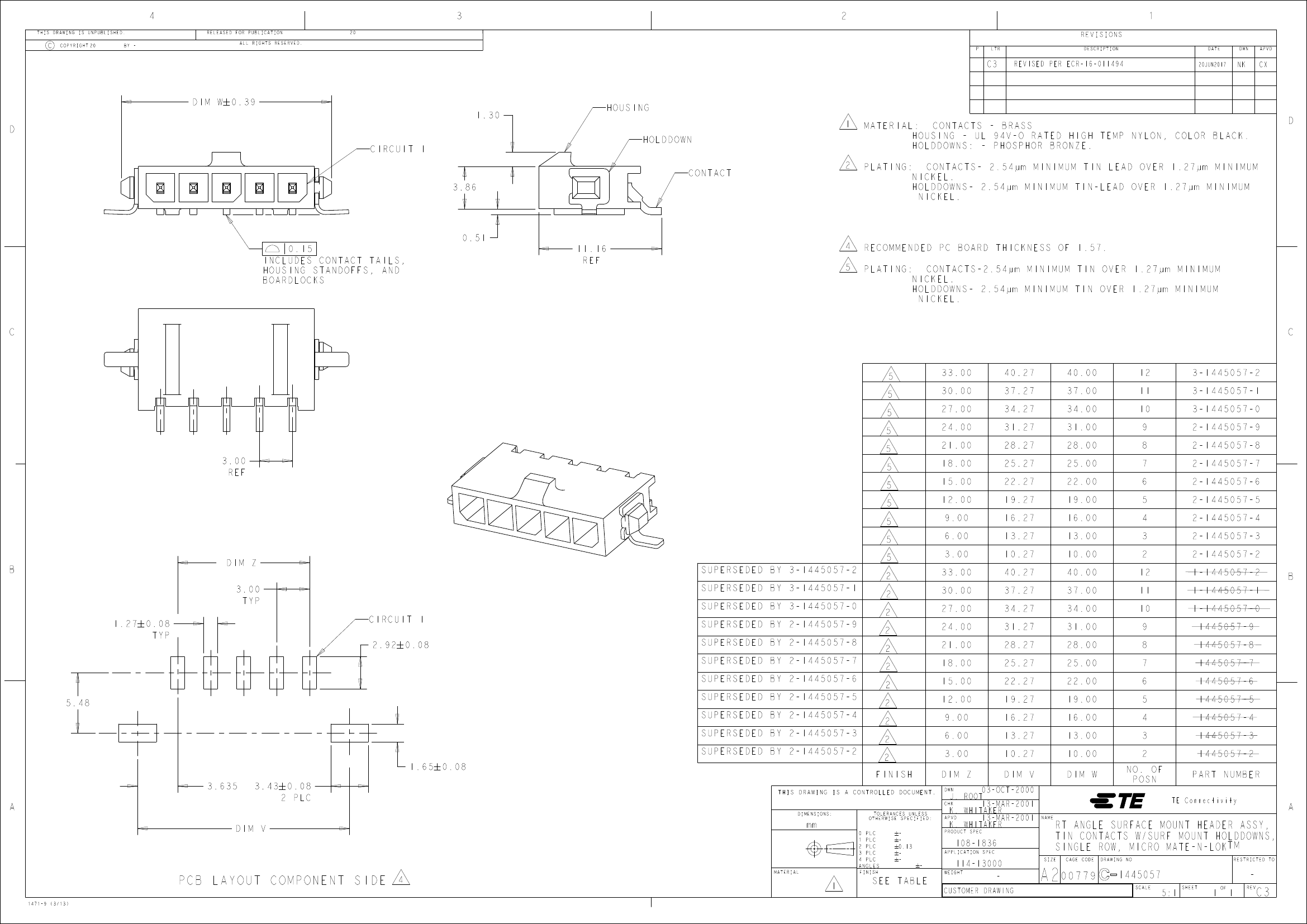

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REVISED PER ECR-16-011494

20JUN2017

DIM W # 0.39

CIRCUIT 1

1.30

HOUSING

HOLDDOWN

CONTACT

MATERIAL: CONTACTS - BRASS

HOUSING - UL 94V-O RATED HIGH TEMP NYLON, COLOR BLACK.

HOLDDOWNS: - PHOSPHOR BRONZE.

PLATING: CONTACTS- 2.54µm MINIMUM TIN LEAD OVER 1.27µm MINIMUM

NICKEL.

HOLDDOWNS- 2.54µm MINIMUM TIN-LEAD OVER 1.27µm MINIMUM

NICKEL.

3.86

0.51

INCLUDES CONTACT TAILS,

HOUSING STANDOFFS, AND

BOARDLOCKS

11.16

REF

RECOMMENDED PC BOARD THICKNESS OF 1.57.

PLATING: CONTACTS-2.54µm MINIMUM TIN OVER 1.27µm MINIMUM

NICKEL.

HOLDDOWNS- 2.54µm MINIMUM TIN OVER 1.27µm MINIMUM

NICKEL.

3.00

REF

FINISH

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

33.00

30.00

27.00

24.00

21.00

18.00

15.00

12.00

9.00

6.00

3.00

DIM Z

DWN

CHK

40.27

37.27

34.27

31.27

28.27

25.27

22.27

19.27

16.27

13.27

10.27

40.27

37.27

34.27

31.27

28.27

25.27

22.27

19.27

16.27

13.27

10.27

DIM V

03-OCT-2000

NAME

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

40.00

37.00

34.00

31.00

28.00

25.00

22.00

19.00

16.00

13.00

10.00

DIM W

NO. OF

POSN

3-1445057-2

3-1445057-1

3-1445057-0

2-1445057-9

2-1445057-8

2-1445057-7

2-1445057-6

2-1445057-5

2-1445057-4

2-1445057-3

2-1445057-2

1-1445057-2

1-1445057-1

1-1445057-0

1445057-9

1445057-8

1445057-7

1445057-6

1445057-5

1445057-4

1445057-3

1445057-2

PART NUMBER

TE Connectivity

DIM Z

3.00

TYP

1.27

0.08

TYP

CIRCUIT 1

2.92

0.08

SUPERSEDED BY 3-1445057-2

SUPERSEDED BY 3-1445057-1

SUPERSEDED BY 3-1445057-0

SUPERSEDED BY 2-1445057-9

SUPERSEDED BY 2-1445057-8

SUPERSEDED BY 2-1445057-7

SUPERSEDED BY 2-1445057-6

5.48

SUPERSEDED BY 2-1445057-5

SUPERSEDED BY 2-1445057-4

SUPERSEDED BY 2-1445057-3

SUPERSEDED BY 2-1445057-2

1.65

3.635

3.43

0.08

2 PLC

0.08

DIM V

PCB LAYOUT COMPONENT SIDE

1471-9 (3/13)

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

13-MAR-2001

K. WHITAKER

APVD

13-MAR-2001

K. WHITAKER

PRODUCT SPEC

APPLICATION SPEC

J. ROOT

108-1836

114-13000

SIZE

RT ANGLE SURFACE MOUNT HEADER ASSY,

TIN CONTACTS W/SURF MOUNT HOLDDOWNS,

SINGLE ROW, MICRO MATE-N-LOK

CAGE CODE

DRAWING NO

SEE TABLE

WEIGHT

CUSTOMER DRAWING

00779

RESTRICTED TO

1445057

SCALE

5:1

SHEET

REV
