Part Number

Search

3-643193-5

Description
05P MTA156 CONN ASSY H/F 22AWG
CategoryThe connector    The connector
File Size79KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance

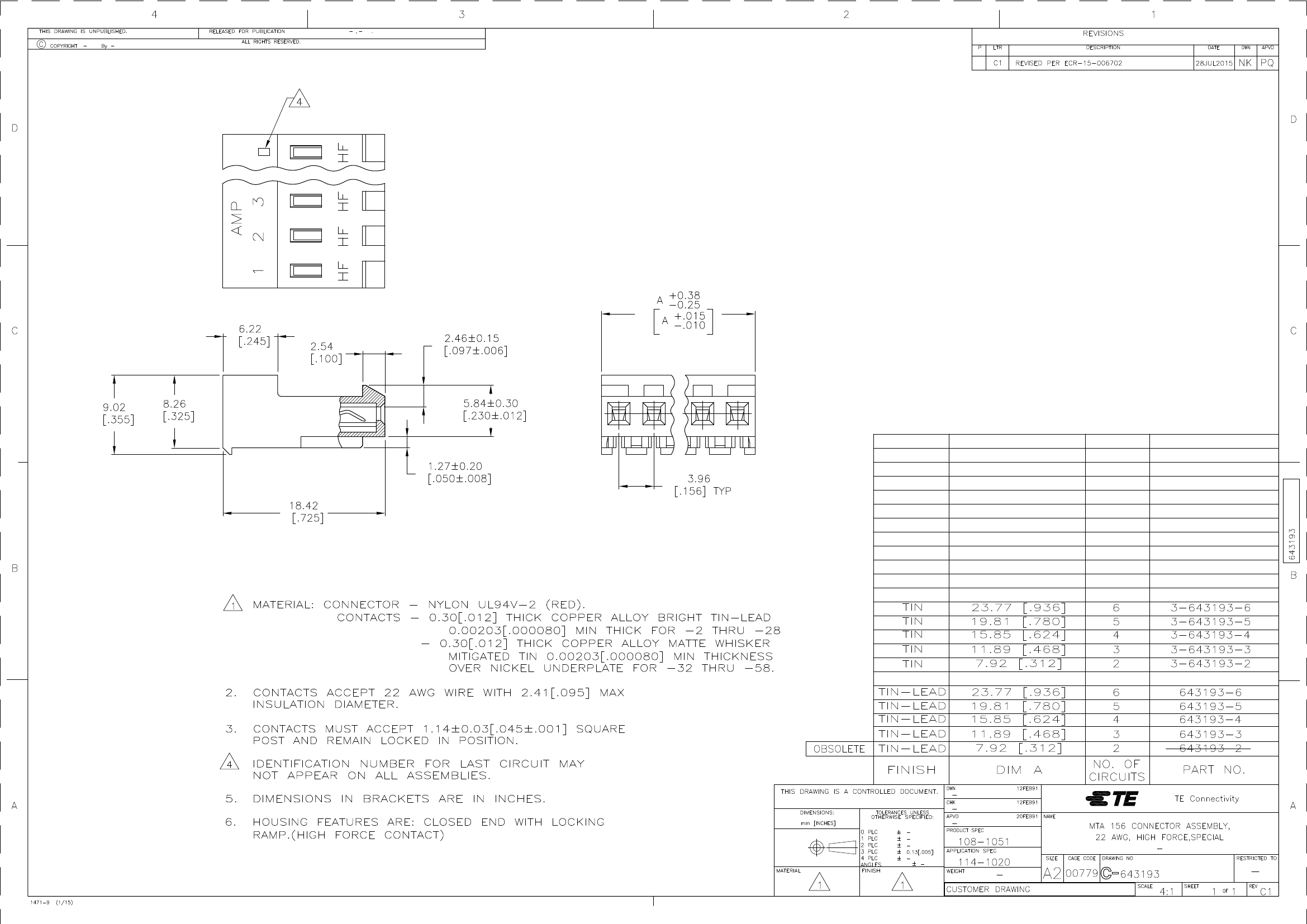

Download Datasheet Parametric View All

3-643193-5 Online Shopping

Suppliers Part Number Price MOQ In stock
3-643193-5 - - View Buy Now

3-643193-5 Overview

05P MTA156 CONN ASSY H/F 22AWG

3-643193-5 Parametric

Parameter NameAttribute value
Brand NameAMP
Is it lead-free?Lead free
Is it Rohs certified?conform to
Objectid1734706443
Reach Compliance Codecompliant
Factory Lead Time17 weeks 4 days
Samacsys Description05P MTA156 CONN ASSY H/F 22AWG
Samacsys ManufacturerTE Connectivity
Samacsys Modified On2020-10-10 19:58:25
YTEOL6.5
body width0.355 inch
subject depth0.355 inch
body length0.78 inch
Body/casing typeRECEPTACLE
Cable typeSTRANDED
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedTin (Sn)
Contact point genderFEMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
DIN complianceNO
Durability25 Cycles
Electromagnetic interference shieldingNO
empty shellYES
Filter functionNO
IEC complianceNO
maximum insertion force7.1168 N
Minimum insulation diameter0.095 inch
Insulation resistance5000000000 Ω
Insulator colorRED
insulator materialPOLYAMIDE
JESD-609 codee3
MIL complianceNO
Power Connector Ratings7A
Plug contact pitch0.156 inch
Mixed contactsNO
Installation option 1LOCKING
Installation option 2LOCKING
Installation typeCABLE
Number of connectorsONE
Number of ports1
Number of rows loaded1
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
OptionsGENERAL PURPOSE
Panel mountingNO
Plating thickness80u inch
polarization keyPOLARIZED
Rated current (signal)7 A
GuidelineCSA, UL
reliabilityCOMMERCIAL
Terminal pitch3.96 mm
Termination typeIDC
Total number of contacts5
UL Flammability Code94V-2
Maximum wire diameter22 AWG
Minimum wire diameter22 AWG
Evacuation force-minimum value.8896 N
