AMP multifitting Mark II
Connectors in In-Line Mating Technology
Introduction
Product Features
s
Direct Mating Connectors
for PC Boards, 2–8
Positions, up to 6 A Current
Carrying Capacity
s
Indirect Mating Connectors,
1–8 Positions, up to 16 A
Current Carrying Capacity
s
Variable Keying
s
Double Wire Termination
possible
METRIC
Catalogue 1654742
Dimensions are
millimetres over inches
Revised 5-04

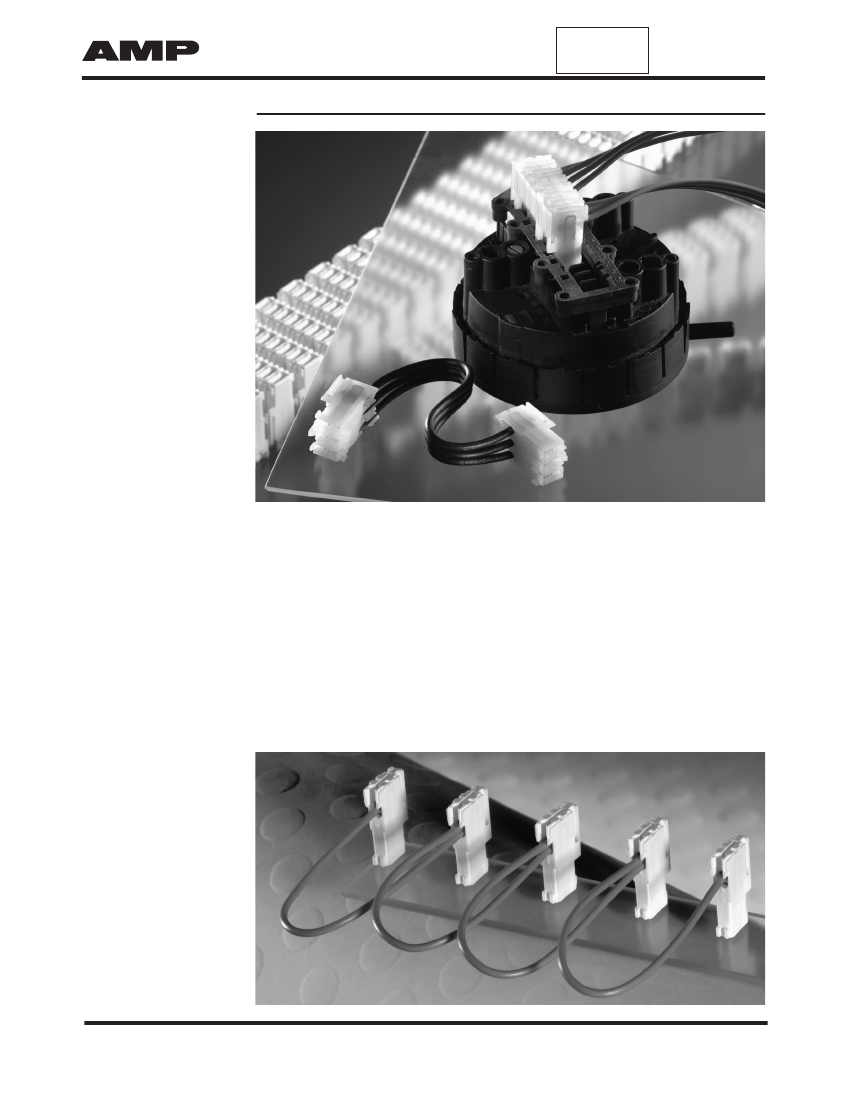

Tyco Electronics’ newly
designed AMP multifitting
Mark II Connector System
was developed according
to the latest connector
design standards.
The requirements of
advanced In-Line mating
technology for the
components and contacts of
pc boards are incorporated
in the direct and indirect
versions of these connector
systems.
This system is suitable for a
wide wire size range.
Current carrying capacity is
16 A maximum.
Double termination is
possible with 0.5 and 0.5
mm
2
or 0.5 and 0.75 mm
2
conductors.
The connectors are avail-
able in 1- to 8-positions
(indirect) resp. 2- to 8-
positions (direct) with an
exterior locking device.
Interior locking options are
available on request.
Supplied in chain and
provided with all keying and
polarisation ribs, the
connectors can be operated
economically with modern
Application Tooling
Equipment.
2002
Products for Industrial &
Commercial Applications
Dimensions are shown for
reference purposes only.
Conversion Rate:
25.4mm = 1 inch
Dimensions are in inches and
millimetres unless otherwise
specified. Values in brackets
are metric equivalents.
Specifications subject to
change.
www.tycoelectronics.com
AMP multifitting Mark II
Connectors in In-Line Mating Technology
METRIC
Catalogue 1654742
Dimensions are
millimetres over inches
Revised 5-04

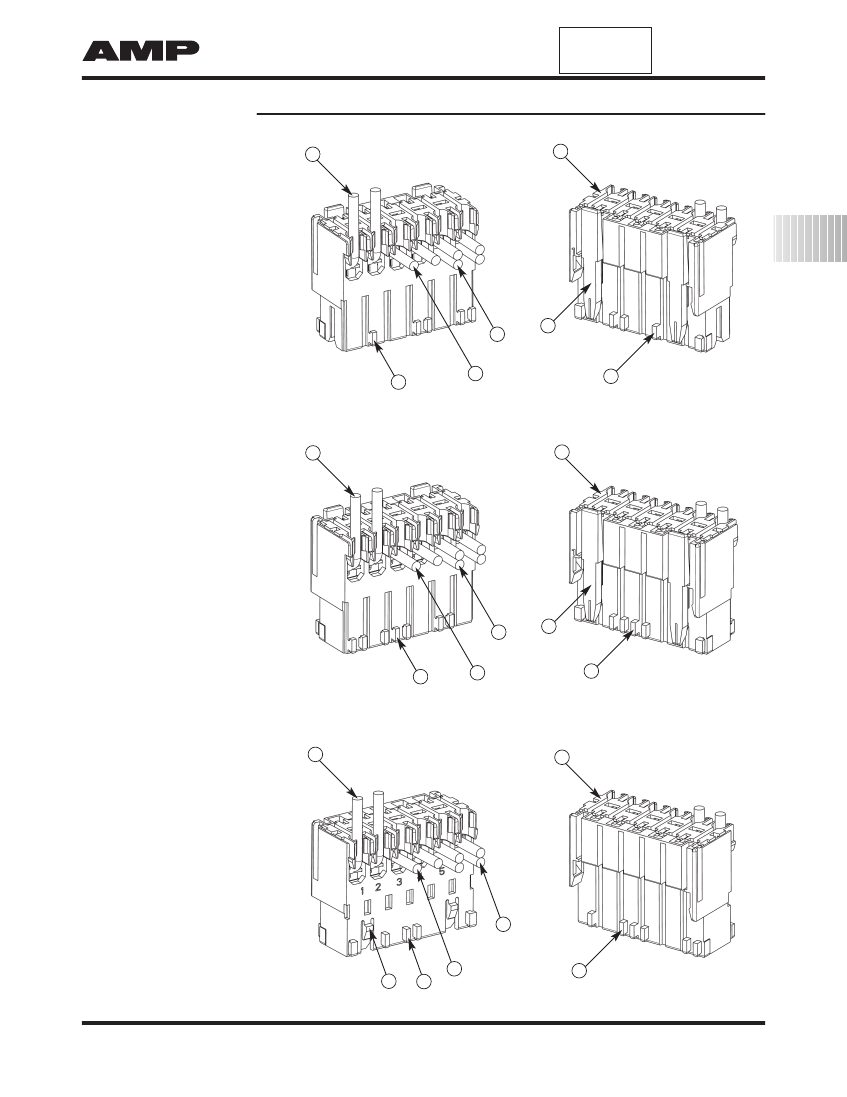

Direct and Indirect Mating Connection, 5.0 mm Centerline
Direct Mating Connection,
5.0 mm Centerline
3
4
1
Double Wire Exit
2
Wire Exit 90°
3
Wire Exit 180°
4
Cover
5
Exterior Locking Latch
6
Keying
7
Polarisation
2
Rast 5
1
2
5
7
6
Indirect Mating Connection,
5.0 mm Centerline
3
4
1
Double Wire Exit
2
Wire Exit 90°
3
Wire Exit 180°
4
Cover
5
Exterior Locking Latch
6
Keying
7
Polarisation
1
7
2
5
6
Indirect Mating Connection
with Interior Locking,
5.0 mm Centerline
3
4
1
Double Wire Exit
2
Wire Exit 90°
3
Wire Exit 180°
4
Cover
5
Interior Locking Latch
6
Keying
7
Polarisation
1
2
5
6
7
2003
Products for Industrial &
Commercial Applications
Dimensions are shown for
reference purposes only.
Conversion Rate:
25.4mm = 1 inch
Dimensions are in inches and
millimetres unless otherwise
specified. Values in brackets
are metric equivalents.
Specifications subject to
change.
www.tycoelectronics.com
AMP multifitting Mark II
Connectors in In-Line Mating Technology
Derating Curves
Direct Mating Connector
System
METRIC
Catalogue 1654742
Dimensions are
millimetres over inches
Revised 5-04
I/A
7
6
Connector:
8 positions
Material:
Brass, tin plated
Wire:
0.5 mm
2
PC Board:
FR4, 2 x 0.35 µm Copper,
tin plated
Current
5
4
3
2
1
0
0
10
20
30
40
50
60
70
80
90
100
110
t/°C
Ambient Temperature
Indirect Mating Connector
System
I/A
/
/A
10
3
9
Material:
Brass, tin plated
Current
8
7
2
6
1
Curve 1:
2 positions
Curve 2:
8 positions
Curve 3:
4 positions
Wire:
0.5 mm
2
(Curve 1 and 2)
1.0 mm
2
(Curve 3)
Mating Part:
6.3 x 0.8 mm Tab,
Brass, tin plated
5
4
3
2
1
t/ϒ
/
ϒ
/ϒ
C
0
20
40
60
80
100
120
0
Ambient Temperature
Indirect Mating Connector
System
I /A
18
2
16
1
Material:
CuNi2Si, silver plated
Current
14
Curve 1:
1 position
Curve 2:
4 positions
12
Wire:
1.5 mm
2
, tin plated
Mating Part:
6.3 x 0.8 mm Tab,
Brass, tin plated
10
8
6
4
2
0
0
20
40
60
80
100
120
140
t/°C
Ambient Temperature
2004
Products for Industrial &
Commercial Applications
Dimensions are shown for
reference purposes only.
Conversion Rate:
25.4mm = 1 inch
Dimensions are in inches and
millimetres unless otherwise
specified. Values in brackets
are metric equivalents.
Specifications subject to
change.
www.tycoelectronics.com
AMP multifitting Mark II
Connectors in In-Line Mating Technology

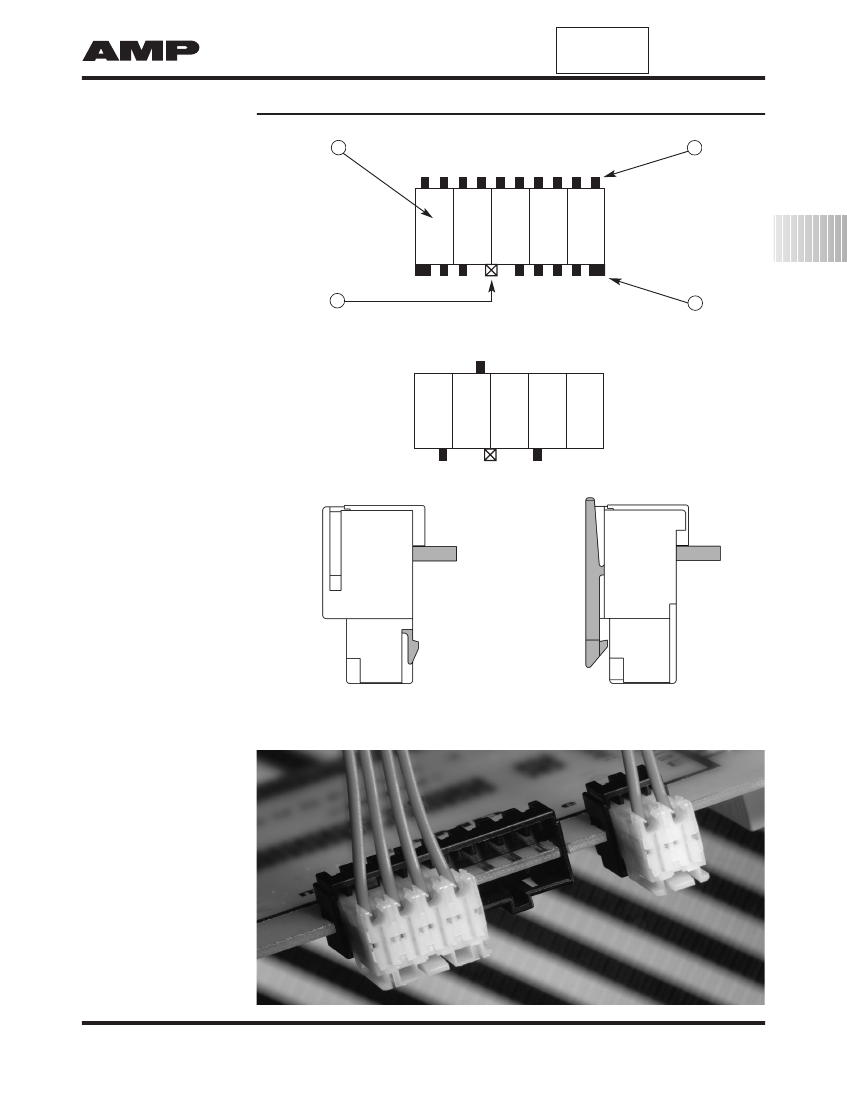

Keying Plan and Cable Exit
Keying Plan
from Mating Direction,
Fully-Keyed Version
METRIC
Catalogue 1654742
Dimensions are
millimetres over inches
Revised 5-04
4
3
– 1 –
b
d
a
–2–
–3–
–4–
1
Locking Latch
2
Keying Rib
3
Polarisation Rib
4
Cavity Number
–5–
2
Rast 5
2
1
Keyed Version:
05-C according RAST 5
c
–1–
d
– 2 –
b
–3–
–4–
c
This final keying version will be
produced on the Application
Tooling Equipment.
Cable Exit with Interior
and Exterior Locking
Cable Exit with Interior Locking
Cable Exit with Exterior Locking
Direct Mating of a PCB
with PC Board Frames
–5–
2005
Products for Industrial &
Commercial Applications
Dimensions are shown for
reference purposes only.
Conversion Rate:
25.4mm = 1 inch
Dimensions are in inches and
millimetres unless otherwise
specified. Values in brackets
are metric equivalents.
Specifications subject to
change.
www.tycoelectronics.com
