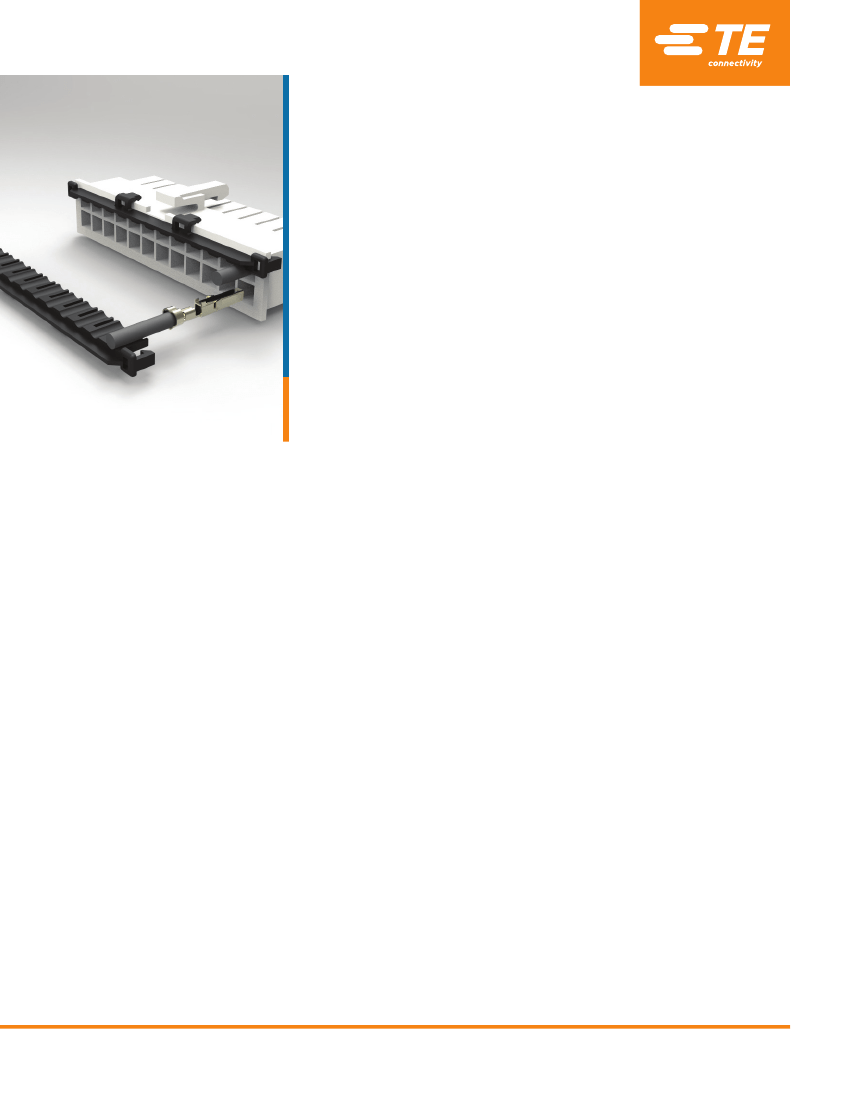

The VAL-U-LOK product line has been expanded with new models accommodating
Terminal Position Assurance (TPA) devices to help prevent contact back-out and
a new material meeting both the glow wire test and UL 94 V-0. These additions
to the 4.2 mm (.165 in) centerline product family are double row devices. Rated
up to 600VAC and up to 9A per line, they offer up to 24 positions as panel mount
plugs, free-hanging plugs and receptacles. The new connectors with TPAs are
intermatable with existing VAL-U-LOK connectors and headers, supporting wire-to-
panel, wire-to-wire and wire-to-board applications.
New crimp, pin-and-socket contacts for discrete 26-18 AWG wires are designed
for the new housings and work with the TPA devices. Snapping the TPA devices
into place helps to assure contacts are fully seated in the housing and provides
secondary protection against a contact backing out of its cavity when subjected to
vibration, shock or pulling force.

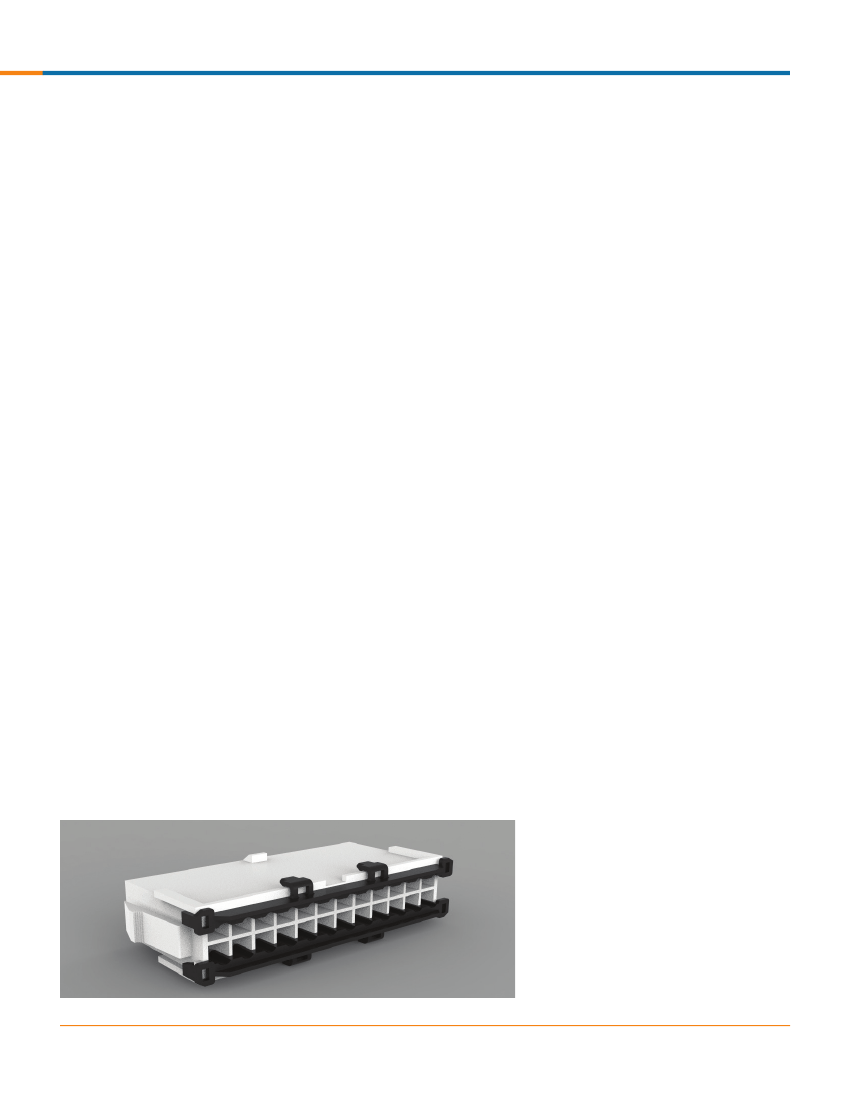

Mechanical
• Positions: 2 to 24 (double row)
• Wire size: 26-18 AWG discrete wire
• Centerline pitch: 4.2 mm (.165 in)
• Operating temperature: -40°C to 105°C
Electrical
• Voltage rating: 600VAC
• Current rating: 9A
Materials
• Housings:
1.
Glow wire product compliant 750°C
no flame according to IEC 60335-1 5th
edition and UL 94 V-0;
Glow wire product compliant 750°C
no flame according to IEC 60335-1 5th
edition and UL 94 V-2;
3.
4.
UL 94 V-0 rated nylon;
UL 94 V-2 rated nylon.
Key Features
• Terminal Position Assurance (TPA) devices help ensure contacts are fully seated
in the housing and secondarily help secure contacts in housings, protecting
against back-out
• Integral housing locking latch
2.
Applications
• Household appliances
• Desktop computers
• Indoor/outdoor lighting
• Security systems
• Industrial controls
• HVAC control systems
• Storage and networking systems
• Contacts:
1.
Brass, pre-tin
Standards & Specifications
• Product specification #108-2112
• Application specification #114-13172
• Instruction sheet #408-32113
• UL Recognized, File E315442

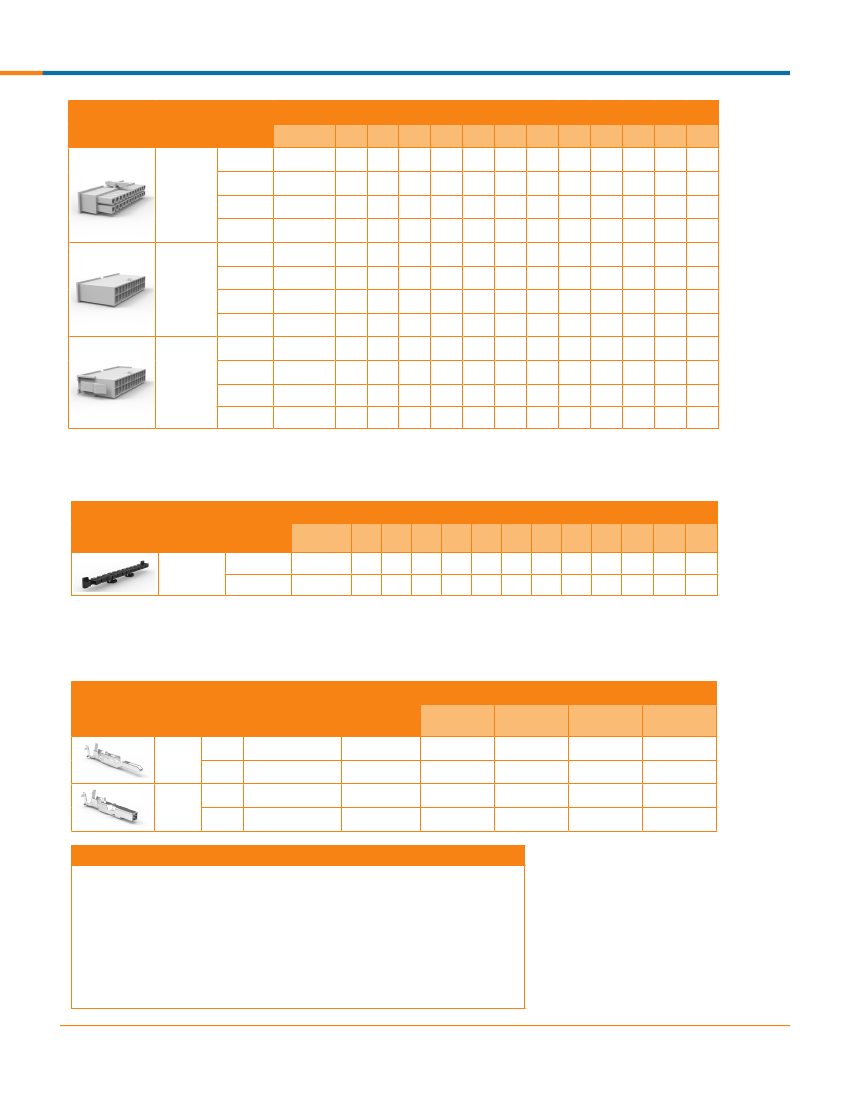

APPLIANCES
/// VAL-U-LOK CONNECTORS WITH TPA
PAGE 2
VAL-U-LOK CONNECTORS
With Terminal Position Assurance
Receptacles and Plug Housings
Product Image
Type/
Flamma-
Style
bility
UL 94 V-2
Receptacle
UL 94 V-0
GWT&V-2*
UL 94 V-2
Free
Hanging
Plug
UL 94 V-0
GWT&V-2*
UL 94 V-2
Panel
Mount Plug
UL 94 V-0
GWT&V-2*
Positions ›
x-1969597-y
x-1969614-y
x-1969603-y
x-1969598-y
x-1969612-y
x-1969604-y
x-1969599-y
x-1969613-y
x-1969605-y
2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
-2
4
-4
-4
-4
-4
-4
-4
-4
-4
-4
-4
-4
-4
6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
-6
8
-8
-8
-8
-8
-8
-8
-8
-8
-8
-8
-8
-8
Part Number
10
1- -0
1- -0
1- -0
1--0
1- -0
1- -0
1- -0
1- -0
1- -0
1- -0
1- -0
1- -0
12
1- -2
1- -2
1- -2
1--2
1- -2
1- -2
1- -2
1- -2
1- -2
1- -2
1- -2
1- -2
14
16
18
20
22
24
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
1- -4 1- -6 1- -8 2- -0 2- -2 2- -4
GWT&V-0**
x-2296205-Y
GWT&V-0**
x-2296206-Y
GWT&V-0**
x-2296207-Y
*Glow wire test according to EN/IEC 60335-1 and UL 94 V-2.
**Glow wire test according to EN/IEC 60335-1 and UL 94 V-0.
Terminal Position Assurance (TPA) Devices
Product Image
Type/Style
Wire Range
(AWG)
22-18
22-26
Part Number
Positions ›
x-1969608-y
x-1969609-y
1
-1
-1
2
-2
-2
3
-3
-3
4
-4
-4
5
-5
-5
6
-6
-6
7
-7
-7
8
-8
-8
9
-9
-9
10
1- -0
1- -0
11
1- -1
1- -1
12
1- -2
1- -2
Locking
Plate
Note: A TPA device is required for each row of terminals on a receptacle or plug housing. For example, an 18-position plug would require two 9-position TPAs.
The user would need to order two TPA devices for each housing ordered.
Terminals and Application Tooling
Product Image
Terminal Wire
Type
Range
(AWG)
Pin
Socket
26-22
22-18
26-22
22-18
Insulation
Range
.047 - .069 [1.2 - 1.75]
.060 - .122 [1.50 - 3.1]
.047 - .069 [1.2 - 1.75]
.060 - .122 [1.50 - 3.1]
Material
& Finish
Brass, Pre-Tin
Brass, Pre-Tin
Brass, Pre-Tin
Brass, Pre-Tin
Terminal Part Numbers
Strip form
2238018-1
2238016-1
2238019-1
2238017-1
Loose Piece
2238022-1
2238020-1
2238023-1
2238021-1
Application Tooling
Applicator
2266139-x
2151096-x
2266139-x
2151096-x
Hand Tool
91387-1
91388-1
91387-1
91388-1
Part Number Ordering - Example for x-1969597-y Housing
-2 through -9
Substitute dash number listed for “y.”
For example, a -2 signifies PN 1969597-2.
1- -0 through 2- -4
Substitute first number listed for “x” and second number listed for “y.”
For example, a 2- -4 signifies PN 2-1969597-4.
Follow this same numbering scheme for receptacle housings, free hanging plug
housings, panel mount plug housings and TPA devices listed on this page.
APPLIANCES
/// VAL-U-LOK CONNECTORS WITH TPA
PAGE 3
VAL-U-LOK CONNECTORS
With Terminal Position Assurance
Frequently Asked Questions
Do you need confirmation that the contacts are seated? Is contact back-out a concern?
New models in the VAL-U-LOK connector system accept optional TPA devices. These devices help assure
the contacts are fully seated in the housing and they help protect against potential disengagement when
the wires are exposed to external pressure.
What is the physical configuration of the interconnection?
VAL-U-LOK connector system offers wire-to-wire, wire-to-board, and wire-to-panel configurations.
What are the current and voltage requirements for your application?
VAL-U-LOK connectors have a maximum current rating of 9 Amps in 2 position application, and they are
rated 600 Volts AC/DC.
What are the flammability requirements for your application?
VAL-U-LOK connectors are offered with various housings rated UL 94 V-0, UL 94 V-2 and Glow Wire Test
material according to IEC 60335-1.
What are the number of positions for the TPA version?
The housings of the VAL-U-LOK connector system designed for use with the optional TPA device are
available in 2-24 position, dual row configurations.
What are the operating temperature requirements?
The VAL-U-LOK connector system has a maximum operating temperature of 105°C. For more information
regarding operating temperatures refer to Product Specification 108-2112.
What is the benefit of choosing glow wire housings?
The VAL-U-LOK connector system offers glow wire rated housings that allow manufacturers of home
appliances sold into the European market to comply with the IEC/EN 60335-1 5th edition standard and
the possibility to use the TPAs (sold as optional) as error proofing devices.
