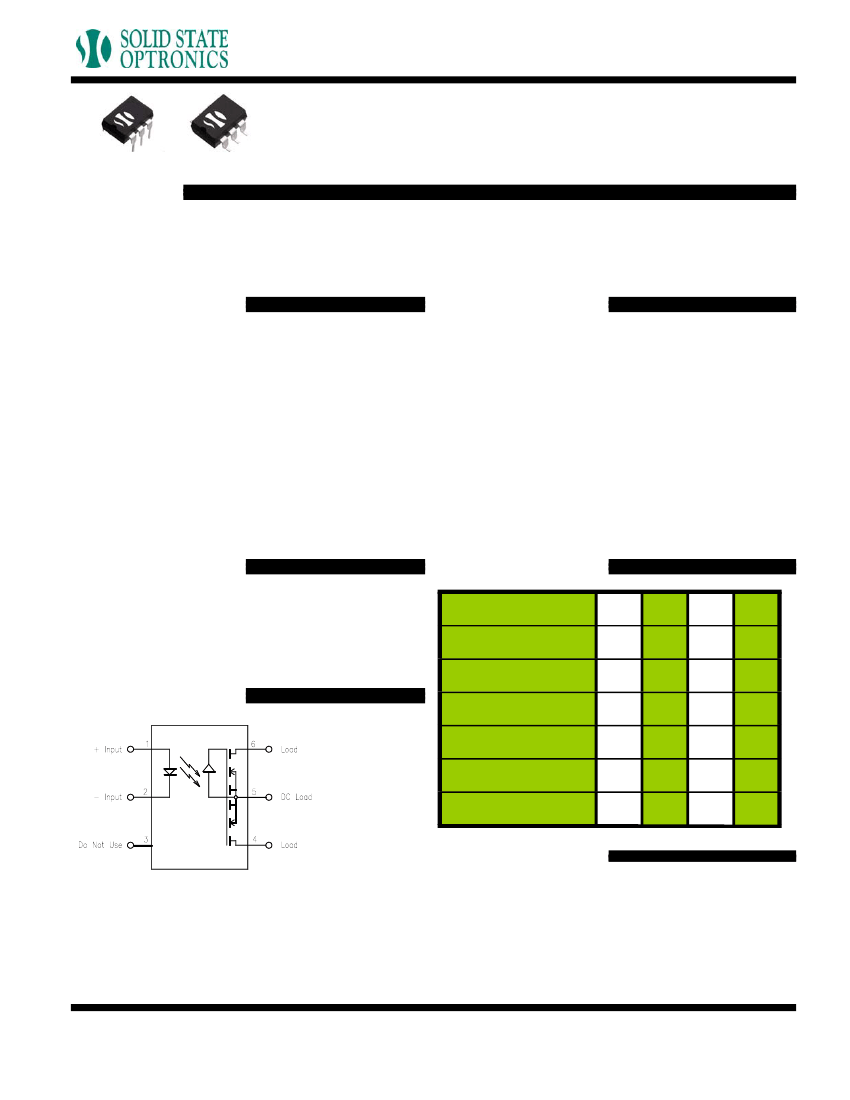

AD6C311
1 Form A
Solid State Relay
DESCRIPTION
The AD6C311 is a bi-directional, single-pole, single-throw, normally open multipurpose solid-state relay. It is designed to replace
electromechanical relays in general purpose switching applications. The relay consists of an integrated circuit that drives two rugged
source-to-source enhancement type DMOS transistors - optically coupled to a light emitting diode. The output MOS transistors are
protected with free-wheeling diodes that can handle up to 5A of inrush current, making the relay ideal for switching lamps and highly
inductive loads.
FEATURES
APPLICATIONS
•
•
•
•
•
High input-to-output isolation
Low input control power consumption
200mA maximum continuous load current
10 ohms maximum on-resistance
Long life/high reliability
•
•
•
•
•
•
•
•
•
Telecom switching
Tip/Ring control
PCMCIA modules
Multiplexers
Meter reading systems
Data acquisition
Medical equipment
Battery monitoring
Home/Safety security systems
OPTIONS/SUFFIXES
MAXIMUM RATINGS
PARAMETER
Storage Temperature
Operating Temperature
Continuous Input Current
Transient Input Current
Reverse Input Control
Voltage
Output Power Dissipation
UNIT
°C
°C
mA
mA
V
mW
6
500
MIN
-55
-40
TYP
MAX
125
85
40
400
•
•
•
-H
-S
-TR
High Output Isolation
Surface Mount Option
Tape and Reel
SCHEMATIC DIAGRAM
APPROVALS
•
•
•
BABT CERTIFICATE #607836:
BS EN 60950, BS EN 41003, BS EN 60065
CSA CERTIFICATE #LR111581-1
UL FILE #E90096
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
AD6C311
1 Form A
Solid State Relay
ELECTRICAL CHARACTERISTICS - 25°
PARAMETER
INPUT SPECIFICATIONS
LED Forward Voltage
LED Reverse Voltage
Turn-On Current
Turn-Off Current
V
V
mA
mA
6
5
1.2
12
2.5
0.5
1.5
If = 10mA
Ir = 10uA
Io = 200mA
UNIT
MIN
TYP
MAX
TEST CONDITIONS
OUTPUT SPECIFICATIONS
Blocking Voltage
Continuous Load Current
On-Resistance
Leakage Current
Output Capacitance
Offset Voltage
V
mA
Ω
µ
A
pF
mV
6
0.2
25
400
200
10
10
50
0.2
Io = 10uA
If = 5mA
Io = 200mA
Vo = 400V
Vo = 25V, f = 1.0MHz
If = 5mA
COUPLED SPECIFICATIONS
Isolation Voltage
-H Suffix
Turn-On Time
Turn-Off Time
Isolation Resistance
Coupled Capacitance
Contact Transient Ratio
V
V
ms
ms
G
Ω
pF
V/
µ
s
2000
100
2
7000
dV = 50V
2500
3750
2
0.2
5
0.5
T = 1 minute
T = 1 minute
If = 5mA, Io = 200mA
If = 5mA, Io = 200mA
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
AD6C311
1 Form A
Solid State Relay

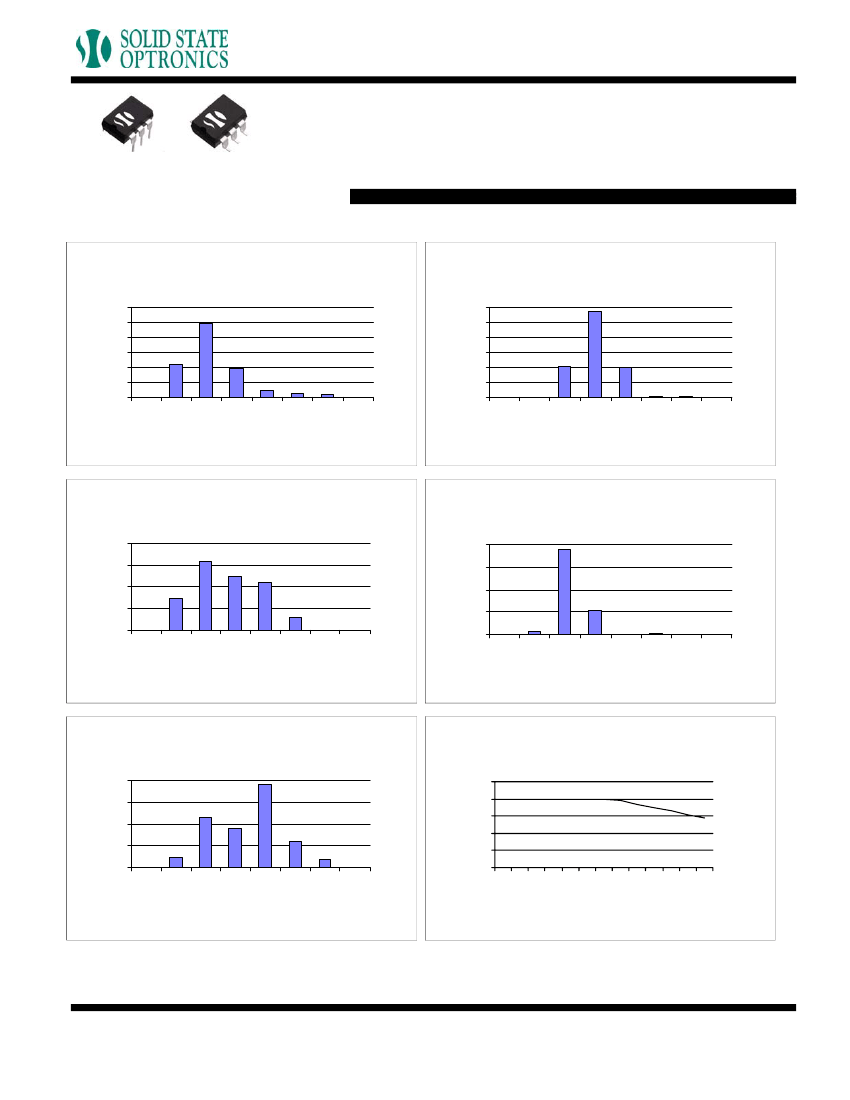

PERFORMANCE DATA
AD6C311
Typical Turn-On Time Distribution
N = 100, Ambient Temperature = 25°C
AD6C311
Typical Turn-Off Time Distribution
N = 100, Ambient Temperature = 25°C
60
50
40
30
20
10
0
0.8
1
1.2
1.4
1.6
1.8
2
2.2
Turn-On Tim e (m s)
60
50
40
30
20
10
0
0
0.04 0.08 0.12 0.16 0.2 0.24 0.28
Turn-Off Tim e (m s)
Device Count
AD6C311
Typical On-Resistance Distribution
N = 100, Ambient Temperature = 25°C
Device Count
AD6C311
Typical Leakage Current Distribution
N = 100, Ambient Temperature = 25°C
40
Device Count
30
20
10
0
5.25 5.5 5.75
6
6.25 6.5 6.75
7
On-Resistance (ohm s)
Device Count
80
60
40
20
0
0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5
Leakage Current (uA)
AD6C311
Typical Blocking Voltage Distribution
N = 100, Ambient Temperature = 25°C
AD6C311
Typical Load Current vs. Temperature
Load Current (mA)
40
Device Count
30
20
10
0
400 410 420 430 440 450 460 470
Blocking Voltage (V)
250
200
150
100
50
0
20
40
60
-4
0
-2
0
80
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
rev 1.0
0
Tem perature (C)
AD6C311
1 Form A
Solid State Relay

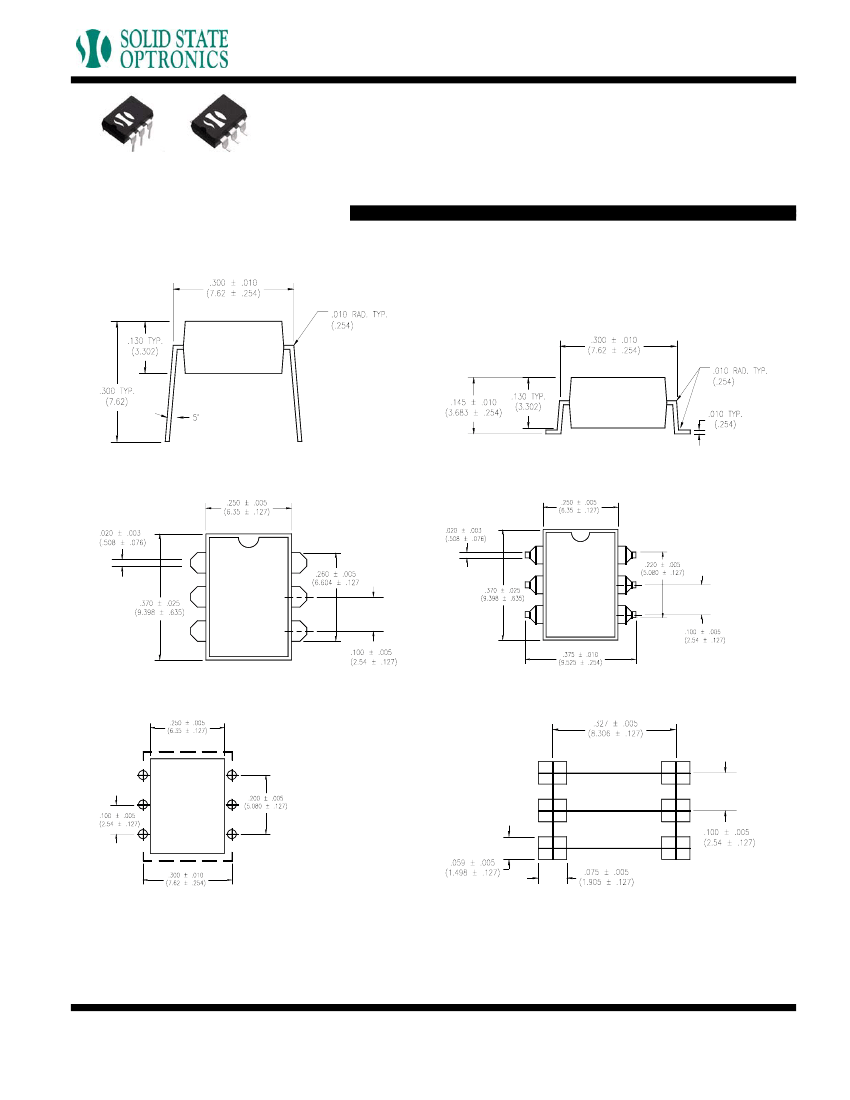

MECHANICAL DIMENSIONS
6 PIN DUAL IN-LINE PACKAGE
6 PIN SURFACE MOUNT DEVICE
END VIEW
END VIEW
TOP VIEW
TOP VIEW
BOTTOM VIEW/
BOARD PATTERN
BOTTOM VIEW/
BOARD PATTERN
rev 1.0
Solid State Optronics, Inc.
1.888.377.4776
www.ssousa.com
