3-1437568-8

Description
Pushbutton Switch, PUSHBUTTON SWITCH, DPDT, MOMENTARY, THROUGH HOLE-STRAIGHT
CategoryMechanical and electronic products    switch
File Size114KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Download Datasheet Parametric View All

3-1437568-8 Overview

Pushbutton Switch, PUSHBUTTON SWITCH, DPDT, MOMENTARY, THROUGH HOLE-STRAIGHT

3-1437568-8 Parametric

Parameter NameAttribute value
Brand NameAlcoswitch
MakerTE Connectivity
Reach Compliance Codeunknown
ECCN codeEAR99
Actuator typeROUND/EXTENDED TYPE
illuminationGREEN LED
Manufacturer's serial number1437568
Installation featuresTHROUGH HOLE-STRAIGHT
Maximum operating force1.96 N
method of packingBULK
surface mountNO
Switch actionMOMENTARY
switch functionDPDT
Switch typePUSHBUTTON SWITCH
Termination typeSOLDER
Base Number Matches1
My Account
Tyco Electronics
(C hange)
Se arch by Ke yword or Part #
Products
Documentation
Resources
My Account
Customer Support
Home
>
Products
>
By Type
>
Switches
>
Product Feature Selector
> Product Details

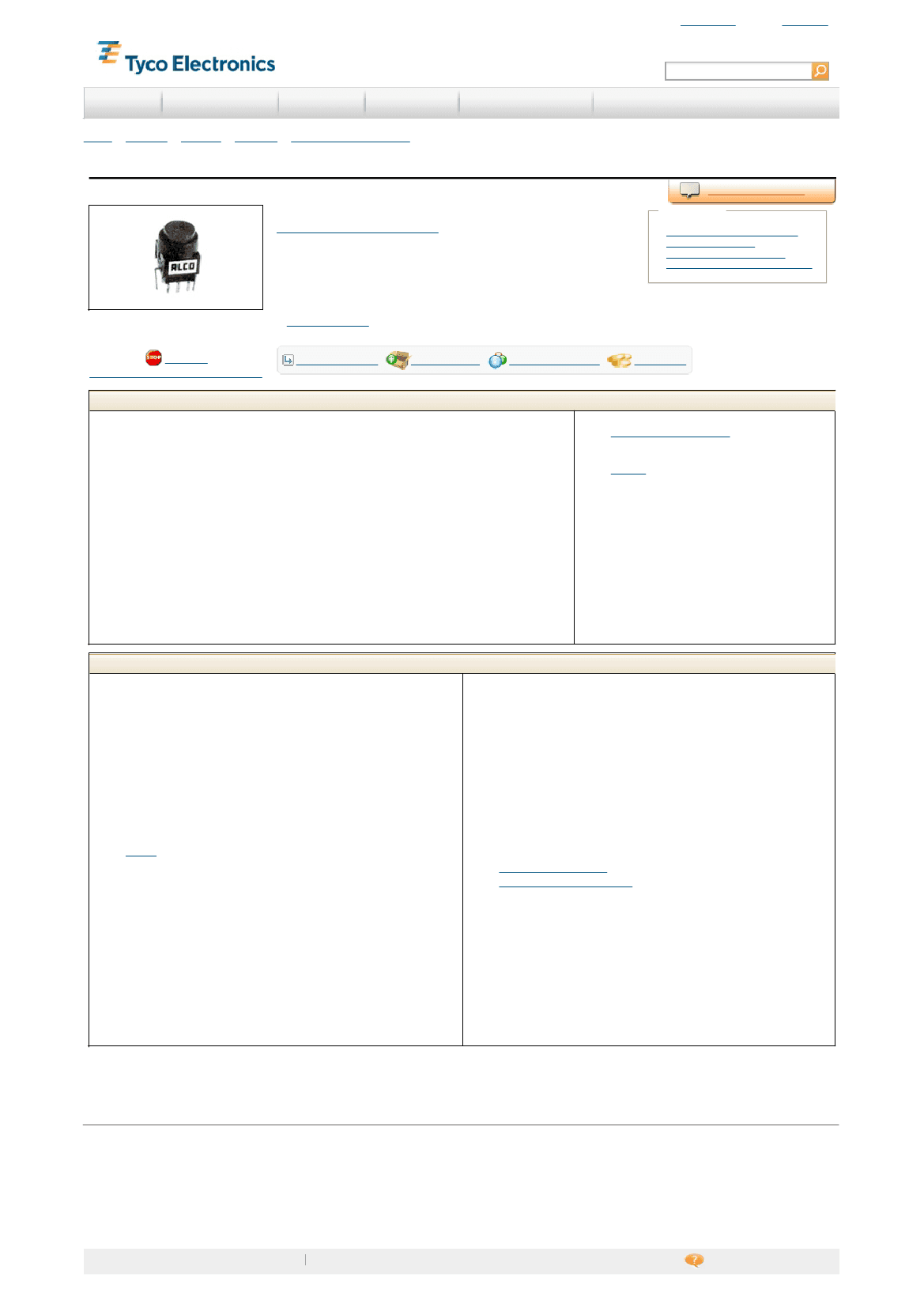

TP2M5CL5FC8 Product Details
Live Product Chat
Pushbutton Switches
Not re vie we d for R oHS C om pliance
Quick Links
C heck Pricing & Availability
Search for Tooling
Product Feature Selector
C ontact Us About This Product
TP2M5CL5FC8
(3-1437568-8)
T E I nternal N umber: 3 - 1 4 3 7 5 6 8 - 8
Product Highlights:
l
Switch - Mechanical
l
Not Tactile
l
Double Pole - Double Throw C onfiguration (Pole-Throw)
l
C ontact Rating = 0.4VA
l
Operating Function = Momentary
View all Features
Obsolete
C ontact Product Information C enter
A dd to M y P art L is t
Reques t Sample
Find Similar P roduc ts
Buy P roduc t
Documentation & Additional Information
Product Drawings:
l
None Available
Catalog Pages/Data Sheets:
l
None Available
Product Specifications:
l
None Available
Application Specifications:
l
None Available
Instruction Sheets:
l
None Available
CAD Files:
l
None Available
Additional Information:
l
Product Line Information
Related Products:
l
Tooling
Product Features
(Please use the Product Drawing for all design activity)
Product Type Features:
l
Product Type = Switch - Mechanical
l
Tactile = No
l
C onfiguration (Pole-Throw) = Double Pole - Double Throw
l
Mount Angle = Vertical
l
Termination Type = Printed C ircuit
l
Actuator Style = Round
l
Frame Style = Round, Small
Electrical Characteristics:
l
C ontact Rating = 0.4VA
Body Related Features:
l
Series
= TP-200
l
Mount Style = Through-Hole
l
Actuator Length (mm [in]) = 1.50 [0.059]
l
Actuator Profile = Extended
l
Actuator C olor = Green
l
C ase Material = Polyester
l
Actuator Material = Polyamide
Contact Related Features:
l
C ontact Plating = Silver
Housing Related Features:
l
Process Sealed = No
l
Low Profile = No
Configuration Related Features:
l
Operating Function = Momentary
l
Ganged = No
l
ESD Grounding Terminal = Without
l
Actuator Force (g [oz]) = 200.00 [7.060]
l
Number of Actuators = Single
l
Illuminated = Yes
l
LED C olor = Green
l
Dust Proof = No
l
Support Bracket = Without
l
Snap Action = Without
l
Frame C olor = Dark Gray
Industry Standards:
l
RoHS/ELV C ompliance
= Not reviewed for ELV/RoHS compliance
l
Lead Free Solder Processes
= Not reviewed for lead free solder
process
Conditions for Usage:
l
Temperature Rating = Standard
Packaging Related Features:
l
Packaging Method = Loose Piece
Other:
l
Brand = Alcoswitch
