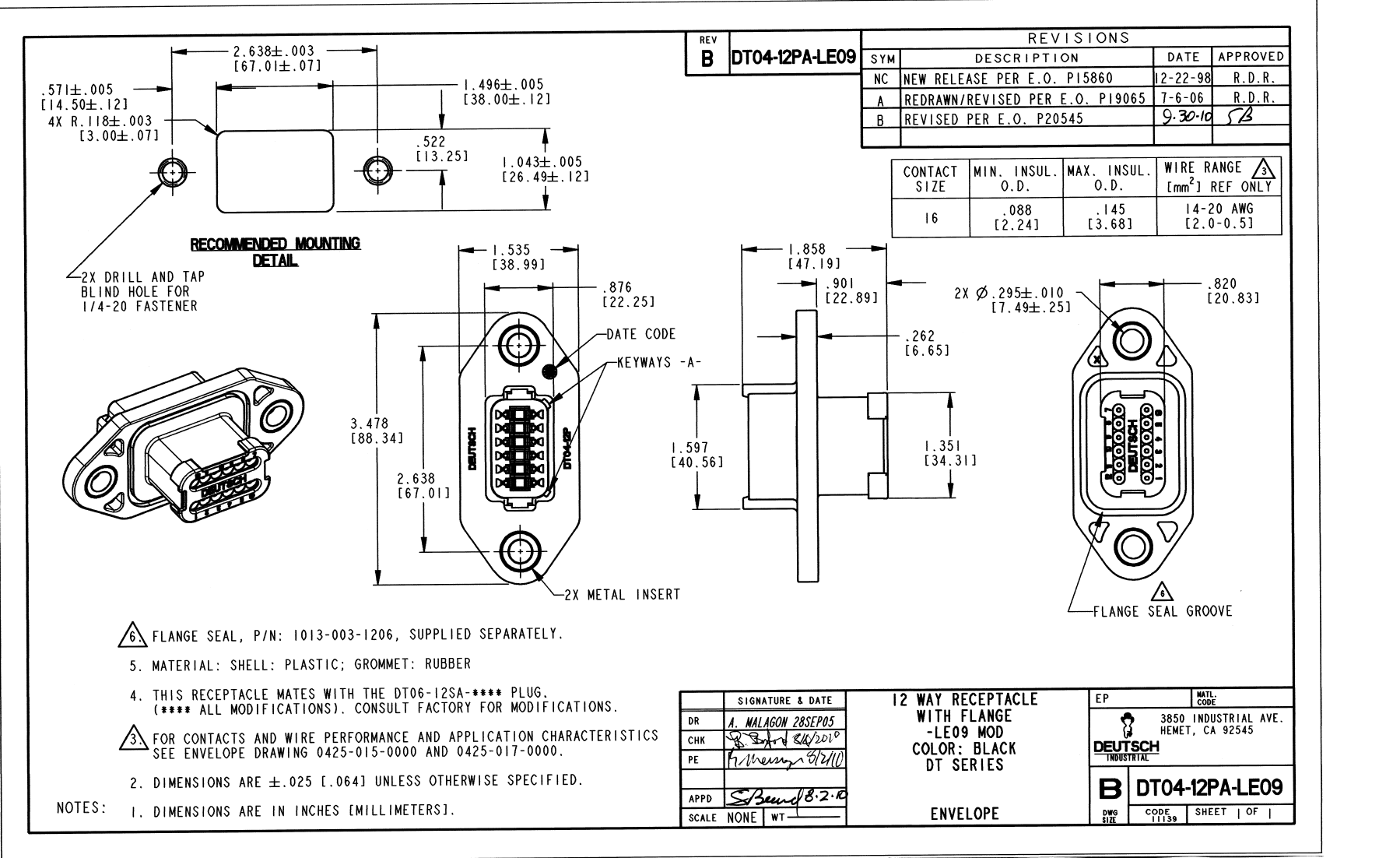

DT04-12PA-LE09 datasheet, PDF - EEWORLD Datasheet

DT04-12PA-LE09: DescriptionDT RECP ASM; CategoryThe connector; File Size203KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

DT04-12PA-LE09 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DT04-12PA-LE09	-	-	View	Buy Now

DT RECP ASM

Parameter Name	Attribute value
Connector type	Male terminal housing
Connector System	line to line
Sealable	yes
Hybrid connector	no
Main locking features	Housing integration
strain relief	Add according to attachment
Number of Positions	12
Rows	2
color	black
connector code	A
Cable exit angle	180°
Main material	PA GF
Engage pin diameter	1.5 mm [ .059 in ]
Contact Current Rating (Max) (A)	13
Connector mounting type	Panel
Installation features	Without
Terminal position guarantee	no
polarization	yes
Centerline (Pitch)	4.5 mm [ .175 in ]
width	38.99 mm [ 1.535 in ]
high	47.19 mm [ 1.858 in ]
length	88.34 mm [ 3.478 in ]
Working group temperature range	-55 – 125 °C [ -67 – 257 °F ]
Circuit Application	Power and Signal
protection level	IP68
UL flammability rating	20 mm flame test per UL-94 standard
Encapsulation method	Package
Repairable	yes
