5-6450860-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 5-6450860-0

5-6450860-0: DescriptionMBXLE VERT RCPT 3HDP+1LP+24S+1LP+3HDP; CategoryThe connector; File Size3MB，28 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

5-6450860-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6450860-0	-	-	View	Buy Now

5-6450860-0 Overview

MBXLE VERT RCPT 3HDP+1LP+24S+1LP+3HDP

5-6450860-0 Parametric

Parameter Name	Attribute value
Housing type	female end, female end
Connector System	Board to Board
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Terminal type	socket
Number of Positions	32
PCB mounting direction	vertical
Number of power supply locations	8
Number of signal positions	24
Rows	4
Line spacing	2.54 mm [ .1 in ]
Board-to-board configuration	vertical
Plug configuration	Sequencing
Operating voltage (VAC)	60
Operating voltage (VDC)	60
Contact Current Rating (Max) (A)	42
Terminal retention	Without
Terminal termination area plating material	tin
Terminal contact plating material	precious metals
Plating thickness of terminal contact parts	.076 µm [ 3 µin ]
Base plate material thickness (µm)	3.43
Power terminal material	tin
PCB Termination Methods	Through hole - solderless connection
Termination post and tail length	3.43 mm [ .135 in ]
PCB mounting fixation type	plate lock
PCB installation and fixation	with
Connector mounting type	board mounting
Joint fixation type	plate lock
Centerline (Pitch)	2.54 mm [ .1 in ]
UL fire rating	UL 94V-0
Shell color	black
Shell material	high temperature thermoplastic
Working group temperature range	-40 – 125 °C [ -40 – 257 °F ]
Circuit Application	Power and Signal
Glow Wire Ratings	High Temperature Components - Non-Glow Wire
Encapsulation method	tray

Preview

Download Datasheet

View All

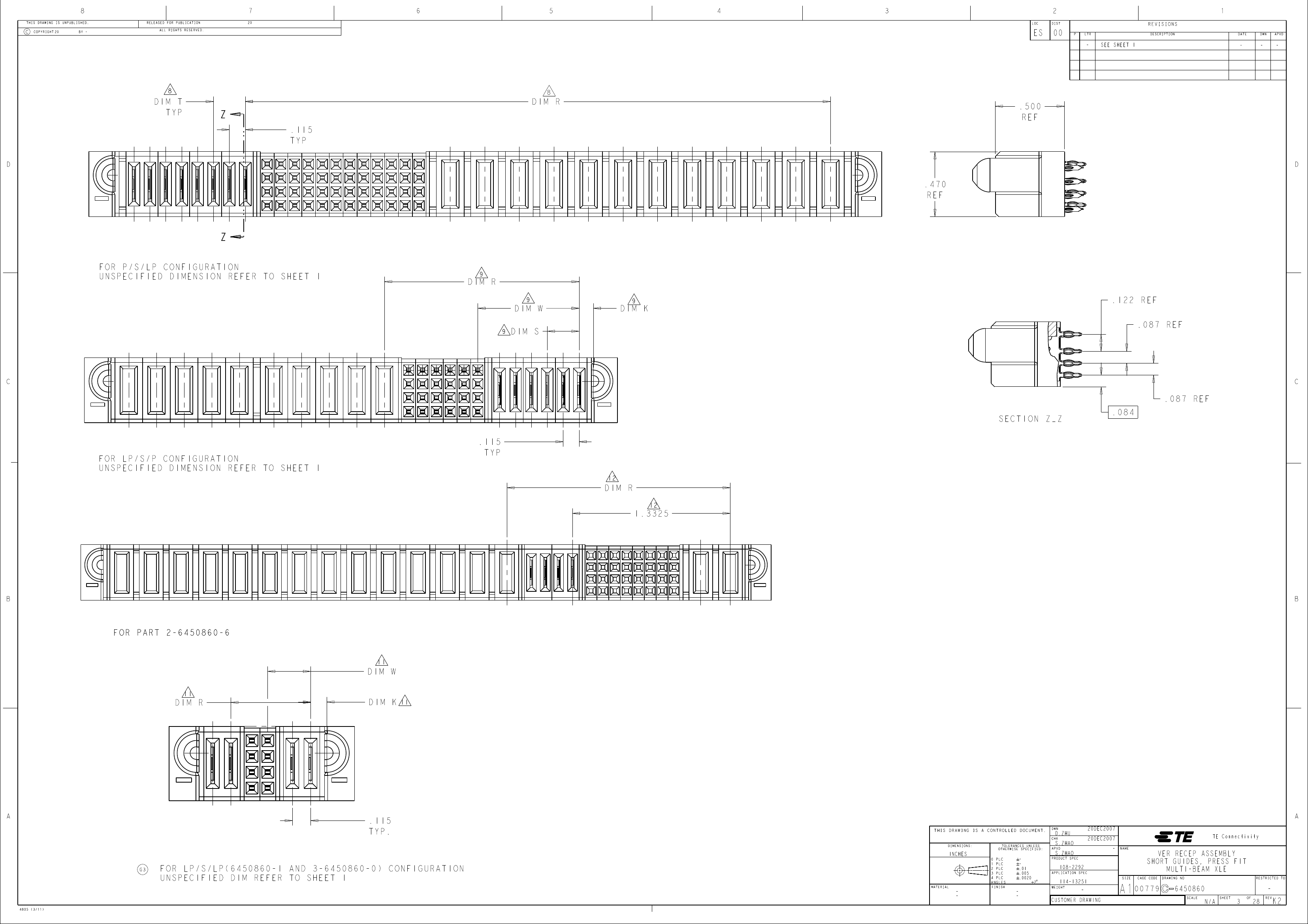

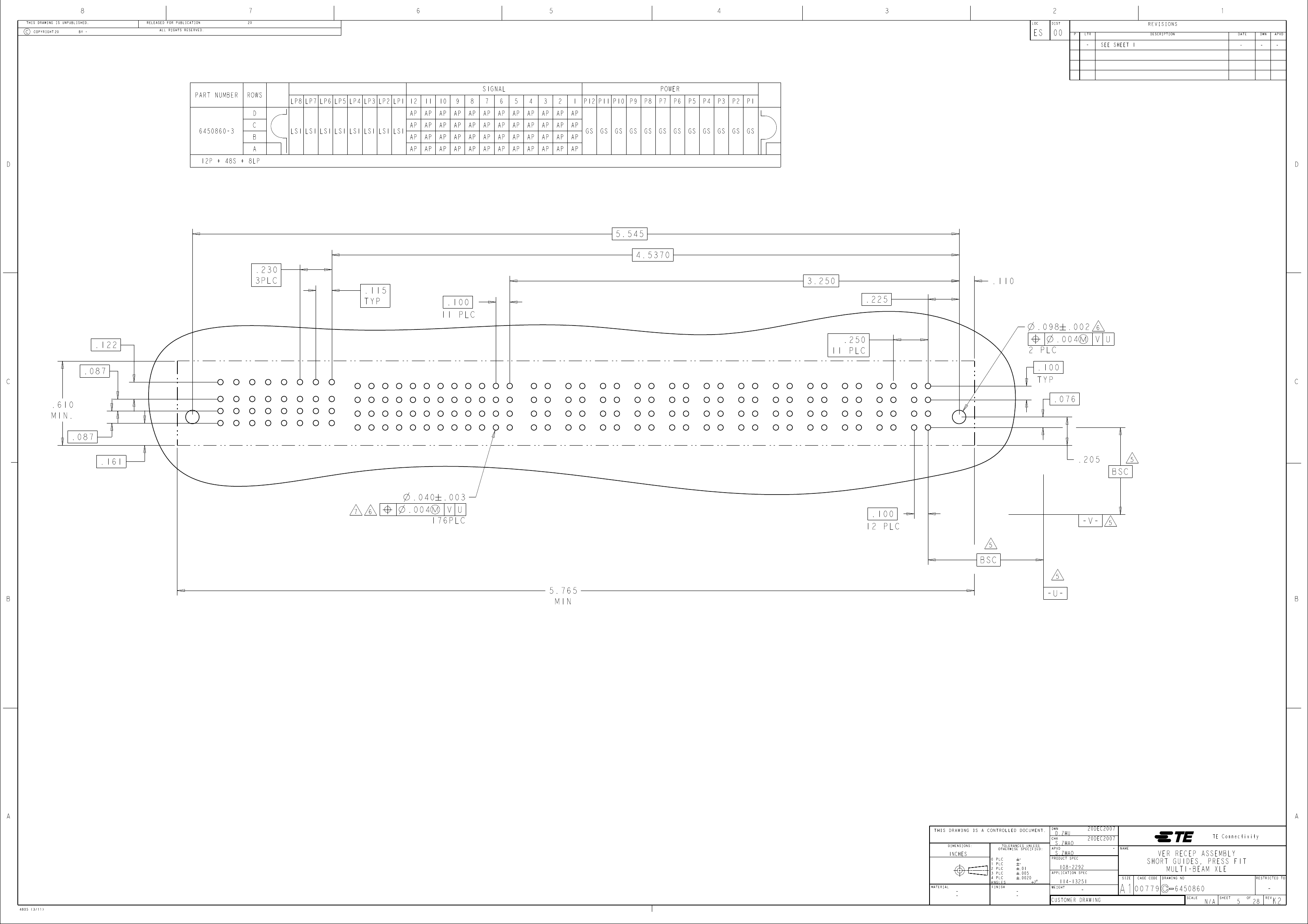

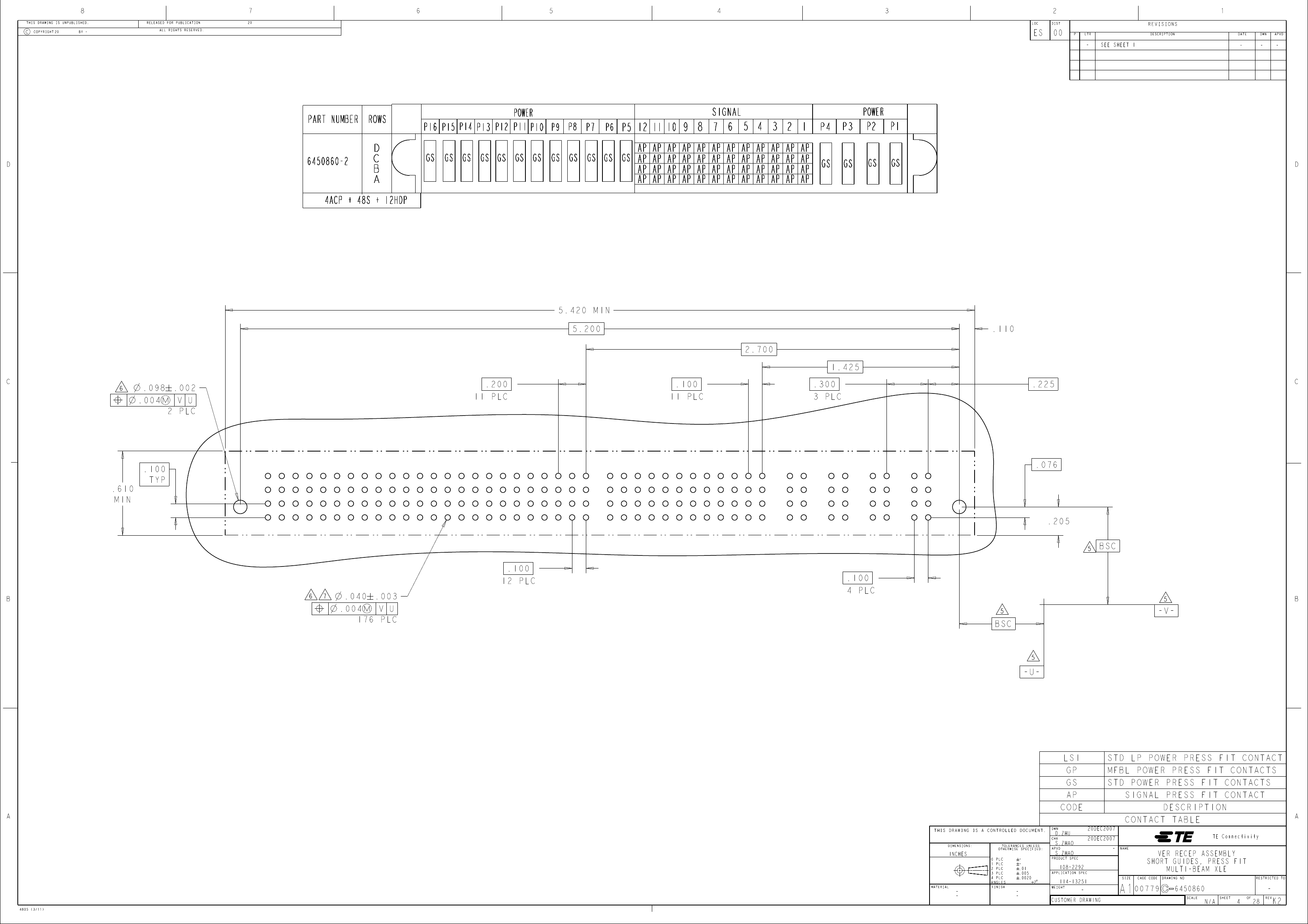

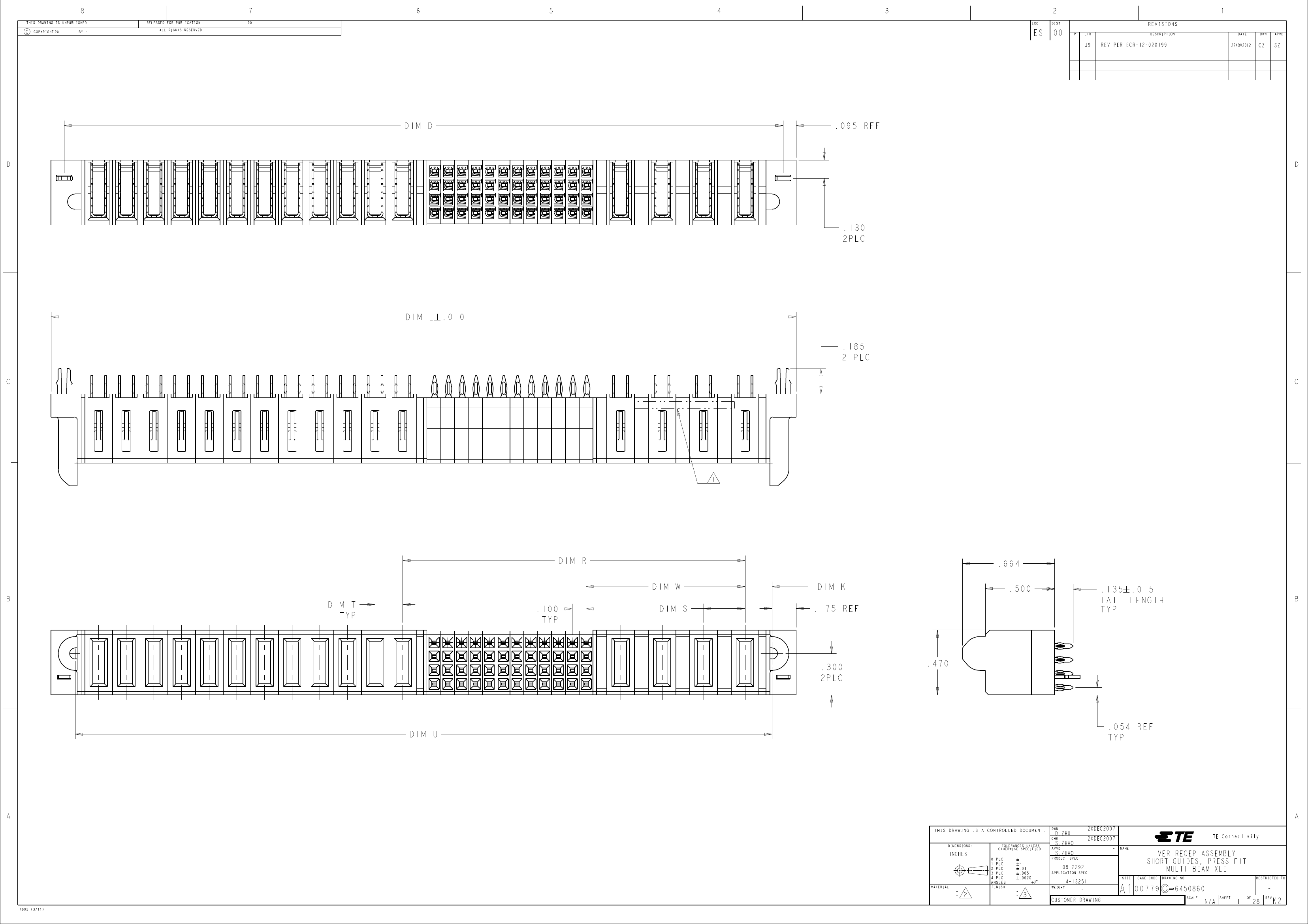

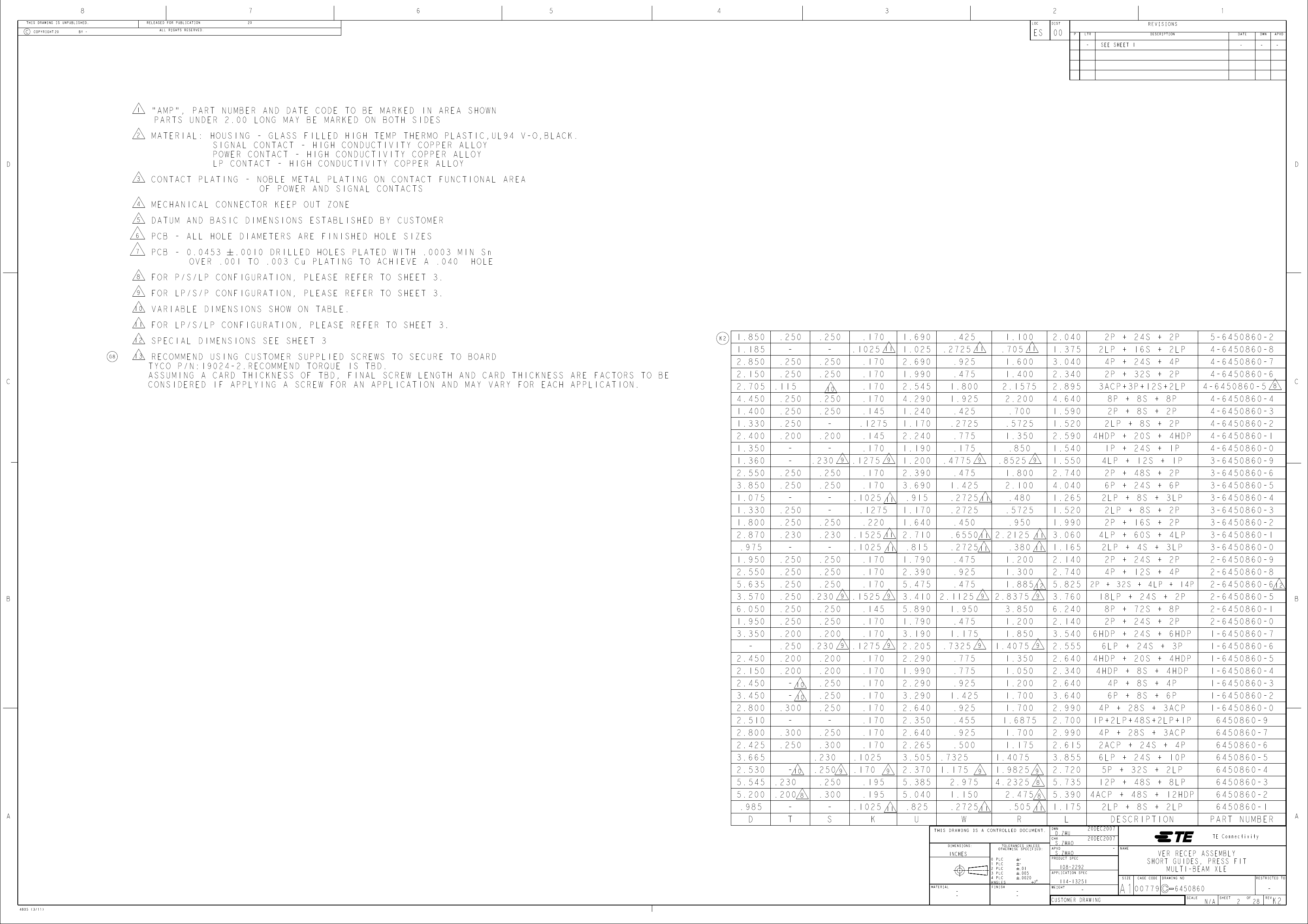

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECR-12-020199

22NOV2012

DIM D

.095

REF

.130

2PLC

DIM L # .010

.185

2 PLC

DIM R

DIM W

DIM T

TYP

.100

TYP

DIM S

DIM K

.175

REF

.664

.500

.135

TAIL LENGTH

TYP

.300

2PLC

.470

DIM U

.054

TYP

REF

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

D.ZHU

S.ZHAO

20DEC2007

NAME

TE Connectivity

INCHES

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.0020

PRODUCT SPEC

APPLICATION SPEC

108-2292

2 $

WEIGHT

114-13251

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

VER RECEP ASSEMBLY

SHORT GUIDES, PRESS FIT

MULTI-BEAM XLE

DRAWING NO

RESTRICTED TO

6450860

SCALE

4805 (3/11)

N/A

SHEET

REV
