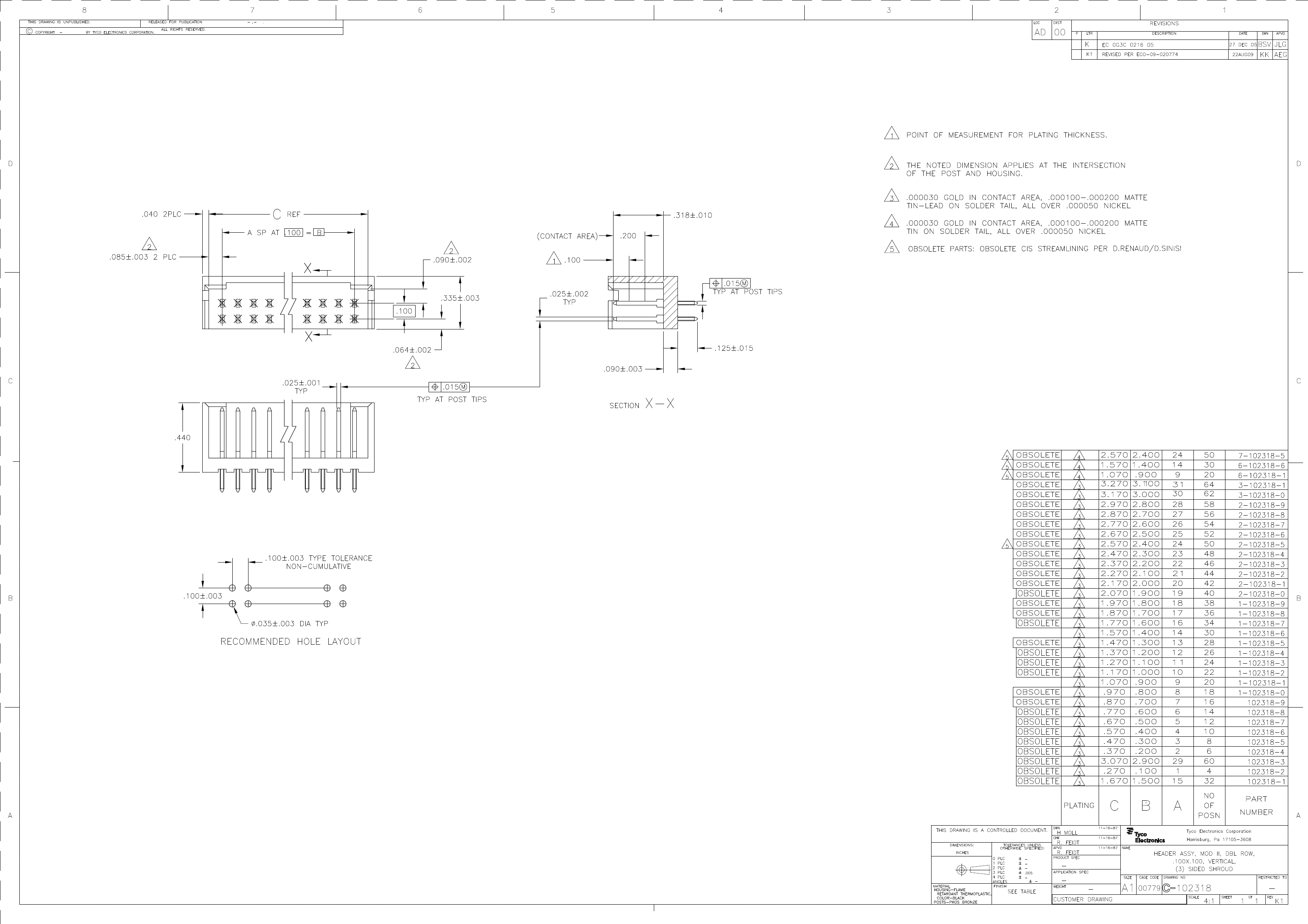

30 MODII HDR DRST 3/4SHRD .100
| Parameter Name | Attribute value |
| PCB Connector Component Types | PCB mounting header |
| Sealable | no |
| Connectors and terminals terminate to | A printed circuit board |
| Connector type | with hood |
| Line spacing | 2.54 mm [ .1 in ] |
| sealing ring | Without |
| shape | standard |
| stabilizing device | Without |
| plate support | with |
| stress relief | Without |
| Connector terminal load status | Fully loaded |
| PCB mounting direction | vertical |
| Number of Positions | 30 |
| Rows | 2 |
| keying | no |
| Medium pressure resistance | 750 V |
| Insulation resistance (MΩ) | 5000 |
| Cylinder size | .64 mm [ .025 in ] |
| Terminal base material | Phosphor bronze |
| PCB terminal termination area plating materials | tin lead |
| Solder tail terminal plating material surface coating | matte |
| Terminal base material | nickel |
| Terminal protection | with |
| Terminal shape | square |
| Terminal type | Pin |
| Terminal contact plating material | gold |
| Terminal protection type | with hood |
| PCB Termination Methods | Through hole |
| Termination cylinder length | 3.175 mm [ .125 in ] |
| Terminal plating thickness | 2.54 – 5.08 µm [ 100 – 200 µin ] |
| Terminal termination type | Through hole |
| Terminal plating materials | Nickel-backed tin-lead plating |
| PCB installation and fixation | Without |
| Mating connector latch type | latch, latch |
| Panel mount features | Without |
| Engage connector latch | with |
| PCB installation method | Through hole |
| Joint alignment type | polarization |
| joint alignment | with |
| Centerline (Pitch) | 2.54 mm [ .1 in ] |
| Shell type | 3- Noodles |
| Shell material | thermoplastic |
| Shell color | black |
| Hooded end dimensions | 2.16 mm [ .085 in ] |
| high | 14.35 mm [ .565 in ] |
| Joint post length | 5.1 mm [ .318 in ] |
| Working group temperature range (°C) | -65 – 105 |
| High temperature compatible | no |
| High temperature shell | no |
| Applicable to | Match female end |
| High speed serial data connector | no |
| approved standards | CSA, UL |
| UL flammability rating | UL 94V-0 |
| Package quantity | 112 |
| Encapsulation method | boxes and trays |
