1-1532183-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1532183-0

1-1532183-0: DescriptionCONNECTOR,D-SHELL,CABLE MNT,PLUG,31 CONTACTS,SKT,0.05 PITCH,WIRE TERMINAL,HOLE .087-.098; CategoryThe connector The connector; File Size478KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

1-1532183-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1-1532183-0	-	-	View	Buy Now

1-1532183-0 Overview

CONNECTOR,D-SHELL,CABLE MNT,PLUG,31 CONTACTS,SKT,0.05 PITCH,WIRE TERMINAL,HOLE .087-.098

1-1532183-0 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	311712897
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	24 weeks
body width	0.298 inch
subject depth	0.223 inch
body length	1.325 inch
Body/casing type	PLUG
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
DIN compliance	NO
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	3A
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Mixed contacts	NO
Installation option 1	HOLE .087-.098
Installation option 2	LOCKING
Installation type	CABLE
Number of connectors	ONE
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Panel mounting	NO
Rated current (signal)	3 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	WIRE
Total number of contacts	31

Preview

Download Datasheet

View All

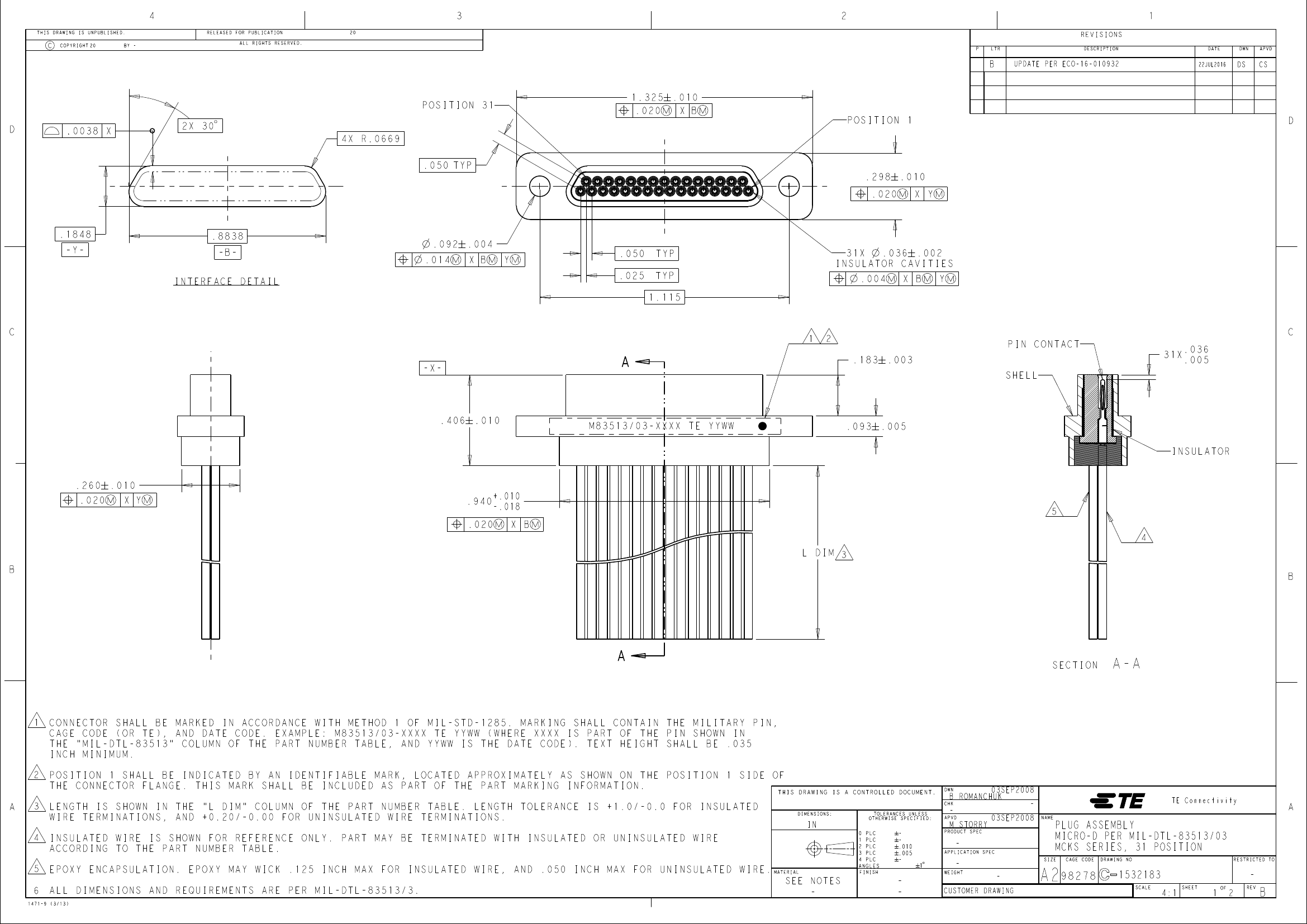

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

UPDATE PER ECO-16-010932

22JUL2016

POSITION 31

.0038

2X 30 $

4X R.0669

.050 TYP

1.325

.010

.020 m X B m

POSITION 1

.298

.010

X Y m

.020 m

.1848

-Y-

.8838

-B-

INTERFACE DETAIL

.092

.004

X B m Y m

.050

.025

TYP

1.115

31X n .036 # .002

INSULATOR CAVITIES

X B m Y m

-X-

PIN CONTACT

.183

.003

SHELL

31X

.036

.005

.406

.010

M83513/03-XXXX TE YYWW

.093

.005

INSULATOR

.260

.020 m

.010

X Y m

.940

+.010

-.018

X B m

L DIM

.020 m

SECTION

A-A

CONNECTOR SHAL

L BE MARKED IN ACCORDANCE WITH METHOD 1 OF MIL-STD-1285. MARKING SHALL CONTAIN

THE MILITARY PIN,

CAGE CODE (OR TE), AND DATE CODE. EXAMPLE: M83513/03-XXXX TE YYWW (WHERE XXXX

IS PART OF THE PIN SHOWN IN

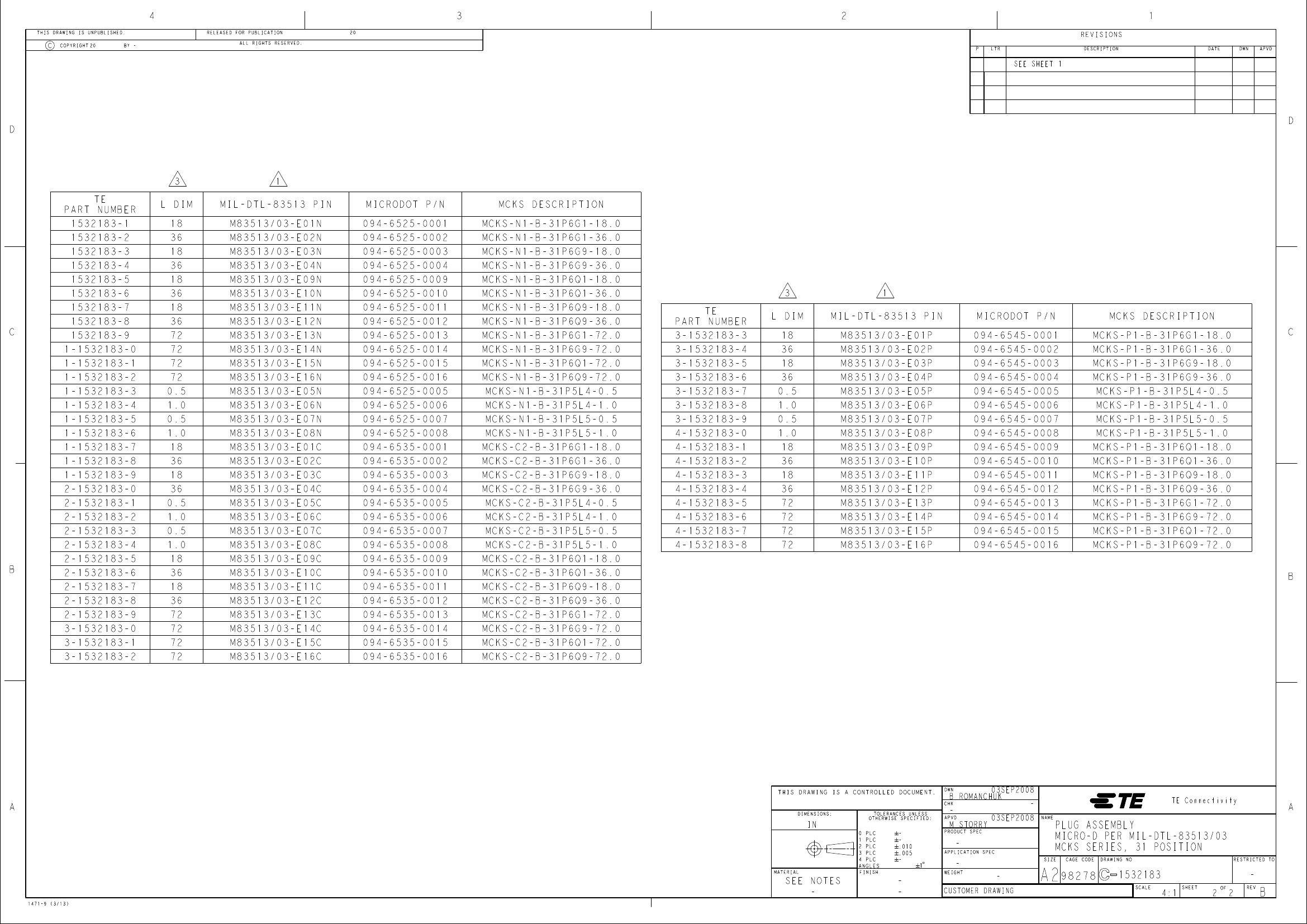

THE "MIL-DTL-83513" COLUMN OF THE PART NUMBER TABLE, AND YYWW IS THE DATE

CODE). TEXT HEIGHT SHALL BE .035

INCH MINIMUM.

POSITION 1 SHALL BE INDICATED BY AN IDENTIFIABLE MARK, LOCATED APPROXIMATELY AS

THE CONNECTOR FLANGE. THIS MARK SHALL BE INCLUDED AS PART OF THE PART MARKING

LENGTH IS SHOWN IN THE "L DIM" COLUMN OF THE PART NUMBER TABLE. LENGTH

WIRE TERMINATIONS, AND +0.20/-0.00 FOR UNINSULATED WIRE TERMINATIONS.

INSULATED WIRE IS SHOWN FOR REFERENCE ONLY. PART MAY BE TERMINATED WITH

ACCORDING TO THE PART NUMBER TABLE.

EPOXY ENCAPSULATION. EPOXY MAY WICK .125 INCH MAX FOR INSULATED WIRE, AND .050

ALL DIMENSIONS AND REQUIREMENTS ARE PER MIL-DTL-83513/3.

SHOWN ON THE POSITION 1 SIDE OF

INFORMATION.

TOLERANCE IS +1.0/-0.0 FOR INSULATED

INSULATED OR UNINSULATED WIRE

INCH MAX FOR UNINSULATED WIRE.

MATERIAL

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

03SEP2008

B ROMANCHUK

03SEP2008

NAME

TE Connectivity

APVD

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.010

.005

PRODUCT SPEC

M STORRY

APPLICATION SPEC

1 $

SEE NOTES

1471-9 (3/13)

WEIGHT

CUSTOMER DRAWING

98278

SIZE

PLUG ASSEMBLY

MICRO-D PER MIL-DTL-83513/03

MCKS SERIES, 31 POSITION

CAGE CODE

DRAWING NO

RESTRICTED TO

1532183

SCALE

4:1

SHEET

REV
