3-1734460-2 datasheet, PDF - EEWORLD Datasheet

3-1734460-2: DescriptionRJ45,1x4ports,Side,Dip,15u",yellow,Tube; CategoryThe connector; File Size165KB，4 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

3-1734460-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-1734460-2	-	-	View	Buy Now

RJ45,1x4ports,Side,Dip,15u",yellow,Tube

Parameter Name	Attribute value
Modular socket and plug interface types	RJ45
Modular socket and plug products	RJ type sockets and plugs
Connector type	socket
Grounding options	PCB ground
Connectors and terminals terminate to	A printed circuit board
Connector and connector component types	Connector
keying	no
Port configuration	multiple ports
Port matrix configuration	1 x 4
Connector terminal density	standard
Multi-port configuration	Linkage
Status Indicator	none
Number of Positions	8
Number of loading locations	8
PCB mounting direction	right angle
shielding material	brass
Shield plating materials	nickel
Modular socket pin orientation	Standard - Lower Latch
shape	standard
PCB terminal termination area plating materials	nickel
Contact Current Rating (Max) (A)	1
Terminal contact plating material	gold
Terminal base material	Phosphor bronze
Thickness of plating material in terminal bonding area	.38 µm [ 15 µin ]
Connector product type	Connector components
PCB Termination Methods	Through Hole - Solder
Panel mount features	Without
Connector mounting type	board mounting
access location	side
Centerline (Pitch)	1.02 mm [ .04 in ]
Shell color	yellow
Shell material	PBT GF30
PCB tail length	3.25 mm [ .1281 in ]
Connector height	13.8 mm [ .543 in ]
Working group temperature range	-40 – 85 °C [ -40 – 185 °F ]
shield	yes
Circuit Application	Signal
UL flame retardant rating	UL 94V-0
performance category	Category 3
Package quantity	9

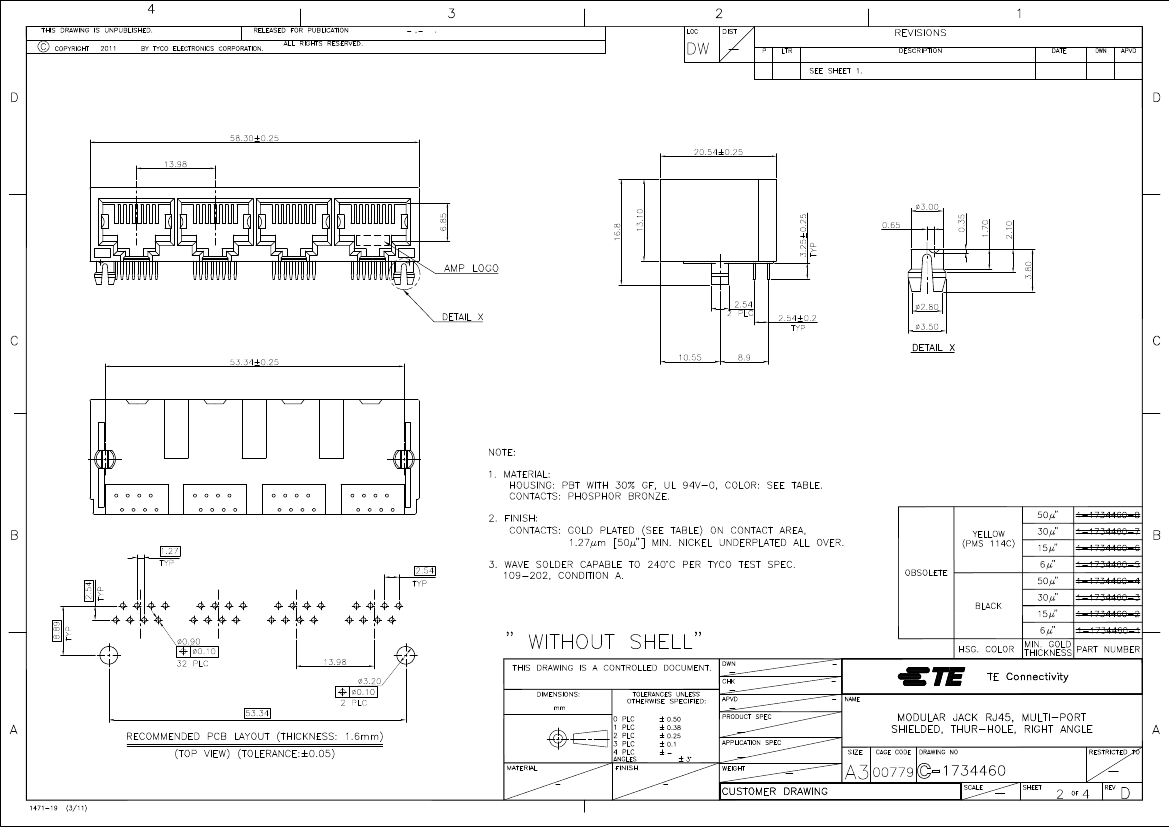

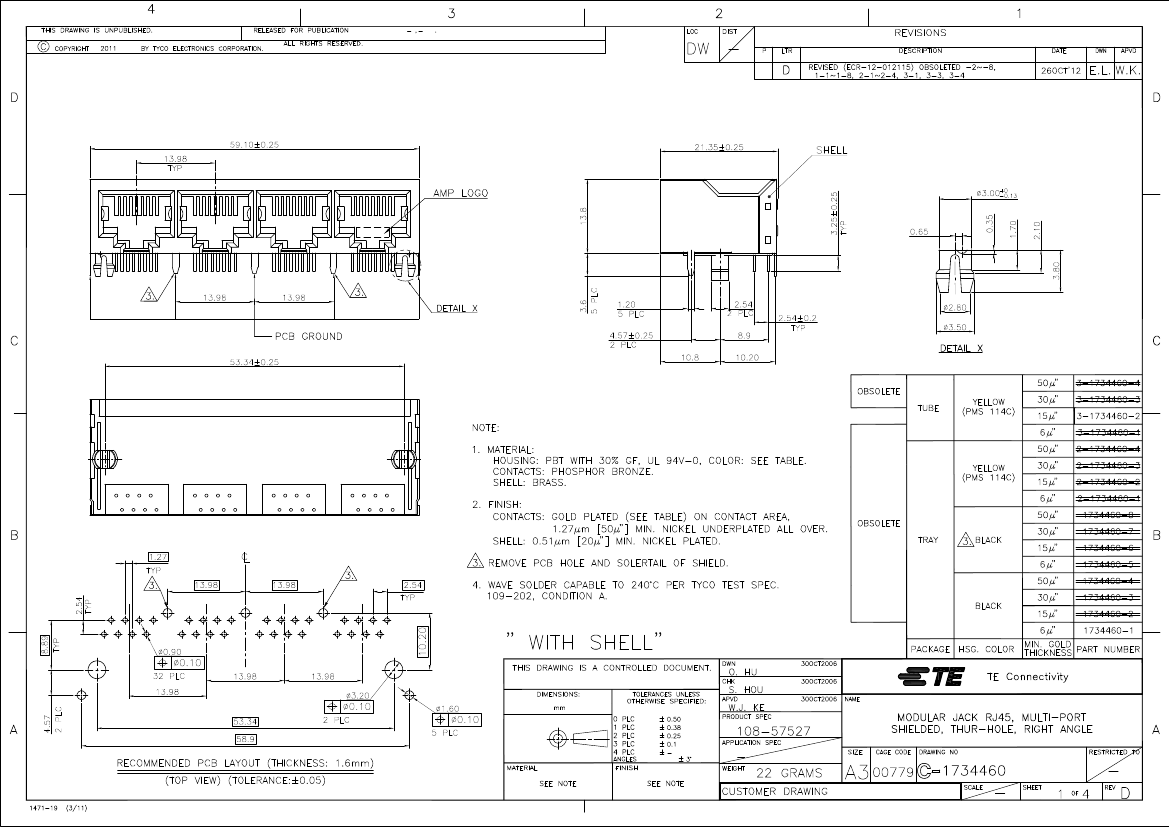

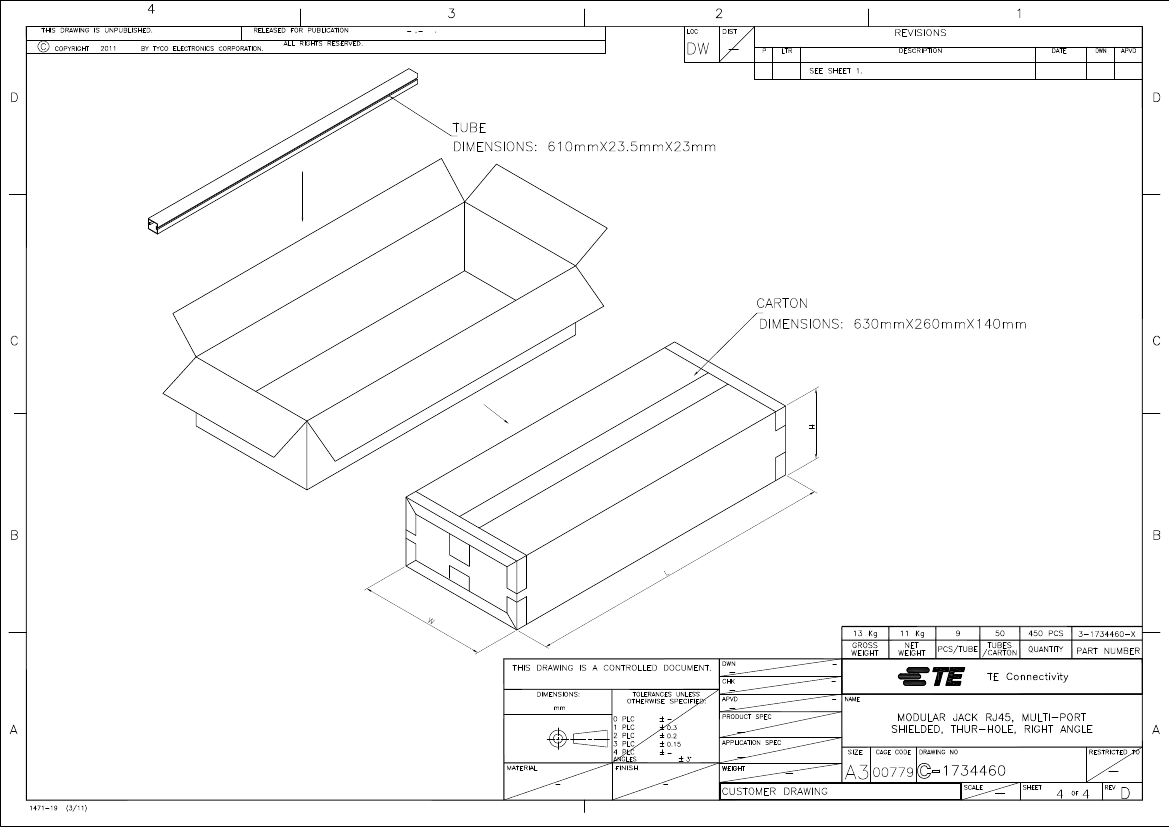

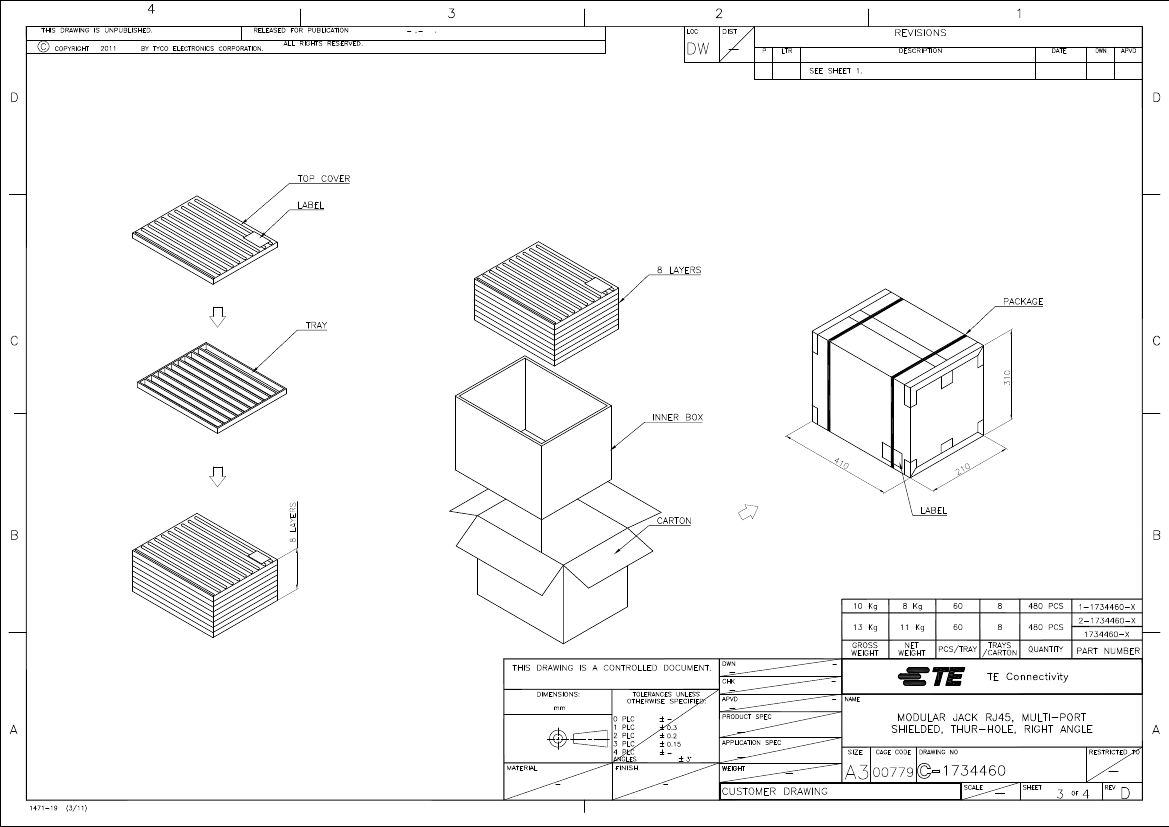

Encapsulation method	Tube, boxes and trays
