536273-2 datasheet, PDF - EEWORLD Datasheet

536273-2: Description60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG; CategoryThe connector The connector; File Size167KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

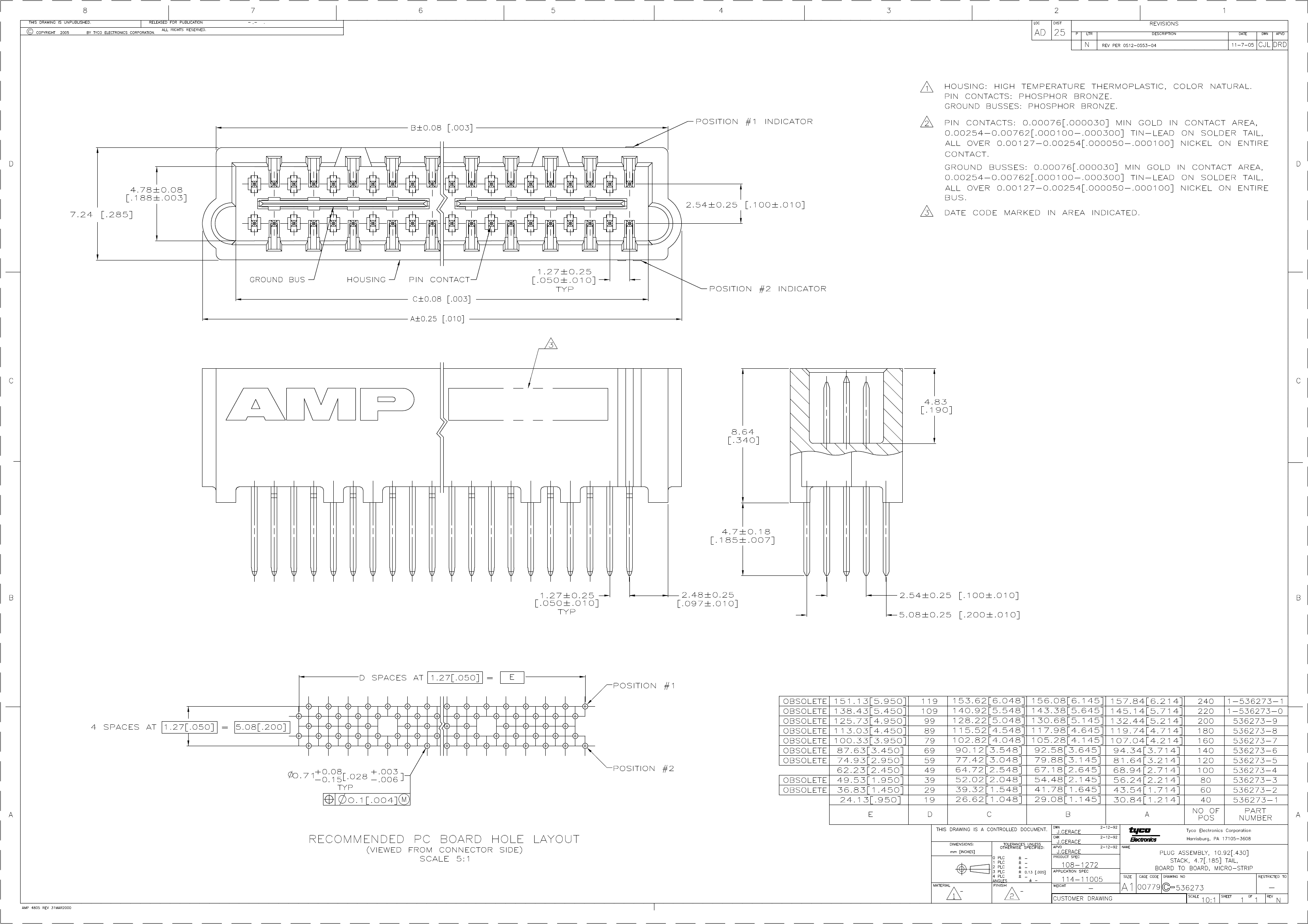

536273-2 Overview

60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG

Parameter Name	Attribute value
Objectid	2123793444
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.285 inch
subject depth	0.34 inch
body length	1.714 inch
Body/casing type	PLUG
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	536273
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	2
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.185 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	60

	536273-2	127029	536273-9	536273-8
Description	60 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG	1500/ 9 HT	200 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG	180 CONTACT(S), MALE, STRAIGHT BOARD STACKING CONNECTOR, SOLDER, PLUG
Objectid	2123793444	-	1419945824	2123793450
Reach Compliance Code	unknown	-	unknown	unknown
Body/casing type	PLUG	-	PLUG	PLUG
Connector type	BOARD STACKING CONNECTOR	-	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact point gender	MALE	-	MALE	MALE
DIN compliance	NO	-	NO	NO
Filter function	NO	-	NO	NO
IEC compliance	NO	-	NO	NO
MIL compliance	NO	-	NO	NO
Mixed contacts	NO	-	NO	NO
Installation method	STRAIGHT	-	STRAIGHT	STRAIGHT
Installation type	BOARD	-	BOARD	BOARD
Number of rows loaded	2	-	2	2
Options	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.27 mm	-	2.54 mm	1.27 mm
Termination type	SOLDER	-	SOLDER	SOLDER
Total number of contacts	60	-	200	180
