Features/Benefits
•
Vertical and right angle
•
Thru-hole and SMT models
•
Multiple caps and legends
•
Several LED colors and bi-color options
•
RoHS compliant /compatible
Typical Applications
•
•
•
•
•
•
•
ITS Series
Illuminated Tact Switch
Consumer electronics
Server/storage
Medical devices
Test/Measurement/Instrumentation
Audio/Video
Computers/Peripherals
Security
Environmental
OPERATING TEMPERATURE: -25˚C to +70˚C
STORAGE TEMPERATURE: -25˚C to +80˚C
B
Tactile Switches
Specification
FUNCTION: N.O. momentary action
TERMINALS: SMT with positioning pegs, Thru-hole
Mechanical
OPERATING FORCE: 160gf ± 50gf
OPERATING LIFE: 50,000 cycles (250m
Ω
max)
RECOMMENDED OPERATING STROKE: 0.25mm ± 0.1mm
Process
SOLDERABILITY: Thru-hole - wave compatible
SMT - convection or IR reflow compatible
Materials
Electrical
RATING: 50mA @ 12VDC
CONTACT RESISTANCE: <100m
Ω
(initial)
DIELECTRIC WITHSTANDING VOLTAGE:
>250VAC (50-60 Hz) between terminals - 1 min.Ω
INSULATION RESISTANCE: >100M
Ω
BOUNCE TIME: <10ms
CONTACTS/TERMINALS:
DOME:
BASE: PA
ACTUATOR: PA
COVER: PA
Base metal; brass
Plating; Ag
Base metal: Phosphor bronze
Plating; Ag

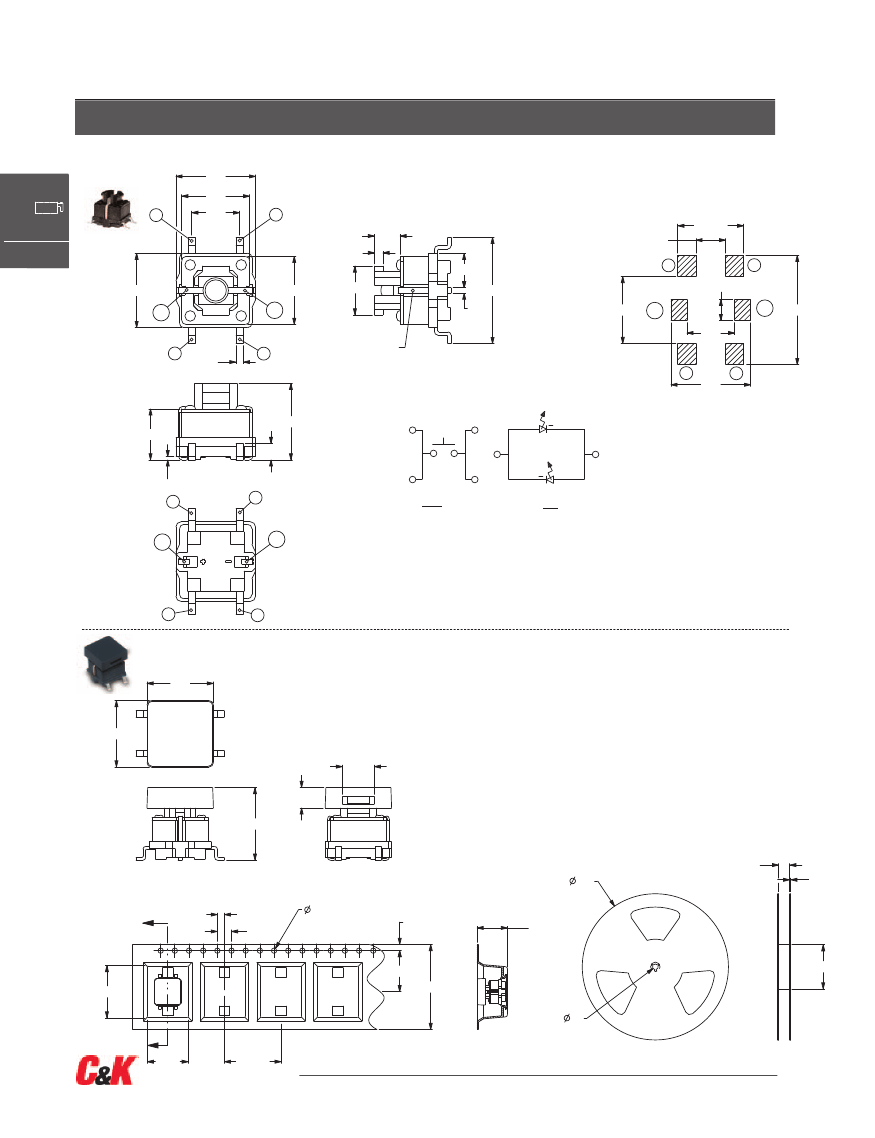

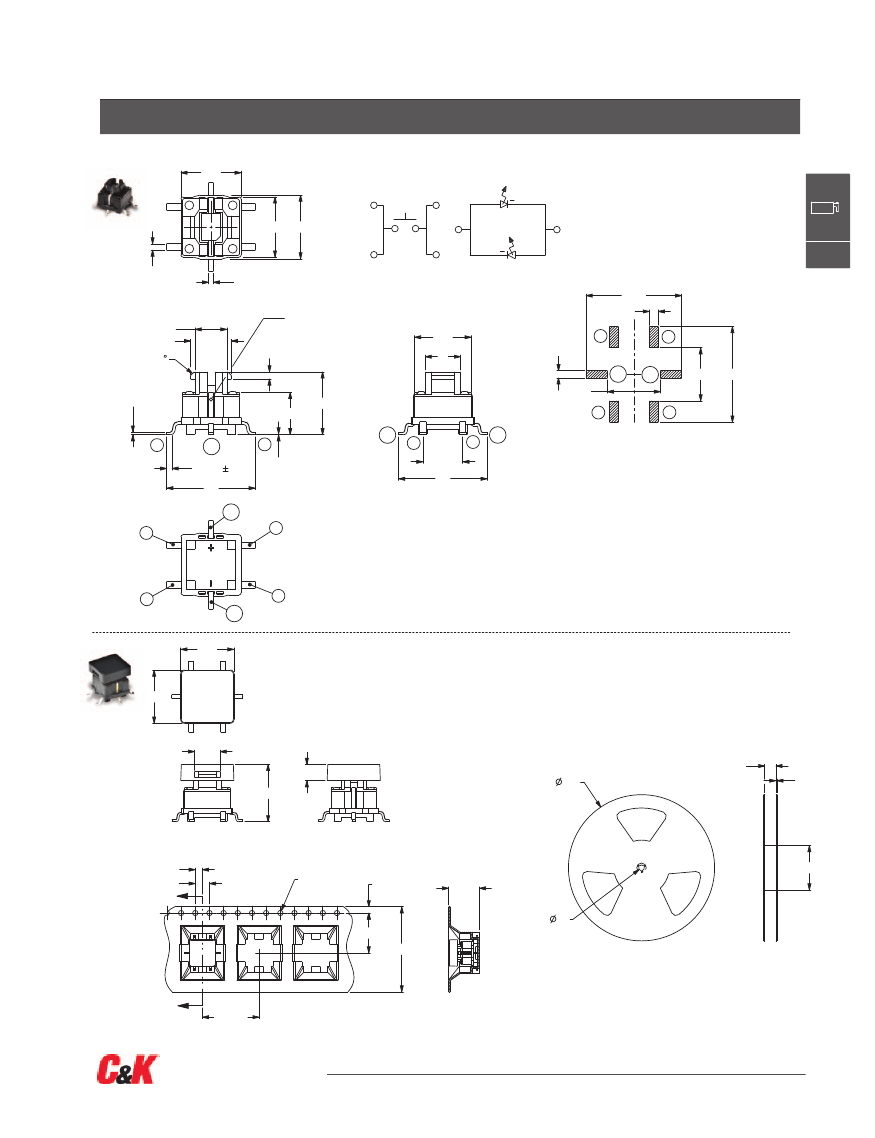

Packaging
Thru-hole: 200 pieces per tray
SMT: tape & reel (see V2 or V3 mounting style drawings)
Caps
Caps are ordered separately and shipped bulk. Thru-hole
versions available with caps assembled under custom part
number. Contact customer service for details.
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
LED
I
T
S
F
S
Packaging
T
Tray
R
Tape & reel
Color # 1
Color # 2
See color table See color table
LED Brightness
F
Standard
Force
S
Standard 160 gf
Mounting Style
V1
Vertical thru-hole
V2
Vertical SMT Gull wing
V3
Vertical SMTGull wing with J bend LED
R1
Right angle thru-hole
R2
Right angle thru-hole 2.5mm leads
LED Color
00
No light
10
Red
12
Red/Yellow
13
Red/Green
14
Red/Blue
20
Yellow
21
Yellow/Red
23
Yellow/Green
30
Green
31
Green/Red
32
Green/Yellow
40
Blue
41
Blue/Red
50
White
60
True green
* Other colors available by request
Dimensions are shown: mm
Specifications and dimensions subject to change
11 nov 13
B–89
www.ck-components.com
ITS Series
Illuminated Tact Switch
NEW!
LED COLOR / BRIGHTNESS
Red
(1)
20mA
30 mA
125 mA
75 mW
2.5 Volts Max.
637nm (Typical)
645nm (Typical)
20nm (Typical)
Yellow
(2)
20mA
30 mA
125 mA
75 mW
2.5 Volts Max.
590nm (Typical)
590nm (Typical)
20nm (Typical)
Standard LED Color Options
Blue
Green
(4)
(3)
20mA
30 mA
125 mA
75 mW
2.5 Volts Max.
570nm (Typical)
573nm (Typical)
17nm (Typical)
20mA
30 mA
125 mA
108 mW
3.6 Volts Max.
465nm (Typical)
460nm (Typical)
25nm (Typical)
White
(5)
20mA
30 mA
125 mA
114 mW
3.6 Volts Max.
CIE Coordinates
X= 0.25 ˜ 0.33
Y= 0.24 ˜ 0.34
True Green
(6)
20mA
30 mA
125 mA
108 mW
3.6 Volts Max.
522nm (Typical)
515nm (Typical)
33nm (Typical)
B
Tactile Switches
LED Characteristic
Recommended Operating
Forward Current
Peak Pulsing Current
(1/8 duty @ 1kHz)
Power Dissipation
Forward Voltage @ 20mA
Dominant Wavelength
@ 20mA
Wavelength at Peak Emission
20mA
Spectral Half Bandwidth
@ 20mA
Luminous Intensity @ 20mA
units
mA @ 5VDC
mA
mA
mW
Volts
nm
@
nm
nm
mcd
degrees
50mcd Minimum 125mcd Minimum 40mcd Minimum 100mcd Minimum 250mcd Minimum 500mcd Minimum
150˚ Typical
120˚ Typical
120˚ Typical
120˚ Typical
150˚ Typical
120˚ Typical
Viewing Angle at 50% LV (@10mA)

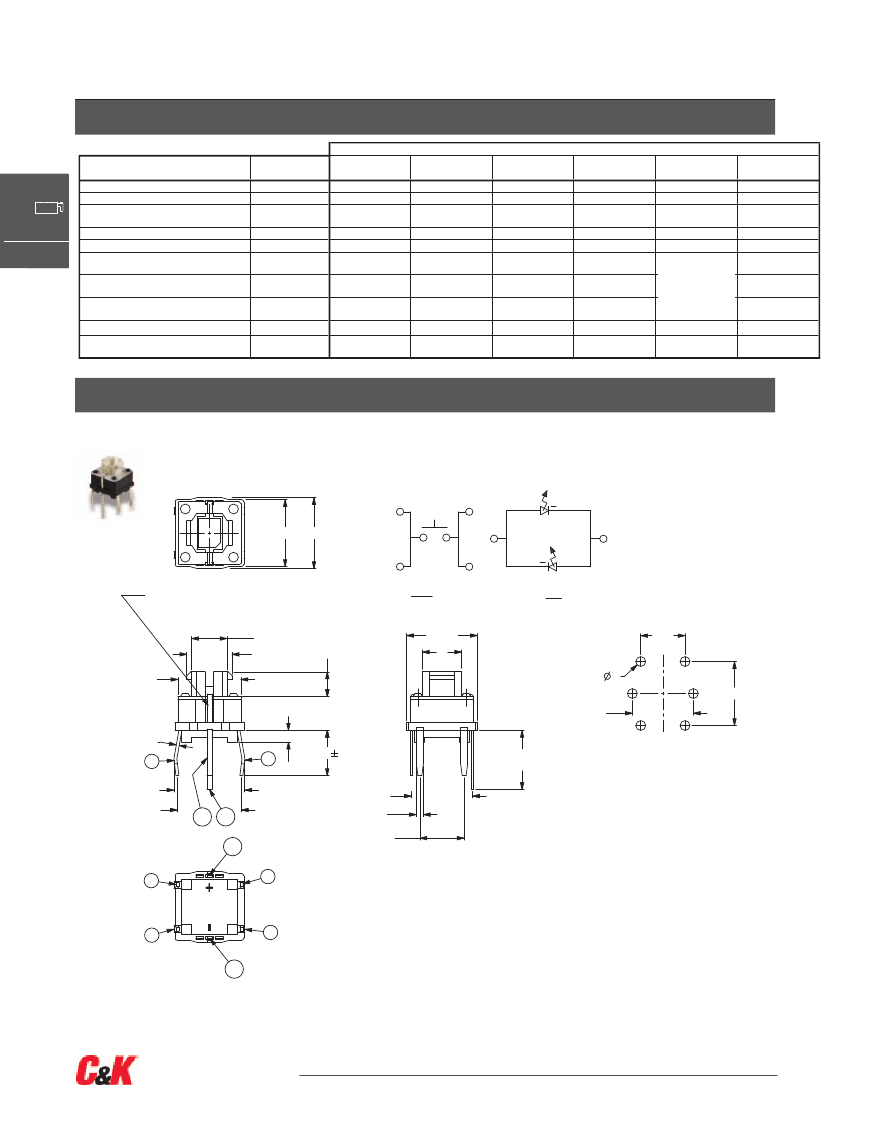

MOUNTING STYLES
V1 - Vertical Thru-hole
ELECTRICAL SCHEMATIC
3
6.8
7.2
L2
4
TACT
2
1
COLOR 1
L1
COLOR 2
DOT SHOWING LED COLOR IS
MARKED FOR MINUS POLE
SEE SCHEMATIC
3.6
4.6
6.4
2.5
LED
(7.2)
0
-0.1
4
6X
1
L2
3.45±0.05
6.2
4
3
4.5
1
L1
6.5
2
0.3
3
4
1.2
6.2±0.3
L2
L1
0.7
4.5±0.3
L2
5X 4.6
0.3
6
(L1)
P.C.B. LAYOUT
7.2±0.3
6.5±0.3
3
4
TRAY PACKAGING: 200 PIECES
1
2
L1
LED TERMINAL L1 IS TRIMMED
LONGER THAN TERMINAL L2
Dimensions are shown: mm
Specifications and dimensions subject to change
11 nov 13
B–90
www.ck-components.com
NEW!

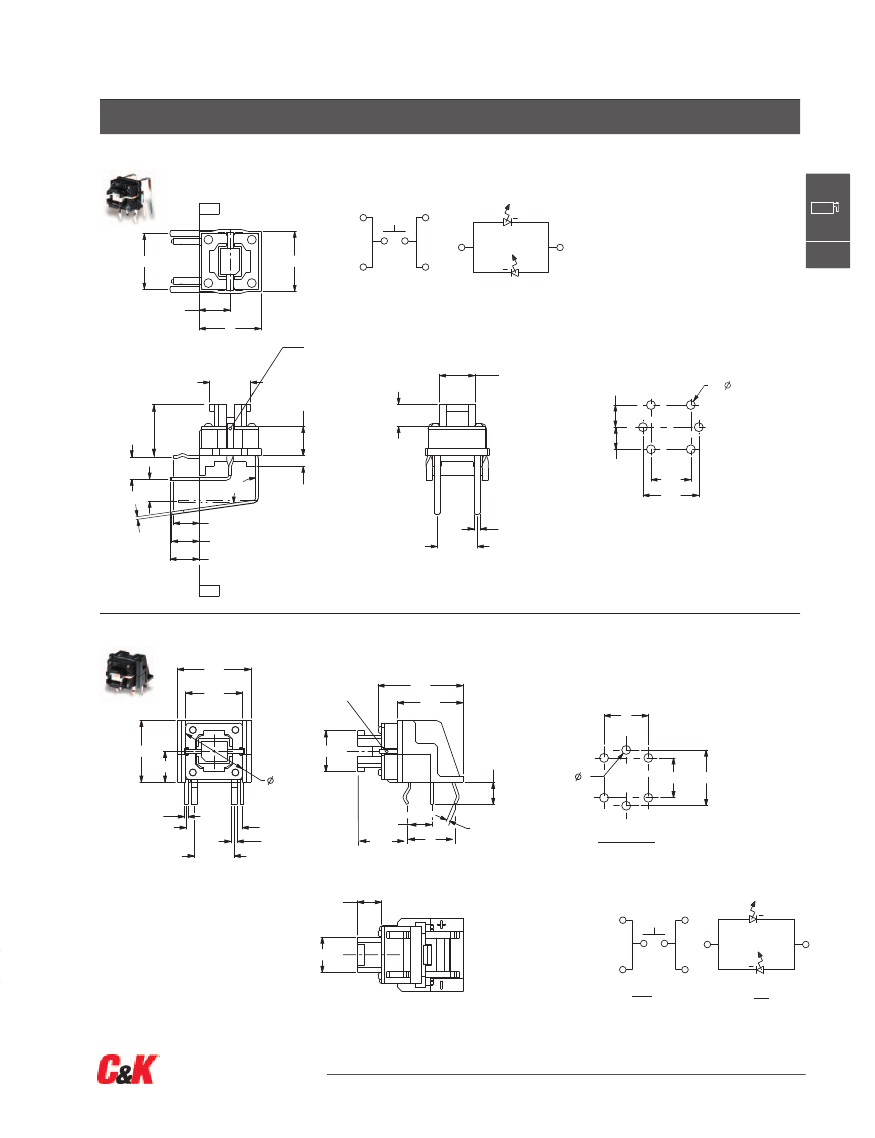

MOUNTING STYLES
R1 - Right Angle; Thru-hole
ELECTRICAL SCHEMATIC
COLOR 1
-A-
3
1
ITS Series
Illuminated Tact Switch
6.3
6.8
L2
4
2
COLOR 2
LED
L1
B
Tactile Switches
TACT
3.5
7
DOT SHOWING LED COLOR IS
MARKED FOR MINUS POLE (CATHODE)
SEE SCHEMATIC
4.6
3.3±0.05
2.5
5.95 REF
4
2.5
2.5
98°
L2
1.2
3
2.9
0.3 TYP
3.1
3.3
4.5
1
2
4
2.5
3
L2
1
L1
6X
1
2.5
L1
4
4.5
6.3
2
P.C.B. LAYOUT
0.7 TYP
TRAY PACKAGING: 200 PIECES
-A-
R2 - Right Angle; Thru-hole 2.5mm leads
8.3
6.4
DOT SHOWING LED
COLOR IS MARKED
FOR MINUS POLE
(CATHODE)
SEE SCHEMATIC
9.7
7.4
5
L1
7
3.5
7.5
4.6
2.5 TYP
5X
1
1
2
4.5
6.3
0.4
6.3
0.7
4.5
2.5
5.85
5
0.3 TYP
3
L2
4
P.C.B.LAYOUT
ELECTRICAL SCHEMATIC
2.7
3
L2
4
3
1
COLOR 1
4
4
1
L1
2
TACT
2
L2
COLOR 2
LED
L1
00
TRAY PACKAGING: 200 PIECES
Dimensions are shown: mm
Specifications and dimensions subject to change
11 nov 13
B–93
www.ck-components.com
