7-1971775-4: DescriptionPTL 2X4 CAP PANEL MT HIGH TEMP KEY C BLK; CategoryThe connector; File Size531KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

7-1971775-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7-1971775-4	-	-	View	Buy Now

7-1971775-4 Overview

PTL 2X4 CAP PANEL MT HIGH TEMP KEY C BLK

7-1971775-4 Parametric

Parameter Name	Attribute value
Housing type	female end, female end
Connector System	line to line
Sealable	no
Connectors and terminals terminate to	Wires and cables
Terminal type	Public end
Number of Positions	8
Number of power supply locations	8
Rows	2
Line spacing	8.1 mm [ .319 in ]
keying	C
Operating voltage (VAC)	600
Operating voltage (VDC)	600
Terminal retention	Without
Terminal layout	matrix
Cable termination method	crimp
Panel Mount Feature Type	latch
Panel mount features	with
Connector mounting type	Panel
Centerline (Pitch)	6 mm [ .236 in ]
UL fire rating	UL 94V-0
Shell color	black
Shell material	nylon
Outgoing angle	Straight
Panel thickness	1 – 2 mm [ .039 – .079 in ]
Height (mm)	23.05
Working group temperature range	-55 – 150 °C [ -67 – 302 °F ]
Circuit Application	Power
Circuit identification characteristics	with
Glow Wire Ratings	High Temperature Components - Non-Glow Wire
Agencies/Standards	UL
Organization/Standard Number	E28476
UL rating	Recognized
Encapsulation method	carton
Applicable to	CPA, male terminal, plug boot, terminal locking tab

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

-

C

REVISED PER ECR-16-003314

15JUL2016

BW

GJ

DIM.D

DIM.E(2X)

D

24.70

19.80

(2X)

18.80

D

R 0.50

(2X)

30.65

18.80

19.25 (2X)

23.55

18.95

(2X)

6.70

(2X)

6.70

(2X)

9.975

DIM.C

DIM.B

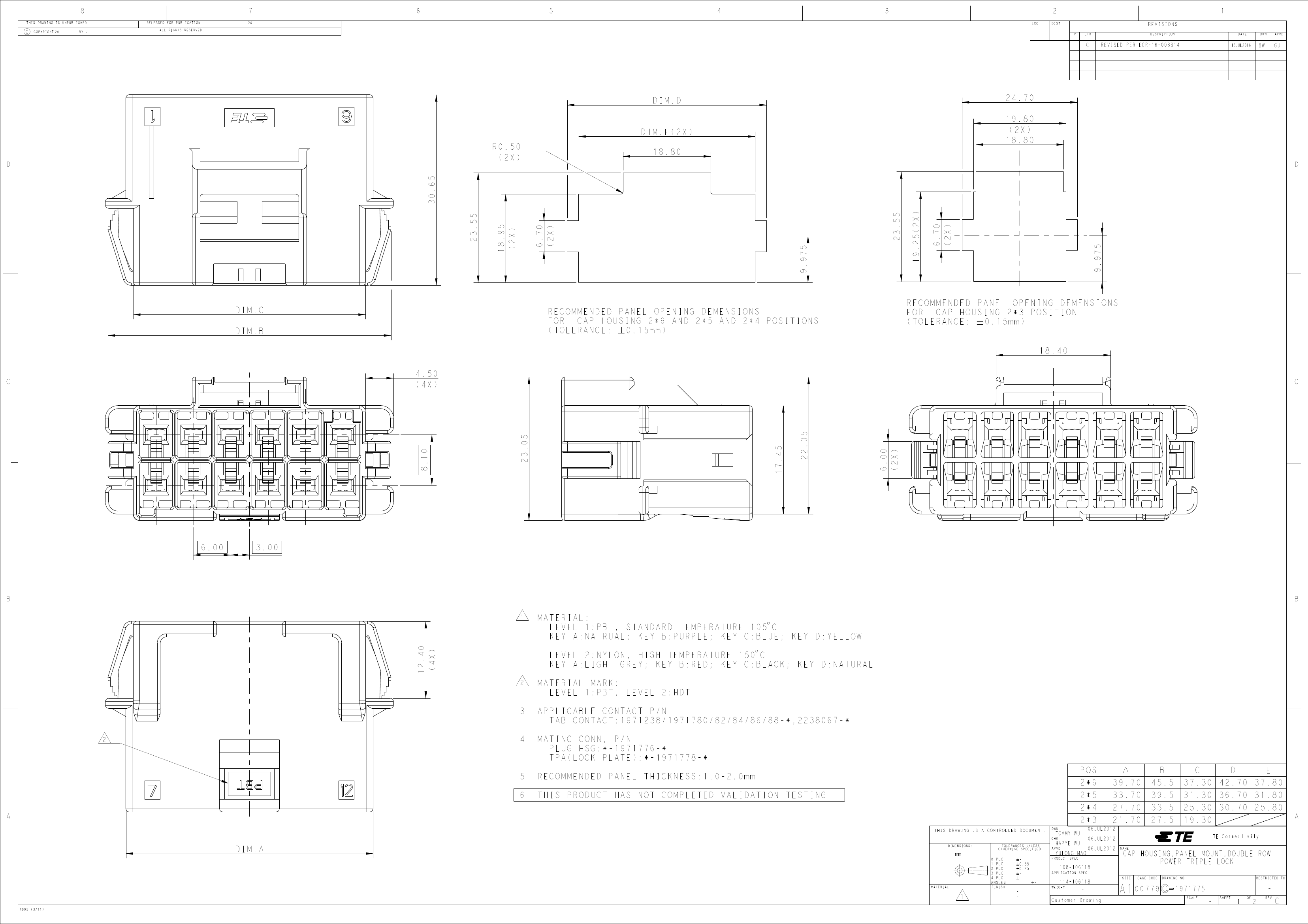

RECOMMENDED PANEL OPENING DEMENSIONS

FOR CAP HOUSING 2*6 AND 2*5 AND 2*4 POSITIONS

(TOLERANCE: # 0.15mm)

RECOMMENDED PANEL OPENING DEMENSIONS

FOR CAP HOUSING 2*3 POSITION

(TOLERANCE: # 0.15mm)

18.40

C

4.50

(4X)

9.975

C

23.05

17.45

8.10

22.05

6.00

3.00

B

1

6.00

(2X)

B

MATERIAL:

LEVEL 1:PBT, STANDARD TEMPERATURE 105 $ C

KEY A:NATRUAL; KEY B:PURPLE; KEY C:BLUE; KEY D:YELLOW

LEVEL 2:NYLON, HIGH TEMPERATURE 150 $ C

KEY A:LIGHT GREY; KEY B:RED; KEY C:BLACK; KEY D:NATURAL

12.40

(4X)

2

MATERIAL MARK:

LEVEL 1:PBT, LEVEL 2:HDT

APPLICABLE CONTACT P/N

TAB CONTACT:1971238/1971780/82/84/86/88-*,2238067-*

MATING CONN, P/N

PLUG HSG:*-1971776-*

TPA(LOCK PLATE):*-1971778-*

RECOMMENDED PANEL THICKNESS:1.0-2.0mm

THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING

3

2

4

5

6

A

POS

2*6

2*5

2*4

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

39.70

33.70

27.70

21.70

NAME

45.5

39.5

33.5

27.5

B

37.30

31.30

25.30

19.30

C

42.70

36.70

30.70

TE Connectivity

D

37.80

31.80

25.80

A

E

2*3

TOMMY WU

HAPYE WU

YUHONG MAO

108-106118

114-106118

06JUL2012

DIM.A

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.35

0.25

-

PRODUCT SPEC

CAP HOUSING,PANEL MOUNT,DOUBLE ROW

POWER TRIPLE LOCK

CAGE CODE

DRAWING NO

RESTRICTED TO

APPLICATION SPEC

-

1

4805 (3/11)

-

WEIGHT

-

Customer Drawing

A1

00779

SIZE

1971775

SCALE

-

SHEET

1

OF

2

REV

-

C

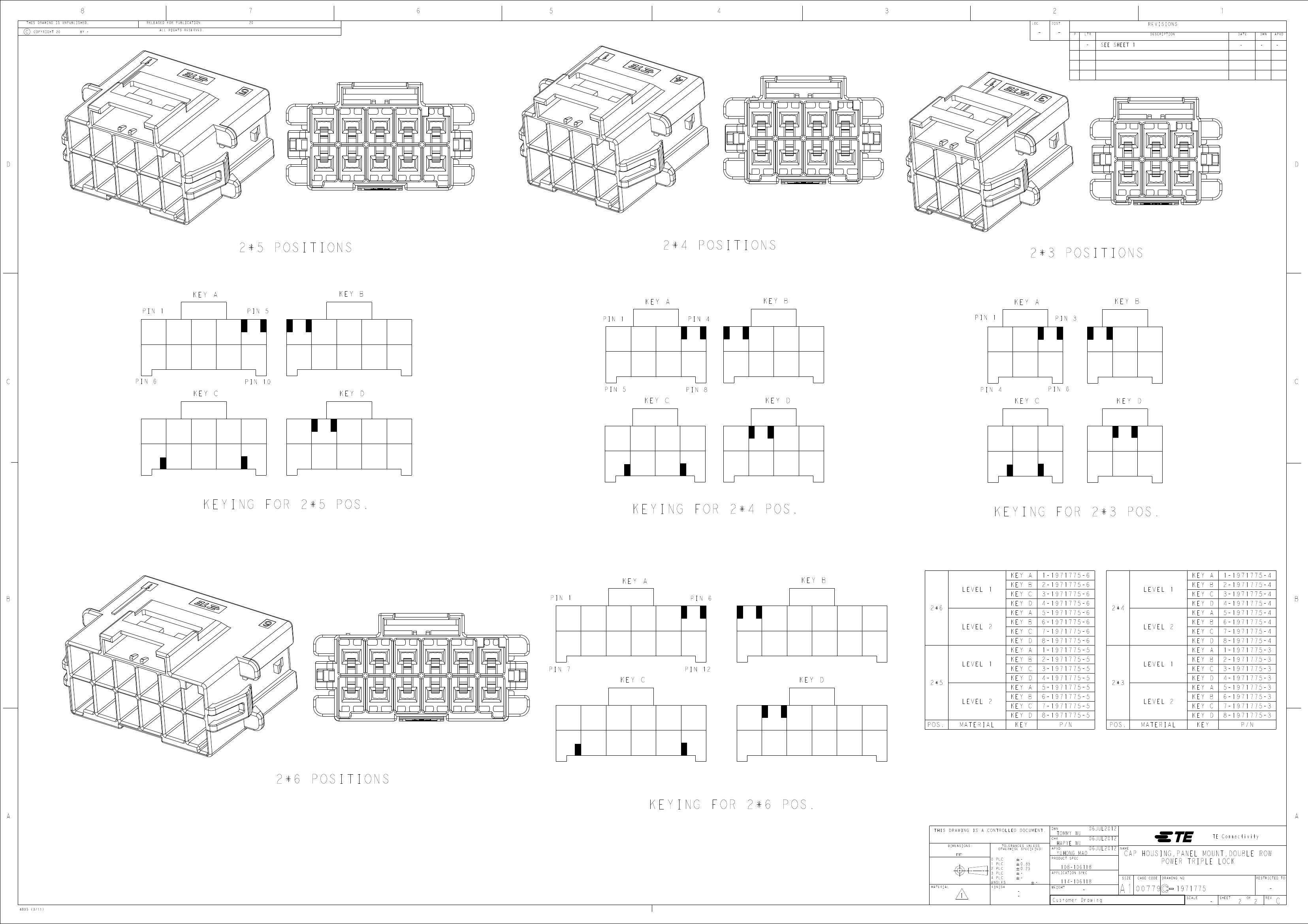

7-1971775-4 Related Products

	7-1971775-4	4-1971775-4	3-1971775-4	2-1971775-4	8-1971775-4	6-1971775-4
Description	PTL 2X4 CAP PANEL MT HIGH TEMP KEY C BLK	PTL 2X4 CAP PANEL MT STD TEMP KEY D YEL	PTL 2X4 CAP PANEL MT STD TEMP KEY C BLU	PTL 2X4 CAP PANEL MT STD TEMP KEY B PUR	PTL 2X4 CAP PANEL MT HIGH TEMP KEY D NAT	PTL 2X4 CAP PANEL MT HIGH TEMP KEY B RED
Housing type	female end, female end	female end, female end	female end, female end	female end, female end	female end, female end	female end, female end
Connector System	line to line	line to line	line to line	line to line	line to line	line to line
Sealable	no	no	no	no	no	no
Connectors and terminals terminate to	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables	Wires and cables
Terminal type	Public end	Public end	Public end	Public end	Public end	Public end
Number of Positions	8	8	8	8	8	8
Number of power supply locations	8	8	8	8	8	8
Rows	2	2	2	2	2	2
Line spacing	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]	8.1 mm [ .319 in ]
keying	C	D	C	B	D	B
Operating voltage (VAC)	600	600	600	600	600	600
Operating voltage (VDC)	600	600	600	600	600	600
Terminal retention	Without	Without	Without	Without	Without	Without
Terminal layout	matrix	matrix	matrix	matrix	matrix	matrix
Cable termination method	crimp	crimp	crimp	crimp	crimp	crimp
Panel Mount Feature Type	latch	latch	latch	latch	latch	latch
Panel mount features	with	with	with	with	with	with
Connector mounting type	Panel	Panel	Panel	Panel	Panel	Panel
Centerline (Pitch)	6 mm [ .236 in ]	6 mm [ .236 in ]	6 mm [ .236 in ]	6 mm [ .236 in ]	6 mm [ .236 in ]	6 mm [ .236 in ]
UL fire rating	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0	UL 94V-0
Shell color	black	yellow	blue	purple, violet	Natural	red
Shell material	nylon	PBT GF	PBT GF	PBT GF	nylon	nylon
Outgoing angle	Straight	Straight	Straight	Straight	Straight	Straight
Panel thickness	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]	1 – 2 mm [ .039 – .079 in ]
Height (mm)	23.05	23.05	23.05	23.05	23.05	23.05
Working group temperature range	-55 – 150 °C [ -67 – 302 °F ]	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]	-55 – 105 °C [ -67 – 221 °F ]	-55 – 150 °C [ -67 – 302 °F ]	-55 – 150 °C [ -67 – 302 °F ]
Circuit Application	Power	Power	Power	Power	Power	Power
Circuit identification characteristics	with	with	with	with	with	with
Glow Wire Ratings	High Temperature Components - Non-Glow Wire	Standard parts - non-glow wire	Standard parts - non-glow wire	Standard parts - non-glow wire	High Temperature Components - Non-Glow Wire	High Temperature Components - Non-Glow Wire
Agencies/Standards	UL	UL	UL	UL	UL	UL, VDE
Organization/Standard Number	E28476	E28476	E28476	E28476	E28476	E28476
UL rating	Recognized	Recognized	Recognized	Recognized	Recognized	Recognized
Encapsulation method	carton	carton	carton	carton	carton	carton
Applicable to	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab	CPA, male terminal, plug boot, terminal locking tab
