TX54AC90-2210 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> TX54AC90-2210

TX54AC90-2210: DescriptionTX54AC90-2210; CategoryThe connector; File Size1MB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

TX54AC90-2210 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TX54AC90-2210	-	-	View	Buy Now

TX54AC90-2210 Overview

TX54AC90-2210

TX54AC90-2210 Parametric

Parameter Name	Attribute value
Adapter angle	90

Preview

Download Datasheet

View All

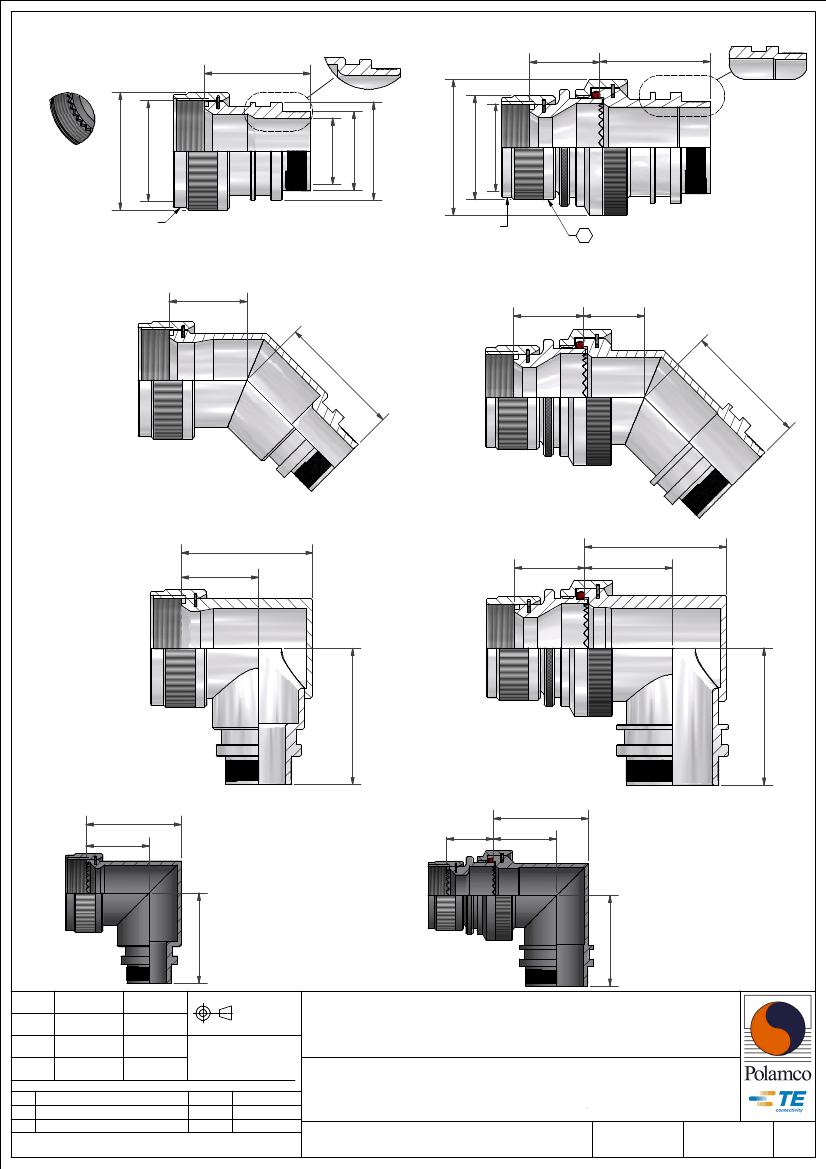

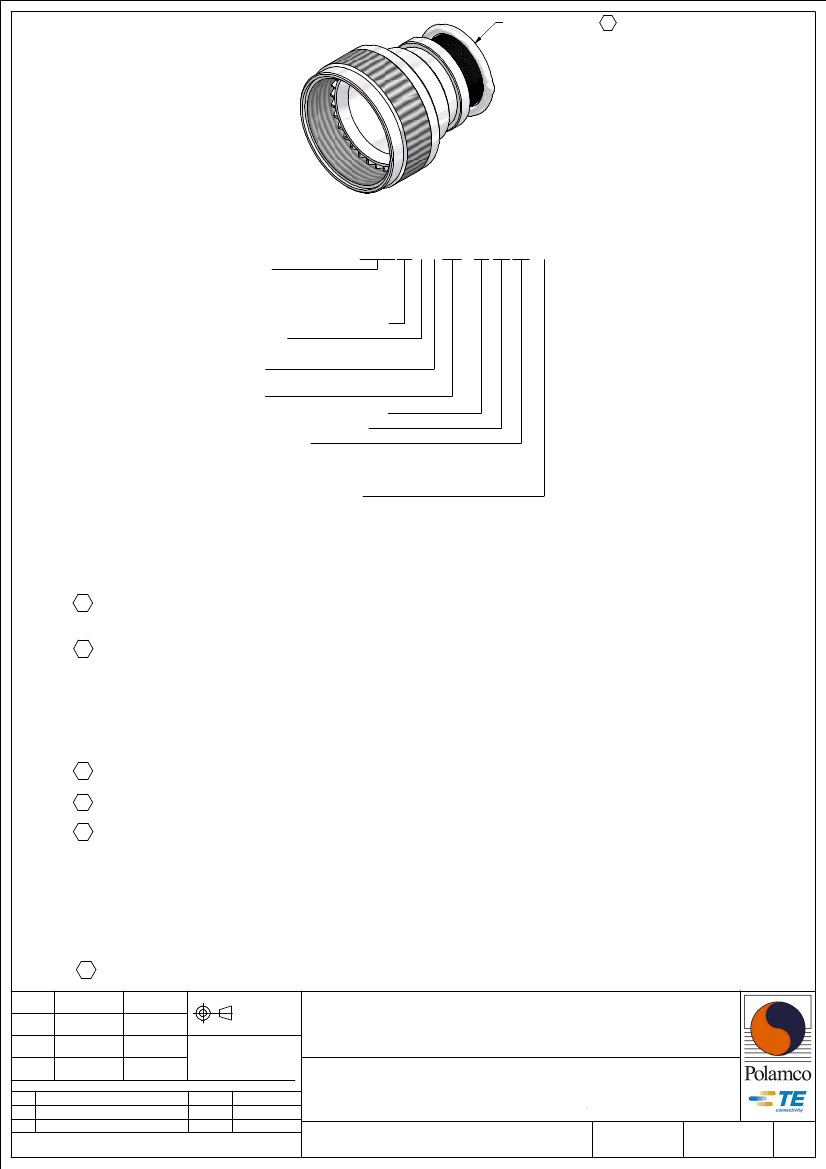

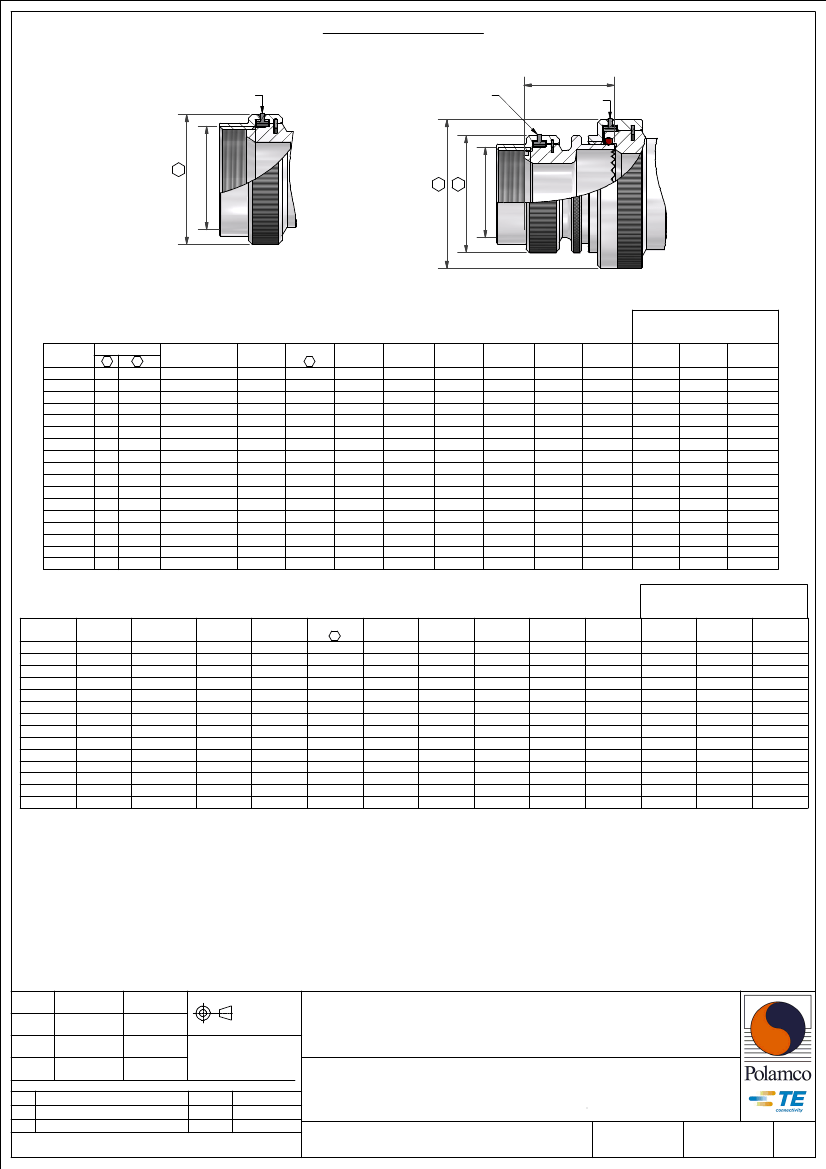

TINEL LOCK RING 3

CODE 54 - TINEL-LOCK BACKSHELL

TXR54AB00-1608AI-S

SERIES

TXR: RING INCLUDED

(SEE RING OPTION)

TX: RING NOT INCLUDED

CONNECTOR INTERFACE

MATERIAL

REFER TO CH00-0250-008

FINISH

REFER TO CH00-0250-008

ANGLE

DASH NUMBER (TABLE 1)

ENTRY SIZE (TABLE 2)

RING OPTION

AI - TO SUIT SINGLE BRAID

BI - TO SUIT DOUBLE BRAID

FOR TX, LEAVE BLANK

MODIFICATION CODE

NOTES:

REFER TO CH00-0250-008

1. THIS PRODUCT IS DESIGNED TO TERMINATE A BRAIDED CABLE SHIELD AND

A HEAT SHRINKABLE LIPPED BOOT TO A CONNECTOR.

2. FOR ADDITIONAL DIMENSIONS, ORDERING INFORMATION AND MODIFICATIONS,

SEE CH00-0250-008.

3. SEE DRAWING TR FOR DETAIL ON TINEL-LOCK RING, RINGS ARE DESIGNED

TO BE HEATED ELECTRICALLY, ALL RINGS ARE MARKED WITH THERMOCHROMIC

PAINT WHICH CHANGES COLOUR WHEN INSTALLATION TEMPERATURE IS REACHED.

4. BACKSHELL TO BE PERMANENTLY MARKED/BAGGED AND LABELLED WITH CODE

IDENTIFICATION NUMBER AND PART NUMBER LESS RING DESIGNATOR. (e.g. 06090-TXR54AB00-1206).

RING SHALL BEAR NO MARKING.

5. FOR LARGER ENTRY SIZES, A 2 PIECE BACKSHELL ASSEMBLY (TYPE 2) IS SUPPLIED.

6. BACKSHELL MATES TO MIL-C-81703, SERIES III, MS3424, MS3446, MS3464, MS3467, MS3468

7. BACKSHELL MATES TO MIL-C-5015G, MS3400 SERIES, CLASS D, E, K, L, U & W,

MS3400, MS3401, MS3404, MS3406 MS3424, MS3446, MS3464, MS3467, MS3468,

MS3450, MS3451, MS3454, MS3456, MS3470, MS3471, MS3472,

MS3474, MS3475, MS3476. MIL-C-83723, SERIES II, CLASS A & L. MIL-C-83723,

SERIES I & II, CLASS A, G, K, R & S: M83723/1, /2, /3, /4, /5, /6, /7, /8, /13,

/14, /36, /37, /38, /39, /40, /41, /42, /43, /48, /49, /65, /66, /67, /68, /69,

/70, /71, /72, /73, /74, /75, /76, /77, /78, /82, /83, /84, /85, /86, /87, /91, /92, /95, /97, /98,

(MS3155 CONTROLLED INTERFACE).

8. THESE DIMENSIONS APPLY IF A SELF-LOCKING COUPLING NUT IS USED.

DRAWN

K.WINCZURA

CHECKED

APPROVED

K.SHEPPARD

APPROVED

REVISIONS

LTR

DESCRIPTION

K REVISED PER ECO-15-002312

REVISED PER ECO-17-009011

DATE

01/12/2014

04/12/2014

3RD ANGLE

PROJECTION

NOT TO

SCALE

UNLESS OTHERWISE SPECIFIED

ALL DIMENSIONS IN MILLIMETRES

GENERAL TOL

LINEAR +/-0,25MM

ANGULAR +/- 1°

TITLE:

TINEL-LOCK BACKSHELL

ASSY USED ON:

DATE

13.02.15

21.06.17

APPROVED

H.SMITH

MIL-DTL-26482 SERIES II / MIL-DTL-83723 SERIES I & III

TE CONNECTIVITY - POLAMCO LTD RESERV ES TH E RIGH T TO AMEND TH IS DRAW ING

AND THE INFORMATIO N SET FORTH HEREON AT ANY T IME. USERS SH OULD

IND EPENDENTLY EVALUATE TH E SUITABILITY OF THE PRODUCT FOR TH EIR APPLICATION.

D.JONES

TE CAGE CODE: 06090

POLAMCO/TE CAGE CODE: U5792

DRAWING NO:

DRAWING REV:

SHT

TXR54

TX54AC90-2210 Related Products

	TX54AC90-2210	TX54AB00-1404S	TX54AB00-2830H	TX54AB00-2205	TX54AB00-1408-CS2473	TX54AB00-1006	TX54AB90-1404	TX54AB00-1406
Description	TX54AC90-2210	TX54AB00-1404S	TX54AB00-2830H	TX54AB00-2205	TX54AB00-1408-CS2473	TX54AB00-1006	TX54AB90-1404	TX54AB00-1406
Adapter angle	90	Straight	00	-	00	00	90	00
type	-	-	Tinel-Lock	-	Tinel-Lock	Tinel-Lock	Tinel-Lock	Tinel-Lock
Termination device type	-	-	Tinel-Lock ring, side insert Tinel-Lock ring	-	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring	Tinel-Lock ring, side insert Tinel-Lock ring
Connector housing size	-	-	28	-	12, 14, 14S	10	12, 14, 14S	12, 14, 14S
Adapter inlet size	-	-	30	-	08	06	04	06
TE adapter code	-	-	54	-	54	54	54	54
Material	-	-	aluminum	-	aluminum	aluminum	aluminum	aluminum
Adapter plating material	-	-	Cadmium complies with SAE AMS-QQ-P-416 Type II Category 3 for use on a suitable substrate in accordance with SAE AS85049 (500 hour salt spray test)	-	Cadmium complies with SAE AMS-QQ-P-416 Type II Category 3 for use on a suitable substrate in accordance with SAE AS85049 (500 hour salt spray test)	Cadmium complies with SAE AMS-QQ-P-416 Type II Category 3 for use on a suitable substrate in accordance with SAE AS85049 (500 hour salt spray test)	Cadmium complies with SAE AMS-QQ-P-416 Type II Category 3 for use on a suitable substrate in accordance with SAE AS85049 (500 hour salt spray test)	Cadmium complies with SAE AMS-QQ-P-416 Type II Category 3 for use on a suitable substrate in accordance with SAE AS85049 (500 hour salt spray test)
Cable diameter range	-	-	238 – 381 mm [ 938 – 15 in ]	-	64 – 102 mm [ 25 – 4 in ]	48 – 76 mm [ 188 – 3 in ]	32 – 51 mm [ 125 – 2 in ]	48 – 76 mm [ 188 – 3 in ]
Connector detailed specification number	-	-	AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702	-	AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702	AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702	AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702	AS34001, AS34011, AS34041, AS34061, AS34081, AS34091, AS34121, AS34241, AS34461, AS34501, AS34511, AS34541, AS34561, AS34641, AS34671, AS34681, M83723/01, M83723/02, M83723/03, M83723/04, M83723/05, M83723/06, M83723/07, M83723/08, M83723/13, M83723/14, M83723/36, M83723/37, M83723/38, M83723/39, M83723/40, M83723/41, M83723/42, M83723/43, M83723/48, M83723/49, M83723/65, M83723/66, M83723/67, M83723/68, M83723/69, M83723/71, M83723/72, M83723/73, M83723/74, M83723/75, M83723/76, M83723/77, M83723/78, M83723/82, M83723/83, M83723/84, M83723/85, M83723/86, M83723/87, M83723/91, M83723/92, M83723/95, M83723/96, M83723/97, M83723/98, MS3459, MS3470, MS3471, MS3472, MS3474, MS3475, MS3476, NAS 1599, NAS 1641, NAS 1642, NAS 1643, NAS 1650, NAS 1651, NAS 1652, NAS 1653, NAS 1692, NAS 1693, NAS 1694, NAS 1699, NAS 1700, NAS 1701, NAS 1702
Connector general specification number	-	-	AS50151 Crimp Terminal, AS50151 Class D, L, U, W Crimp Terminal Less ENDBELL, AS50151 Class D, L, U, W Crimp Terminal, AS50151 Class L, W Crimp Termin	-	AS50151 Crimp Terminal, AS50151 Class D, L, U, W Crimp Terminal Less ENDBELL, AS50151 Class D, L, U, W Crimp Terminal, AS50151 Class L, W Crimp Termin	AS50151 Crimp Terminal, AS50151 Class D, L, U, W Crimp Terminal Less ENDBELL, AS50151 Class D, L, U, W Crimp Terminal, AS50151 Class L, W Crimp Termin	AS50151 Crimp Terminal, AS50151 Class D, L, U, W Crimp Terminal Less ENDBELL, AS50151 Class D, L, U, W Crimp Terminal, AS50151 Class L, W Crimp Termin	AS50151 Crimp Terminal, AS50151 Class D, L, U, W Crimp Terminal Less ENDBELL, AS50151 Class D, L, U, W Crimp Terminal, AS50151 Class L, W Crimp Termin
