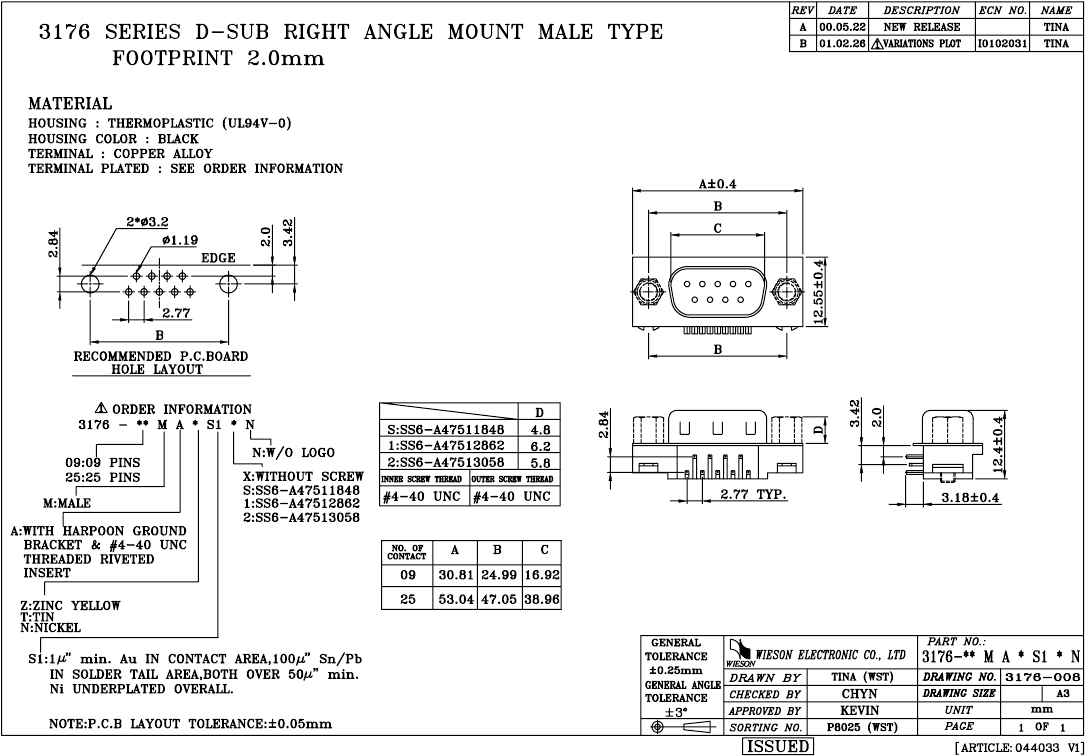

3176-25MAZS12N

Description
D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle
CategoryThe connector    The connector
File Size138KB，1 Pages
ManufacturerWieson Technologies Co., Ltd.
Download Datasheet Parametric Compare View All

3176-25MAZS12N Overview

D Type Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, #4-40, Receptacle

3176-25MAZS12N Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerWieson Technologies Co., Ltd.
Reach Compliance Codeunknown
body width0.494 inch
body length2.088 inch
Body/casing typeRECEPTACLE
Contact to complete cooperationAU ON NI
Contact completed and terminatedTin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeSTAGGERED
Contact styleRND PIN-SKT
Insulator colorBLACK
insulator materialTHERMOPLASTIC
JESD-609 codee0
Manufacturer's serial number3176
Plug contact pitch0.109 inch
Installation option 1#4-40
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
PCB row number2
Number of rows loaded2
PCB contact patternSTAGGERED
PCB contact row spacing2.8448 mm
Plating thickness1u inch
GuidelineUL
reliabilityCOMMERCIAL
Shell surfaceZINC/YELLOW CHROMATE
Terminal length0.125 inch
Terminal pitch2.7686 mm
Termination typeSOLDER
Total number of contacts25
Base Number Matches1
