1-1418390-1

Description
4 POS AMP MCP 2.8 REC HSG
CategoryThe connector
File Size543KB,1 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

1-1418390-1 Online Shopping

Suppliers Part Number Price MOQ In stock
1-1418390-1 - - View Buy Now

1-1418390-1 Overview

4 POS AMP MCP 2.8 REC HSG

1-1418390-1 Parametric

Parameter NameAttribute value
Connector typeFemale terminal housing
Connector Systemline to line
Sealableyes
Hybrid connectorno
Main locking featureson the terminal
strain reliefno
Line spacing (mm)7.6, 8.6, 9
line spacing (in).299, .339, .354
Number of Positions4
Rows2
Nominal Voltage Structure (V)12, 24, 42, 60
Operating voltage (VDC)60
colorblack
Cable exit angleother
Main materialPBT GF
Width of docking male end2.8 mm [ .11 in ]
Installation featuresWithout
Terminal position guaranteeyes
polarizationyes
Centerline (Pitch)6 mm [ .236 in ]
width25.7 mm [ 1.012 in ]
high31.25 mm [ 1.23 in ]
length43 mm [ 1.693 in ]
Working group temperature range-40 – 140 °C [ -40 – 284 °F ]
Circuit ApplicationSignal
protection levelIP67
UL flammability ratingUL 94V-0
Encapsulation methodcarton
Package quantity1
Able to ensure connector positionno
Repairableyes
8
C

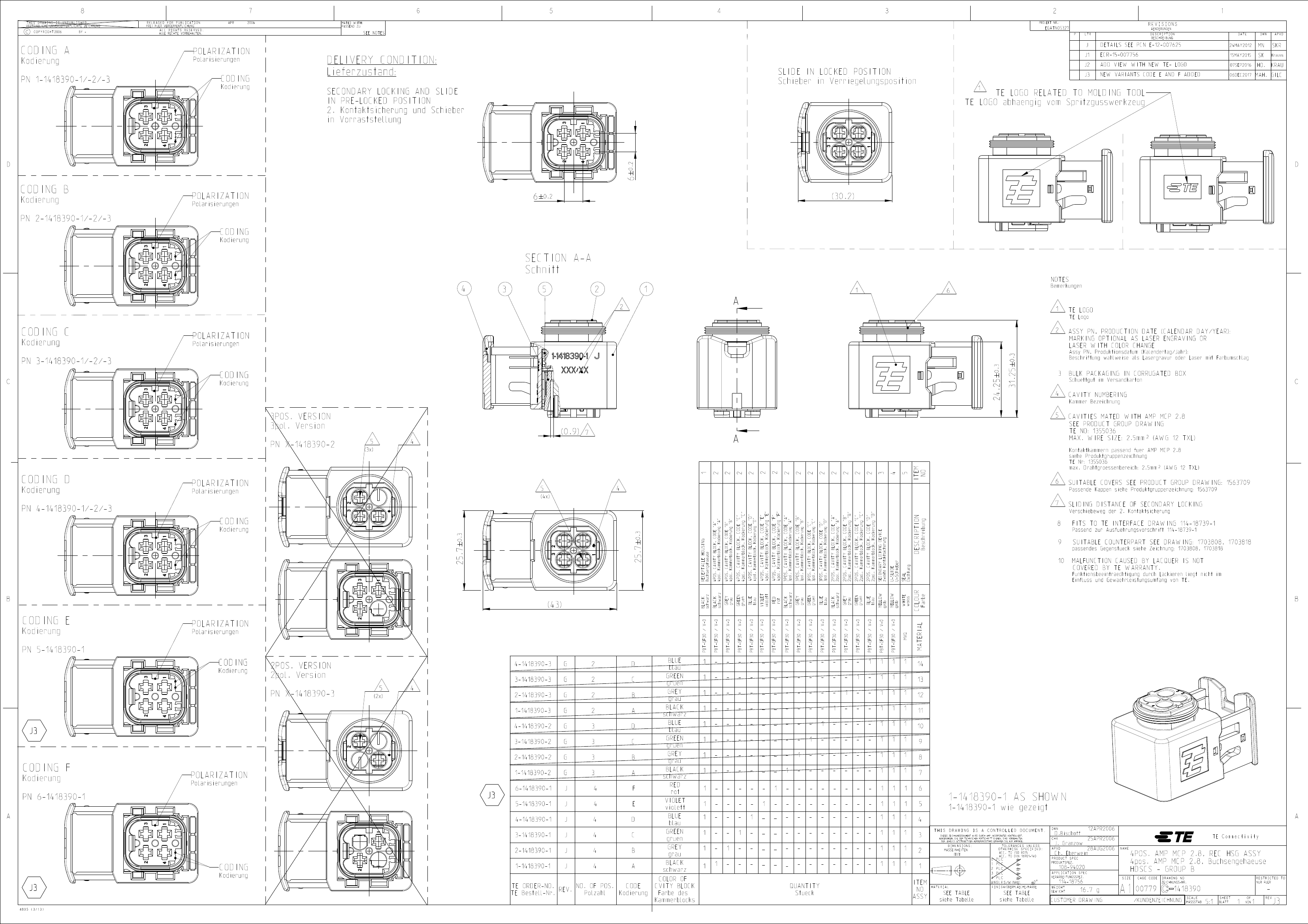

THIS DRAWING IS UNPUBLISHED.
VERTRAULICHE UNVEROEFFENTLICHTE ZEICHNUNG
COPYRIGHT
2006
BY -
RELEASED FOR PUBLICATION
FREI FUER VEROEFFENTLICHUNG
ALL RIGHTS RESERVED.
ALLE RECHTE VORBEHALTEN.
7
APR
2006
-
MATED WITH:
PASSEND ZU:
6
SEE NOTES
5
4
3
2
PROJEKT NR.:
1
REVISIONS
AENDERUNGEN
P
LTR
DESCRIPTION
BESCHREIBUNG
DATE
DWN
APVD
EGATN05327
CODING A
Kodierung
PN 1-1418390-1/-2/-3
POLARIZATION
Polarisierungen
J
DETAILS SEE PCN E-12-007625
ECR-15-007756
ADD VIEW WITH NEW TE- LOGO
NEW VARIANTS CODE E AND F ADDED
24MAY2012
15MAY2015
07SEP2016
06DEC2017
MN
SK
SKR
Krauss
CODING
DELIVERY CONDITION:
Lieferzustand:
SECONDARY LOCKING AND SLIDE
IN PRE-LOCKED POSITION
2. Kontaktsicherung und Schieber
in Vorraststellung
J1
Kodierung
SLIDE IN LOCKED POSITION
Schieber in Verriegelungsposition
J2
J3
HO. KRAU
MAH. GILC
TE LOGO RELATED TO MOLDING TOOL
TE LOGO abhaengig vom Spritzgusswerkzeug
1
D
0.2
D
CODING B
Kodierung
PN 2-1418390-1/-2/-3
POLARIZATION
Polarisierungen
6
6
0.2
(
30.2
)
Kodierung
CODING
SECTION A-A
Schnitt
4
3
5
2
2
1
NOTES
1
6
Bemerkungen
1
2
TE Logo
TE LOGO
CODING C
Kodierung
PN 3-1418390-1/-2/-3
C
POLARIZATION
Polarisierungen
31.25
0.3
ASSY PN, PRODUCTION DATE (CALENDAR DAY/YEAR):
MARKING OPTIONAL AS LASER ENGRAVING OR
LASER WITH COLOR CHANGE
0.3
Assy PN, Produktionsdatum (Kalendertag/Jahr):
Beschriftung wahlweise als Lasergravur oder Laser mit Farbumschlag
24.25
CODING
Kodierung
3
4
5
BULK PACKAGING IN CORRUGATED BOX
Schuettgut im Versandkarton
C
Kammer Bezeichnung
CAVITY NUMBERING
3POS. VERSION
3pol. Version
PN X-1418390-2
(3x)
5
4
( )
0.9
7
CAVITIES MATED WITH AMP MCP 2.8
SEE PRODUCT GROUP DRAWING
TE NO: 1355036
MAX. WIRE SIZE: 2.5mm² (AWG 12 TXL)
Kontaktkammern passend fuer AMP MCP 2.8
siehe Produktgruppenzeichnung
TE Nr: 1355036
max. Drahtgroessenbereich: 2.5mm² (AWG 12 TXL)
CODING D
Kodierung
PN 4-1418390-1/-2/-3
ITEM
NO
1
2
2
2
2
2
2
2
2
2
2
2
2
2
2
3
4
5
POLARIZATION
Polarisierungen
5
(4x)
4
4POS. CAVITY BLOCK, CODE "C"
4pol. Kammerblock, Kodierung "C"
4POS. CAVITY BLOCK, CODE "E"
4pol. Kammerblock, Kodierung "E"
4POS. CAVITY BLOCK, CODE "F"
4pol. Kammerblock, Kodierung "F"
2POS. CAVITY BLOCK, CODE "B"
2pol. Kammerblock, Kodierung "B"
2POS. CAVITY BLOCK, CODE "C"
2pol. Kammerblock, Kodierung "C"
2POS. CAVITY BLOCK, CODE "D"
2pol. Kammerblock, Kodierung "D"
6
7
Passende Kappen siehe Produktgruppenzeichnung: 1563709
SUITABLE COVERS SEE PRODUCT GROUP DRAWING: 1563709
SLIDING DISTANCE OF SECONDARY LOCKING
FITS TO TE INTERFACE DRAWING 114-18739-1
4POS. CAVITY BLOCK, CODE "A"
4pol. Kammerblock, Kodierung "A"
4POS. CAVITY BLOCK, CODE "B"
4pol. Kammerblock, Kodierung "B"
4pol. Kammerblock, Kodierung "D"
3pol. Kammerblock, Kodierung "A"
3pol. Kammerblock, Kodierung "B"
3POS. CAVITY BLOCK, CODE "C"
3pol. Kammerblock, Kodierung "C"
3POS. CAVITY BLOCK, CODE "D"
3pol. Kammerblock, Kodierung "D"
2pol. Kammerblock, Kodierung "A"
4POS. CAVITY BLOCK, CODE "D"
3POS. CAVITY BLOCK, CODE "A"
3POS. CAVITY BLOCK, CODE "B"
2POS. CAVITY BLOCK, CODE "A"
SECONDARY LOCKING DEVICE
zweite Kontaktsicherung
0.3
0.3
Kodierung
CODING
DESCRIPTION
Beschreibung
Verschiebeweg der 2. Kontaktsicherung
8
9
10
Passend zur Ausfuehrungsvorschrift 114-18739-1
RECEPTACLE HOUSING
25.7
25.7
Buchsengehaeuse
passendes Gegenstueck siehe Zeichnung: 1703808, 1703818
SUITABLE COUNTERPART SEE DRAWING: 1703808, 1703818
MALFUNCTION CAUSED BY LACQUER IS NOT
COVERED BY TE WARRANTY.
U-SLIDE
U-Schieber
SEAL
Dichtung
Funktionsbeeintraechtigung durch Lackieren liegt nicht im
Einfluss und Gewaehrleistungsumfang von TE.
Farbe
gruen
BLACK
gelb
( )
43
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PBT-GF30 / V-0
PN 5-1418390-1
CODING
Kodierung
2POS. VERSION
2pol. Version
PN X-1418390-3
(2x)
4-1418390-3
5
4
3-1418390-3
2-1418390-3
1-1418390-3
G
G
G
G
G
G
G
G
J
J
J
J
J
J
2
2
2
2
3
3
3
3
4
4
4
4
4
4
D
C
B
A
D
C
B
A
F
E
D
C
B
A
J3
4-1418390-2
3-1418390-2
2-1418390-2
CODING F
Kodierung
PN 6-1418390-1
A
POLARIZATION
Polarisierungen
1-1418390-2
J3
6-1418390-1
5-1418390-1
4-1418390-1
3-1418390-1
2-1418390-1
CODING
J3
4805 (3/13)
Kodierung
1-1418390-1
COLOR OF
TE ORDER-NO.
NO. OF POS.
CODE
CVITY BLOCK
REV.
TE Bestell-Nr.
Polzahl
Kodierung Farbe des
Kammerblocks
BLUE
blau
GREEN
gruen
GREY
grau
BLACK
schwarz
BLUE
blau
GREEN
gruen
GREY
grau
BLACK
schwarz
RED
rot
VIOLET
violett
BLUE
blau
GREEN
gruen
GREY
grau
BLACK
schwarz
1
1
1
1
1
1
1
1
1
1
1
1
1
1
-
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
- -
- -
- -
- -
- -
- -
- -
- -
-
1
1
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MVQ
Kodierung
Polarisierungen
1
1
1
1
1
1
1
1
1
1
1
1
1
1
MATERIAL
CODING E
POLARIZATION
gelb
WHITE
weiss
B
COLOUR
BLACK
schwarz
VIOLET
violett
schwarz
BLACK
schwarz
BLACK
schwarz
YELLOW
YELLOW
GREEN
GREEN
gruen
GREEN
gruen
B
BLUE
GREY
BLUE
GREY
GREY
blau
blau
grau
grau
grau
blau
BLUE
RED
rot
14
13
12
11
10
9
8
7
6
5
4
3
2
1
ITEM
NO
ASSY
MATERIAL
1-1418390-1 AS SHOWN
1-1418390-1 wie gezeigt
THIS DRAWING IS A CONTROLLED DOCUMENT.
DIESES ZEICHNUNGSDOKUMENT WIRD DURCH AMP INCORPORATED KONTROLLIERT.
AENDERUNGEN, DIE DEM TECHNISCHEN FORTSCHRITT DIENEN, SIND VORBEHALTEN.
DEN JEWEILS LETZTGUELTIGEN AENDERUNGSSTAND ERFAHREN SIE AUF ANFRAGE.
- -
- -
- -
- -
A
12APR2006
25APR2006
NAME
DWN
CHK
D.Bischoff
J. Granzow
TE Connectivity
DIMENSIONS:
MASSEINHEITEN:
mm
QUANTITY
Stueck
0 PLC
-
1 PLC
-
2 PLC
-
3 PLC
-
4 PLC
-
ANGLES /WINKEL
TOLERANCES UNLESS
OTHERWISE SPECIFIED:
ACC. TO ISO 8015
ACC. TO DIN 16901-140
APVD
PRODUCT SPEC
PRODUKTSPEZ.
28AUG2006
Ch. Eberwein
108-94020
114-18756
SEE TABLE
siehe Tabelle
FINISH /OBERFLAECHE/FARBE
2 $
APPLICATION SPEC
VERARBEITUNGSSPEZ.
WEIGHT
GEWICHT
SEE TABLE
siehe Tabelle
16.7 g
CUSTOMER DRAWING
A1
SIZE
4POS. AMP MCP 2.8, REC HSG ASSY
4pos. AMP MCP 2.8, Buchsengehaeuse
HDSCS - GROUP B
CAGE CODE
00779
DRAWING NO
ZEICHNUNGS-NR.
1418390
SCALE
MASSSTAB
RESTRICTED TO
NUR FUER
/KUNDENZEICHNUNG
5:1
SHEET
BLATT
1
OF
VON
1
REV
-
J3
