MGA-231T6-TR1G

Description
Wide Band Low Power Amplifier, 900MHz Min, 3500MHz Max, 1 Func, GAAS, 2 X 1.30 MM, 0.40 MM HEIGHT, UTSLP-6
CategoryWireless rf/communication    Radio frequency and microwave
File Size206KB,15 Pages
ManufacturerBroadcom
Environmental Compliance
Download Datasheet Parametric View All

MGA-231T6-TR1G Online Shopping

Suppliers Part Number Price MOQ In stock
MGA-231T6-TR1G - - View Buy Now

MGA-231T6-TR1G Overview

Wide Band Low Power Amplifier, 900MHz Min, 3500MHz Max, 1 Func, GAAS, 2 X 1.30 MM, 0.40 MM HEIGHT, UTSLP-6

MGA-231T6-TR1G Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
package instructionSOLCC6,.08,20
Reach Compliance Codecompli
ECCN codeEAR99
Other featuresCMOS COMPATIBLE
structureCOMPONENT
Gain15.2 dB
Maximum input power (CW)13 dBm
Installation featuresSURFACE MOUNT
Number of functions1
Number of terminals6
Maximum operating frequency3500 MHz
Minimum operating frequency900 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
Encapsulate equivalent codeSOLCC6,.08,20
power supply1.8/2.85 V
RF/Microwave Device TypesWIDE BAND LOW POWER
Maximum slew rate6.6 mA
surface mountYES
technologyGAAS
Base Number Matches1

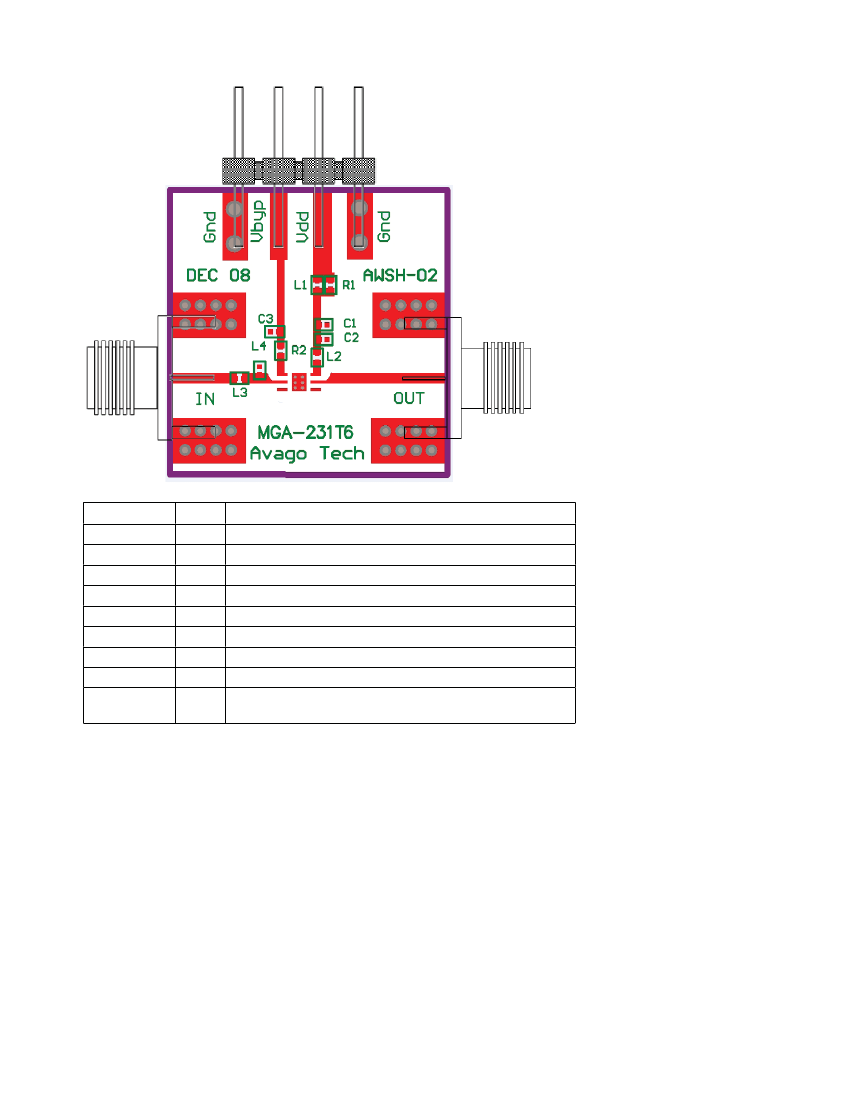

MGA-231T6
High-Gain GPS LNA
with Variable Current and Shutdown Function
Data Sheet
Description
Avago Technologies’ MGA-231T6 is a low-noise amplifier
(LNA) designed for GPS/ISM/Wimax applications in the
(0.9-3.5)GHz frequency range. The LNA uses Avago Tech-
nologies’ proprietary GaAs Enhancement-mode pHEMT
process to achieve high gain with very low noise figure
and high linearity. Noise figure distribution is very tightly
controlled. A CMOS-compatible shutdown pin is included
either for turning the LNA on/off or for current adjust-
ment.
The low noise figure and high gain, coupled with low cur-
rent consumption make it suitable for use in critical low-
power GPS applications or during low-battery situations.
Features
Very Low Noise Figure
High Gain and Linearity
Low External Component Count
Low Shutdown Current
CMOS compatible shutdown pin (SD) current @ Vsd=
1.8V : 0.11mA
Useable down to 1.8V supply
Adjustable current via single external resistor/voltage
Small package dimension: 2.0(L)x1.3(W)x0.4(H) mm
Specifications (Typical performance @ 25°C)
At 1.575GHz
Vdd = 2.85V, Vsd = 1.8V, Idd =4mA
– Gain = 17.1 dB
– NF = 1.06 dB
– Input IP3 = 0.2 dBm
– Input P1dB = -7.7 dBm
Component Image
Surface Mount 2.0x1.3x0.4 mm
3
6-lead UTSLP
PIN 1: Vsd
PIN 2: RFin
PIN 3: NC
Top View
PIN 6: Vdd
31YM
PIN 5: RFout
PIN 4:NC
[1]
Application
LNA for GPS, WLAN and WIMAX
PIN 6: Vdd
PIN 5: RFout
PIN 4:NC
[1]
Bottom View
GND
PIN 1: Vsd
PIN 2: RFin
PIN 3: NC
Note:
1. Pin 4
must
be left unconnected
2. Package
marking
provides orientation and identification
“31” = Product Code
“Y”
= Year of
manufacture
“M” = Month code of
manufacture
