7-146806-2 datasheet, PDF - EEWORLD Datasheet

7-146806-2: Description7/8 MODII HDR DRST SFMT B/A 30 DX L-free; CategoryThe connector; File Size185KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

7-146806-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	7-146806-2	-	-	View	Buy Now

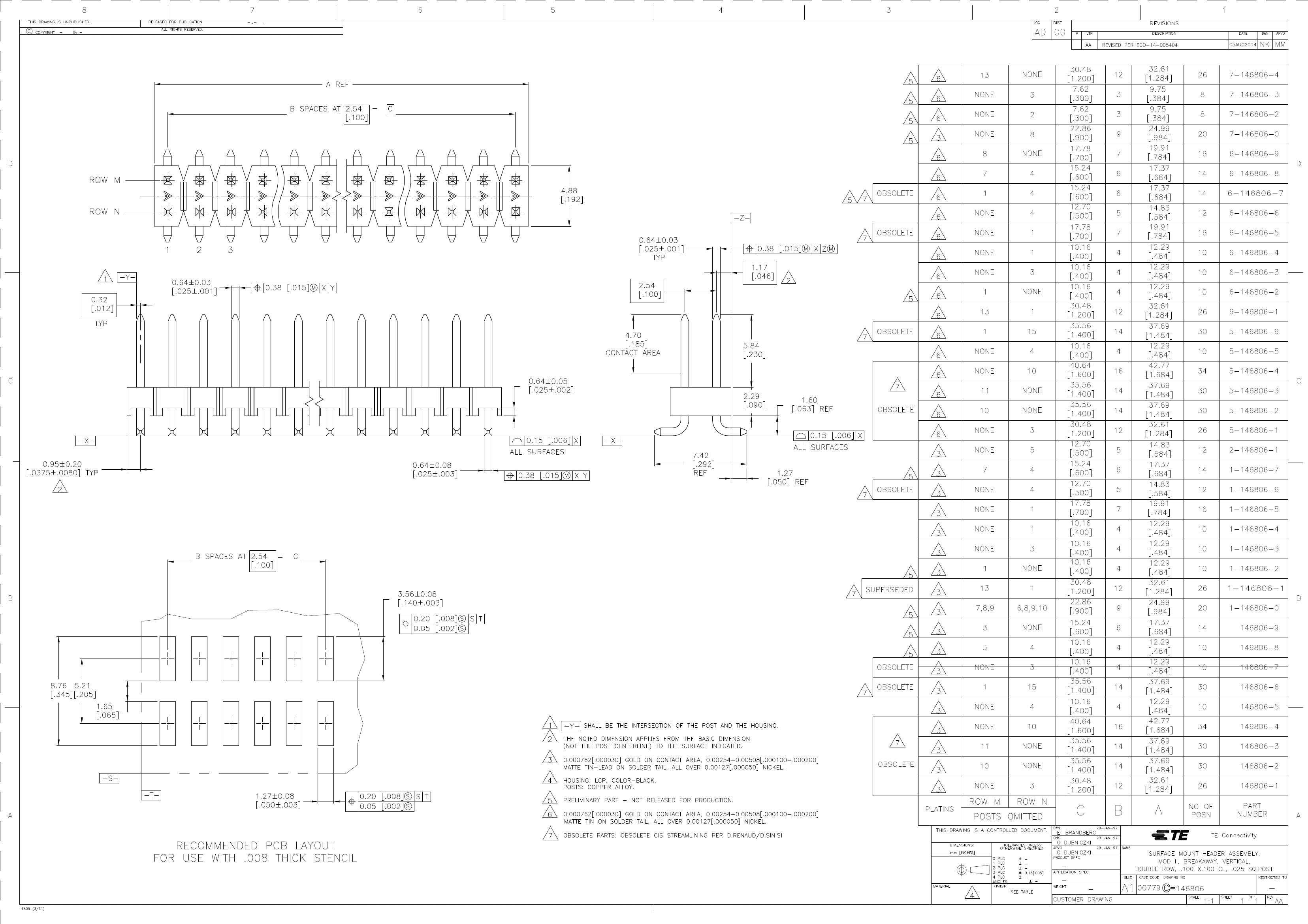

7/8 MODII HDR DRST SFMT B/A 30 DX L-free

Parameter Name	Attribute value
PCB Connector Component Types	PCB mounting header
Sealable	no
Connectors and terminals terminate to	A printed circuit board
Connector type	separation
Line spacing	2.54 mm [ .1 in ]
sealing ring	Without
plate support	with
stress relief	Without
shape	standard
stabilizing device	Without
Connector terminal load status	selective loading
PCB mounting direction	vertical
Rows	2
keying	no
Cylinder size	.63 mm [ .0248 in ]
Terminal base material	copper alloy
PCB terminal termination area plating materials	tin lead
Solder tail terminal plating material surface coating	matte
Terminal base material	nickel
Terminal protection	Without
Terminal shape	square
Terminal type	Pin
Terminal contact plating material	Nickel base gold plating
Terminal Contact Plating Thickness (µin)	30
PCB Termination Methods	surface mount
Terminal plating thickness	2.54 – 5.08 µm [ 100 – 200 µin ]
Terminal plating materials	Nickel base plated with matte tin lead
PCB installation and fixation	Without
Panel mount features	Without
Engage connector latch	Without
PCB installation method	surface mount
joint alignment	Without
Centerline (Pitch)	2.54 mm [ .1 in ]
Shell material	LCP (Liquid Crystal Polymer)
Shell color	black
Joint post length	5.85 mm [ .23 in ]
High speed serial data connector	no
Ignored load location	N rows - 2
