53244-1617 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53244-1617

53244-1617: DescriptionBoard Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size46KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

53244-1617 Overview

Board Connector, 16 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

53244-1617 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	POLARIZED
body width	0.142 inch
subject depth	0.335 inch
body length	1.417 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	40 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000000 Ω
insulator material	NYLON
MIL compliance	NO
Manufacturer's serial number	53244
Plug contact pitch	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
polarization key	ENDS
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	16
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

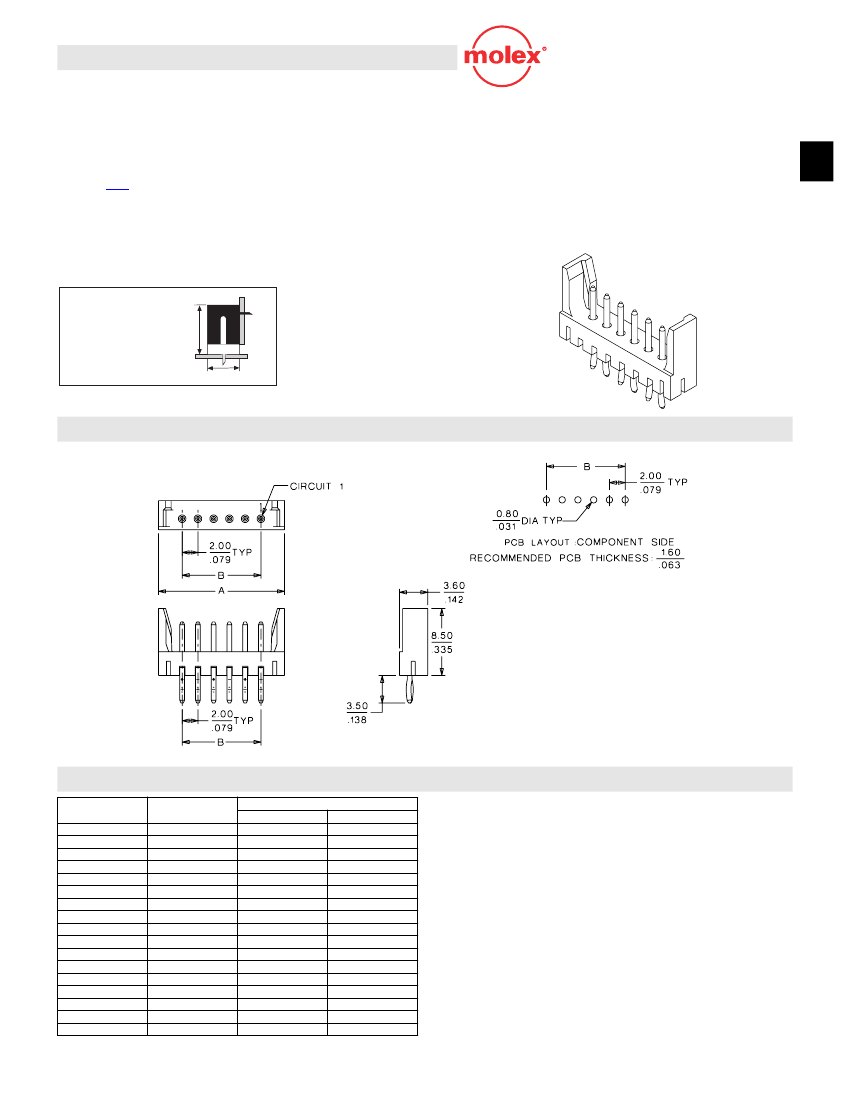

FEATURES AND SPECIFICATIONS

Features and Beneﬁts

Sizes 4 to 20 circuits

Polarized

Chamfered end walls for ease of assembly

Mating Dimensions

53244 • 52330

H=4.55mm W=12.55mm

CATALOG DRAWING (FOR REFERENCE ONLY)

ORDERING INFORMATION AND DIMENSIONS

Circuits

Order No.

53244-0417

53244-0517

53244-0617

53244-0717

53244-0817

53244-0917

53244-1017

53244-1117

53244-1217

53244-1317

53244-1417

53244-1517

53244-1617

53244-1717

53244-1817

53244-1917

53244-2017

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

30.00

32.00

34.00

36.00

38.00

40.00

42.00

44.00

Dimension

(.472)

(.551)

(.630)

(.708)

(.787)

(.866)

(.945)

(1.023)

(1.102)

(1.181)

(1.260)

(1.338)

(1.417)

(1.496)

(1.575)

(1.653)

(1.732)

6.00

8.00

10.00

12.00

14.00

16.00

18.00

20.00

22.00

24.00

26.00

28.00

30.00

32.00

34.00

36.00

38.00

(.236)

(.314)

(.393)

(.472)

(.551)

(.630)

(.708)

(.787)

(.866)

(.945)

(1.023)

(1.102)

(1.181)

(1.260)

(1.338)

(1.417)

(1.496)

MX01

B-81

2.00 to 2.50mm (.079 to .098") Pitch

Reference Information

Packaging: Tray

Mates With:

52330

Designed In: Millimeters

Electrical

Voltage: 125V

Current: 1.0A

Contact Resistance: 40m

Ω

max.

Dielectric Withstanding Voltage: 500V AC/1 min.

Insulation Resistance: 1000 M

Ω

min.

Physical

Housing: 6/6 nylon, UL 94V-0

Contact: Brass

Plating: Tin

Operating Temperature: -40 to +105˚C

2.00mm (.079") Pitch

Board-to-Board

Header

53244

Floating-Type

Vertical
