1376-2-33-1-1-4 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 1376-2-33-1-1-4

1376-2-33-1-1-4: DescriptionBoard Connector, 33 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size135KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1376-2-33-1-1-4 Overview

Board Connector, 33 Contact(s), 1 Row(s), Female, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Receptacle

1376-2-33-1-1-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.071 inch
subject depth	0.181 inch
body length	1.664 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Manufacturer's serial number	1376
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	STAGGERED
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	33
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

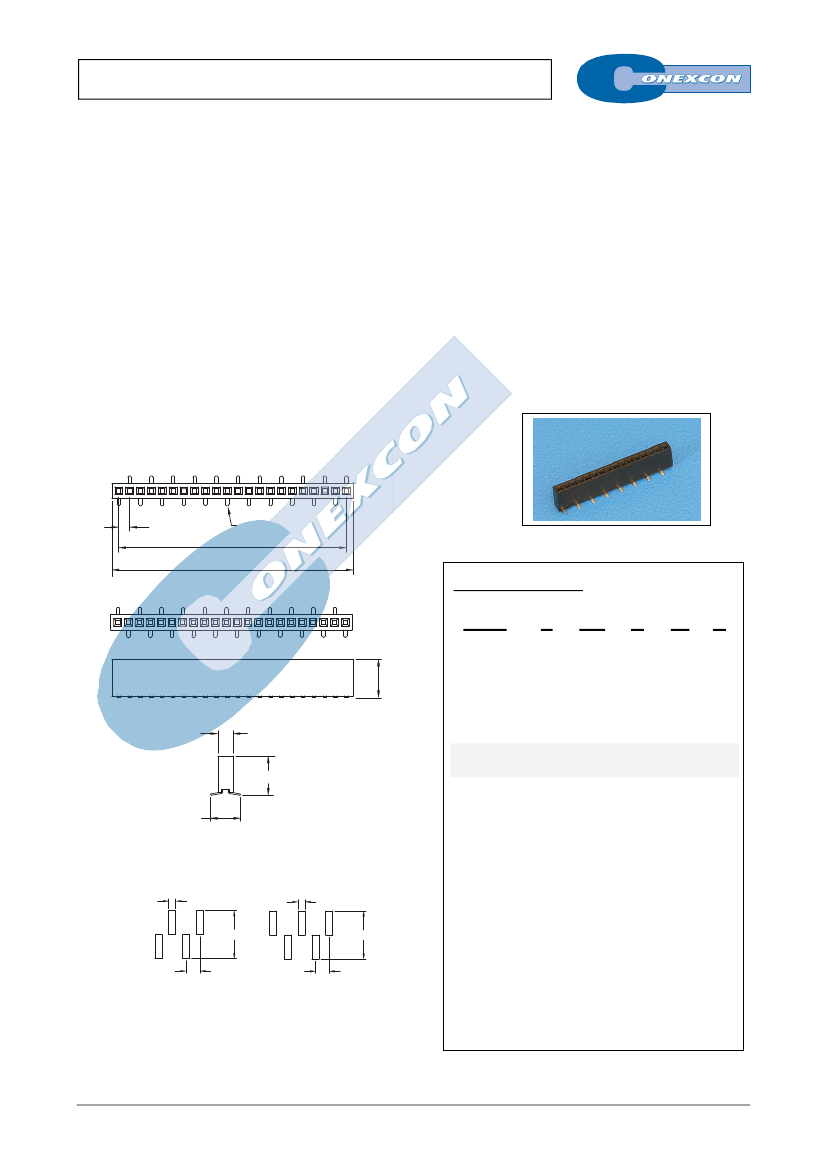

S/ ROW VERTICAL SMT SOCKET HEADER

1376 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features







Available in 2 through 40 circuits

Mates with pin headers 1.27 mm pitch, 1350, 1351,

1352, 1353 and 1374 series

Accept 0.40 square pin

Low profile 4,60 mm hight

Dual beam contact with different plating



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation Resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Insulator: Polyester LCP UL 94 V-0

Contact: Phosphor bronze

Operating temperature: -40ºC to +105ºC

RoHS Compliant

Mechanical Features

Insertion force receptacle/plug: < 0,20 Kgf/pin

Unmating force receptacle/plug: > 0,015 Kgf/pin

Contact retention force to housing: > 0,15 Kgf/pin

Durability: 50 cycles

Dimension Information

Type 1

1.27±0.10

Pin 0.42x0.15

Type 2

Ordering Information:

1376 -

T-

XX-

P-

L-

1. Connector Series

2. (T) Contact Plating

1.80



T =

Tin plated

T =

Gold flash over nickel

Recommended Finish

T =

15µ” gold over nickel

T =

30µ” gold over nickel

±0.20

3.50±0.25



4.40

3. (XX) Circuit Size

Available in 2 through 40 circuits

RECOMMENDED PCB LAYOUT

Type 1

0.65

Type 2

0.65

4. Connector Type

P =

Type 1

P =

Type 2

4.40

5. Connector Height Over PCB

1.27



L =

H = 4.60 mm.

6. Connector Packaging

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX)+0.35

* XX

(Number of circuits)

E =

Film + tube

E =

Film + reel

A-XX
