DR331-1-474 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DR331-1-474

DR331-1-474: DescriptionGeneral Purpose Inductor, 470uH, 20%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size65KB，1 Pages; ManufacturerDatatronic; Environmental Compliance

Download Datasheet Parametric View All

DR331-1-474 Overview

General Purpose Inductor, 470uH, 20%, 1 Element, SMD, ROHS COMPLIANT

DR331-1-474 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Datatronic
Reach Compliance Code	compliant
DC Resistance	1.27 Ω
Nominal inductance(L)	470 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	DR331-1
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
self resonant frequency	3.5 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin (Sn)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

August 17, 2009

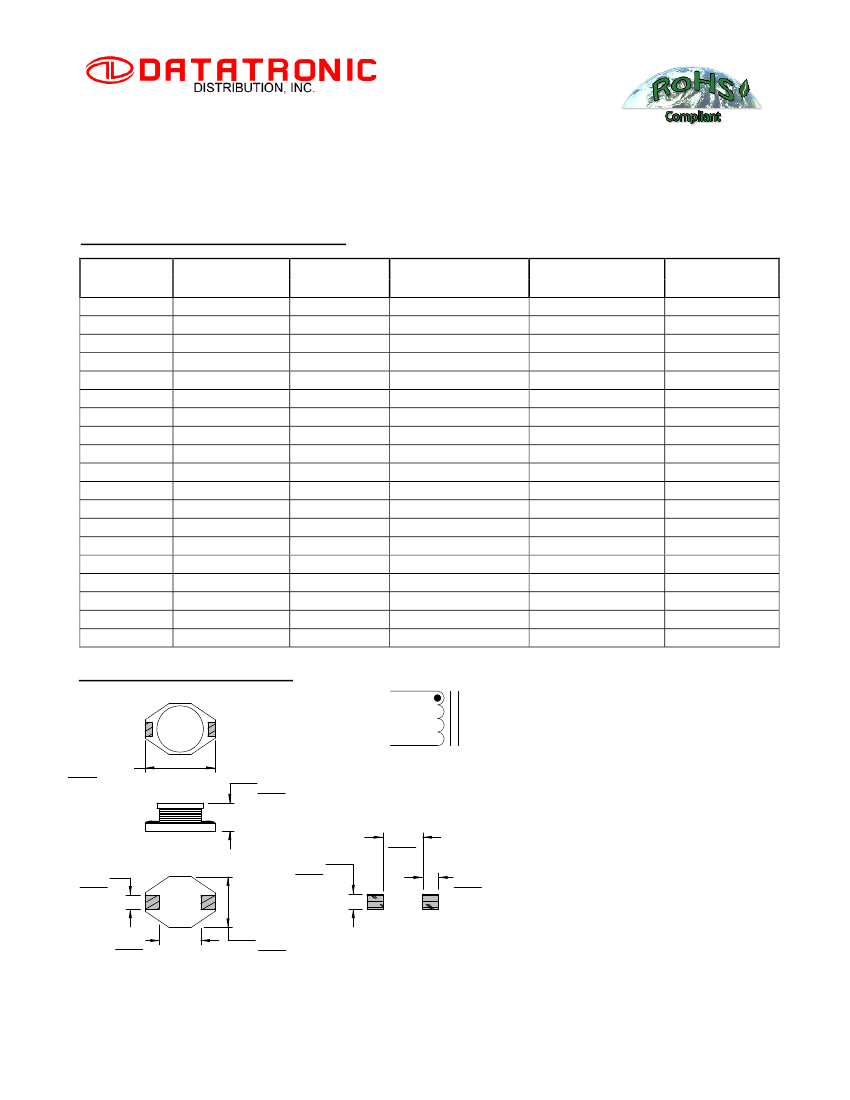

SMD INDUCTOR DR331-1 SERIES

Features



Low Profile Surface Mount Design

Inductance Range from 1.0µH to 1000µH

Operating Temp. -40°C to +85°C

Tinned Leads with Leaded Solder is Available

(note 6)

ELECTRICAL SPECIFICATIONS AT 25ºC

Inductance

Part No.

DR331-1-102

DR331-1-152

DR331-1-222

DR331-1-332

DR331-1-472

DR331-1-682

DR331-1-103

DR331-1-153

DR331-1-223

DR331-1-333

DR331-1-473

DR331-1-683

DR331-1-104

DR331-1-154

DR331-1-224

DR331-1-334

DR331-1-474

DR331-1-684

DR331-1-105

DCR

() Max.

0.009

0.010

0.012

0.015

0.018

0.027

0.038

0.046

0.085

0.10

0.14

0.20

0.28

0.40

0.61

1.02

1.27

2.02

3.00

I rms (A)

Max. (Note 3)

6.80

6.40

6.10

5.40

4.80

4.40

3.90

3.10

2.70

2.10

1.80

1.50

1.30

1.00

0.80

0.60

0.50

0.40

0.30

I sat (A)

Max. (Note 2)

9.0

8.0

7.0

6.4

5.4

4.6

3.8

3.0

2.6

2.0

1.6

1.4

1.2

1.0

0.8

0.6

0.5

0.4

0.3

SRF

(MHz) REF.

100.0

90.0

80.0

65.0

45.0

38.0

30.0

27.0

19.0

15.0

12.0

10.0

9.0

6.0

5.0

4.5

3.5

2.5

2.0

(H)



20%

1.0

1.5

2.2

3.3

4.7

6.8

100

150

220

330

470

680

1000

MECHANICAL SPECIFICATIONS

.510 MAX.

12,95

XXX

.205 MAX.

5,21

SCHEMATIC

.100

2,54

.370

9,40

.109

2,79

.290

7,37

.115

2,92

SUGGESTED PAD LAYOUT

NOTES:

1. Dimensions are shown in inches/millimeters

Unless otherwise specified, tolerance

= Inches: ±0.010

= Millimeters: ±0,30

2. Isat based on the inductance being 90% of its

initial value

3. Irms based on temperature rise of 40°C

4. Tape & Reel Packaging, 500 pcs / reel.

5. Inductance tested at 0.1 Vrms @ 100 kHz

6. For non-RoHS parts replace DR prefix with

42- (e.g. DR331-1 becomes 42-331-1)

7. Terminal finish is compliant to RoHS

requirements. Solder in accordance with J-

STD-020D.

.300

7,62

DATATRONIC:

28151 Highway 74, Romoland, CA 92585 Tel: 951-928-7700 Fax: 951-928-7701 Email: ddisales@datatronics.com

499 King’s Road, Hong KongTel: (852) 2562 3858, (852) 2564 8477 Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
