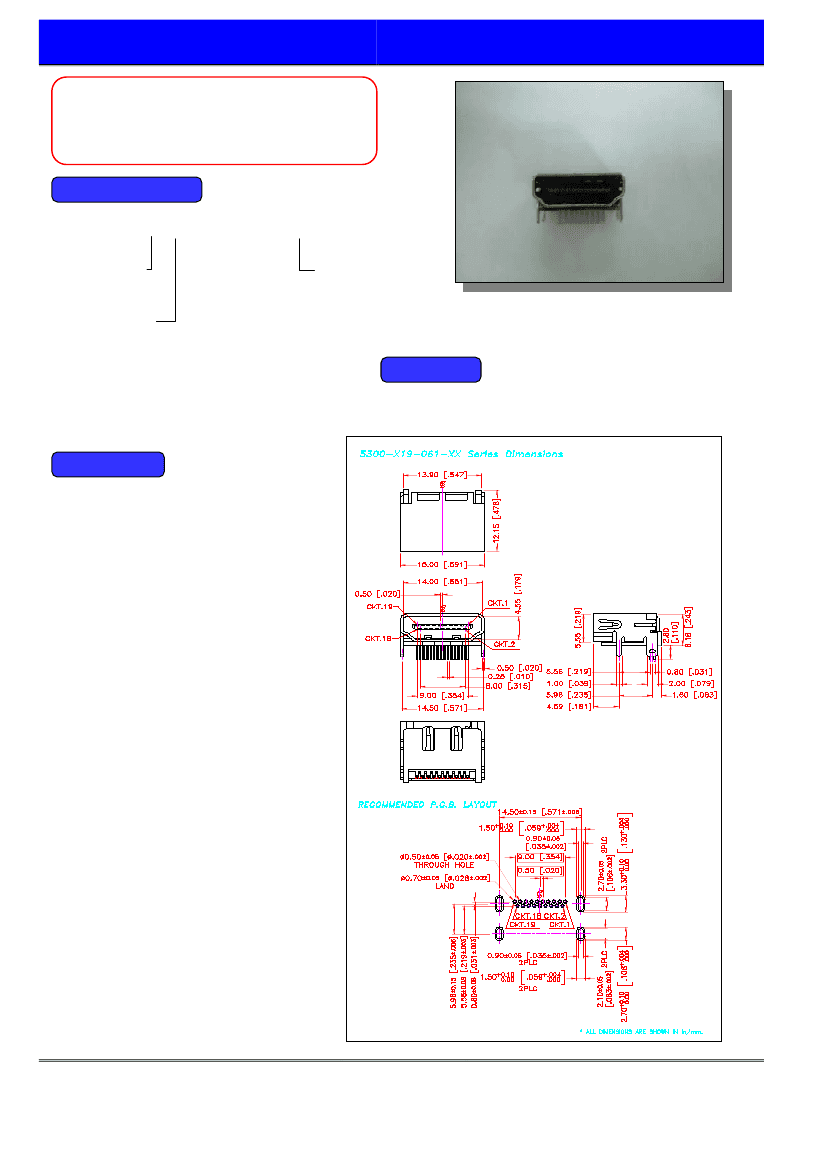

USB Connector, 19 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle
| Parameter Name | Attribute value |
| Maker | Tekcon Electronics Corp |
| Reach Compliance Code | unknown |
| Board mount options | LOCATING POSTS |
| body width | 0.243 inch |
| subject depth | 0.478 inch |
| body length | 0.591 inch |
| Body/casing type | RECEPTACLE |
| Connector type | USB CONNECTOR |
| Contact to complete cooperation | AU |
| Contact point gender | MALE |
| Contact material | COPPER ALLOY |
| Contact resistance | 30 mΩ |
| Contact style | USB, SER A FLAT |
| Dielectric withstand voltage | 500VAC V |
| Durability | 10000 Cycles |
| Insulation resistance | 100000000 Ω |
| insulator material | THERMOPLASTIC |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of ports | 1 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -20 °C |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | .7874 mm |
| Plating thickness | 30u inch |
| polarization key | POLAR PIN POSITION |
| Rated current (signal) | 0.5 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Shell material | COPPER ALLOY |
| Terminal length | 0.11 inch |
| Terminal pitch | 1.016 mm |
| Termination type | SOLDER |
| Total number of contacts | 19 |
| Base Number Matches | 1 |
| 5300-319-061-51 | 5300-319-061-E1 | 5300-519-061-E1 | |
|---|---|---|---|
| Description | USB Connector, 19 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle | USB Connector, 19 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle | USB Connector, 19 Contact(s), Male, Right Angle, Solder Terminal, Locking, Receptacle |
| Maker | Tekcon Electronics Corp | Tekcon Electronics Corp | Tekcon Electronics Corp |
| Reach Compliance Code | unknown | unknown | unknow |
| Board mount options | LOCATING POSTS | LOCATING POSTS | LOCATING POSTS |
| body width | 0.243 inch | 0.243 inch | 0.243 inch |
| subject depth | 0.478 inch | 0.478 inch | 0.478 inch |
| body length | 0.591 inch | 0.591 inch | 0.591 inch |
| Body/casing type | RECEPTACLE | RECEPTACLE | RECEPTACLE |
| Connector type | USB CONNECTOR | USB CONNECTOR | USB CONNECTOR |
| Contact to complete cooperation | AU | AU | AU |
| Contact point gender | MALE | MALE | MALE |
| Contact material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| Contact resistance | 30 mΩ | 30 mΩ | 30 mΩ |
| Contact style | USB, SER A FLAT | USB, SER A FLAT | USB, SER A FLAT |
| Dielectric withstand voltage | 500VAC V | 500VAC V | 500VAC V |
| Durability | 10000 Cycles | 10000 Cycles | 10000 Cycles |
| Insulation resistance | 100000000 Ω | 100000000 Ω | 100000000 Ω |
| insulator material | THERMOPLASTIC | THERMOPLASTIC | THERMOPLASTIC |
| Installation option 1 | LOCKING | LOCKING | LOCKING |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | RIGHT ANGLE |
| Installation type | BOARD | BOARD | BOARD |
| Number of connectors | ONE | ONE | ONE |
| PCB row number | 2 | 2 | 2 |
| Number of ports | 1 | 1 | 1 |
| Maximum operating temperature | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | -20 °C | -20 °C | -20 °C |
| PCB contact pattern | STAGGERED | STAGGERED | STAGGERED |
| PCB contact row spacing | .7874 mm | .7874 mm | .7874 mm |
| Plating thickness | 30u inch | 30u inch | 15u inch |
| polarization key | POLAR PIN POSITION | POLAR PIN POSITION | POLAR PIN POSITION |
| Rated current (signal) | 0.5 A | 0.5 A | 0.5 A |
| Guideline | UL | UL | UL |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Shell material | COPPER ALLOY | COPPER ALLOY | COPPER ALLOY |
| Terminal length | 0.11 inch | 0.11 inch | 0.11 inch |
| Terminal pitch | 1.016 mm | 1.016 mm | 1.016 mm |
| Termination type | SOLDER | SOLDER | SOLDER |
| Total number of contacts | 19 | 19 | 19 |
| Base Number Matches | 1 | 1 | - |
