VeraPhase
®
6100Antenna
High Precision Full GNSS Spectrum Antenna
The patented
VeraPhase
®
6100 antenna is a full GNSSspectrum
antenna. It has consistent performance (gain, axial ratio, PCV,
and PCO) across the full bandwidth of the antenna. It provides
the lowest axial ratios (horizon to horizon, over all azimuths)
across all GNSS frequencies (<0.5dB at zenith, <2 dB typ. at
horizon). It has an exceptional front to back ratios, high
efficiency (>70%), a tight PCV, and near constant PCO for all
azimuth and elevation angles, over all in-band frequencies. The
performance of the VeraPhase
®
rivals any geodetic / reference
antennas including choke ring antennas but is lighter, smaller,
more economical, and requires less power.
The VP6100 provides high receive gain over the full GNSS
spectrum: Low GNSS band (1164MHz to 1300MHz) and High
GNSS band (1559MHz to 1610 MHz). It has a robust pre-
filtered LNA, with high IP3 to minimize de-sensing from high-
level out-of-band signals, including 700MHz LTE, Ligado
®
while still providing a noise figure of less than 3.0dB.
An uncommitted PCB is available within the base of the antenna
for integration of a custom system board such as a PPP or RTK
GNSS receiver or other applications.
VeraPhase

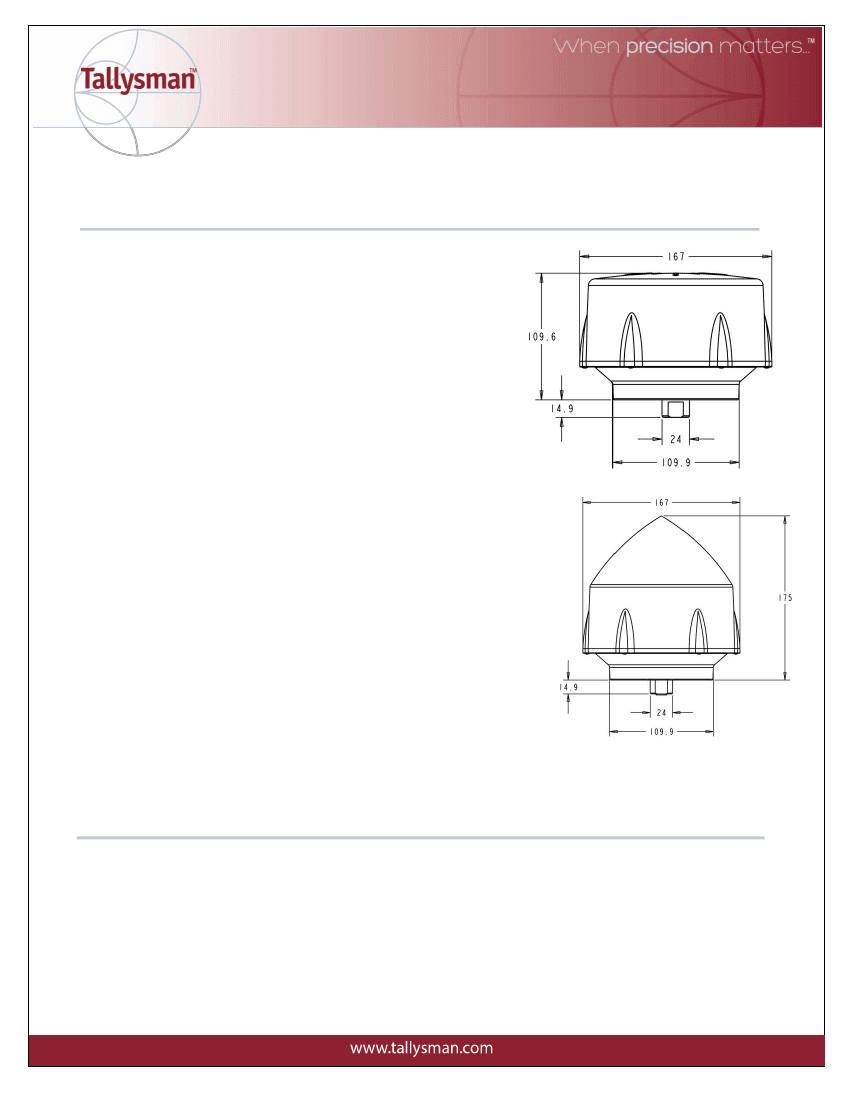

6100 Dimensions (mm)
Applications
•
•
•
Survey
High Precision GNSS systems
Custom OEM Products
•
•
•
RTK / PPP systems
Reference Networks
Monitoring Stations
Features
•
•
•
•
•
Low axial ratios from horizon to horizon
Very Tight Phase Center Variation (<1mm)
Low current (35mA)
Invariant performance from: +2.7 to 24 VDC
Space in housing for integrated PPP, RTK
receiver or other OEM system.
Benefits
•
•
•
•
•
•
Consistent performance across all
frequencies
Broadest tracking elevation (0° - 180°)
Extreme precision
Excellent multipath rejection
IP67, REACH, and RoHS compliant
Reduced time to market
VeraPhase
®
6100 – High Precision Full GNSS Constellation Antenna
Specifications
Antenna
Antenna Gain
Efficiency
Axial Ratio, over full bandwidth
Phase Centre Variation
Phase Centre Offset (RMS)
IGS model available
NGS model available
5 dBic to 7 dBic (all Frequency Bands)
>70%
< 0.5 dB at zenith, (refer to table below for other elevations)
± 1 mm across all frequencies (see graphs on following pages)
± 0.2 mm across all frequencies
Yes
Yes
35 dB, 50 dB or 15dB OEM
3dB max over operational temperature range
1.5 dB over frequency range
+12 dBm
1164
–
1300 MHz plus 1559
–
1610 MHz
2.5dB @L2 and 3dB @L1 typ. at 25°C
<1.5:1 max.
+2.7 to 24VDC nominal
<35mA (35dB gain) <45 mA (50dB gain)
<800MHz
>55dB
<900MHz
40dB
<1090MHz
30dB
<1536MHz
50dB
>1640MHz
40dB
>1690MHz
60dB
>1710MHz
>60dB
1164MHz
–
1300MHz 7 ns (max)
1559MHz
–
1610MHz 15 ns (max)
See drawing on page 1
Bottom of 5/8” thread
Mark on radome above connector
-40°C to +85°C
<800g (flat radome), 820g (conical radome)
5/8”x
11 TPI female
IP67, RoHS and REACH compliant
Vertical axis: 50 G, other axes: 30 G
MIL STD 810D,
(Measured @ Vcc = 3V, and Temperature=25°C)
Electrical
Available LNA Configurations
Gain Variation with Temperature.
LNA Gain Flatness
P1dB Output
Bandwidth
LNA Noise Figure
VSWR (at LNA output)
Supply Voltage Range
Supply Current
Out of Band Rejection
Group Delay variation
Mechanicals & Environmental
Mechanical Size
Antenna Reference Plane (ARP)
North Orientation Indicator
Operating Temperature Range
Weight
Mounting Thread
Environmental
Shock
Vibration
Ordering Information:
VeraPhase 6100 with 35 dB LNA, flat white radome
VeraPhase 6100 with 50 dB LNA, flat white radome
VeraPhase 6100 with 35dB LNA, conical white radome
VeraPhase 6100 with 50dB LNA, conical white radome
Where xx = 01 for TNC or 14 for N-Type
33-613500-xx-00-11
33-615000-xx-00-11
33-613500-xx-00-01
33-615000-xx-00-01
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be
regarded as a guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. ©
2015 Tallysman Wireless Inc. All rights reserved
Rev 1
VeraPhase
®
6100 – High Precision Full GNSS Spectrum Antenna
Antenna radiating performances

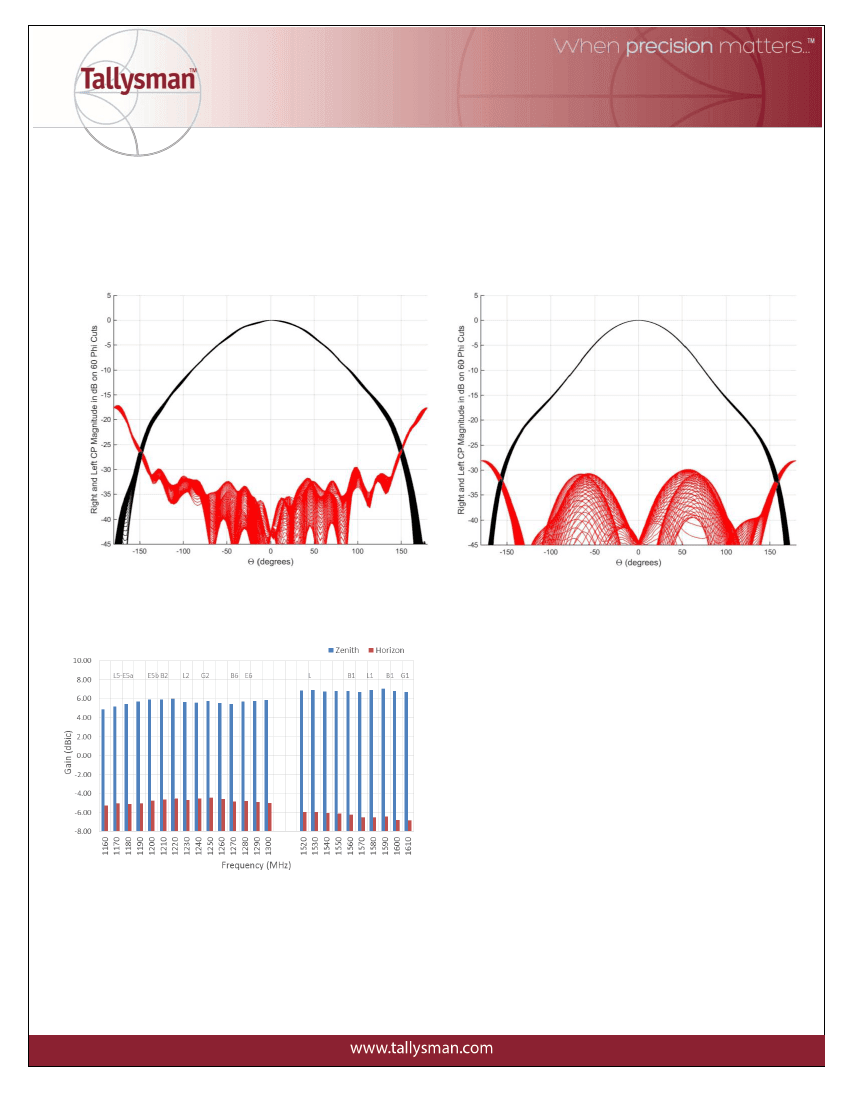

Normalized radiation patterns
RH Polarization
RH Polarization
G2
L1
LH Polarization
LH Polarization
Gain
VeraPhase
®
6100 – High Precision Full GNSS Spectrum Antenna

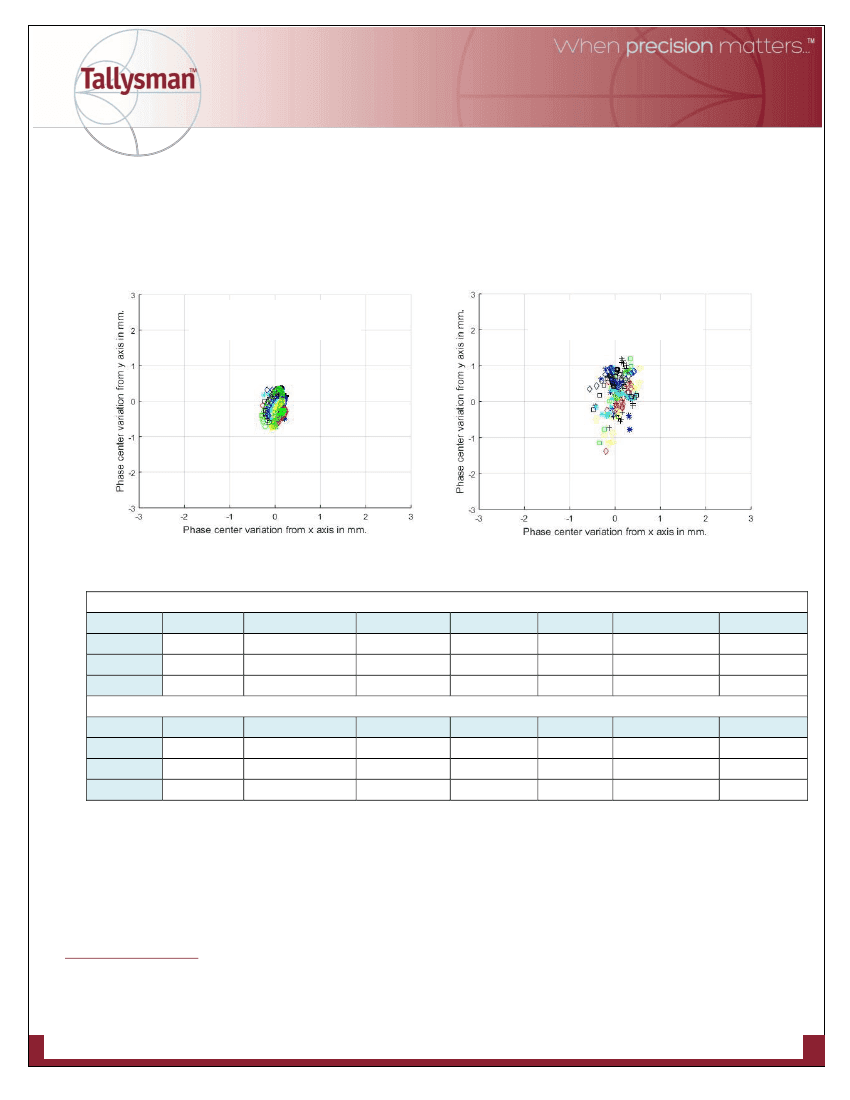

Phase center variation
From 1520 MHz to 1610 MHz
in 10 MHz increments.
From 1160 MHz to 1300 MHz
in 20 MHz increments
Elevation
90°
30°
10°
Elevation
90°
30°
10°
L5 - E5a
0.5
1.5
2
L5 - E5a
0.5
1.8
2.2
Axial ratio (dB) (typical) - Flat Radome
E5b - B2 - G3
L2 - G2
B3
E6
0.3
0.2
0.3
0.3
1.5
1.3
1
1.5
1.8
1.4
1.8
2.2
Axial ratio (dB) (typical) - Conical Radome
E5b - B2 - G3
L2 - G2
B3
E6
0.4
0.2
0.3
0.3
1.7
1.3
1.2
1.5
1.8
1.5
2
2.5
L1 - E1 - B1
0.3
1.2
2
L1 - E1 - B1
0.3
1.5
2.5
G1
0.4
1.2
2.2
G1
0.4
1.5
2.8
Tallysman Wireless Inc
36 Steacie Drive
Ottawa ON K2K 2A9 Canada
Tel +1 613 591 3131
Fax 613 591 3121
sales@tallysman.com
The information provided herein is intended as a guide only and is subject to change without notice. This document is not to be regarded
as a guarantee of performance. Tallysman Wireless Inc. hereby disclaims any or all warranties and liabilities of any kind. © 2015
Tallysman Wireless Inc. All rights reserved.
Rev 1
