59232-0135 datasheet, PDF - EEWORLD Datasheet

59232-0135: DescriptionBoard Connector, 24 Contact(s), 4 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Latch, White Insulator, Receptacle; CategoryThe connector The connector; File Size108KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

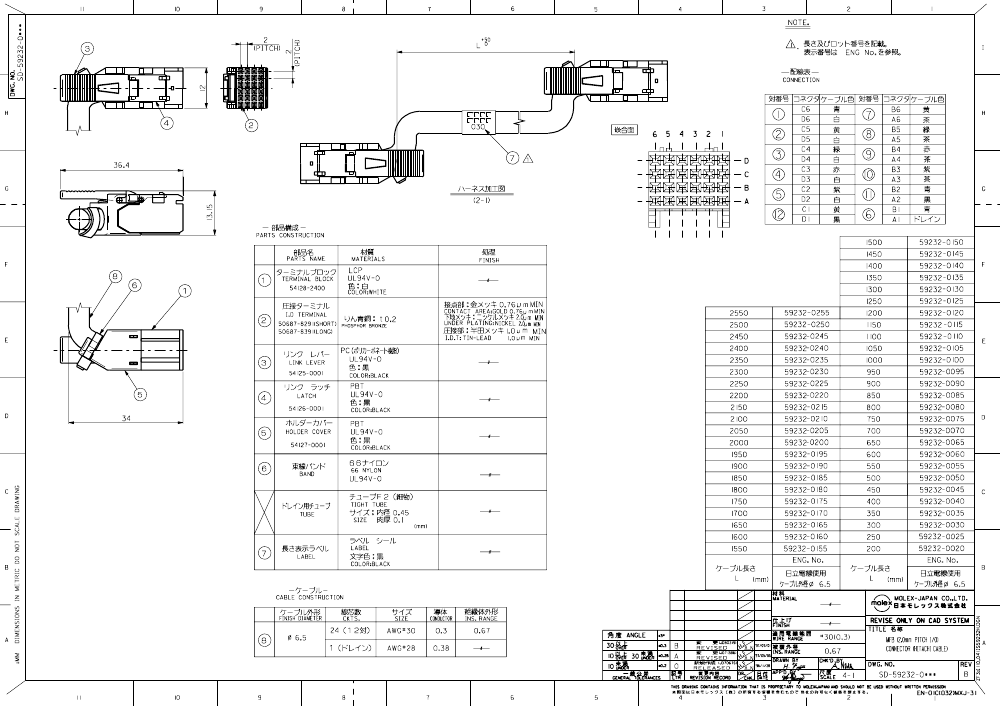

59232-0135 Overview

Board Connector, 24 Contact(s), 4 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Latch, White Insulator, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Other features	MFB
body width	0.518 inch
subject depth	1.433 inch
body length	0.472 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD OVER NICKEL
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	250 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.834 N
Minimum insulation diameter	0.026 inch
Insulation resistance	100000000 Ω
Insulator color	WHITE
insulator material	LIQUID CRYSTAL POLYMER (LCP)
MIL compliance	NO
Manufacturer's serial number	59232
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LATCH
Installation option 2	LOCKING
Installation type	CABLE
Number of rows loaded	4
Maximum operating temperature	60 °C
Minimum operating temperature
Options	GENERAL PURPOSE
Plating thickness	12u inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	24
UL Flammability Code	94V-0
Maximum wire diameter	28 AWG
Minimum wire diameter	30 AWG
Evacuation force-minimum value	.139 N
Base Number Matches	1
