REVISION J
DO NOT
SCALE FROM
THIS PRINT
DESIGNED & DIMENSIONED
IN MILLIMETERS[INCHES]
PESS-XX-XX-X-XX.XX-XX-XXX
No OF POSITIONS
-02: 2 POSITIONS
-04: 4 POSITIONS
-06: 6 POSITIONS
-08: 8 POSITIONS
LEAD STYLE
-10: 10 AWG 600 V (C-310-1012-X)
-12: 12 AWG 600 V (C-310-1012-X)
SECOND END OPTION
C
XX.XX [X.XXX] 2%
(SEE NOTE 6)

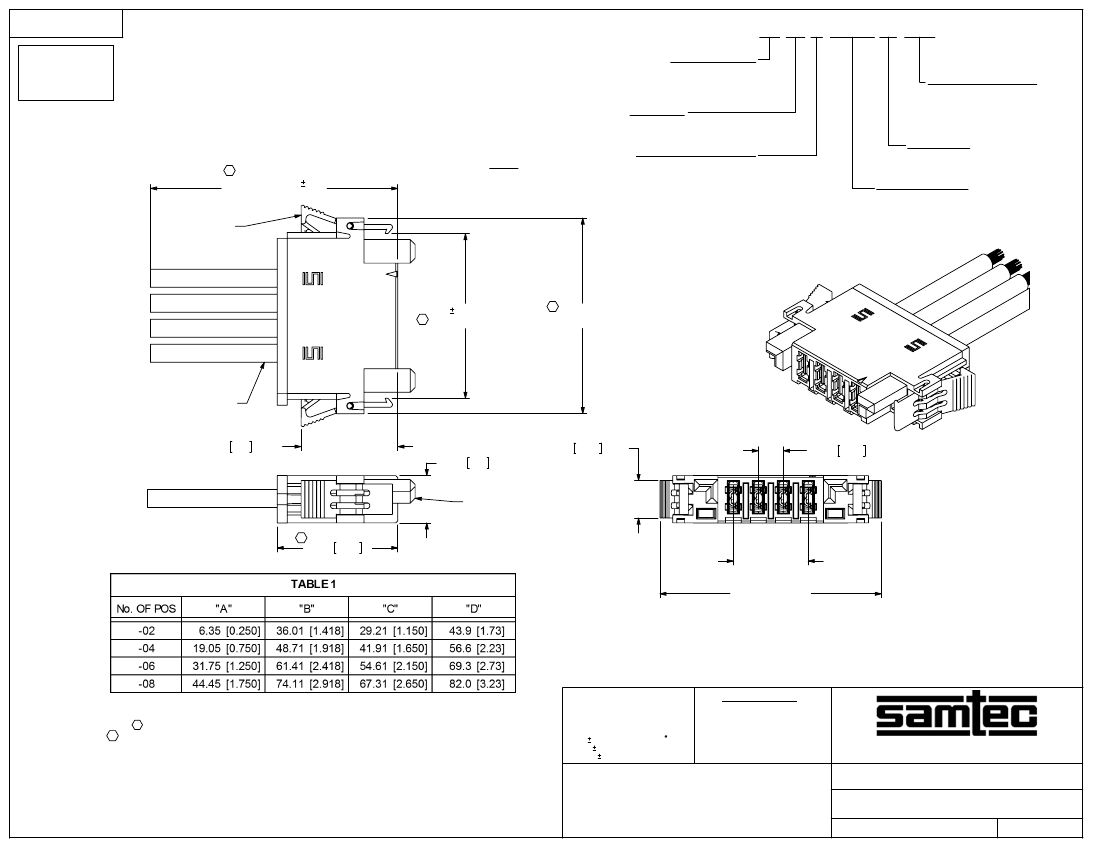

(PESS-04-XX-X-XX.XX-SR SHOWN)
FIG 1
LTC-28
PLATING SPECIFICATION
-L: LIGHT SELECTIVE, 10Au / 50 Ni MIN
ON CONTACT, MATTE TIN CRIMP
-S: SELECTIVE, 30Au / 50 Ni MIN
ON CONTACT, MATTE TIN CRIMP
-T: MATTE TIN, 200 TIN / 50 Ni MIN
ON CONTACT, MATTE TIN CRIMP
-NUS: NOTCH UP STRAIGHT
(SEE FIG 2, SHEET 2)
-NDS: NOTCH DOWN STRAIGHT
(SEE FIG 3, SHEET 2)
END OPTION
-SR: SINGLE ENDED
-DR: DOUBLE ENDED
ASSEMBLY LENGTH
06.00[152.4] MINIMUM LENGTH
(SEE NOTE 6)
(ONLY AVAILABLE WITH -DR OPTION)
C
"C" 0.25[.010]
(SEE TABLE 1)
C
"B" REF
(SEE TABLE 1
DWC-XX-10-600
24.6 .97 REF
12.0 .47 REF
PESS-XX-XX
C
9.50 .374 REF
6.35 .250 (TYP)
02 01
30.6 1.21
"A" REF
(SEE TABLE 1)
"D" REF
(SEE TABLE 1)
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
C 2. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 1000V
AND ELECTRICALLY TESTED FOR SHORTS AND OPENS.
AFTER FINAL ELECTRICAL TEST, LABEL EACH ASSEMBLY WITH (1) ET STAMP ON THE BODY.
3. MINIMUM LATCH RETENTION: 4.4 N [1 LB].
4. MINIMUM PULL OUT FORCE 22.2N [5 LB].
5. PARTS TO BE LAYER PACKAGED; EACH END TO BE SEALED IN A BUBBLE BAG ASBBLT4X5.5.
6. ALL DIMS SHOWN IN METRIC EXCEPT FOR ASSEMBLY LENGTH ON PART CALL OUT.
7. NOTE DELETED.
8. CAP RETENTION: 4.4 N [1LB].
9. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN MILLIMETERS.
TOLERANCES ARE:
DECIMALS
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
X.X: 0.3 [.01]
2
X.XX: 0.13 [.005]
X.XXX: 0.051 [.0020]
ANGLES
MATERIAL:
INSULATOR: NYLON, BLACK
CONTACT: COPPER ALLOY
LATCH: NYLON, BLACK
WIRE: PVC COATED TINNED COPPER
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
PESS CABLE ASSEMBLY
F:\DWG\MISC\MKTG\PESS-XX-XX-X-XX.XX-XX-XXX-MKT.SLDDRW
BY:
E WRIGHT
PESS-XX-XX-X-XX.XX-XX-XXX
02/16/2010
SHEET
1
OF
2
REVISION J
XX.XX[XXX.X] 2%
NOTCH-UP
C
IN PROCESS 1
(ADD LTC-28)
LTC-28
N
01
C
3.20 .126
C
"C" 0.25[.010]
(SEE TABLE 1)
01
N
(FILL DWC-XX-10-600)
IN PROCESS 2
NOTCH-UP

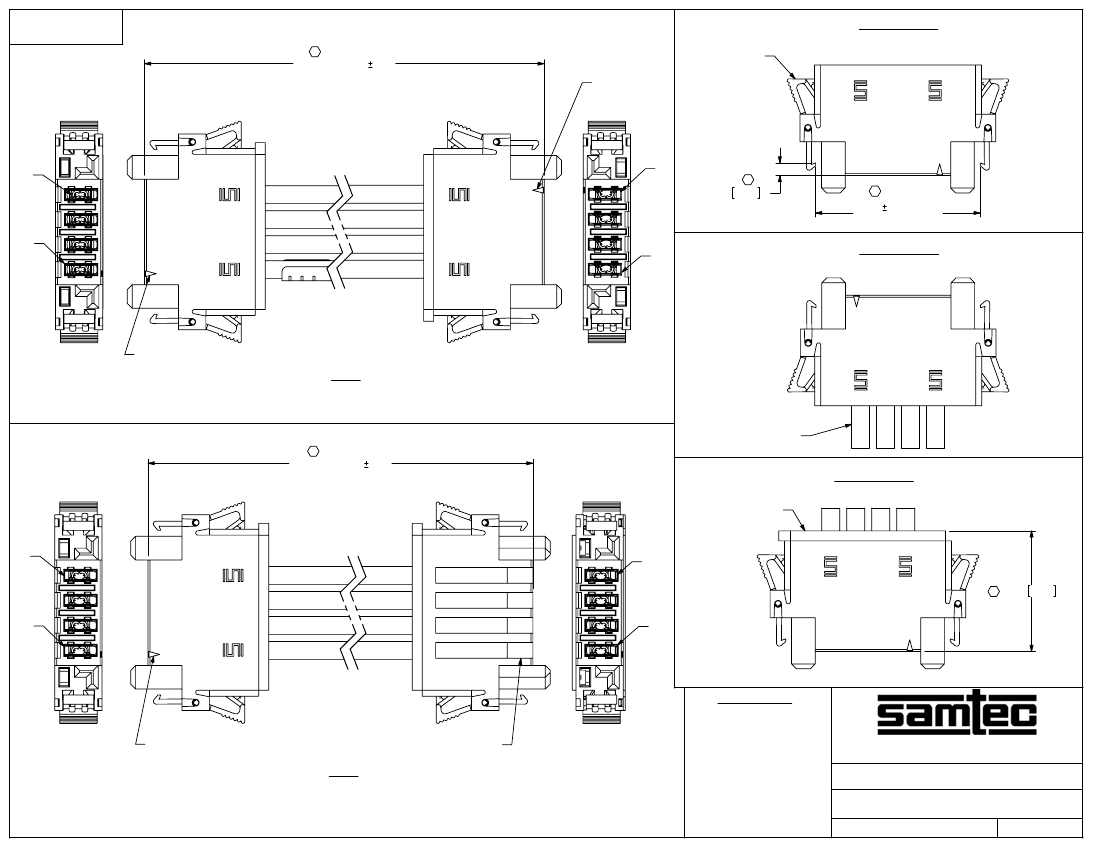

(PESS-04-XX-X-XX.XX-DR-NUS)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
DWC-XX-10-600
XX.XX[XXX.X] 2%
C
FIG 2
(ADD IPS6C-XX-X)
IPS6C-XX-X
IN PROCESS 3
N
N
C
30.6 1.21
01
01
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
NOTCH-UP
NOTCH-DOWN
(PESS-04-XX-X-XX.XX-DR-NDS)
(SAME AS FIG 1, DIFFERENT AS SHOWN)
F:\DWG\MISC\MKTG\PESS-XX-XX-X-XX.XX-XX-XXX-MKT.SLDDRW
FIG 3
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
PESS CABLE ASSEMBLY
PESS-XX-XX-X-XX.XX-XX-XXX
BY:
E WRIGHT
02/16/2010
SHEET
2
OF
2
