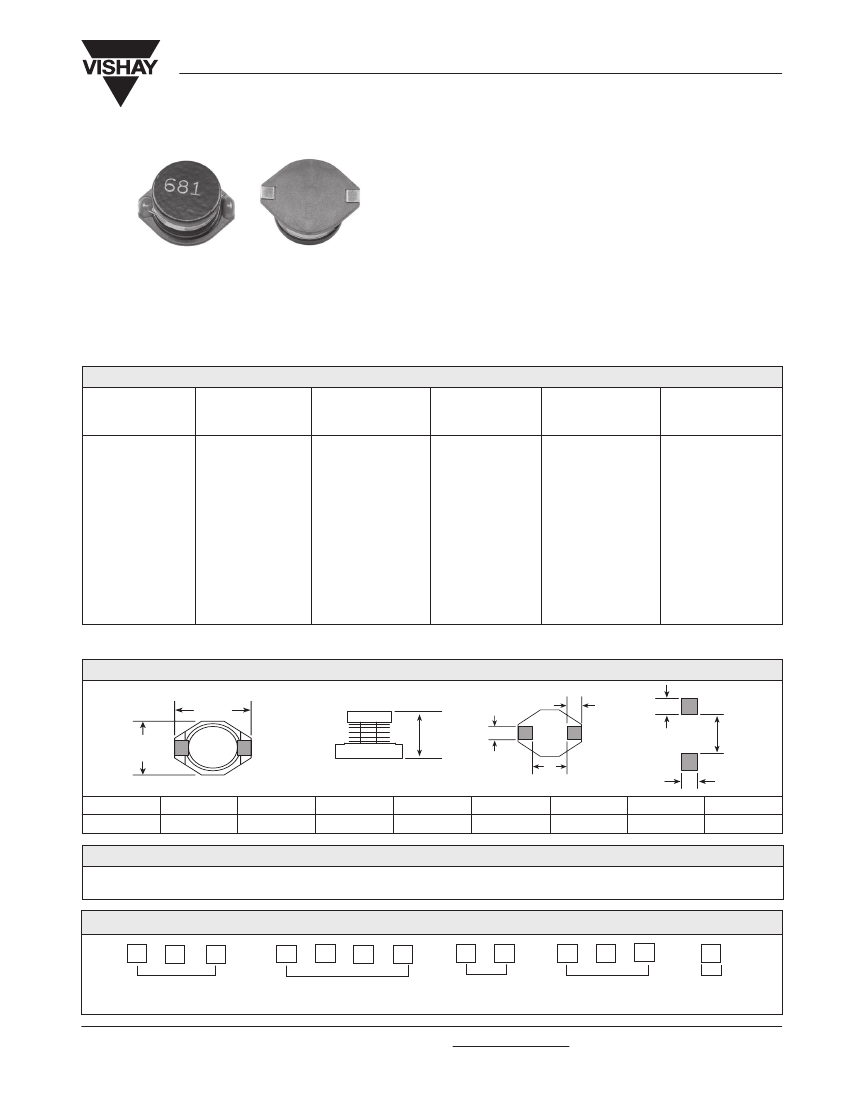

IDC-7328
Vishay Dale
High Current, Surface Mount Inductor
FEATURES
•
High energy storage.
•
Low resistance.
•
Tape and reel packaging for automatic handling.
ELECTRICAL SPECIFICATIONS
Inductance Range:
1.0µH to 1000µH, tested at 1.0Vrms.
Inductance Tolerance:
20%, tighter tolerances available
upon request.
Operating Temperature:
- 40°C to + 125°C.
Resistance to Solder Heat:
260°C for 10 seconds.
MATERIALS
Core:
Ferrite.
Wire:
Enamelled copper wire.
Base:
LCP.
Terminal:
Nickel bronze.
Adhesive:
Epoxy resin.
STANDARD ELECTRICAL SPECIFICATIONS
INDUCTANCE
(
µ
H)
TOLERANCE
1.0
±
20%
2.2
±
20%
3.3
±
20%
5.6
±
20%
10
±
20%
15
±
20%
22
±
20%
33
±
20%
47
±
20%
68
±
20%
100
±
20%
150
±
20%
220
±
20%
330
±
20%
470
±
20%
680
±
20%
1000
±
20%
Inductance drop = 10% typ. at Isat
∆T
= 40°C typ. at Irms
TEST
FREQUENCY
L
(KHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
DCR
MAXIMUM
(Ohms)
0.009
0.014
0.018
0.020
0.031
0.036
0.047
0.066
0.086
0.13
0.19
0.25
0.38
0.56
0.85
1.1
1.8
Isat
(Amps)
20.0
16.0
14.0
12.0
10.0
8.0
7.0
5.5
4.5
3.5
3.0
2.6
2.4
1.9
1.4
1.2
1.0
Irms
(Amps)
8.6
7.1
6.2
5.3
4.3
4.0
3.5
3.0
2.6
2.3
1.8
1.5
1.2
1.0
0.82
0.72
0.56
DIMENSIONS
[in inches millimeters]
A
Max.
B
Max.
D
Max.
E
F
H
I
G
J
A (Max.)
0.730 [18.54]
B (Max.)
0.600 [15.24]
D (Max.)
0.280 [7.11]
E
0.100 [2.54]
F
0.100 [2.54]
G
0.500 [12.70]
H
0.115 [2.92]
I
0.490 [12.45]
J
0.110 [2.79]
DESCRIPTION
IDC-7328
MODEL
10
µ
H
INDUCTANCE VALUE
±
20%
INDUCTANCE TOLERANCE
SAP PART NUMBERING GUIDELINES (INTERNAL)
I
D
C
7
3
SIZE
2
8
N
B
1
0
0
M
TOL.
PRODUCT FAMILY
See the end of this data book for conversion tables
PACKAGE
CODE
INDUCTANCE
VALUE
Document Number 34008
Revision 28-Aug-02
For technical questions, contact Magnetics@vishay.com
www.vishay.com
33
