63KS32-060T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 63KS32-060T

63KS32-060T: DescriptionSINGLE, 2 CHANNELS, ROTARY OPTICAL POSITION ENCODER, ROHS COMPLIANT PACKAGE-4; CategoryLED optoelectronic/LED photoelectric; File Size344KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com; Environmental Compliance

Download Datasheet Parametric View All

63KS32-060T Overview

SINGLE, 2 CHANNELS, ROTARY OPTICAL POSITION ENCODER, ROHS COMPLIANT PACKAGE-4

63KS32-060T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Grayhill
package instruction	ROHS COMPLIANT PACKAGE-4
Reach Compliance Code	compliant
Configuration	SINGLE, 2 CHANNELS
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	ROTARY POSITION ENCODER
Base Number Matches	1

Preview

Download Datasheet

View All

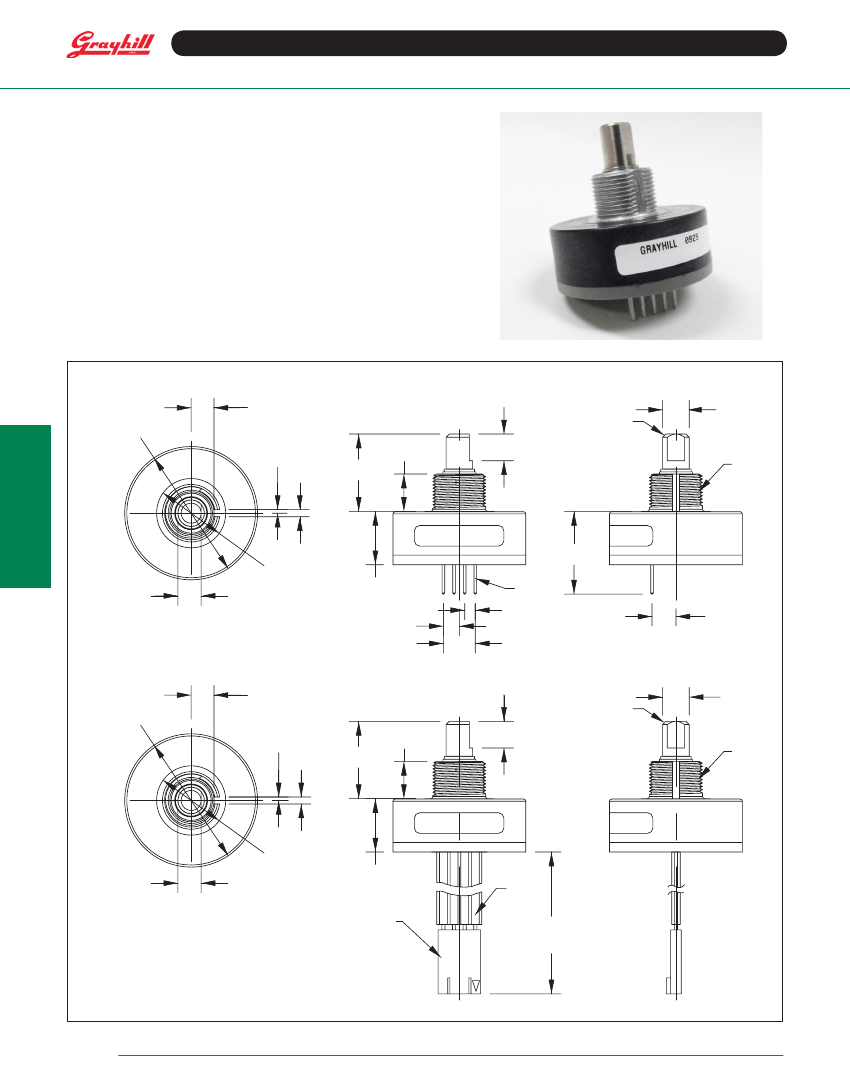

Optical Encoders

series 63K

High resolution, Ball Bearing,

4-Pin

Features

• 25, 32, 50, 64, 100, 128 and 256

Cycles per Revolution Available

• Sealed Version Available

• Rugged Construction

• Cable or Pin Version

• 300 Million Rotational Cycles

• 5,000 RPM Shaft Rotation

Dimensions

In inches (and millimeters)

toP vieW

1.250 DIA

(31.75)

.215

(5.46)

KEYWAY DEPTH

.350

(8.89)

.066

(1.68)

.725.025

(18.41.64)

.250

(6.35)

.025 X 45˚

(.64)

CHAMFER

.249/.250 DIA

(6.32/6.34)

.033

(.84)

Optical and Mechanical

Encoders

.219

(5.57)

1/2 - 32

UN-2A

THREADS

GRAYHILL XXXX X-X

63KXXX

XXXX X-X

.776.025

(19.71.64)

.650 DIA

(16.51)

MOUNTING

SURFACE

.501

(12.73)

PIN #1

.100

(2.54)

.300

(7.62)

.150

(3.81)

.225

(5.71)

toP vieW

1.250 DIA

(31.75)

.215

(5.46)

KEYWAY DEPTH

.350

(8.89)

.066

(1.68)

.725.025

(18.42.64)

.250

(6.35)

.025 X 45˚

(.64)

CHAMFER

.249/.250 DIA

(6.32/6.34)

.033

(.84)

1/2 - 32

UN-2A

THREADS

GRAYHILL XXXX X-X

63KXXX-XXX

XXXX X-X

XX-XXX

.219

(5.57)

.650 DIA

(16.51)

MOUNTING

SURFACE

.501

(12.73)

PIN #1

CONNECTOR IS

MOLEX P/N

14-56-3046

OR EQUIVALENT

CABLE LENGTH

6.000, 25

UNLESS OTHERWISE SPECIFIED, DIMENSION TOLERANCES ARE AS FOLLOWS:

LINEAR .010 (.25), DIAMETERS .010 (.025), ANGULAR 5˚

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
