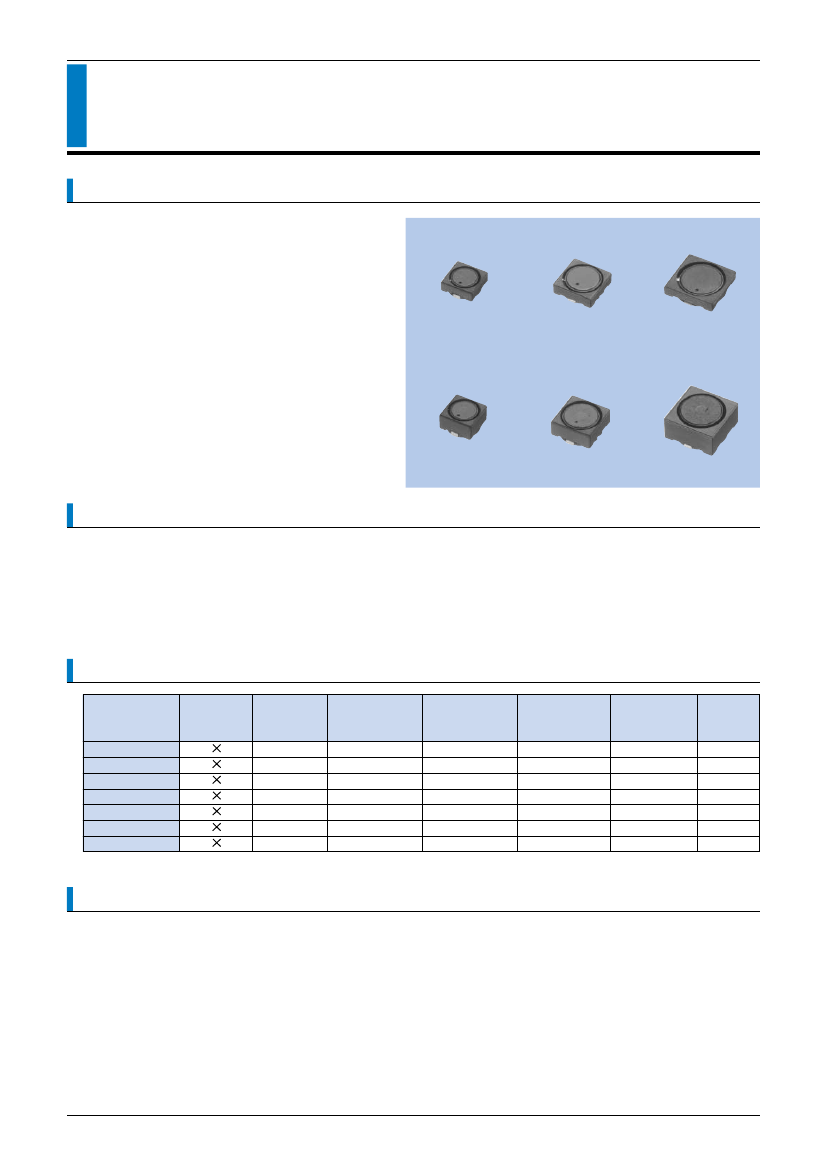

MITSUMI

Power Inductors

C8-H, C10-H, C12-H Series

OUTLINE

High current and low resistance of choke coil

have been lined up for note PC and amusement

equipment. This series is two ranks size down

from Cxx-K series.

C8-H3.5R

C10-H3.5R

C12-H3R

C8-H5R

C10-H5R

C12-H5R

FEATURES

1. Ribbon wire for low DC resistance.

2. New designed structure for high current proof.

3. Small package from suitable structure using simulation.

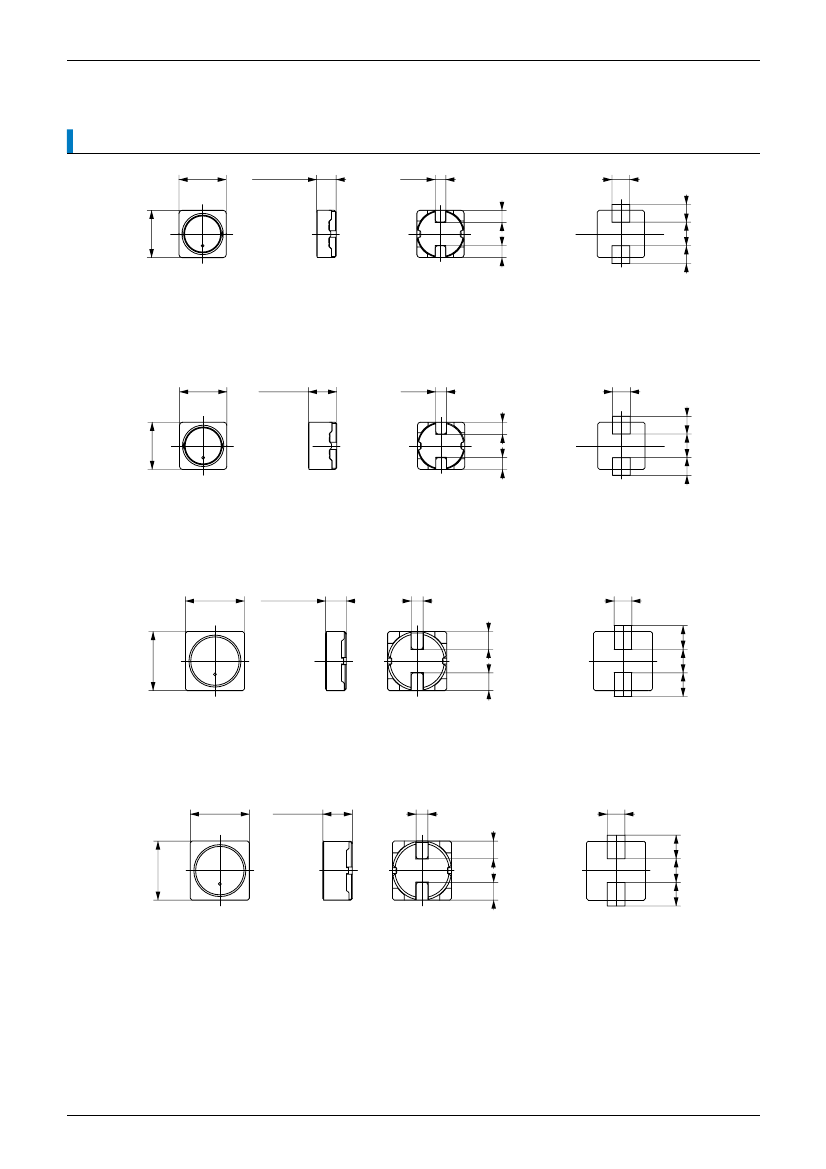

SPECIFICATIONS

Type

C8-H3.5R

C8-H5R

C10-H3.5R

C10-H5R

C12-H3R

C12-H5R

C12-H7R

Size (mm)

12.5

H length

(Unit : mm)

3.5

5.0

3.5

5.0

3.0

5.0

7.0

Inductance

1.5~10

1.6~10

1.0~10

1.5~10

Operational Frequency Rated Current DC Resistance

Pcs/Reel

(KHz)

(A)

(mΩ)

500

3.2

5.5

3.1~8.0

3.8~9.0

4.8~12.0

3.8~11.0

5.5~11.0

7.3~14.0

16~65

8~24

7.0~45

3.5~20

4.2~41

4.7~24

2.7~10

1000

500

800

500

800

500

USES

DC/DC converter for CPU in note PC or amusement equipment.
