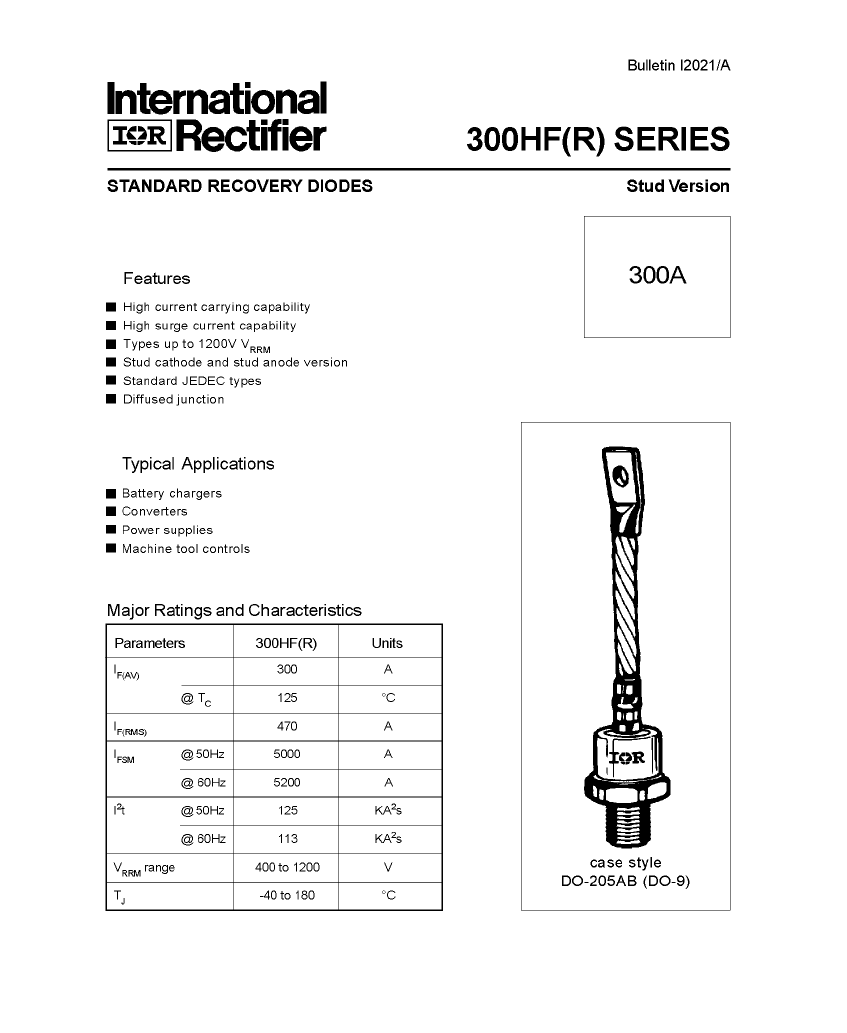

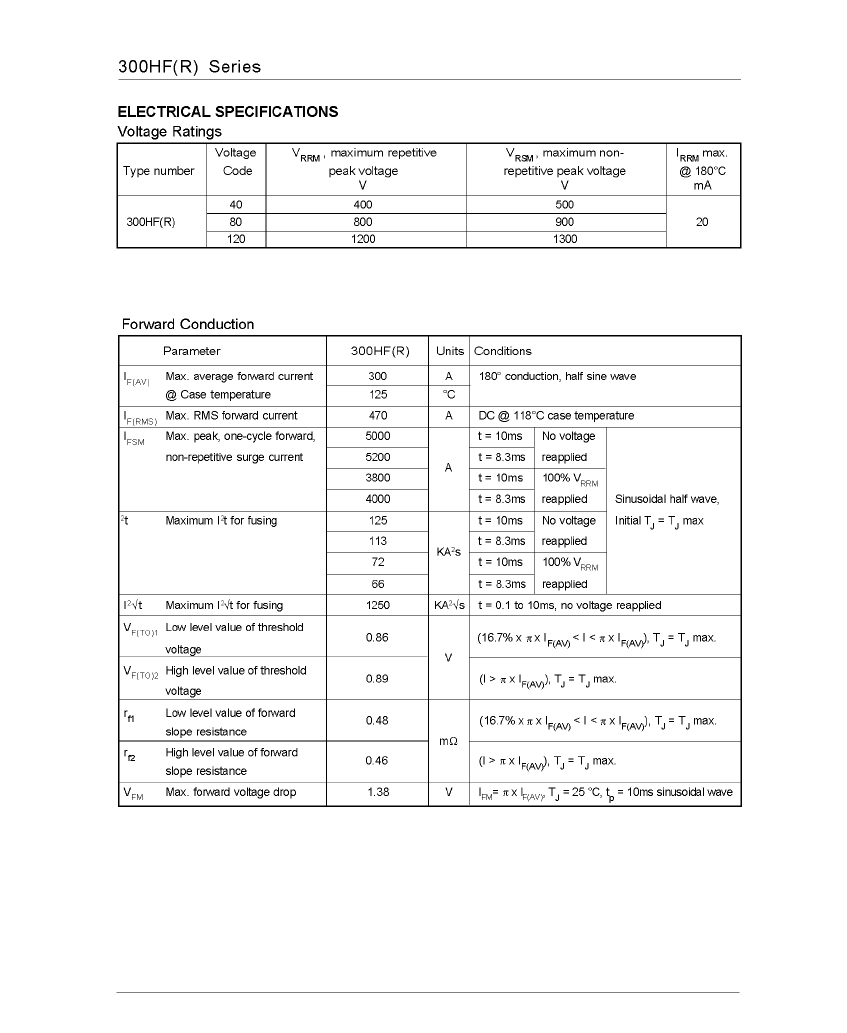

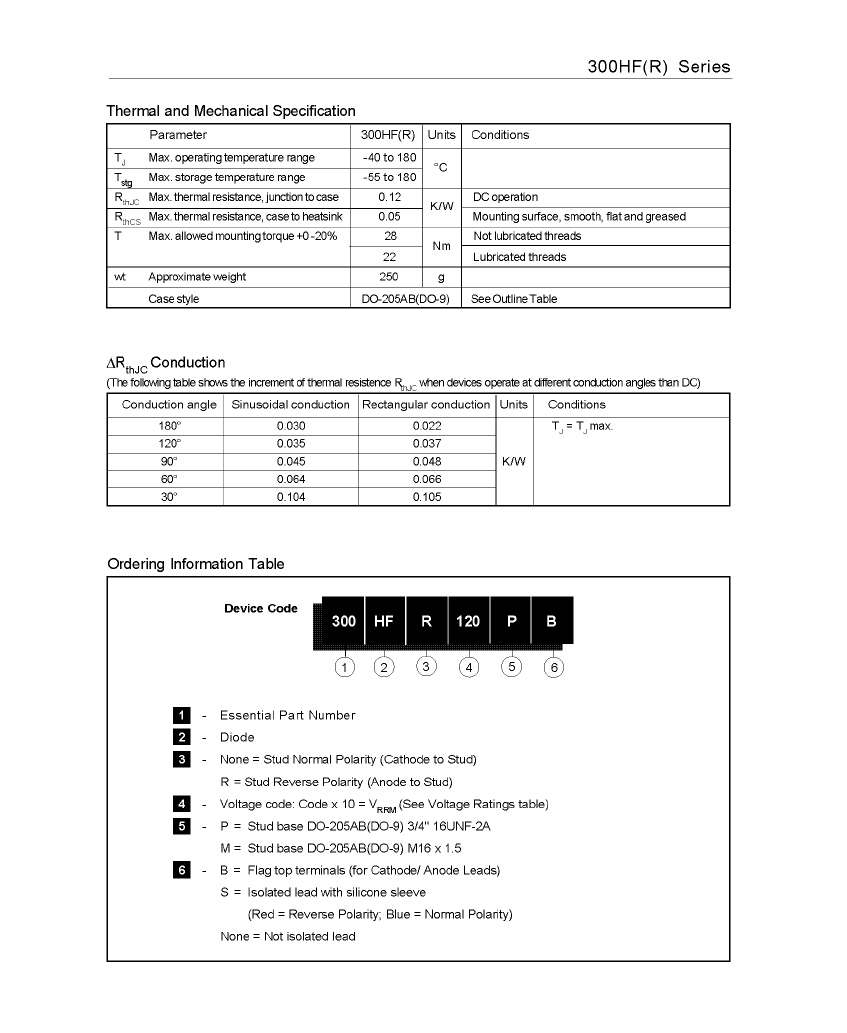

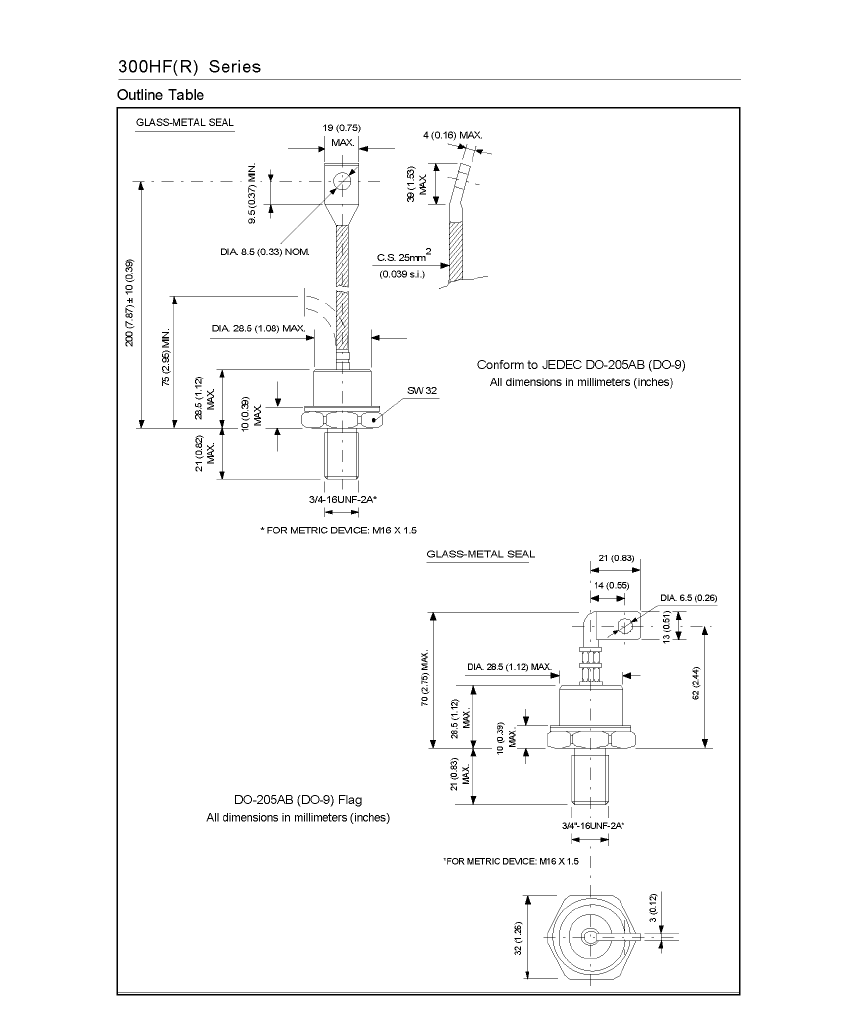

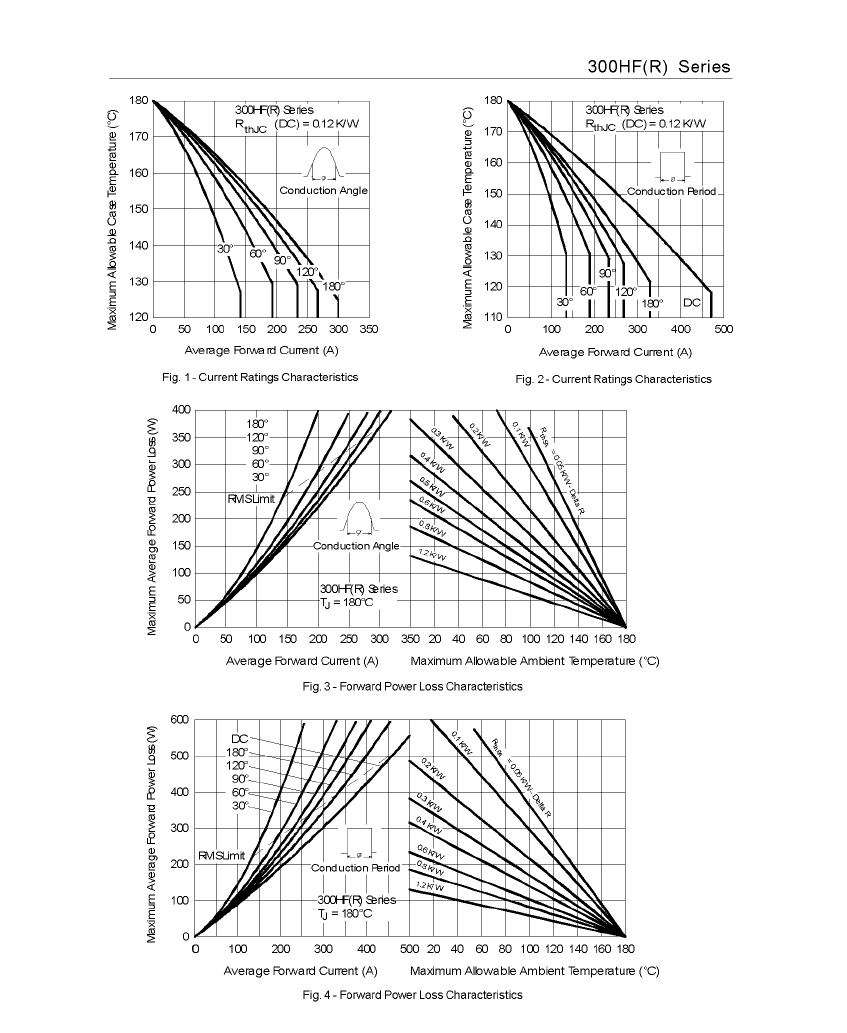

Rectifier Diode, 1 Phase, 1 Element, 300A, 800V V(RRM), Silicon
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | International Rectifier （ Infineon ） |
| package instruction | O-MUPM-H1 |
| Reach Compliance Code | compliant |
| application | GENERAL PURPOSE |
| Shell connection | ANODE |
| Configuration | SINGLE |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.38 V |
| JESD-30 code | O-MUPM-H1 |
| JESD-609 code | e0 |
| Maximum non-repetitive peak forward current | 4000 A |
| Number of components | 1 |
| Phase | 1 |
| Number of terminals | 1 |
| Maximum output current | 300 A |
| Package body material | METAL |
| Package shape | ROUND |
| Package form | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V |
| surface mount | NO |
| Terminal surface | TIN LEAD |
| Terminal form | HIGH CURRENT CABLE |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Base Number Matches | 1 |
| 300HFR80 | 300HF80 | 300HFR40 | 300HFR120 | 300HF120 | 300HF40 | |
|---|---|---|---|---|---|---|
| Description | Rectifier Diode, 1 Phase, 1 Element, 300A, 800V V(RRM), Silicon | Rectifier Diode, 1 Phase, 1 Element, 300A, 800V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 300A, 400V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 300A, 1200V V(RRM), Silicon | Rectifier Diode, 1 Phase, 1 Element, 300A, 1200V V(RRM), Silicon, | Rectifier Diode, 1 Phase, 1 Element, 300A, 400V V(RRM), Silicon, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） | International Rectifier （ Infineon ） |
| package instruction | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| application | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE | GENERAL PURPOSE |
| Shell connection | ANODE | CATHODE | ANODE | ANODE | CATHODE | CATHODE |
| Configuration | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE | SINGLE |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| Maximum forward voltage (VF) | 1.38 V | 1.38 V | 1.38 V | 1.38 V | 1.38 V | 1.38 V |
| JESD-30 code | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 | O-MUPM-H1 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Maximum non-repetitive peak forward current | 4000 A | 4000 A | 4000 A | 4000 A | 4000 A | 4000 A |
| Number of components | 1 | 1 | 1 | 1 | 1 | 1 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 1 | 1 | 1 | 1 | 1 | 1 |
| Maximum output current | 300 A | 300 A | 300 A | 300 A | 300 A | 300 A |
| Package body material | METAL | METAL | METAL | METAL | METAL | METAL |
| Package shape | ROUND | ROUND | ROUND | ROUND | ROUND | ROUND |
| Package form | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT | POST/STUD MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 800 V | 800 V | 400 V | 1200 V | 1200 V | 400 V |
| surface mount | NO | NO | NO | NO | NO | NO |
| Terminal surface | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD | TIN LEAD |
| Terminal form | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE | HIGH CURRENT CABLE |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 |
| ECCN code | - | EAR99 | EAR99 | - | EAR99 | EAR99 |
