Interface Connectors for Cradle
CAM-G75, G76
Connectors
FEATURES
1. Developed for connection of portable equipment
with cradles.
2. 10-pole specification with SMT on the portable
equipment side, DIP on the cradle side.
3. Sequential connection in the contact position
(depth direction)possible.
4. Construction enables absorption of play in
connector units.
5. Shape enables corrections for inclined mating.
(Cradles Side)
CAM-G75
CAM-G76
(Portable Equipment Side)
HOW TO ORDER
1.CAM-G75
2.CAM-G76
G75-010-05 H-A G B A-H
1
1
2
3
4
5
6
7
8
9
G76-010-05 H-A G G A-H
1
1
2
3
4
5
6
7
8
9
2
3
4 5
6
7
8
9
2
3
4 5
6
7
8
9
Series No. (G75)
No. of contacts (010 : 10pins)
Housing material (05 : 46 Nylon resin)
UL grade (H : UL94HB)
Contact plating
(A : Contact area Gold, Lead area Gold)
Contact plating thickness (G : 0.3µm)
Contact read style (B : Angle)
Coupling side accessories (A : None)
Board side accessories (H : Wing)
Series No. (G76)
No. of contacts (010 : 10pins)
Housing material (05 : 46 Nylon resin)
UL grade (0 : UL94HB)
Contact plating
(A : Contact area Gold, Lead area Gold)
Contact plating thickness (G : 0.3µm)
Contact read style (G : Angle SMT)
Coupling side accessories (A : None)
Board side accessories (H : Wing)
MITSUMI
Interface Connectors for Cradle
SPECIFICATIONS
ELECTRICAL CHARACTERISTICS
Rated Voltage
Rated Current
Withstanding Voltage
Insulation Resistance
Contact Resistance
100V AC(rms)
1.0A
250V AC (rms) 1minute
100MΩ min. (Initial 250V DC)
50mΩ max.(Initial)
MECHANICAL CHARACTERISTICS
Life (Matching Cycle)
Total Insertion Force
Eject Force
Using Temperature Range
10,000 times.
29.4N (3kgf ) max.
29.4N (3kgf ) max.
-20˚C~+70˚C
MATERIAL & FINISH
Component Parts
Housing
Contact
CAM-G75
Shielded Case
Coil Spring
Shutter
Housing
Contact
CAM-G76
Shielded Case
Coil Spring
Shutter
Material
46 Nylon resin
Copper Alloy
Copper Alloy
SUS/SUS
46 Nylon resin
46 Nylon resin
Copper Alloy
Copper Alloy
SUS/SUS
46 Nylon resin
Finish
(Black)
Gold plating
Gold plating
——
(Black)
(Black)
Gold plating
Gold plating
——
(Black)

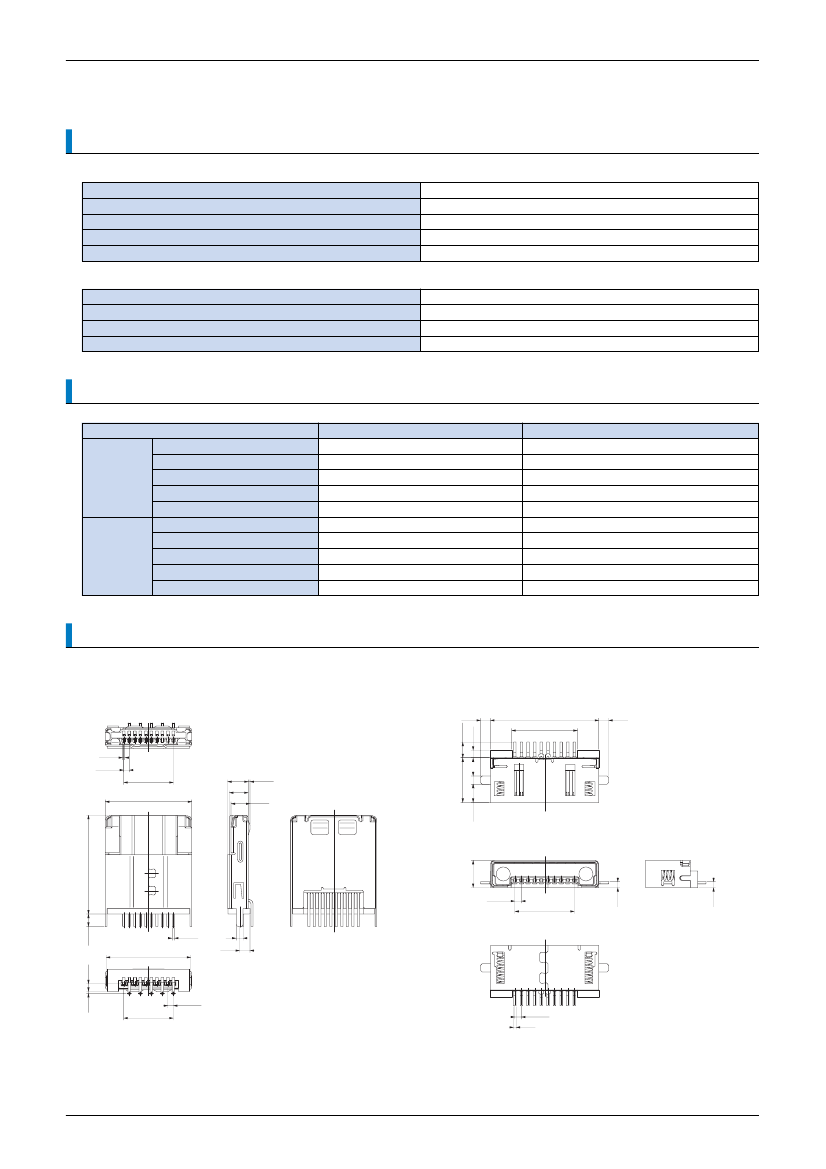

DIMENSIONS
CAM-G75
CAM-G76
1.2
1.9
0.9
13.2
7.95
1.2
0.35
P=0.8
7.2
12.6
5.5
1
3.4
2.2
14.35
3
2.75
2.8
0.25
P=0.8
7.2
1.8
0.32
12.3
1
1.5
1.1
0.3
P=0.8
7.2
P=0.8
0.3
0.7
0.7
