DCA-E03 Overview

Small UWB Antenna

MITSUMI

Small UWB Antenna

DCA-E03

Telecommunication component

OUTLINE

Small UWB antenna of 10 x 10 x 1mm using a

single-sided ceramic board.

FEATURES

1. Slim size: 10 x 10 x 1mm.

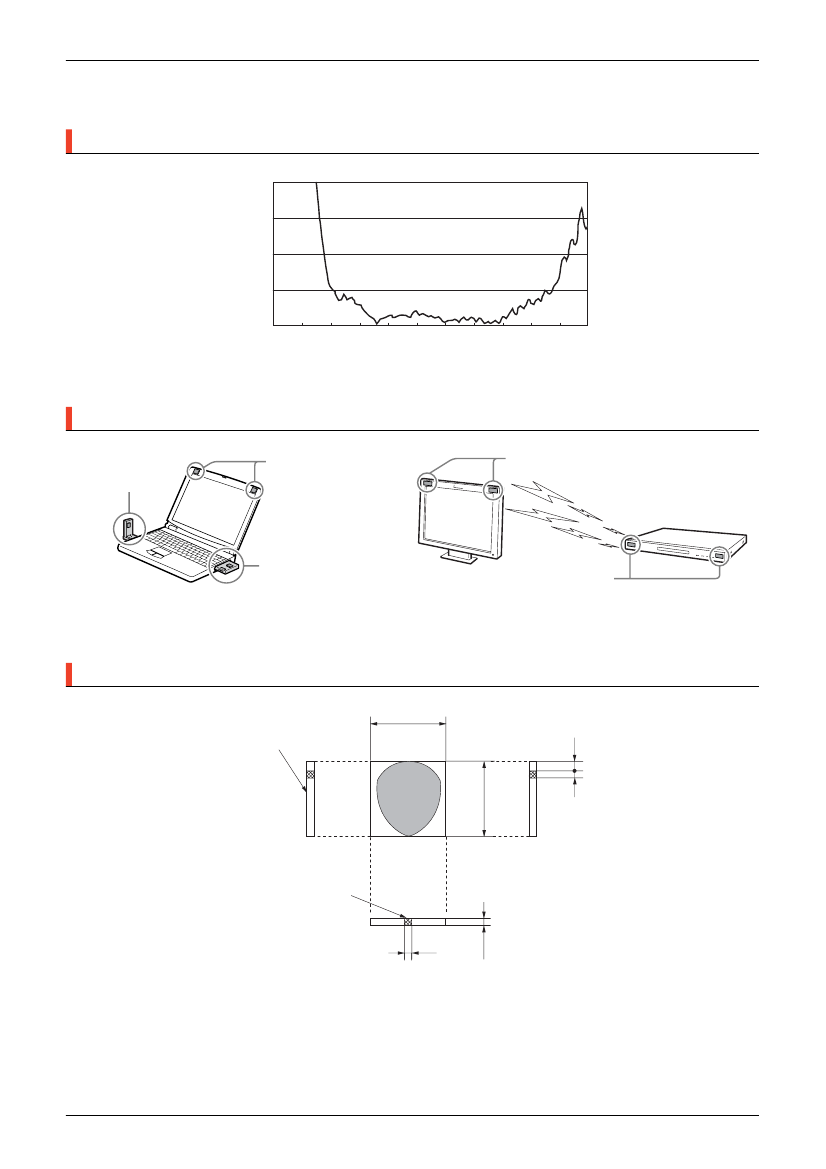

2. Excellent VSWR characteristics over wide bandwidth from 3.1 to 10.6 GHz.

USES

1. For wireless USB

2. For HD TV

3. For high-speed storage

SPECIFICATIONS

Item

Used frequency

Polarization

VSWR

Output impedance

Specifications

3.1 to 10.6 GHz

Linear polarization

≤

2.0

50Ω

*

Specifications are subject to change due to ongoing product development and improvement.
