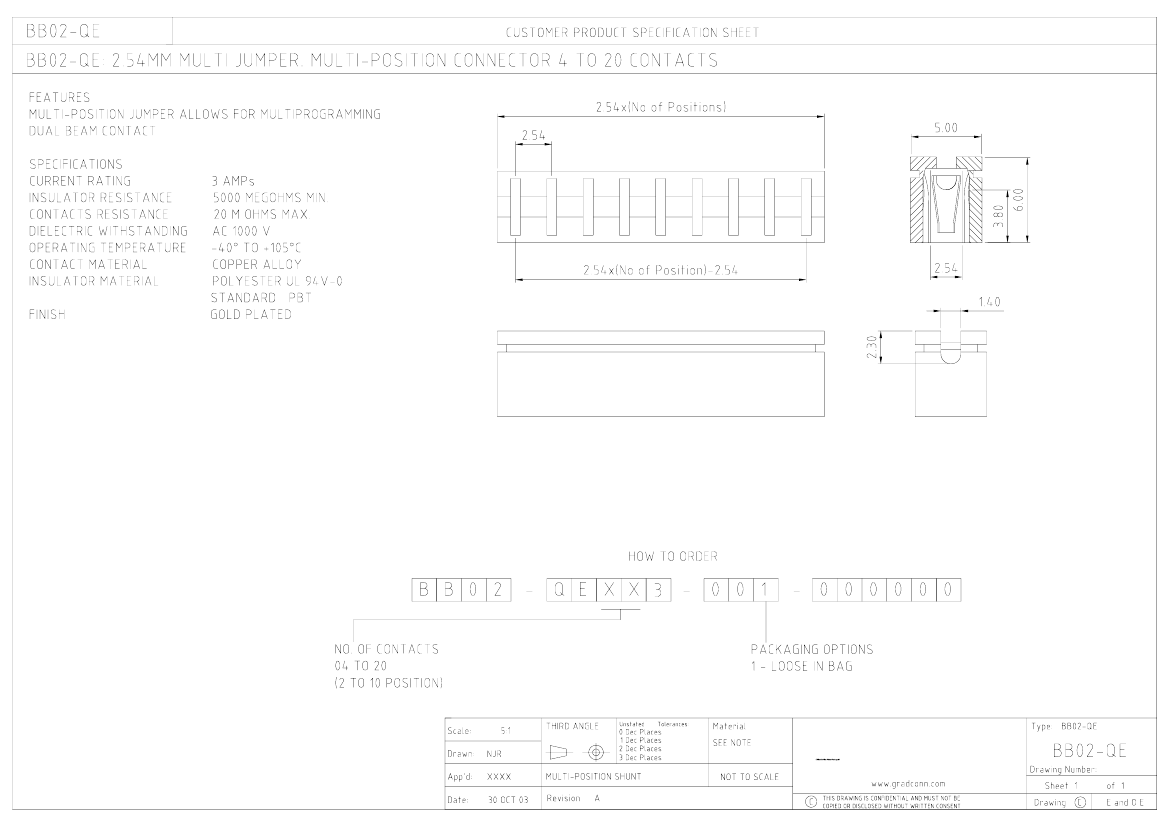

Preview

BB02-QE043-001-000000: DescriptionShunts/Jumper Connector; CategoryThe connector The connector; File Size47KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-QE043-001-000000 Overview

Shunts/Jumper Connector

BB02-QE043-001-000000 Parametric

Parameter Name	Attribute value
Maker	GradConn Ltd
Reach Compliance Code	unknown
Other features	DUAL BEAM CONTACT, BAG PKG.
body width	0.197 inch
subject depth	0.236 inch
body length	0.4 inch
Body/casing type	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Dielectric withstand voltage	1000VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BB02-QE
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of connectors	ONE
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

BB02-QE043-001-000000 Related Products

	BB02-QE043-001-000000	BB02-QE223-001-000000	BB02-QE123-001-000000	BB02-QE203-001-000000	BB02-QE183-001-000000	BB02-QE103-001-000000	BB02-QE083-001-000000	BB02-QE143-001-000000	BB02-QE063-001-000000
Description	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector	Shunts/Jumper Connector
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Other features	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.	DUAL BEAM CONTACT, BAG PKG.
body width	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch	0.197 inch
subject depth	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch	0.236 inch
body length	0.4 inch	2.2 inch	1.2 inch	2 inch	1.8 inch	1 inch	0.8 inch	1.4 inch	0.6 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Connector type	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR	SHUNTS / JUMPER CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BB02-QE	BB02-QE	BB02-QE	BB02-QE	BB02-QE	BB02-QE	BB02-QE	BB02-QE	BB02-QE
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Total number of contacts	4	22	12	20	18	10	8	14	6
Base Number Matches	1	1	1	1	1	1	1	1	1
Maker	GradConn Ltd	-	-	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd
