EV32C6A3A-35.328MTR datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EV32C6A3A-35.328MTR

EV32C6A3A-35.328MTR: DescriptionVCXO, CLOCK, LVCMOS/TTL OUTPUT; CategoryPassive components oscillator; File Size109KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com

Download Datasheet Parametric View All

EV32C6A3A-35.328MTR Overview

VCXO, CLOCK, LVCMOS/TTL OUTPUT

EV32C6A3A-35.328MTR Parametric

Parameter Name	Attribute value
Maker	ECLIPTEK
Reach Compliance Code	unknown
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; TR, 14 INCH
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	50 ppm
frequency stability	50%
JESD-609 code	e4
linearity	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	35.328 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	LVCMOS/TTL
Output load	15 pF
physical size	7.0mm x 5.0mm x 1.65mm
longest rise time	5 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

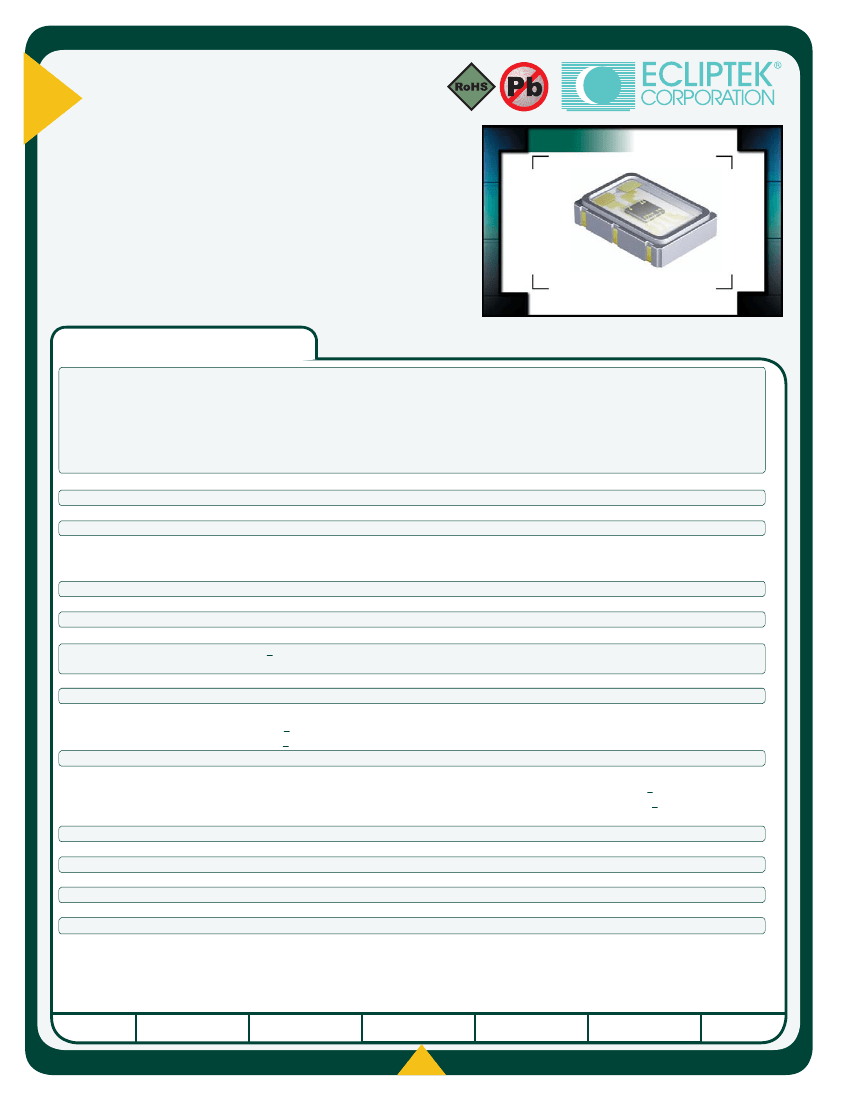

EV32C6

Series

• Voltage Controlled Crystal Oscillators (VCXO)

• LVCMOS/TTL Output

• +3.3V Supply Voltage

• Tri-State Output Function (Pad 2)

• External Voltage Control Function

• 6 Pad Ceramic SMD Package

• RoHS Compliant (Pb-Free)

ELECTRICAL SPECIFICATIONS

EV32C6

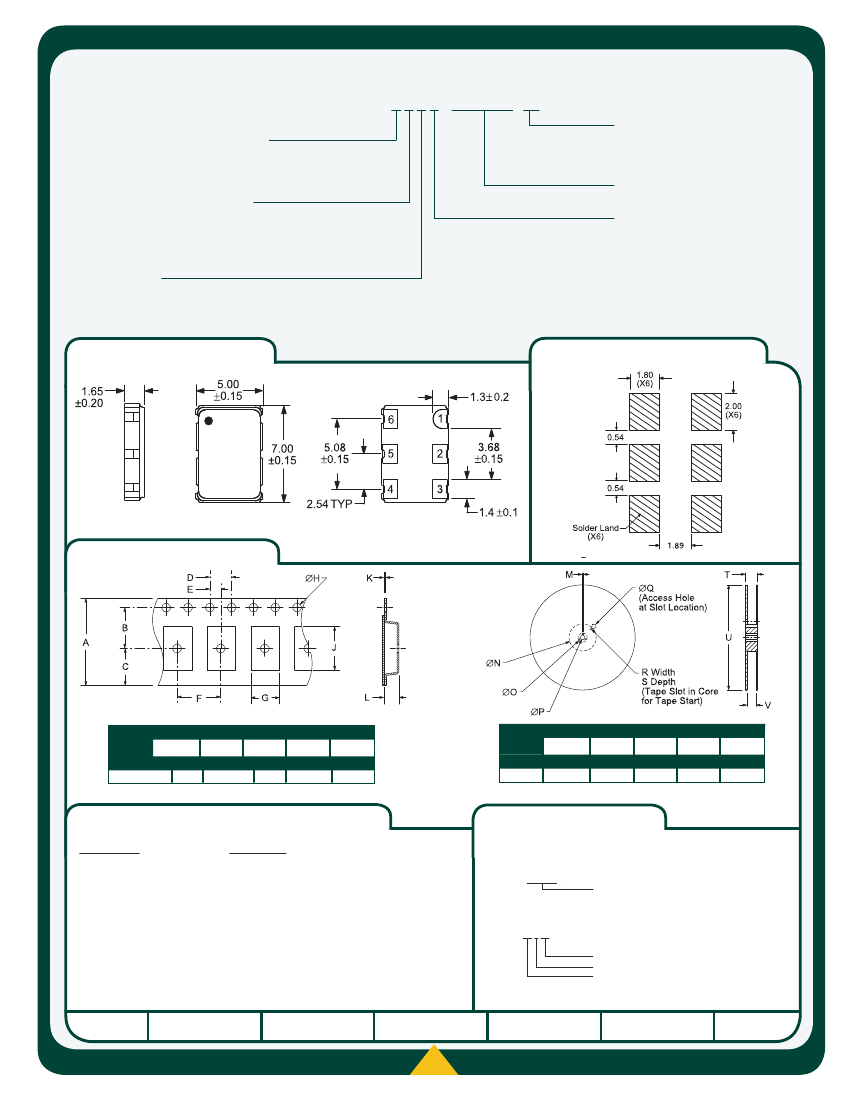

1.65

7.0

5.0

OSCILLATOR

1.544MHz, 2.000MHz, 2.048MHz, 3.088MHz, 3.580MHz, 3.686MHz, 4.000MHz, 4.032MHz, 4.096MHz, 4.434MHz,

5.000MHz, 6.144MHz, 6.176MHz, 6.312MHz, 6.400MHz, 8.000MHz, 8.192MHz, 8.448MHz, 10.000MHz,

12.000MHz, 12.288MHz, 12.352MHz, 12.960MHz, 13.000MHz, 13.500MHz, 14.318MHz, 15.360MHz, 15.440MHz,

16.000MHz, 16.384MHz, 16.660MHz, 17.664MHz, 18.432MHz, 19.200MHz, 19.440MHz, 20.000MHz, 20.480MHz,

24.000MHz, 24.576MHz, 24.704MHz, 25.000MHz, 25.920MHz, 26.000MHz, 27.000MHz, 28.636MHz, 30.000MHz,

30.720MHz, 32.000MHz, 32.768MHz, 34.368MHz, 35.328MHz, 36.864MHz, 38.880MHz, 40.000MHz, 40.960MHz,

44.736MHz, 49.152MHz, 50.000MHz, 51.840MHz, 52.000MHz, 62.208MHz, 65.536MHz, 74.250MHz, 77.760MHz

Operating Temperature Range (OTR)

0°C to +70°C or -40°C to +85°C

Storage Temperature Range (STR)

-55°C to 125°C

Supply Voltage (V

)

3.3V

±10%

Input Current (I

)

15mA Maximum

Frequency Tolerance/Stability

Inclusive of All Conditions: Calibration Tolerance at 25°C,

±50ppm Maximum

Frequency Stability over the Operating Temperature Range, Supply

Voltage Change, Output Load Change, Shock, and Vibration

Output Voltage Logic High (V

)

= -4mA

90% of V

Minimum

Output Voltage Logic Low (V

)

= +4mA

10% of V

Maximum

Rise Time / Fall Time (T

)

20% to 80% of Waveform

5 nSeconds Maximum

Duty Cycle (SYM)

at 50% of Waveform

50 ±5(%) Typical, 50 ±10(%) Maximum

Load Drive Capability (C

LOAD

)

< 12.288MHz

10TTL Load or 30pF LVCMOS Load Maximum

> 12.288MHz

15pF LVCMOS Load Maximum

Aging (at 25°C)

±2ppm/1st year typical, ±10ppm /10 years Max.

Start Up Time (T

)

10 mSeconds Maximum

Tri-State Input Voltage

: No Connection

Enables Output

: >0.9V

Enables Output

: <0.1V

Disables Output: High Impedance

RMS Phase Jitter

=12kHz to 20MHz

1pSec Maximum

Absolute Pull Range (APR)

Inclusive of All Conditions: Calibration Tolerance at 25°C,

±50ppm Minimum

Frequency Stability over the Operating Temperature Range, Supply ±80ppm Minimum < 51.840MHz only

Voltage Change, Output Load Change, Shock, Vibration, and Aging ±100ppm Minimum < 36.000MHz only

over Control Voltage (V

)

Linearity

10% Typical, 20% Maximum

Control Voltage (V

): Test Conditions for APR

0.3V

to 3.0V

Control Voltage Range (V

)

0.0V

to V

Transfer Function

Positive Transfer Characteristic

Input Impedance (Z

)

50kOhms Minimum

Input Leakage Current

10µA Maximum

Modulation Bandwidth (MBW)

-3dB, V

= 1.65V

10kHz Minimum

Typical Phase Noise (Fo = 27.000MHz)

At offset of 10Hz

-70dBc/Hz

At offset of 100Hz

-100dBc/Hz

At offset of 1kHz

-130dBc/Hz

At offset of 10kHz

-147dBc/Hz

At offset of 100kHz

-152dBc/Hz

Frequency Range (F

)
